010601-B4 - Sound Insulation, Engine Comp

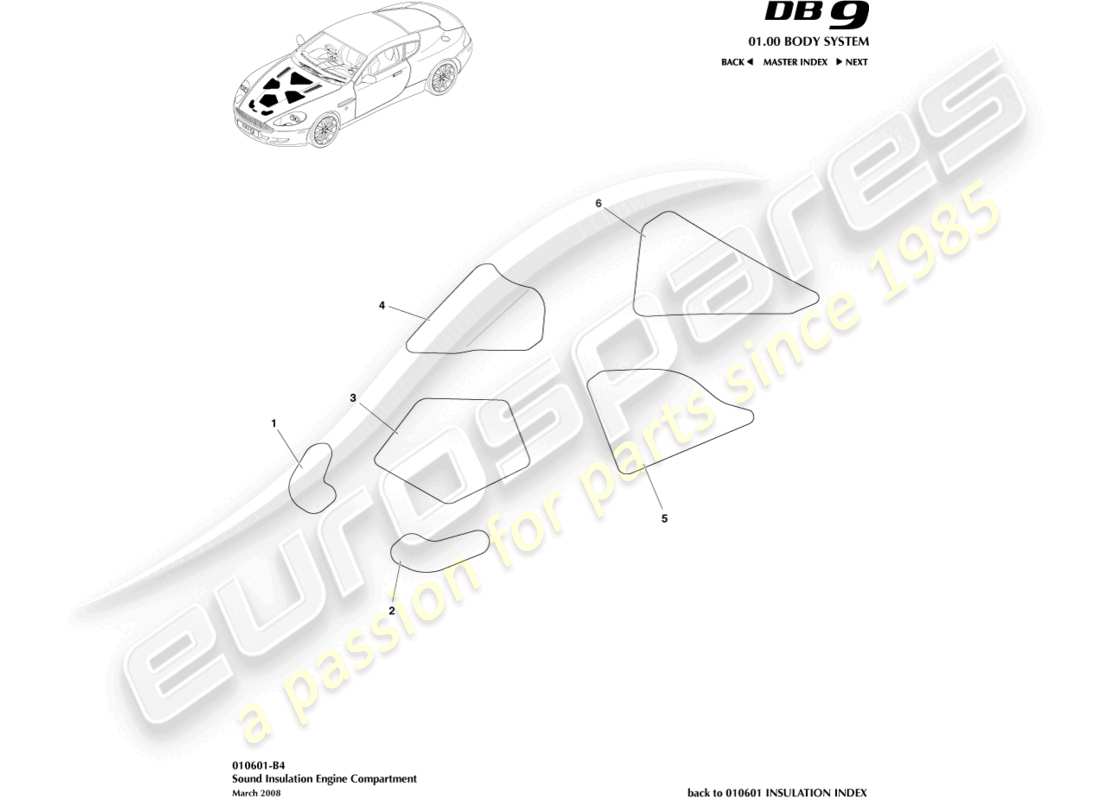

Aston Martin DB9 (2008) Sound Insulation, Engine Comp Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # -
      MPN: 4G43-16738-AA
      BONNET LINERS (COMPLETE SET - 4 PIECE)
      # -
      MPN: 4G43-16738-AB
      BONNET LINERS (COMPLETE SET - 6 PIECE)
      # -
      MPN: 4G43-16738-AD
      BONNET LINERS (COMPLETE SET - 4 PIECE)
      06MY on
      from £551.36
      from £551.36
      This part replaces part number 4G43-16738-A-PIA02
      # -
      MPN: 8G43-16738-AA
      BONNET LINERS ( COMPLETE SET )
      08MY
      # -
      MPN: 9G43-16738-AB
      BONNET LINERS ( COMPLETE SET )
      09MY
      # 1
      MPN: 4G43-16738-A-PIA06
      INSULATION, RH
      # 2
      MPN: 4G43-16738-A-PIA05
      INSULATION, LH
      # 3
      MPN: 4G43-16738-A-PIA02
      Insulation
      07MY
      Supersession
      Supersession
      # 3
      MPN: 8G43-16738-A-PIA02
      Insulation
      08MY
      # 4
      MPN: 4G43-16738-A-PIA03
      INSULATION, RH
      07MY
      # 4
      MPN: 8G43-16738-A-PIA03
      INSULATION, RH
      08MY
      # 5
      MPN: 4G43-16738-A-PIA04
      INSULATION, LH
      07MY
      # 5
      MPN: 8G43-16738-A-PIA04
      INSULATION, LH
      08MY
      # 6
      MPN: 4G43-16738-A-PIA01
      BONNET LINERS
      07MY
      # 6
      MPN: 8G43-16738-A-PIA01
      BONNET LINERS
      08MY
