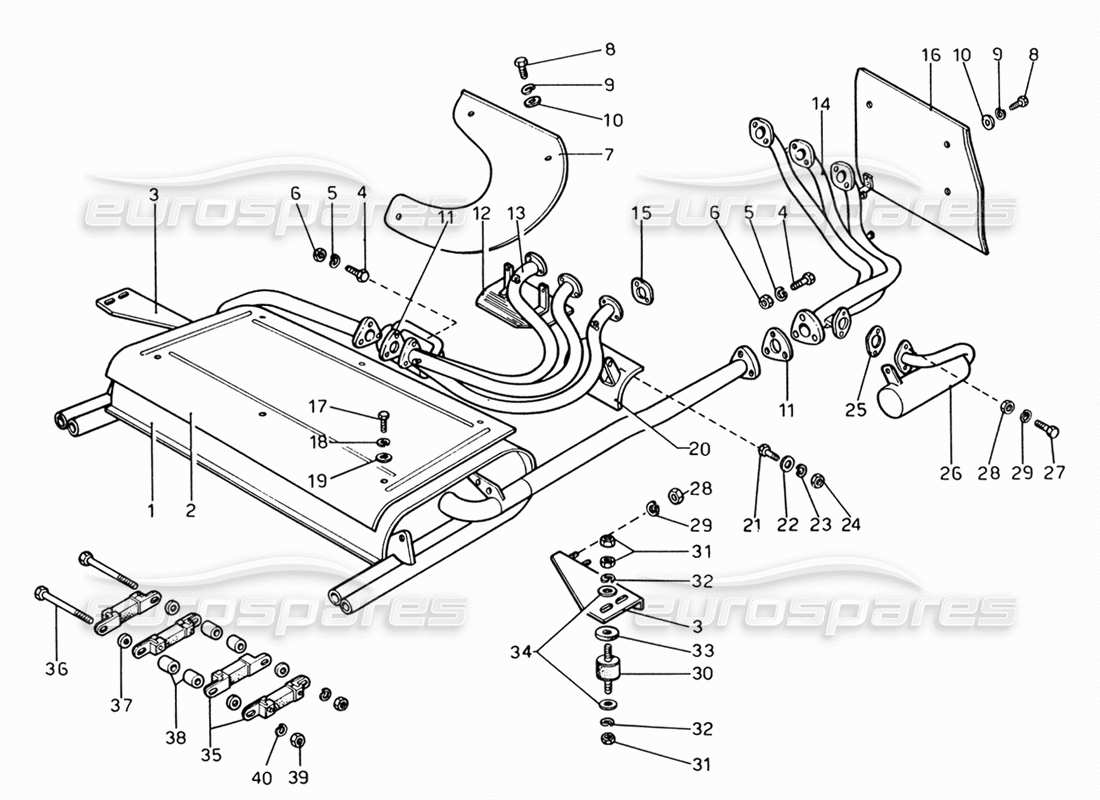

013 - Exhaust Pipes Assembly
Ferrari 206 GT Dino (1969) Exhaust Pipes Assembly Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

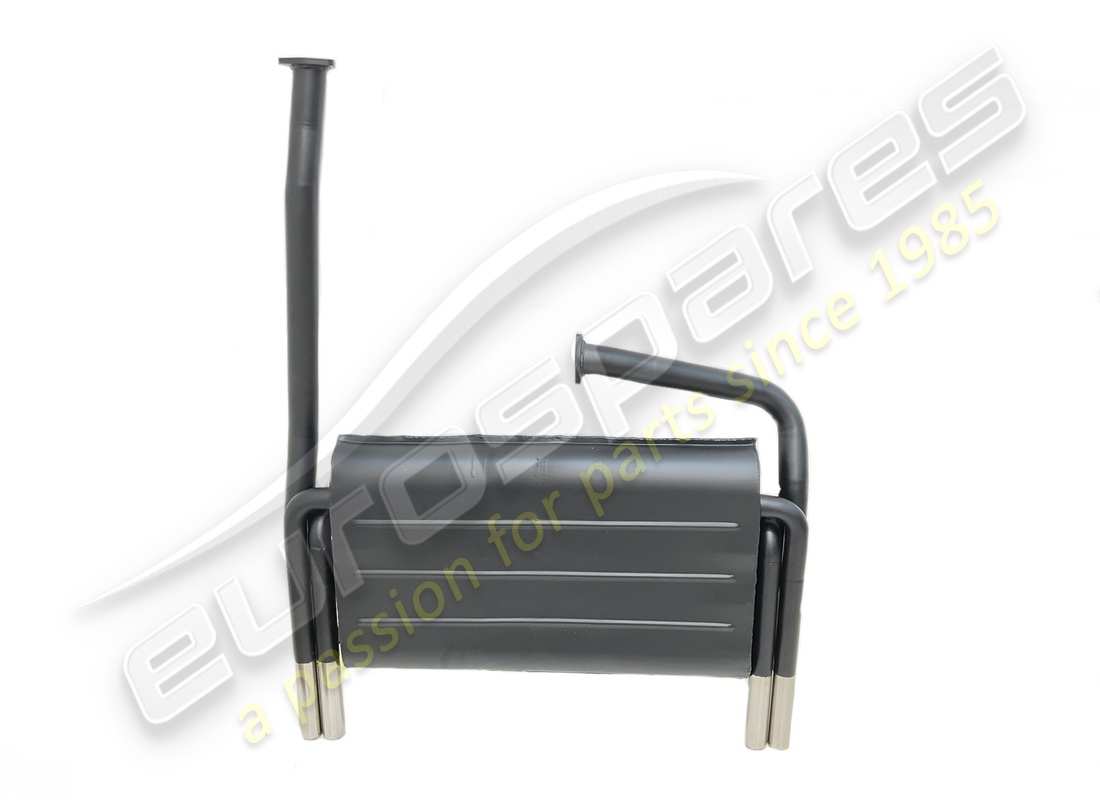

# 001
MPN: 95200126
REAR EXHAUST (ANSA)
from £2,770.00
from £2,770.00
This part replaces part number 20393
# 002
MPN: 20395
BULKHEAD FOR MUFFLER
236 B

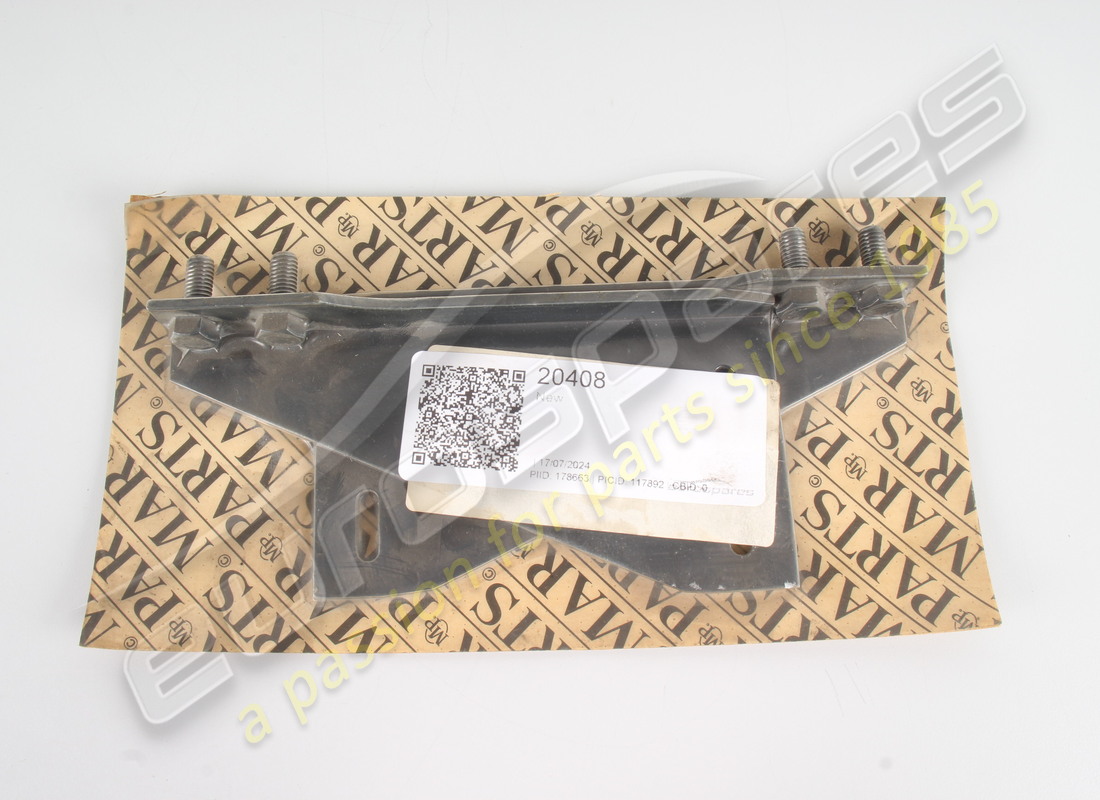

# 003
MPN: 20408
BRACKET / SUPPORT
236 B
from £65.33
from £65.33
# 004
MPN: 8X30-UNI 5738
BOLT
LOBO 8 G
# 005
MPN: REG. 8
WASHER
OEB
Supersession
Supersession
# 006
MPN: 94803
NUT
from £8.34
from £8.34
# 007
MPN: 20404
REAR MANIFOLD BULKHEAD
236 B
# 008
MPN: 6X16-UNI 5738
BOLT
LOBO 8 G
# 009
MPN: 6 R 4
WASHER
Supersession
Supersession
# 010
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 011
MPN: 20268
GASKET
55 mm Hole to Hole
from £19.17
from £19.17
# 012
MPN: 13237
PARATIA PROTEZIONE MOTORINO
236 B
from £53.50
from £53.50
# 013
MPN: 20421
COLLETTORE SCARICO POSTERIORE
236 L
from £2,410.04
from £2,410.04
# 014
MPN: 20422
COLLETTORE SCARICO ANTERIORE
236 L
from £2,156.92
from £2,156.92
# 015
MPN: 106125
GASKETS FOR COLLECTORS
from £7.54
from £7.54
This part replaces part number 105942 - and 1 more. Click to view details
# 016
MPN: 20405
FRONT MANIFOLD BULKHEAD
236 B
# 017
MPN: 6X10-UNI 5739
BOLT
LOBO 8 G
# 018
MPN: REG - 6
WASHER
OEB
# 019
MPN: 92330
WASHER
# 020
MPN: 13219
PARATIA PROTEZIONE SEMIASSE
from £52.52
from £52.52
# 021
MPN: 6X14-UN1 5739
BOLT
LOBO 8 G
# 022
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 023
MPN: 6 R 4
WASHER
Supersession
Supersession
# 024
MPN: 6 x 1 - UNI 5588
NUT
LOBO 8 G
# 025
MPN: 20389
GASKET
from £1,561.07
from £1,561.07
# 026
MPN: 20423
TUBO COMPENSATORS
236 B
from £104.60
from £104.60
# 027
MPN: M8x25 UNI - 5740
BOLT
236 B
# 028
MPN: 94803
NUT
LOBO 8GM
from £8.34
from £8.34
# 029
MPN: 8R4
WASHER
Supersession
Supersession
# 030
MPN: 20410
SUPPORT
Supersession
Supersession
# 031
MPN: 6 x 1 - UNI 5588
NUT
LOBO 8 G
# 032
MPN: 6 R 4
WASHER
Supersession
Supersession
# 033
MPN: 95403
GASKET OR SEAL
# 034
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 035
MPN: 101497
EXHAUST STRAP
not as spare part - use part number: 101497
from £6.61
from £6.61
This part replaces part number 20180 - and 1 more. Click to view details
# 036
MPN: 6x60-UNI 5737
BOLT
LOBO 8 G
# 037
MPN: 104339
SPACER
from £3.02
from £3.02
# 038
MPN: 20403
SPACER
236 B
# 039
MPN: 134041
NUT
from £0.54
from £0.54
This part replaces part number 15896221
# 040
MPN: 6 R 4
WASHER
Supersession
Supersession
