![ferrari 206 gt dino (1969) gear box transmission parts diagram](/img/CxEAAETdFts3TJZgKUPOQARFtQzRKDTIdD3N5Z8XlWg6TrAwxrYBAw%3D%3D/ferrari-206-gt-dino-(1969)-part-diagram-020.webp)

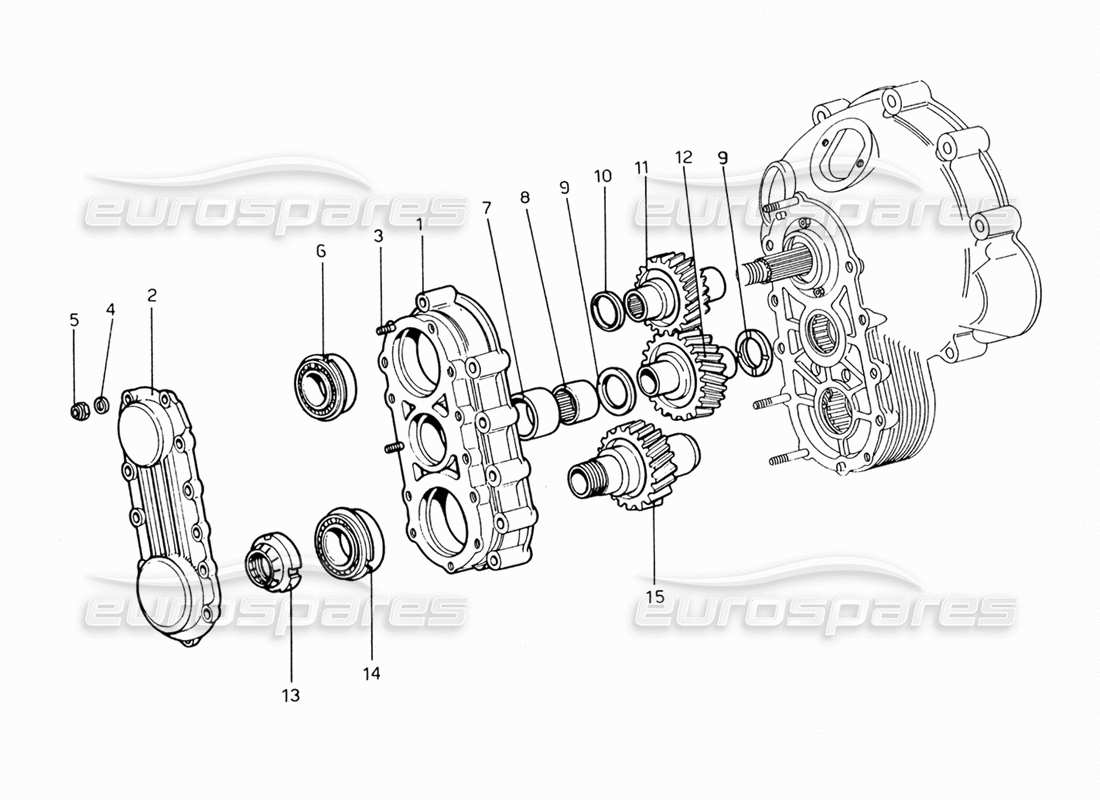

020 - Gear Box Transmission
Ferrari 206 GT Dino (1969) Gear Box Transmission Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: FIADINBOX
SERIES 1 FIAT DINO GEARBOX
2.0 (4 Speed ) 15,000 Miles
# 001
MPN: 500510
TRANSFER GEAR SUPPORT BOX
from £0.65
from £0.65
# 002
MPN: 500511
COVER
from £1.27
from £1.27
# 003
MPN: 95920110
THREADED STUD
6x22
from £1.31
from £1.31
# 004
MPN: REO6
STUD
OEB
Supersession
Supersession
# 005
MPN: 101239
NUT
from £1.60
from £1.60

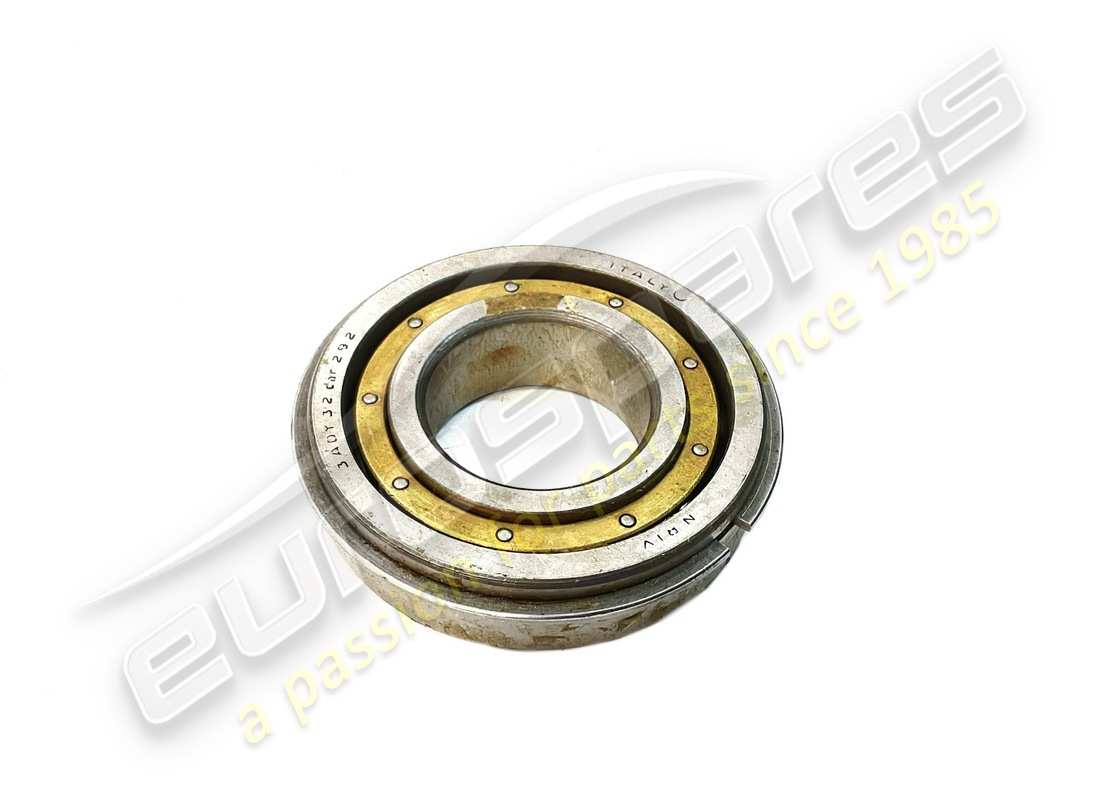

# 006
MPN: 3 ADY 32
BEARING
RIV
from £67.91
from £67.91
# 007
MPN: 500519
SPACER
from £61.58
from £61.58
# 008
MPN: HK 30/20
CUSCINETTO A RULLINI
INA
from £19.06
from £19.06
# 009
MPN: 500470
WASHER
from £82.80
from £82.80
# 010
MPN: 500516
DISYANZIALE
from £21.09
from £21.09
# 011
MPN: 500513
DRIVING GEAR
from £192.63
from £192.63
# 012
MPN: 500454
INGRANAGGIO INTERMEDIO
from £254.02
from £254.02
# 013
MPN: 500471
LOCKING RING NUT
from £103.74
from £103.74
# 014
MPN: 4 ADY
CUSCINETTO (35 - 72 - 17)
RIV
# 015
MPN: 500520
DRIVEN GEAR
from £451.50
from £451.50
