ferrari 208 turbo (1982) water pump and pipings parts diagram

018 - Water Pump and Pipings

Ferrari 208 Turbo (1982) Water Pump and Pipings Parts Diagram

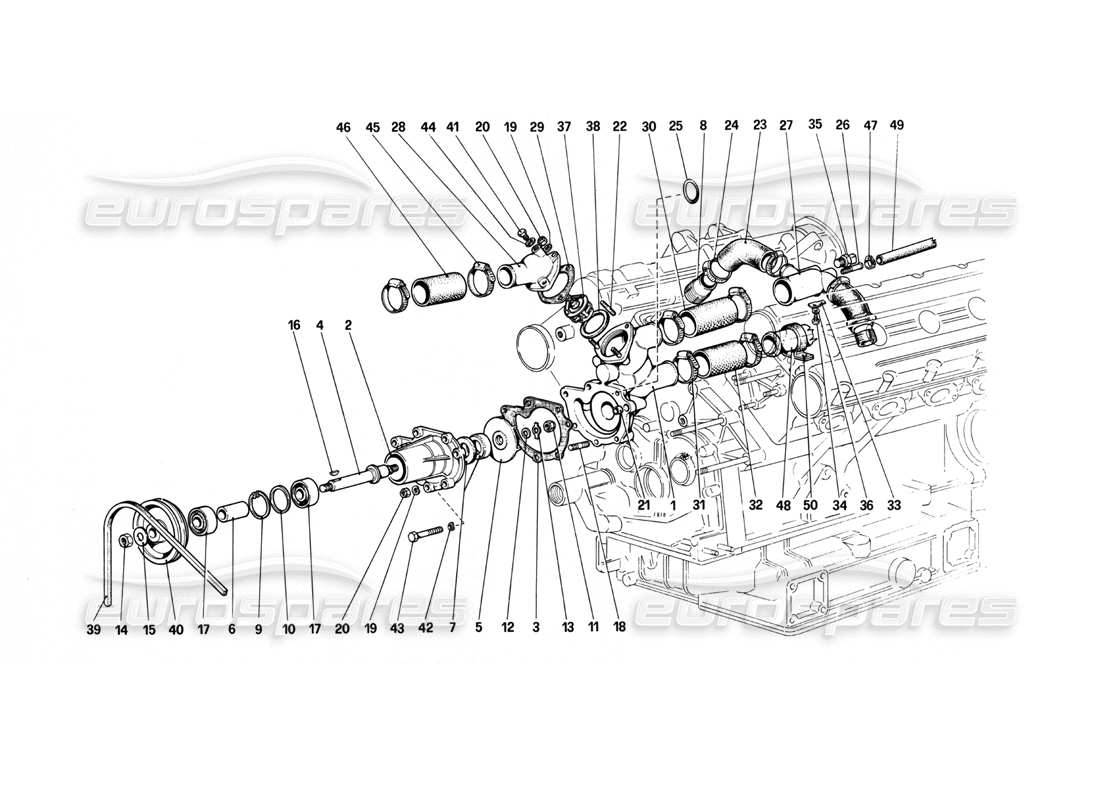

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Key
                                                                                                Price
                                                                                                # 000
                                                                                                MPN: 115472
                                                                                                POMPA ACQUA COMPLETA
                                                                                                use part number: 121255
                                                                                                Supersession
                                                                                                Supersession
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                # 001
                                                                                                MPN: 115470
                                                                                                CORPO POMPA ACQUA
                                                                                                use part number: 121255
                                                                                                from £357.00
                                                                                                from £357.00
                                                                                                Genuine Ferrari Part (no longer available to order)

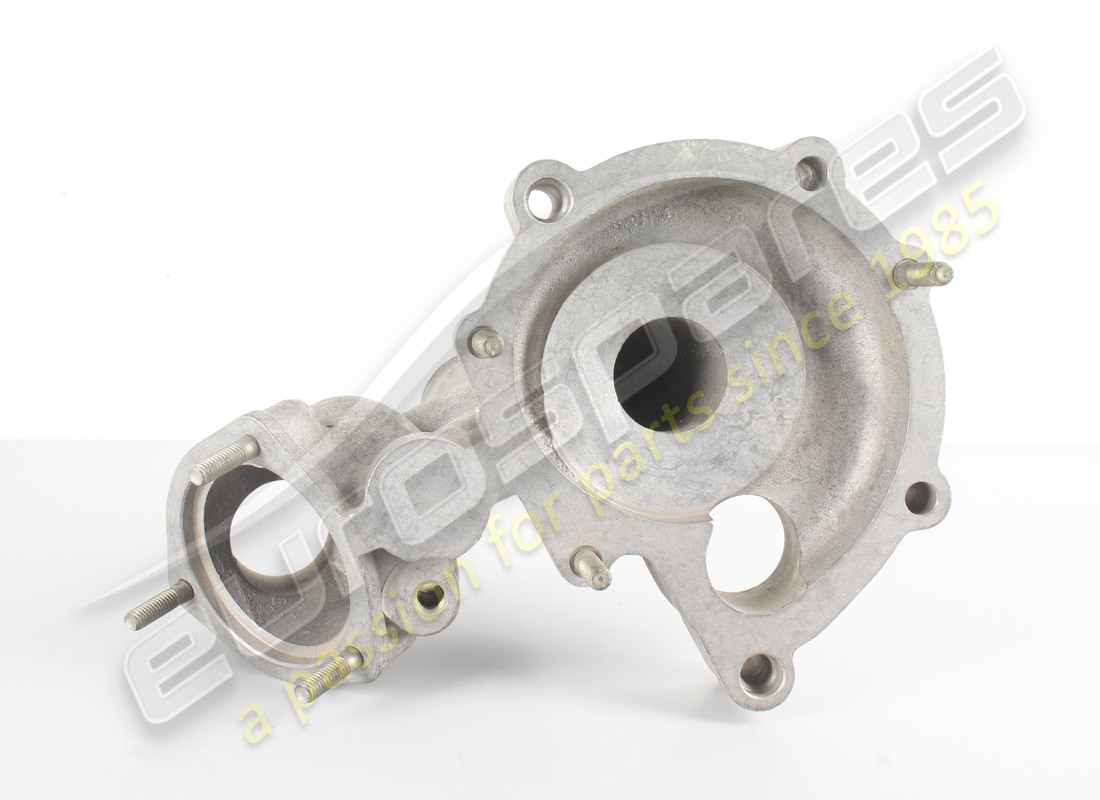

                                                                                                WATER PUMP BODY Genuine Ferrari Part - Used In stock
                                                                                                # 001
                                                                                                MPN: 115471
                                                                                                CORPO POMPA ACQUA COMPLETO
                                                                                                use part number: 121255
                                                                                                from £408.07
                                                                                                from £408.07
                                                                                                This part replaces part number 115470 which we have in stock - and 1 more. Click to view details
                                                                                                WATER PUMP BACK HOUSING COMPLETE Genuine Ferrari Part - New (to order)
                                                                                                WATER PUMP BACK HOUSING COMPLETE Genuine Ferrari Part - Damaged In stock
                                                                                                ALUMINIUM CORRODED STILL WATER TIGHT (SEE PHOTOS)
                                                                                                # 002
                                                                                                MPN: 116156
                                                                                                COVER
                                                                                                use part number: 121255
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 103705
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                # 003
                                                                                                MPN: 135121
                                                                                                WATER PUMP GASKET
                                                                                                from £3.72
                                                                                                from £3.72
                                                                                                This part replaces part number 103952 - and 1 more. Click to view details
                                                                                                WATER PUMP GASKET Genuine Ferrari Part - New In stock
                                                                                                WATER PUMP GASKET Original Equipment - New In stock
                                                                                                WATER PUMP GASKET Genuine Ferrari Part - New (other) In stock
                                                                                                New old stock
                                                                                                # 004
                                                                                                MPN: 121255
                                                                                                WATER PUMP OEM (ORIGINAL) + GASKET (135121)
                                                                                                from £325.00
                                                                                                from £325.00
                                                                                                This part replaces part number 103795 - and 5 more. Click to view details
                                                                                                Water Pump Complete Genuine Ferrari Part - New In stock
                                                                                                WATER PUMP (FRONT PART) Eurospares Approved Part - New In stock
                                                                                                # 004
                                                                                                MPN: 121255/A
                                                                                                WATER PUMP + GASKET
                                                                                                Supersession
                                                                                                Supersession
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                # 005
                                                                                                MPN: 10-38-06
                                                                                                GIRANTE
                                                                                                from £206.61
                                                                                                from £206.61
                                                                                                WATER PUMP IMPELLER Genuine Ferrari Part - New (to order)
                                                                                                # 006
                                                                                                MPN: 116157
                                                                                                SPACER
                                                                                                from £68.02
                                                                                                from £68.02
                                                                                                SPACER Genuine Ferrari Part - New (to order)
                                                                                                # 007
                                                                                                MPN: 100433
                                                                                                SEALING RING
                                                                                                In alternativa n. 1 14410
                                                                                                from £69.95
                                                                                                from £69.95
                                                                                                This part replaces part number 114410
                                                                                                WATER PUMP SEAL (2 PART) Genuine Ferrari Part - New (to order)
                                                                                                WATER PUMP SEAL Original Equipment - New In stock
                                                                                                # 008
                                                                                                MPN: 115246
                                                                                                UNION
                                                                                                from £13.94
                                                                                                from £13.94
                                                                                                UNION Genuine Ferrari Part - New (to order)
                                                                                                # 009
                                                                                                MPN: 11060076
                                                                                                SEEGER RING
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                SNAP RING Genuine Ferrari Part - New In stock
                                                                                                # 010
                                                                                                MPN: 116158
                                                                                                WASHER
                                                                                                from £22.21
                                                                                                from £22.21
                                                                                                WATER PUMP SPACER Genuine Ferrari Part - New (to order)
                                                                                                # 011
                                                                                                MPN: 100436
                                                                                                CAP NUT
                                                                                                from £7.64
                                                                                                from £7.64
                                                                                                This part replaces part number 92896
                                                                                                NUT Genuine Ferrari Part - New In stock
                                                                                                # 012
                                                                                                MPN: 10730321
                                                                                                WASHER
                                                                                                from £0.66
                                                                                                from £0.66
                                                                                                This part replaces part number 10730301 - and 2 more. Click to view details
                                                                                                WASHER Genuine Ferrari Part - New In stock
                                                                                                # 013
                                                                                                MPN: 100434
                                                                                                PLATE
                                                                                                from £7.26
                                                                                                from £7.26
                                                                                                This part replaces part number 92361 - and 1 more. Click to view details

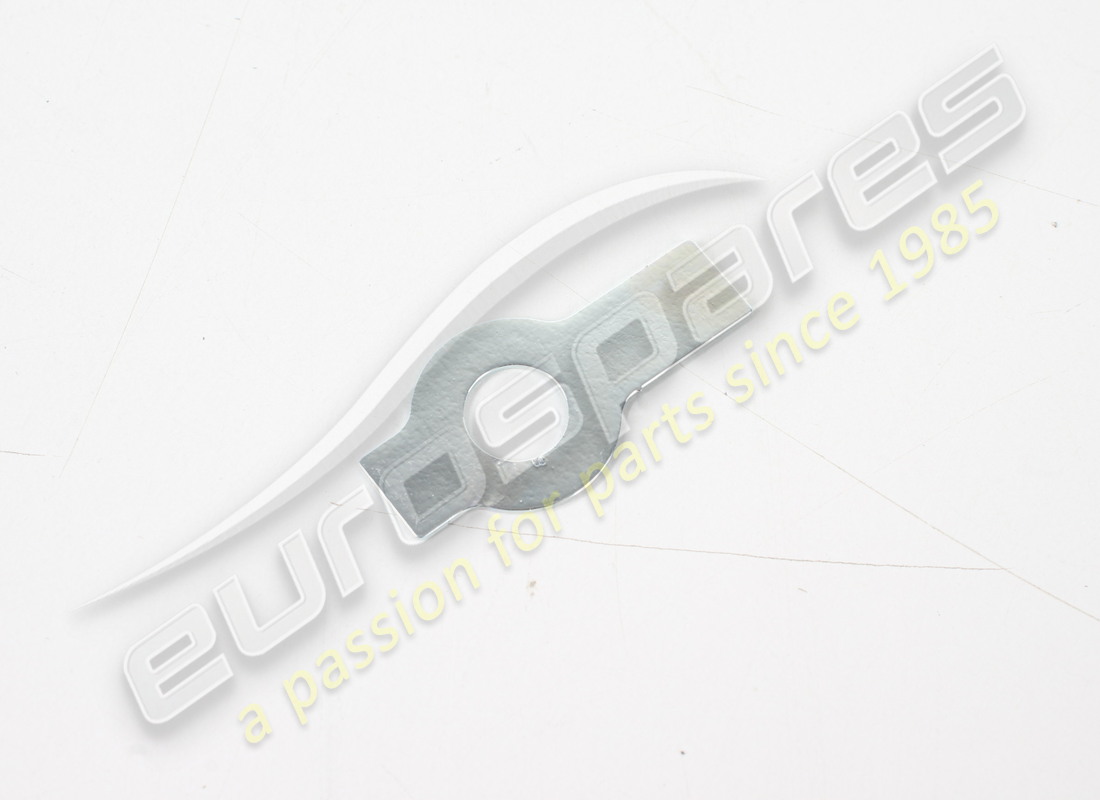

                                                                                                LOCK TAB Genuine Ferrari Part - New In stock
                                                                                                # 014
                                                                                                MPN: 16101521
                                                                                                NUT
                                                                                                from £0.57
                                                                                                from £0.57
                                                                                                This part replaces part number 16101520
                                                                                                NUT Genuine Ferrari Part - New In stock
                                                                                                DADO E M 12X1.25X 10 Genuine Maserati Part - New (to order)
                                                                                                # 015
                                                                                                MPN: 11198673
                                                                                                WASHER
                                                                                                from £0.87
                                                                                                from £0.87
                                                                                                This part replaces part number 11198671
                                                                                                WASHER Genuine Ferrari Part - New (to order)
                                                                                                # 016
                                                                                                MPN: 10205820
                                                                                                Key
                                                                                                from £1.08
                                                                                                from £1.08
                                                                                                Key Genuine Ferrari Part - New In stock
                                                                                                # 017
                                                                                                MPN: 116159
                                                                                                CUSCINETTO A TENUTA
                                                                                                from £21.01
                                                                                                from £21.01
                                                                                                SEALED BALL BEARING Genuine Ferrari Part - New In stock
                                                                                                # 018
                                                                                                MPN: 11500721
                                                                                                THREADED STUD
                                                                                                from £0.80
                                                                                                from £0.80
                                                                                                STUD BOLT Genuine Ferrari Part - New (to order)
                                                                                                STUD Genuine Maserati Part - New (to order)
                                                                                                # 019
                                                                                                MPN: 12601271
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                # 020
                                                                                                MPN: 12574211
                                                                                                NUT
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                NYLON STOP HEX. NUT M6X7.8 Genuine Maserati Part - New (to order)
                                                                                                # 021
                                                                                                MPN: 102704
                                                                                                DOWEL
                                                                                                from £1.77
                                                                                                from £1.77
                                                                                                This part replaces part number 500805
                                                                                                DOWEL BOLT Genuine Ferrari Part - New In stock
                                                                                                CENTERING DOWEL Genuine Maserati Part - New (to order)
                                                                                                # 022
                                                                                                MPN: 13541124
                                                                                                STUD
                                                                                                from £11.96
                                                                                                from £11.96
                                                                                                This part replaces part number 13541121
                                                                                                STUD Genuine Ferrari Part - New In stock
                                                                                                # 023
                                                                                                MPN: 4234166
                                                                                                SLEEVE
                                                                                                from £27.01
                                                                                                from £27.01
                                                                                                This part replaces part number 115247
                                                                                                WATER HOSE SILICONE Genuine Ferrari Part - New In stock
                                                                                                # 024
                                                                                                MPN: 119597
                                                                                                JUBILEE CLIP
                                                                                                from £4.24
                                                                                                from £4.24
                                                                                                CLIP Genuine Ferrari Part - New (to order)
                                                                                                # 025
                                                                                                MPN: 105196
                                                                                                SEALING RING
                                                                                                from £2.88
                                                                                                from £2.88
                                                                                                O RING Genuine Ferrari Part - New In stock
                                                                                                # 026
                                                                                                MPN: 106241
                                                                                                UNION
                                                                                                from £25.26
                                                                                                from £25.26
                                                                                                WATER MANIFOLD UNION Genuine Ferrari Part - New In stock
                                                                                                # 027
                                                                                                MPN: 115248
                                                                                                UNION
                                                                                                UNION Genuine Ferrari Part - New (to order)
                                                                                                # 028
                                                                                                MPN: 105165
                                                                                                UNION
                                                                                                from £141.04
                                                                                                from £141.04
                                                                                                THERMOSTAT TOP HOUSING Genuine Ferrari Part - New In stock
                                                                                                # 029
                                                                                                MPN: 105189
                                                                                                GASKET
                                                                                                from £2.46
                                                                                                from £2.46
                                                                                                This part replaces part number 4206607
                                                                                                GASKET FOR THERMOSTAT OE Genuine Ferrari Part - New In stock
                                                                                                GASKET FOR THERMOSTAT OE Original Equipment - New In stock
                                                                                                # 030
                                                                                                MPN: 115936
                                                                                                SLEEVE
                                                                                                from £26.88
                                                                                                from £26.88
                                                                                                WATER HOSE Genuine Ferrari Part - New In stock
                                                                                                # 031
                                                                                                MPN: 12180090
                                                                                                JUBILEE CLIP
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 102958
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                # 032
                                                                                                MPN: 121258
                                                                                                SLEEVE
                                                                                                from £19.23
                                                                                                from £19.23
                                                                                                This part replaces part number 10147087 - and 4 more. Click to view details
                                                                                                WATER HOSE Genuine Ferrari Part - New In stock
                                                                                                # 033
                                                                                                MPN: 115600
                                                                                                Key
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                COTTER Genuine Ferrari Part - New (to order)
                                                                                                # 034
                                                                                                MPN: 10374701
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                SCREW Genuine Ferrari Part - New (to order)
                                                                                                # 035
                                                                                                MPN: 104628
                                                                                                TEMPERATURE SENDER UNIT
                                                                                                from £31.92
                                                                                                from £31.92
                                                                                                This part replaces part number 4108672 - and 3 more. Click to view details
                                                                                                THERMISTOR Genuine Ferrari Part - New In stock
                                                                                                THERMISTOR Genuine Maserati Part - New (to order)
                                                                                                THERMISTOR Original Equipment - New In stock
                                                                                                THERMISTOR Genuine Ferrari Part - Used In stock
                                                                                                # 036
                                                                                                MPN: 10569071
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                WASHER Genuine Ferrari Part - New (to order)
                                                                                                # 037
                                                                                                MPN: 109671
                                                                                                TERMOSTATO
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 105191
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                Eurospares Approved Part (no longer available to order)
                                                                                                # 038
                                                                                                MPN: 105192
                                                                                                GASKET
                                                                                                from £11.50
                                                                                                from £11.50
                                                                                                This part replaces part number 4184495
                                                                                                GASKET Genuine Ferrari Part - New In stock
                                                                                                GASKET Eurospares Approved Part - New In stock
                                                                                                # 039
                                                                                                MPN: 117435
                                                                                                WATER PUMP AND ALTERNATOR CONTROL BELT
                                                                                                from £79.40
                                                                                                from £79.40
                                                                                                PUMP BELT 950MM Genuine Ferrari Part - New In stock
                                                                                                # 040
                                                                                                MPN: 105166
                                                                                                PULEGGIA
                                                                                                from £217.45
                                                                                                from £217.45
                                                                                                This part replaces part number 107970
                                                                                                WATER PUMP PULLEY Genuine Ferrari Part - New (to order)
                                                                                                WATER PUMP PULLEY Eurospares Approved Part - New In stock
                                                                                                # 041
                                                                                                MPN: 16042940
                                                                                                SCREW
                                                                                                from £8.89
                                                                                                from £8.89
                                                                                                SCREW Genuine Ferrari Part - New (to order)
                                                                                                # 042
                                                                                                MPN: 12601371
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                # 043
                                                                                                MPN: 16044421
                                                                                                SCREW
                                                                                                from £1.31
                                                                                                from £1.31
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                SCREW Genuine Maserati Part - New (to order)
                                                                                                # 044
                                                                                                MPN: 10260060
                                                                                                GASKET
                                                                                                from £0.79
                                                                                                from £0.79
                                                                                                COPPER WASHER Genuine Ferrari Part - New In stock
                                                                                                # 045
                                                                                                MPN: 12174090
                                                                                                JUBILEE CLIP
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 105303 - and 1 more. Click to view details
                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                # 046
                                                                                                MPN: 121258
                                                                                                SLEEVE
                                                                                                from £19.23
                                                                                                from £19.23
                                                                                                This part replaces part number 10147087 - and 4 more. Click to view details
                                                                                                WATER HOSE Genuine Ferrari Part - New In stock
                                                                                                # 047
                                                                                                MPN: 13000190
                                                                                                JUBILEE CLIP
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                                SCREW COLLAR Genuine Ferrari Part - New In stock
                                                                                                SCREW COLLAR Genuine Maserati Part - New In stock
                                                                                                # 048
                                                                                                MPN: 115136
                                                                                                PIPE / TUBE / HOSE
                                                                                                from £129.52
                                                                                                from £129.52
                                                                                                water tube Genuine Ferrari Part - New (to order)
                                                                                                water tube Genuine Ferrari Part - Used In stock
                                                                                                # 049
                                                                                                MPN: 122218
                                                                                                TUBO SFIATO COLLEGAMENTO MOTORE - NOURRICE
                                                                                                from £24.97
                                                                                                from £24.97
                                                                                                This part replaces part number 103471 - and 1 more. Click to view details
                                                                                                HOSE Genuine Ferrari Part - New In stock
                                                                                                # 050
                                                                                                MPN: 107002
                                                                                                FASCETTA SOSTEGNO TUBO
                                                                                                from £7.56
                                                                                                from £7.56
                                                                                                BRACKET WITH SHEATH Genuine Ferrari Part - New (to order)
                                                                                                BRACKET WITH SHEATH Genuine Ferrari Part - Used In stock
