ferrari 208 turbo (1982) clutch and controls parts diagram

019 - Clutch and Controls

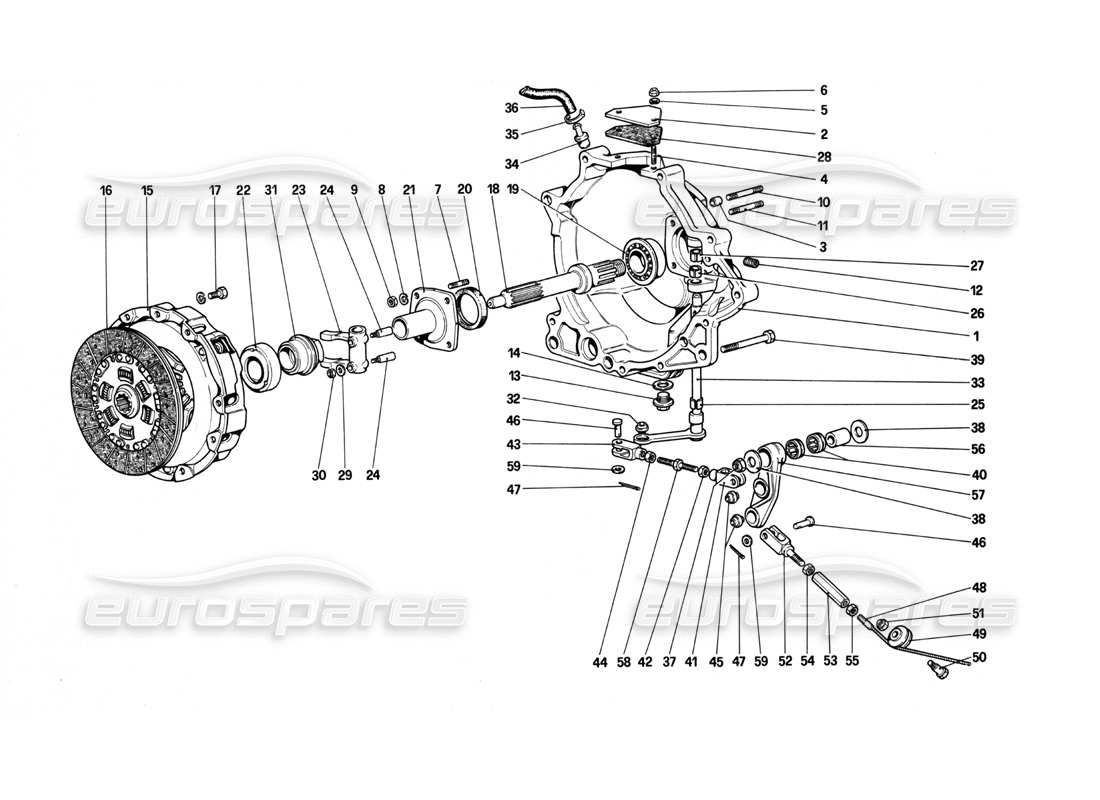

Ferrari 208 Turbo (1982) Clutch and Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Key
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 116801
                                                                                                            CAMPANA FRIZIONE COMPLETA
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 001
                                                                                                            MPN: 127752

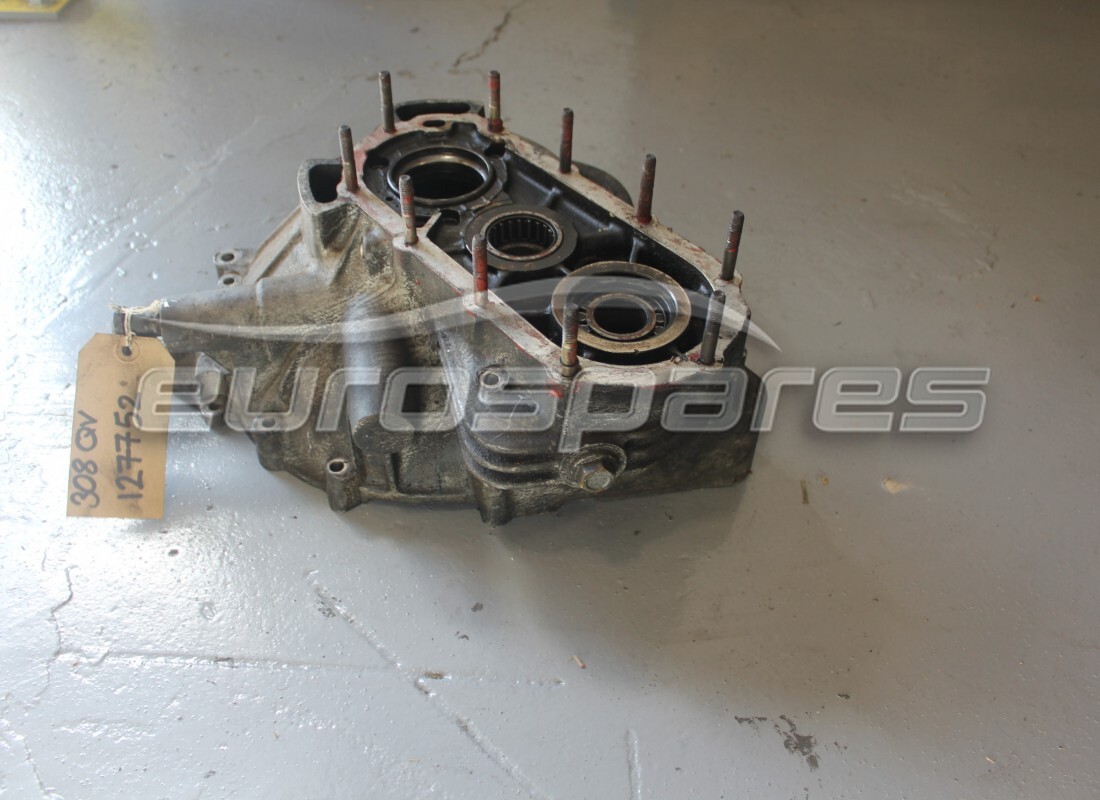

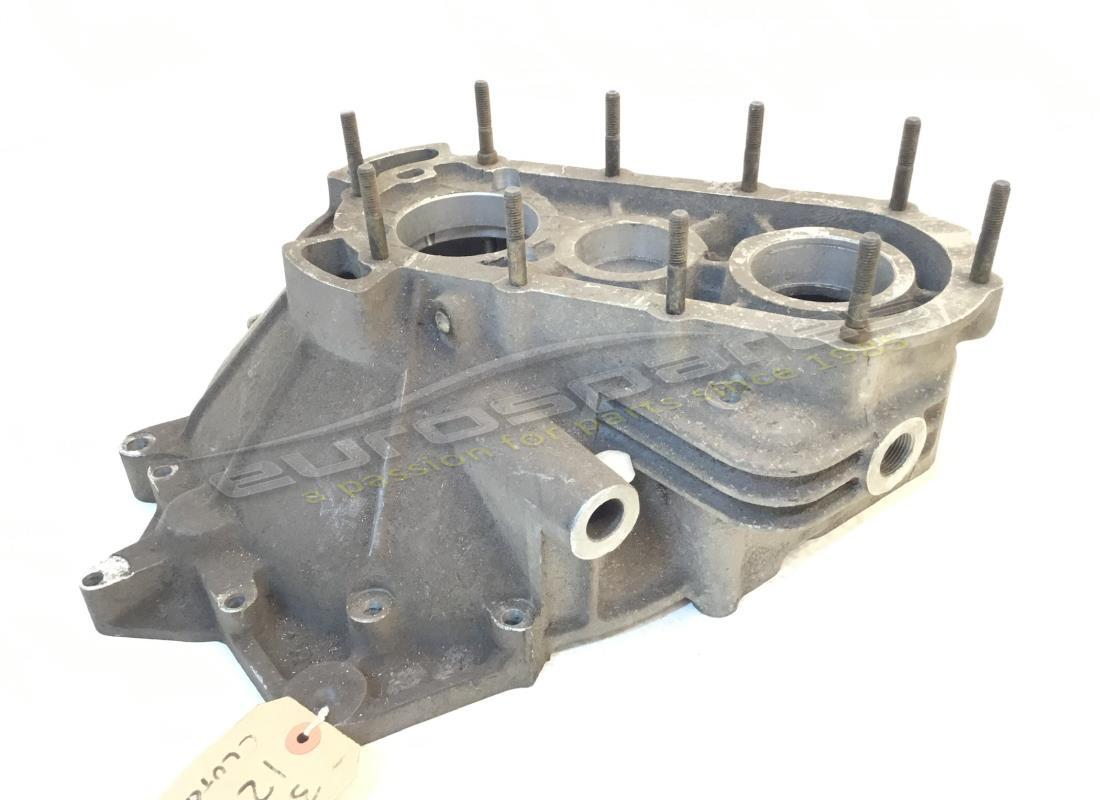

                                                                                                            CLUTCH HOUSING
                                                                                                            from £935.57
                                                                                                            from £935.57
                                                                                                            This part replaces part number 116801 - and 1 more. Click to view details
                                                                                                            CLUTCH HOUSING COMPLETE Genuine Ferrari Part - New In stock
                                                                                                            CLUTCH HOUSING COMPLETE Genuine Ferrari Part - Used In stock
                                                                                                            # 002
                                                                                                            MPN: 109404
                                                                                                            COVER
                                                                                                            from £36.46
                                                                                                            from £36.46
                                                                                                            This part replaces part number 40361107
                                                                                                            INSPECTION COVER Genuine Ferrari Part - New (to order)
                                                                                                            # 003
                                                                                                            MPN: 102704
                                                                                                            GRANO DI CENTRAGGIO COPERCHIO
                                                                                                            from £1.77
                                                                                                            from £1.77
                                                                                                            This part replaces part number 500805
                                                                                                            DOWEL BOLT Genuine Ferrari Part - New In stock
                                                                                                            CENTERING DOWEL Genuine Maserati Part - New (to order)
                                                                                                            # 004
                                                                                                            MPN: 13539024
                                                                                                            THREADED STUD
                                                                                                            from £0.75
                                                                                                            from £0.75
                                                                                                            This part replaces part number 13539021
                                                                                                            STUD Genuine Ferrari Part - New In stock
                                                                                                            # 005
                                                                                                            MPN: 12601171
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                                                            # 006
                                                                                                            MPN: 15896411
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 15896401
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                            # 007
                                                                                                            MPN: 13516521
                                                                                                            THREADED STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 102682 - and 1 more. Click to view details
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 008
                                                                                                            MPN: 127496
                                                                                                            WASHER
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                                                            WASHER Genuine Maserati Part - New In stock
                                                                                                            # 009
                                                                                                            MPN: 16102311
                                                                                                            NUT
                                                                                                            from £0.42
                                                                                                            from £0.42
                                                                                                            This part replaces part number 16102315
                                                                                                            DADO EB M8 Genuine Ferrari Part - New In stock
                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                            NUT FOR RUBBER PAD ON TRU Genuine Maserati Part - Used In stock
                                                                                                            # 010
                                                                                                            MPN: 13517621
                                                                                                            THREADED STUD
                                                                                                            from £9.04
                                                                                                            from £9.04
                                                                                                            STUD BOLT Genuine Ferrari Part - New In stock
                                                                                                            # 011
                                                                                                            MPN: 13517521
                                                                                                            THREADED STUD
                                                                                                            from £6.77
                                                                                                            from £6.77
                                                                                                            THREADED STUD 8X12 STEM 45MM Genuine Ferrari Part - New (to order)
                                                                                                            # 012
                                                                                                            MPN: 14326150
                                                                                                            THREADED PLUG
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 12326150
                                                                                                            PLUG Genuine Ferrari Part - New (to order)
                                                                                                            TAPERED THREADED PLUG D.8X1.2 Genuine Maserati Part - New (to order)
                                                                                                            # 013
                                                                                                            MPN: 14326640
                                                                                                            TAPPO SCARICO OLIO
                                                                                                            TAPPO SCARICO OLIO CAMBIO Genuine Ferrari Part - New (to order)
                                                                                                            # 014
                                                                                                            MPN: 10261860
                                                                                                            GASKET
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
                                                                                                            COPPER OIL DRAIN SEAL GASKET Genuine Ferrari Part - New In stock
                                                                                                            OIL DRAIN SEAL GASKET, 22 - 30 x 1.5 Genuine Maserati Part - New In stock
                                                                                                            COPPER OIL DRAIN SEAL GASKET Original Equipment - New In stock
                                                                                                            # 015
                                                                                                            MPN: 119788

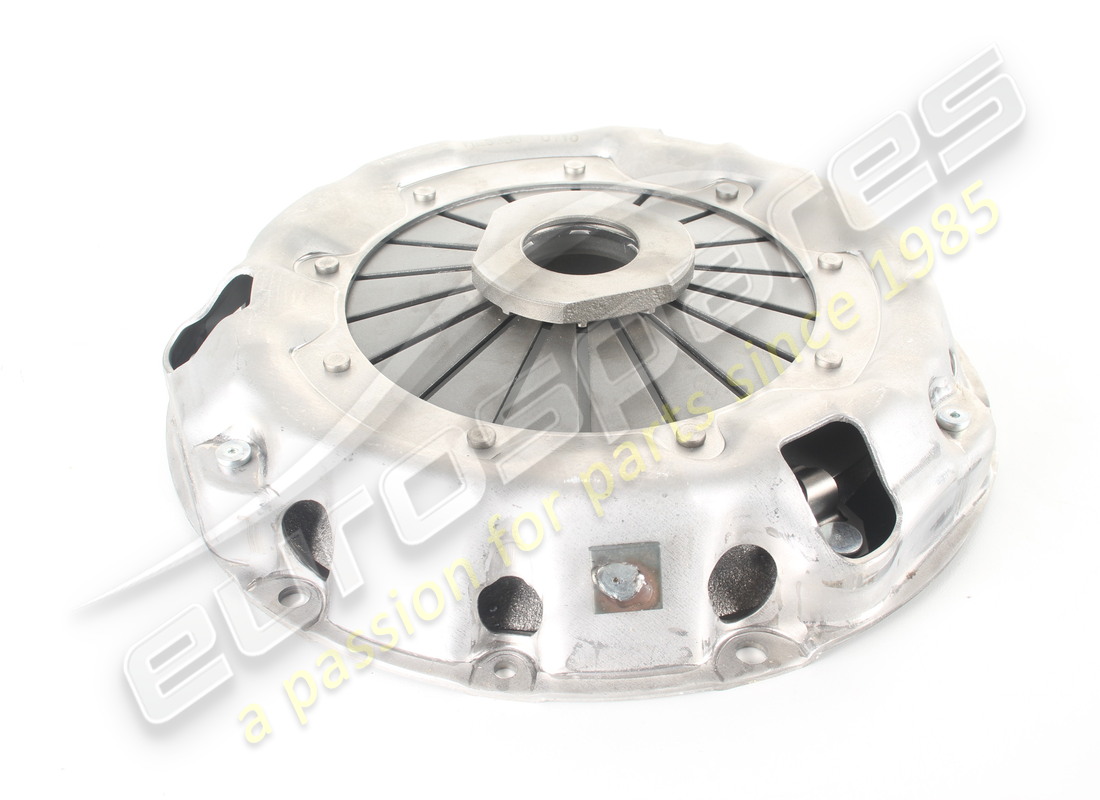

                                                                                                            CLUTCH PRESSURE PLATE
                                                                                                            not as spare part - use part number: 121562
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 015
                                                                                                            MPN: 121562
                                                                                                            CLUTCH PRESSURE PLATE
                                                                                                            from £138.99
                                                                                                            from £138.99
                                                                                                            This part replaces part number 101533 - and 5 more. Click to view details
                                                                                                            Genuine Ferrari Part (no longer available to order)

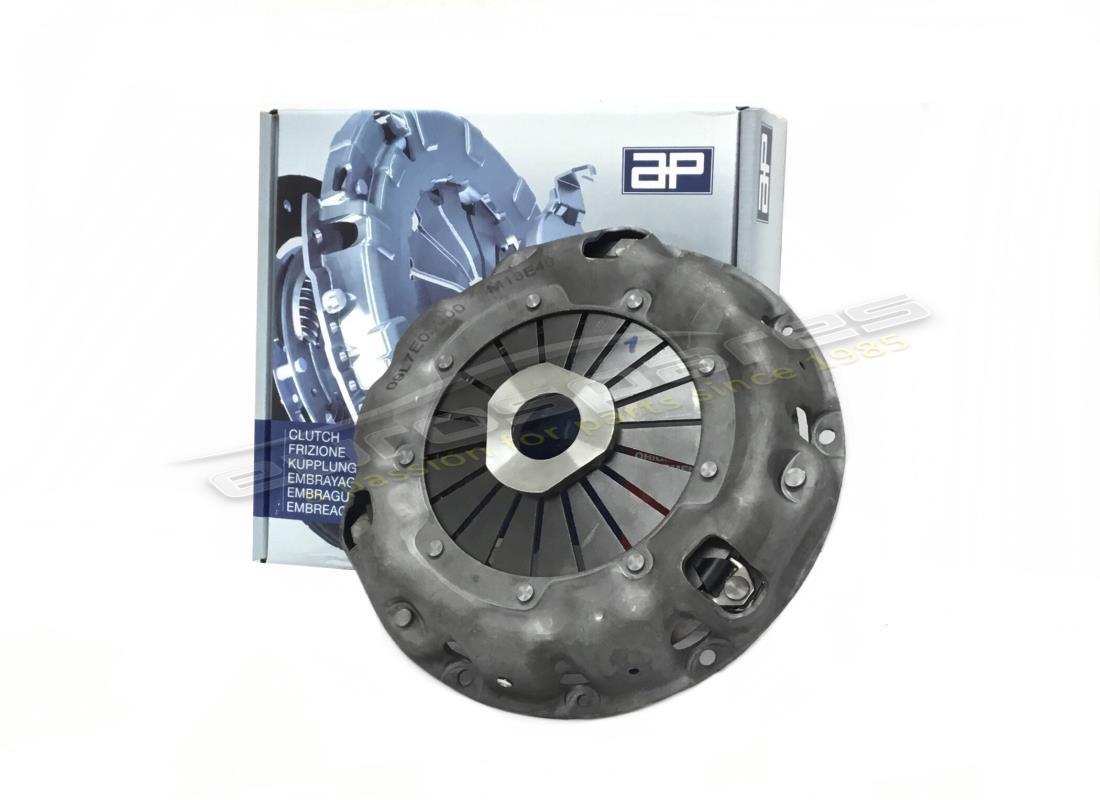

                                                                                                            CLUTCH PRESSURE PLATE V8 Eurospares Approved Part - New In stock
                                                                                                            CLUTCH PRESSURE PLATE V8 Genuine Ferrari Part - Used In stock
                                                                                                            # 015
                                                                                                            MPN: FCLK001
                                                                                                            Clutch Kit - 3 Piece
                                                                                                            Pressure plate & bearing (121562-110558-100849)
                                                                                                            Clutch Kit - 3 Piece Genuine Ferrari Part - New (to order)
                                                                                                            # 016
                                                                                                            MPN: 110296
                                                                                                            DISCO FRIZIONE
                                                                                                            not as spare part - use part number: 110558
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 016
                                                                                                            MPN: 110558
                                                                                                            CLUTCH DISC
                                                                                                            Replaces 110296
                                                                                                            from £220.34
                                                                                                            from £220.34
                                                                                                            This part replaces part number 105709 - and 4 more. Click to view details
                                                                                                            CLUTCH DISC V8/V12 Genuine Ferrari Part - New (to order)
                                                                                                            CLUTCH DISC V8/V12 Eurospares Approved Part - New In stock
                                                                                                            # 017
                                                                                                            MPN: 13825821
                                                                                                            BOLT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 018
                                                                                                            MPN: 109400

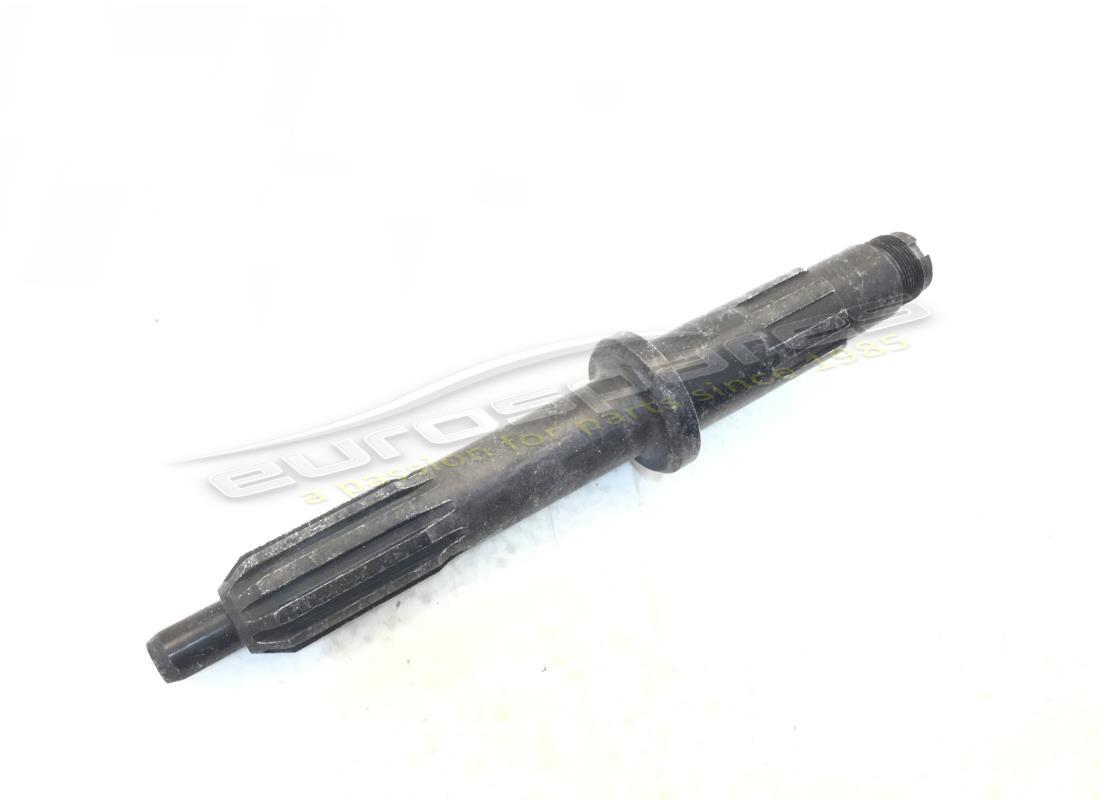

                                                                                                            ALBERO FRIZIONE
                                                                                                            from £577.50
                                                                                                            from £577.50
                                                                                                            This part replaces part number 105129 - and 2 more. Click to view details
                                                                                                            CLUTCH SHAFT Genuine Ferrari Part - New In stock
                                                                                                            CLUTCH SHAFT Genuine Ferrari Part - Used In stock
                                                                                                            # 019
                                                                                                            MPN: 103042
                                                                                                            BEARING
                                                                                                            from £153.66
                                                                                                            from £153.66
                                                                                                            DOUBLE BALL BEARING Genuine Ferrari Part - New (to order)
                                                                                                            DOUBLE BALL BEARING Genuine Ferrari Part - Used In stock
                                                                                                            # 020
                                                                                                            MPN: 134714
                                                                                                            OIL SEALS
                                                                                                            from £10.35
                                                                                                            from £10.35
                                                                                                            This part replaces part number 110314
                                                                                                            GASKET Genuine Ferrari Part - New In stock
                                                                                                            OIL SEAL Eurospares Approved Part - New In stock
                                                                                                            # 021
                                                                                                            MPN: 105136
                                                                                                            FLANGIA CON MANICOTTO
                                                                                                            from £199.66
                                                                                                            from £199.66
                                                                                                            FLANGE Genuine Ferrari Part - New (to order)
                                                                                                            FLANGE Genuine Ferrari Part - Used In stock
                                                                                                            # 022
                                                                                                            MPN: 100849
                                                                                                            CUSCINETTO REGGISPINTA
                                                                                                            After e.g. is worth n. 119542
                                                                                                            from £45.00
                                                                                                            from £45.00
                                                                                                            This part replaces part number 100845 - and 3 more. Click to view details
                                                                                                            CLUTCH RELEASE BEARING Genuine Ferrari Part - New (to order)
                                                                                                            Clutch Bearing Eurospares Approved Part - New In stock
                                                                                                            CLUTCH RELEASE BEARING Genuine Ferrari Part - Used In stock
                                                                                                            # 023
                                                                                                            MPN: 108428
                                                                                                            LEVER
                                                                                                            Con I'assieme n. 116327
                                                                                                            from £871.24
                                                                                                            from £871.24
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            CLUTCH LEVER Genuine Ferrari Part - Used In stock
                                                                                                            # 024
                                                                                                            MPN: 108429
                                                                                                            PIN
                                                                                                            from £44.52
                                                                                                            from £44.52
                                                                                                            PIN Genuine Ferrari Part - New (to order)
                                                                                                            # 025
                                                                                                            MPN: 103226
                                                                                                            BUSH
                                                                                                            from £2.31
                                                                                                            from £2.31
                                                                                                            BUSH Genuine Ferrari Part - New (to order)
                                                                                                            SELF-LUBRICATING BUSHING 18- Genuine Maserati Part - New (to order)
                                                                                                            # 026
                                                                                                            MPN: 103227
                                                                                                            BUSH
                                                                                                            from £2.48
                                                                                                            from £2.48
                                                                                                            BUSH Genuine Ferrari Part - New (to order)
                                                                                                            # 028
                                                                                                            MPN: 109405
                                                                                                            GASKET OR SEAL
                                                                                                            from £9.48
                                                                                                            from £9.48
                                                                                                            GASKET Genuine Ferrari Part - New In stock
                                                                                                            # 029
                                                                                                            MPN: 108436
                                                                                                            WASHER
                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: 12574121
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12574111 - and 2 more. Click to view details
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 031
                                                                                                            MPN: 116326
                                                                                                            BUSH
                                                                                                            from £256.02
                                                                                                            from £256.02
                                                                                                            RELEASE CARRIER Genuine Ferrari Part - New (to order)
                                                                                                            # 032
                                                                                                            MPN: 100860
                                                                                                            SNODO SFERICO
                                                                                                            from £66.39
                                                                                                            from £66.39
                                                                                                            This part replaces part number SERIE SS6 - and 1 more. Click to view details
                                                                                                            ROSE BEARING Genuine Ferrari Part - New (to order)
                                                                                                            # 033
                                                                                                            MPN: 116327
                                                                                                            ASSIEME LEVA E ALBERINO COMANDO FRIZIONE
                                                                                                            from £170.96
                                                                                                            from £170.96
                                                                                                            SHAFT Genuine Ferrari Part - New (to order)
                                                                                                            SHAFT Genuine Ferrari Part - Used In stock
                                                                                                            # 034
                                                                                                            MPN: 115463
                                                                                                            UNION
                                                                                                            from £8.63
                                                                                                            from £8.63
                                                                                                            JOINT Genuine Ferrari Part - New (to order)
                                                                                                            DOWEL 3/8 DIA X 5/8 Genuine Aston Martin - New (to order)
                                                                                                            # 035
                                                                                                            MPN: 12179190
                                                                                                            JUBILEE CLIP
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 102604
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 036
                                                                                                            MPN: 115366
                                                                                                            TUBO SFIATO
                                                                                                            from £17.85
                                                                                                            from £17.85
                                                                                                            TUBE Genuine Ferrari Part - New (to order)
                                                                                                            # 037
                                                                                                            MPN: 148020
                                                                                                            NUT
                                                                                                            from £2.51
                                                                                                            from £2.51
                                                                                                            This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                            NUT Genuine Ferrari Part - New (to order)
                                                                                                            # 038
                                                                                                            MPN: 108939
                                                                                                            SPACER FOR TRANSFER LEVERS
                                                                                                            from £23.25
                                                                                                            from £23.25
                                                                                                            DISTANCE PLATE Genuine Ferrari Part - New (to order)
                                                                                                            # 039
                                                                                                            MPN: 15541121
                                                                                                            SCREW
                                                                                                            from £0.57
                                                                                                            from £0.57
                                                                                                            BOLT Genuine Ferrari Part - New (to order)
                                                                                                            # 040
                                                                                                            MPN: 103223
                                                                                                            GABBIA A RULLINI
                                                                                                            from £44.75
                                                                                                            from £44.75
                                                                                                            ROLLER BEARING Genuine Ferrari Part - New (to order)
                                                                                                            # 041
                                                                                                            MPN: 100855
                                                                                                            FORK
                                                                                                            from £47.25
                                                                                                            from £47.25
                                                                                                            This part replaces part number 500631
                                                                                                            FORK LH THREAD Genuine Ferrari Part - New (to order)
                                                                                                            # 042
                                                                                                            MPN: 100862
                                                                                                            NUT
                                                                                                            from £5.20
                                                                                                            from £5.20
                                                                                                            This part replaces part number 100861
                                                                                                            LH THREAD NUT Genuine Ferrari Part - New In stock
                                                                                                            # 043
                                                                                                            MPN: 10-32-38
                                                                                                            FORK
                                                                                                            from £20.64
                                                                                                            from £20.64
                                                                                                            This part replaces part number 500599 - and 1 more. Click to view details
                                                                                                            PARCEL SHELF Genuine Ferrari Part - New (to order)
                                                                                                            PARCEL SHELF Genuine Ferrari Part - Used In stock
                                                                                                            # 044
                                                                                                            MPN: 100861
                                                                                                            LOCKNUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 100862 which we have in stock
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 045
                                                                                                            MPN: 100860
                                                                                                            SNODO SFERICO
                                                                                                            from £66.39
                                                                                                            from £66.39
                                                                                                            This part replaces part number SERIE SS6 - and 1 more. Click to view details
                                                                                                            ROSE BEARING Genuine Ferrari Part - New (to order)
                                                                                                            # 046
                                                                                                            MPN: 103218
                                                                                                            PIVOT
                                                                                                            from £25.41
                                                                                                            from £25.41
                                                                                                            This part replaces part number 100857 - and 1 more. Click to view details
                                                                                                            CLEVIS PIN Genuine Ferrari Part - New (to order)
                                                                                                            # 047
                                                                                                            MPN: 10734201
                                                                                                            SPLIT PIN
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 048
                                                                                                            MPN: 106745
                                                                                                            CAVO COMANDO FRIZIONE
                                                                                                            LHD (RHD = 108342)
                                                                                                            from £45.47
                                                                                                            from £45.47
                                                                                                            CLUTCH CABLE LHD Genuine Ferrari Part - New In stock
                                                                                                            # 049
                                                                                                            MPN: 157557
                                                                                                            CARRUCOLA
                                                                                                            from £11.42
                                                                                                            from £11.42
                                                                                                            This part replaces part number 105665 - and 4 more. Click to view details
                                                                                                            CARRUCOLA CON CUSCINETTO AUT Genuine Ferrari Part - New (to order)
                                                                                                            CARRUCOLA CON CUSCINETTO AUT Genuine Ferrari Part - Used In stock
                                                                                                            # 050
                                                                                                            MPN: 10902621
                                                                                                            BOLT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 10902611 which we have in stock
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                            # 053
                                                                                                            MPN: 10091014
                                                                                                            SLEEVE
                                                                                                            from £45.00
                                                                                                            from £45.00
                                                                                                            This part replaces part number 10091011 - and 1 more. Click to view details
                                                                                                            ADJUSTER Genuine Ferrari Part - New (to order)
                                                                                                            ADJUSTER Genuine Ferrari Part - Used In stock
                                                                                                            COMES WITH FORK
                                                                                                            # 054
                                                                                                            MPN: 10725911
                                                                                                            LOCKNUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 95900403
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 055
                                                                                                            MPN: 10727311
                                                                                                            LOCKNUT
                                                                                                            Filetto Sx.
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 95560
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 056
                                                                                                            MPN: 107437
                                                                                                            BUSH
                                                                                                            from £39.86
                                                                                                            from £39.86
                                                                                                            STEEL BUSH Genuine Ferrari Part - New (to order)
                                                                                                            # 057
                                                                                                            MPN: 116472
                                                                                                            LEVER
                                                                                                            from £541.62
                                                                                                            from £541.62
                                                                                                            This part replaces part number 106750
                                                                                                            LEVER Genuine Ferrari Part - New (to order)
                                                                                                            # 058
                                                                                                            MPN: 116329
                                                                                                            TIE ROD
                                                                                                            from £20.74
                                                                                                            from £20.74
                                                                                                            This part replaces part number 103999 which we have in stock - and 2 more. Click to view details
                                                                                                            ADJUSTER Genuine Ferrari Part - New (to order)
                                                                                                            ADJUSTER Genuine Ferrari Part - Used In stock
                                                                                                            # 059
                                                                                                            MPN: 12639701
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12639704
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
