044 - Air Pump and Alternator

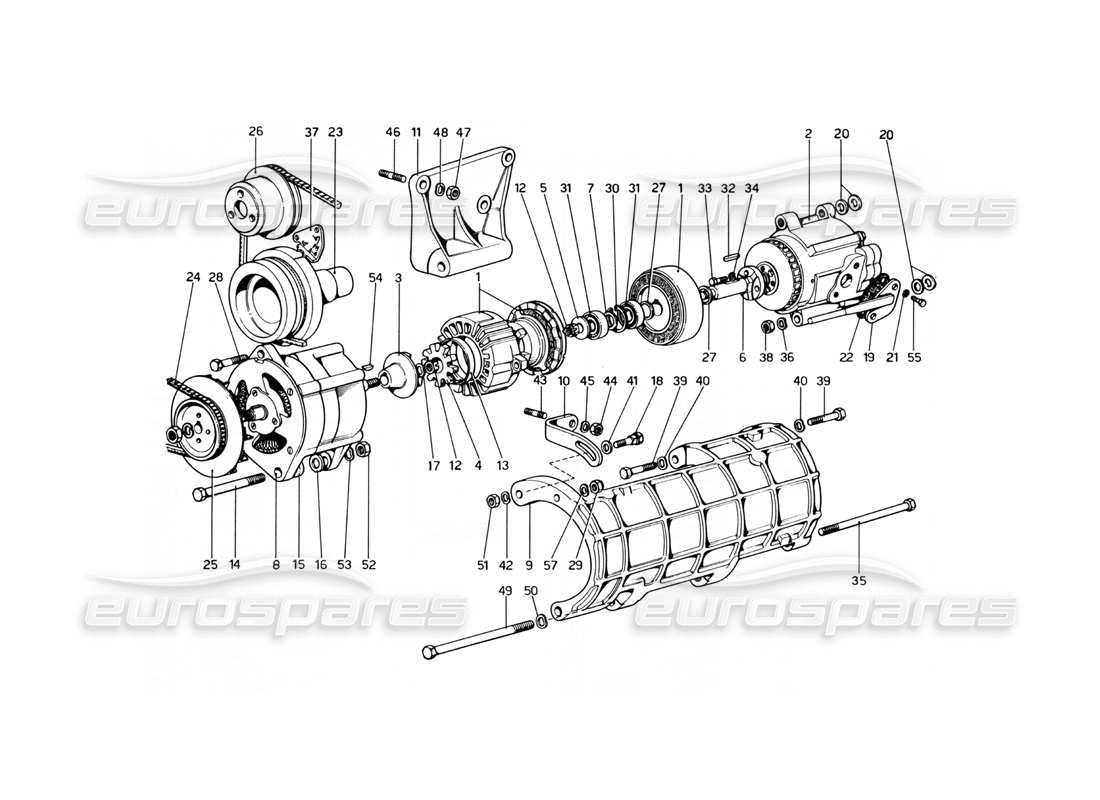

Ferrari 246 Dino (1975) Air Pump and Alternator Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 350110
ASSIEME POMPA ARIA E FRIZIONE
Per U.S
# 002
MPN: 0350208
AIR PUMP
Per U.S
# 003
MPN: 350120
SLEEVE
Per U.S
from £60.99
from £60.99
# 004
MPN: 236E-350202
GIUNTO ELASTICO
Per U.S
# 005
MPN: 236E-350117
SPACER
Per U.S
# 006
MPN: 236E-350118
ALBERO COMANDO POMPA
Per U.S
# 007
MPN: 245-350044
SPACER
Per U.S
# 008
MPN: 236E-350276
ALTERNATORE
Per U.S
# 009
MPN: 236E-350111
CULLA SOSTEGNO ALTERNATORE E POMPA
Per U.S
# 010
MPN: 236E-350119
BRACKET
Per U.S
# 011
MPN: 236E-350114
SUPPORT
Per U.S
# 012
MPN: 104011
SELF LOCKING NUT
Per U.S
from £9.62
from £9.62
This part replaces part number 14511 which we have in stock - and 2 more. Click to view details
# 013
MPN: 236E-350180
RING
Per U.S
# 014
MPN: 236E-350204
BOLT
Per U.S
# 015
MPN: 236E-350205
SPACER
Per U.S
# 016
MPN: 236E-350206
SPACER
Per U.S
# 017
MPN: 10519620
WASHER
Per U.S
Supersession
Supersession
# 018
MPN: 236E-350210
BUILONE
Per U.S
# 019
MPN: 236E-350213
ARRESTO PER FRIZIONE
Per U.S -Vale fino N. 05480
# 019
MPN: 236E-350355
ARRESTO PER FRIZIONE
Per U.S -Vale dal N. 05484
# 020
MPN: 236E-350214
SPACER
Per U.S
# 021
MPN: 95930510
WASHER
Per U.S
# 022
MPN: 245-350091
QUARNIZIONE
Per U.S
# 023
MPN: 236E-12790
PULEGGIA CON SMORZATORE
Per U.S
# 024
MPN: 236E-350280
CIHGHIA COMANDO ALTERNATORE E POMPA ACQUA
Per U.S
# 025
MPN: 236E-300050
PULEGGIA E VENTOLA COMANDO ALTERNATORE
Per U.S - Vale solo con A.C.
# 025
MPN: 236E-300058
PULEGGIA E VENTOLA COMANDO ALTERNATORE
Per U.S
# 026
MPN: 236E-26830
PULEGGIA COMANDO POMPA ACQUA
Per U.S
# 027
MPN: 236E-350252
SPACER
Per U.S
# 028
MPN: 16044121
BULLOHE
Per U.S
from £0.71
from £0.71
This part replaces part number 11101220
# 029
MPN: 104030
SELF LOCKING NUT
Per U.S
from £0.54
from £0.54
This part replaces part number 16104125
# 030
MPN: 11059476
RING
Per U.S
from £8.94
from £8.94
This part replaces part number 11059475
# 031
MPN: 95890900
CUSCINETTO (6003 2RS/C3MT33)
Per U.S
from £12.69
from £12.69
# 032
MPN: 95900206
Key
Per U.S
from £1.73
from £1.73
# 033
MPN: 95940218
BOLT
Per U.S
# 034
MPN: 10516570
WASHER
Per U.S
# 035
MPN: 95533
BOLT
Per U.S
# 036
MPN: 12601371
WASHER
Per U.S
Supersession
Supersession
# 037
MPN: 236E-12786
PLATE
Per U.S
# 038
MPN: 16100824
NUT
Per U.S
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 039
MPN: 95940220
BOLT
Per U.S
# 040
MPN: 12601471
WASHER
Per U.S
Supersession
Supersession
# 041
MPN: 10520021
WASHER
Per U.S
from £0.59
from £0.59
This part replaces part number 10520001
# 042
MPN: 12601371
WASHER
Per U.S
Supersession
Supersession
# 043
MPN: 13449321
THREADED STUD
Per U.S
Supersession
Supersession
# 044
MPN: 10791021
NUT
Per U.S
from £0.54
from £0.54
# 045
MPN: 10516870
WASHER
Per U.S
from £0.93
from £0.93
This part replaces part number 10R4
# 046
MPN: 13546221
THREADED STUD
Per U.S
from £0.95
from £0.95
# 047
MPN: 10791021
NUT
Per U.S
from £0.53
from £0.53
# 048
MPN: 12601471
WASHER
Per U.S
Supersession
Supersession
# 049
MPN: 95538
BOLT
Per U.S
# 050
MPN: 12601571
WASHER
Per U.S
Supersession
Supersession
This part replaces part number 12601574
# 051
MPN: 16100824
NUT
Per U.S
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 052
MPN: 16101521
NUT
Per U.S
from £0.57
from £0.57
This part replaces part number 16101520
# 053
MPN: 12601571
WASHER
Per U.S
Supersession
Supersession
This part replaces part number 12601574
# 054
MPN: 95900201
Key
Per U.S
from £0.71
from £0.71
# 055
MPN: 95940219
BOLT
Per U.S
# 056
MPN: 95930510
WASHER
Per U.S
