ferrari 246 dino (1975) body shell - inner elements parts diagram

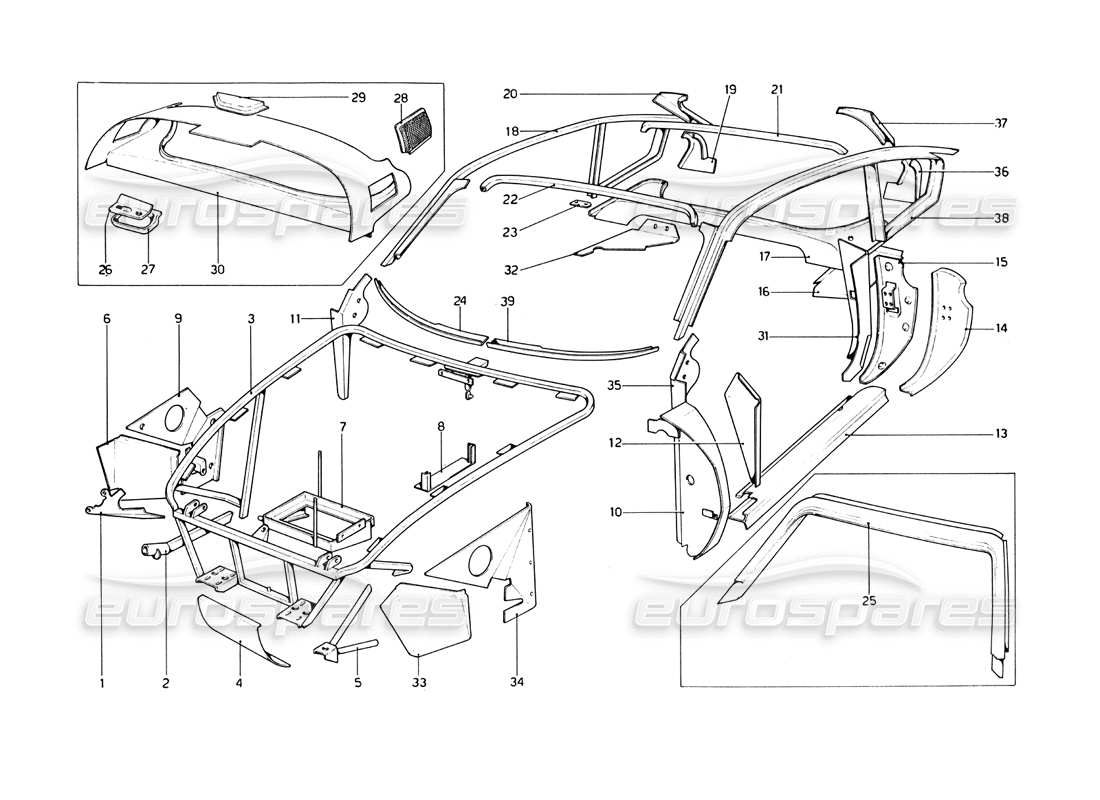

105 - Body Shell - Inner Elements

Ferrari 246 Dino (1975) Body Shell - Inner Elements Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 001
                                          MPN: 20249801
                                          BRACKET / SUPPORT
                                          from £35.41
                                          from £35.41
                                          RH FAN CLIP Genuine Ferrari Part - New (to order)
                                          # 001
                                          MPN: 20249900
                                          BRACKET / SUPPORT
                                          from £35.41
                                          from £35.41
                                          LH FAN CLIP Genuine Ferrari Part - New (to order)
                                          # 002
                                          MPN: 20024204
                                          ATTACCO PER PARAURTI ANTERIORE DESTRO
                                          Non vale per USA
                                          RH FRONT BRACKET Genuine Ferrari Part - New (to order)
                                          # 002
                                          MPN: 20024303
                                          ATTACCO PER PARAURTI ANTERIORE SINISTRO
                                          Non vale per USA
                                          LH FRONT BRACKET Genuine Ferrari Part - New (to order)
                                          # 002
                                          MPN: 20253605
                                          ATTACCO PER PARAURTI ANTERIORE DESTRO
                                          Vale per USA
                                          from £134.59
                                          from £134.59
                                          RH FRONT BRACKET Genuine Ferrari Part - New (to order)
                                          # 002
                                          MPN: 20253704
                                          ATTACCO PER PARAURTI ANTERIORE SINISTRO
                                          Vale per USA
                                          from £69.83
                                          from £69.83
                                          LH FRONT BRACKET Genuine Ferrari Part - New (to order)
                                          # 003
                                          MPN: 20183901
                                          OSSATURA FISSA COFANO ANTERIORE
                                          Non vale per G.D. - USA
                                          This part replaces part number 20005708 - and 1 more. Click to view details
                                          FRONT SPACE FRAME LHD OE Genuine Ferrari Part - New (to order)
                                          # 003
                                          MPN: 20248506
                                          OSSATURA FISSA COFANO ANTERIORE
                                          Vale per G.D.
                                          from £1,562.31
                                          from £1,562.31
                                          FRONT SPACE FRAME RHD OE Genuine Ferrari Part - New (to order)
                                          # 003
                                          MPN: 20263802
                                          OSSATURA FISSA COFANO ANTERIORE
                                          Vale per USA
                                          FRONT SPACE FRAME Genuine Ferrari Part - New (to order)
                                          # 004
                                          MPN: 20144903
                                          RIPARO BATTERIA
                                          UNDERPANEL Genuine Ferrari Part - New (to order)
                                          # 005
                                          MPN: 20278800
                                          RIPORTO ANTERIORE TELAIO DESTRO
                                          from £198.81
                                          from £198.81
                                          RH FRAME Genuine Ferrari Part - New (to order)
                                          # 005
                                          MPN: 20278909
                                          RIPORTO ANTERIORE TELAIO SINISTRO
                                          from £283.73
                                          from £283.73
                                          LH FRAME Genuine Ferrari Part - New (to order)
                                          # 006
                                          MPN: 20252003
                                          FIANCHETTO LATERALE RADIATORE DESTRO
                                          from £170.57
                                          from £170.57
                                          246GT/S RH FRONT FLITCH PANEL Genuine Ferrari Part - New (to order)
                                          # 007
                                          MPN: 20022000

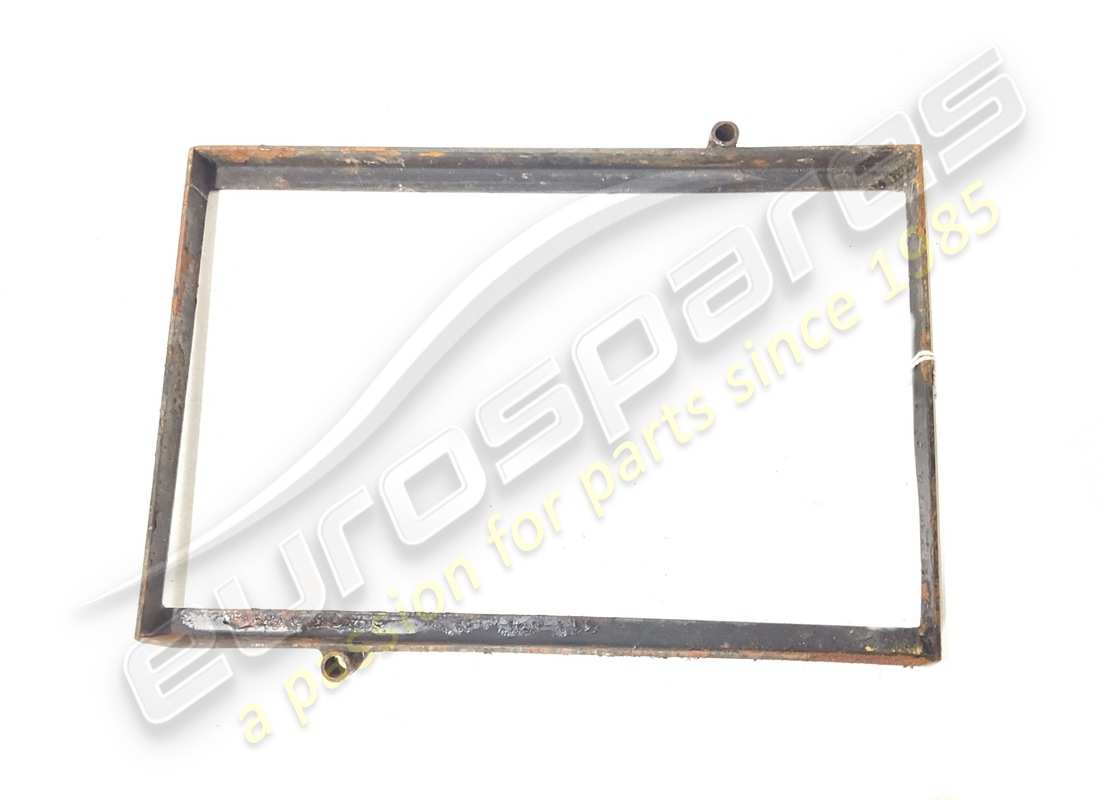

                                          CASTELLO BATTERIA
                                          from £93.78
                                          from £93.78
                                          Frame Genuine Ferrari Part - New (to order)
                                          Frame Genuine Ferrari Part - Used In stock
                                          TOP FRAME ONLY
                                          # 008
                                          MPN: 20107603
                                          BRACKET / SUPPORT
                                          BRACKET Genuine Ferrari Part - New (to order)
                                          # 009
                                          MPN: 20251401
                                          FIANCHETTO ANTERIORE INFERIORE DESTRO
                                          Non vale per USA
                                          from £269.31
                                          from £269.31
                                          RH FRONT LOWER SIDE SHIELD Genuine Ferrari Part - New (to order)
                                          # 009
                                          MPN: 20253200
                                          FIANCHETTO ANTERIORE INFERIORE DESTRO
                                          Vale per USA
                                          LH FRONT LOWER SIDE SHIELD Genuine Ferrari Part - New (to order)
                                          # 010
                                          MPN: 202790
                                          MONTANTE CERNIERE PORTA DESTRO
                                          MONTANTE CERNIERE PORTA DESTRO Genuine Ferrari Part - New (to order)
                                          # 010
                                          MPN: 20279105
                                          MONTANTE CERNIERE PORTA SINISTRO
                                          from £666.76
                                          from £666.76
                                          This part replaces part number 95403557
                                          LH HINGE PILLAR Genuine Ferrari Part - New (to order)
                                          # 011
                                          MPN: 20233805
                                          RIPARO CERNIERE PORTA DESTRO
                                          from £126.06
                                          from £126.06
                                          RH FRONT HINGE PROTECTION 246GT Genuine Ferrari Part - New (to order)
                                          # 012
                                          MPN: 20060802
                                          RIPARO MONTANTE CERNIERE FIANCATA DX
                                          from £120.69
                                          from £120.69
                                          RH HINGE COVERING PLATE Genuine Ferrari Part - New (to order)
                                          # 012
                                          MPN: 20060901
                                          RIPARO MONTANTE CERNIERE FIANCATA SX
                                          from £120.69
                                          from £120.69
                                          LH HINGE COVERING PLATE Genuine Ferrari Part - New (to order)
                                          # 013
                                          MPN: 20004008
                                          RIVESTIMENTO SOTTOPORTA INTERNO DX
                                          Non vale per GTS
                                          from £366.97
                                          from £366.97
                                          RH INNER DOOR SILL GT Genuine Ferrari Part - New (to order)
                                          # 013
                                          MPN: 20004107
                                          RIVESTIMENTO SOTTOPORTA INTERNO SX
                                          Non vale per GTS
                                          from £305.21
                                          from £305.21
                                          LH INNER DOOR SILL GT Genuine Ferrari Part - New (to order)
                                          # 013
                                          MPN: 20129607
                                          RIVESTIMENTO SOTTOPORTA INTERNO DX
                                          Vale per GTS
                                          from £323.73
                                          from £323.73
                                          RH INNER DOOR SILL GTS Genuine Ferrari Part - New (to order)
                                          # 013
                                          MPN: 20129706
                                          RIVESTIMENTO SOTTOPORTA INTERNO SX
                                          Vale per GTS
                                          from £290.67
                                          from £290.67
                                          LH INNER DOOR SILL GTS Genuine Ferrari Part - New (to order)

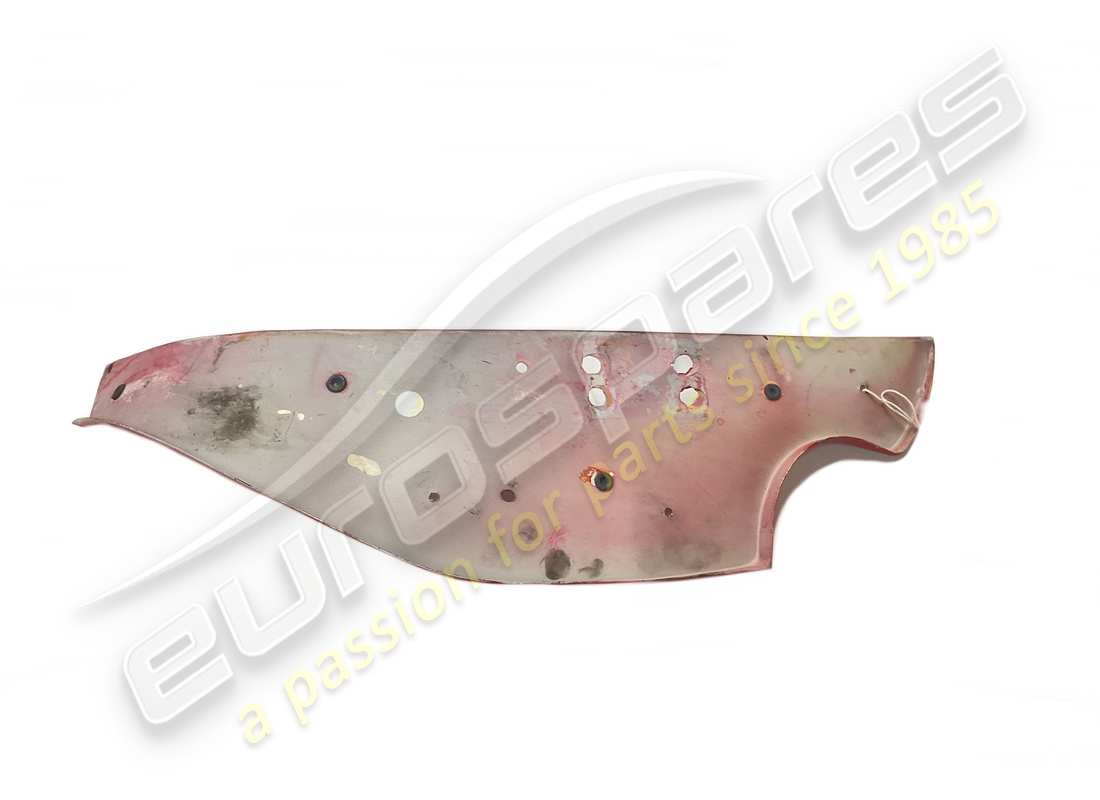

                                          # 014
                                          MPN: 20061008
                                          RIPARO MONTANTE INFERIORE FIANCATA DX
                                          RH DOOR SHUT PANEL Genuine Ferrari Part - New (to order)
                                          RH DOOR SHUT PANEL Genuine Ferrari Part - Used In stock

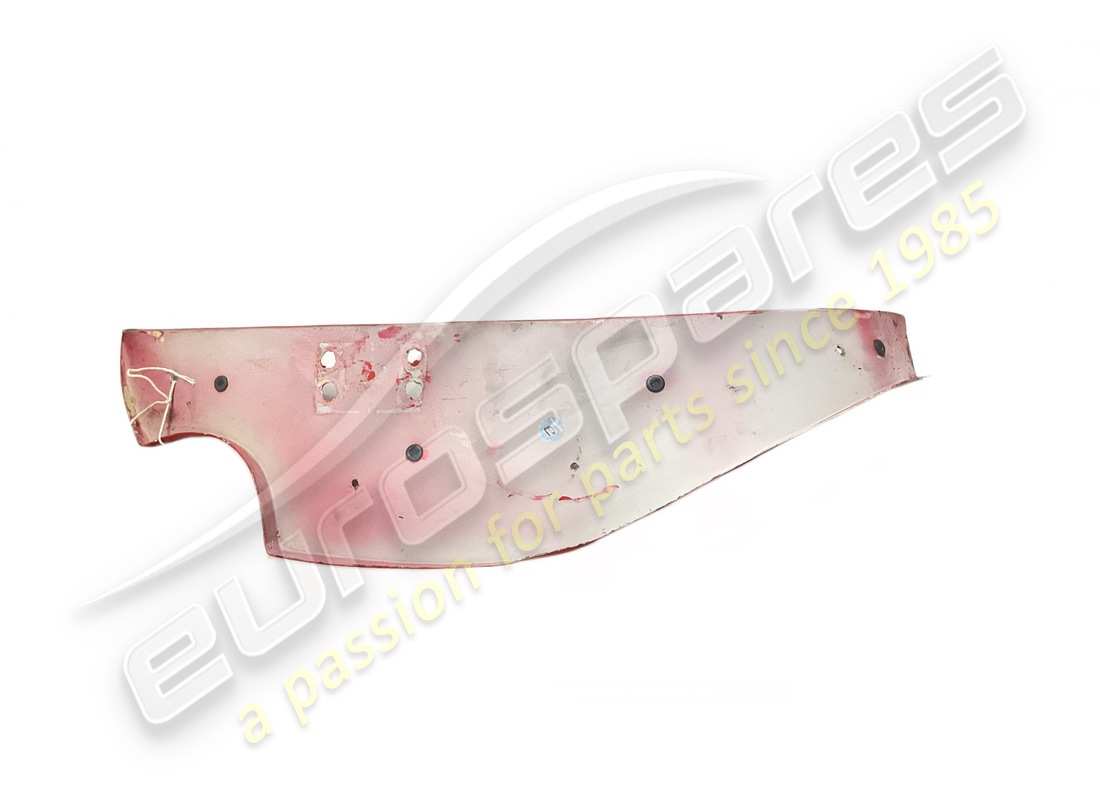

                                          # 014
                                          MPN: 20061107
                                          RIPARO MONTANTE INFERIORE FIANCATA SX
                                          from £851.65
                                          from £851.65
                                          LH DOOR SHUT PANEL Genuine Ferrari Part - New (to order)
                                          LH DOOR SHUT PANEL Genuine Ferrari Part - Used In stock
                                          # 014
                                          MPN: 246PLATE

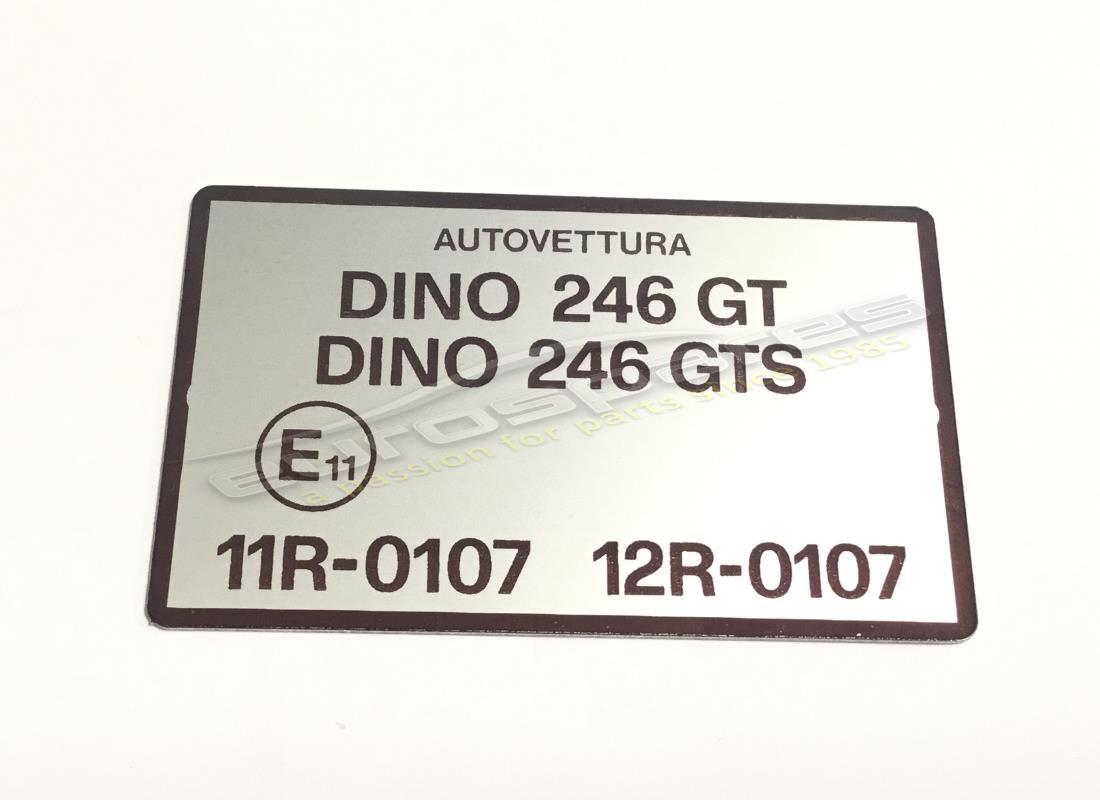

                                          DINO 246 NAMEPLATE
                                          Valid For GT And GTS
                                          from £26.20
                                          from £26.20
                                          DINO 246 NAMEPLATE Genuine Ferrari Part - New In stock
                                          # 015
                                          MPN: 20230009
                                          MONTANTE INFERIORE FIANCATA DX
                                          from £213.02
                                          from £213.02
                                          RH DOOR SHUT LOCK PANEL Genuine Ferrari Part - New (to order)
                                          # 015
                                          MPN: 20230108
                                          MONTANTE INFERIORE FIANCATA SX
                                          from £213.02
                                          from £213.02
                                          LH DOOR SHUT LOCK PANEL Genuine Ferrari Part - New (to order)
                                          # 016
                                          MPN: 20009800
                                          PIANETTO PER FINESTRA LATERALE POST, DX
                                          Non vale per GTS
                                          RH REAR UNDER PANEL Genuine Ferrari Part - New (to order)
                                          # 016
                                          MPN: 20009900
                                          PIANETTO FINESTRA LATERALE POST, SX
                                          Non vale per GTS
                                          LH REAR UNDER PANEL Genuine Ferrari Part - New (to order)
                                          # 017
                                          MPN: 20004701
                                          PIANETTO SOTTOLUNOTTO
                                          from £876.68
                                          from £876.68
                                          246GT REAR PARCEL SHELF STEELOE Genuine Ferrari Part - New (to order)
                                          # 018
                                          MPN: 20000808
                                          LONGHERINA COMPLETA (DESTRA)
                                          Non vale per GTS
                                          PANEL Genuine Ferrari Part - New (to order)
                                          # 019
                                          MPN: 20117600
                                          SCATOLATO LATERALE INFER, PADIGLIONE DX
                                          COVER FOR REAR LOWER PANEL Genuine Ferrari Part - New (to order)
                                          # 020
                                          MPN: 20117400
                                          SCATOLATO LATERALE SUPERIORE PADIGLIONE DESTRO
                                          COVER FOR REAR LOWER PANEL Genuine Ferrari Part - New (to order)
                                          # 021
                                          MPN: 20060100
                                          CENTINA DI RINFORZO PADIGLIONE POSTER.
                                          Non vale per GTS
                                          CENTRAL SUPPORT Genuine Ferrari Part - New (to order)
                                          # 022
                                          MPN: 20060000
                                          CENTINA DI RINFORZO PADIGIIONE ANTER.
                                          Non vale per GTS
                                          CENTRAL SUPPORT Genuine Ferrari Part - New (to order)
                                          # 024
                                          MPN: 20147708
                                          SCATOLAMENTO INFERIORE PARABREZZA DX
                                          Frame Genuine Ferrari Part - New (to order)
                                          # 025
                                          MPN: 20127908
                                          OSSATURA PARABREZZA
                                          Vale per GTS
                                          from £636.17
                                          from £636.17
                                          FRONT FRAME Genuine Ferrari Part - New (to order)
                                          # 026
                                          MPN: 20125605
                                          SCONTRINO PER TETTO APRIBILE
                                          Vale per GTS
                                          from £80.69
                                          from £80.69
                                          BRACKET Genuine Ferrari Part - New (to order)
                                          # 027
                                          MPN: 20125506
                                          SCATOLETTA PER SCONTRINO
                                          Vale per GTS
                                          from £14.21
                                          from £14.21
                                          CASING Genuine Ferrari Part - New (to order)
                                          # 028
                                          MPN: 20279204

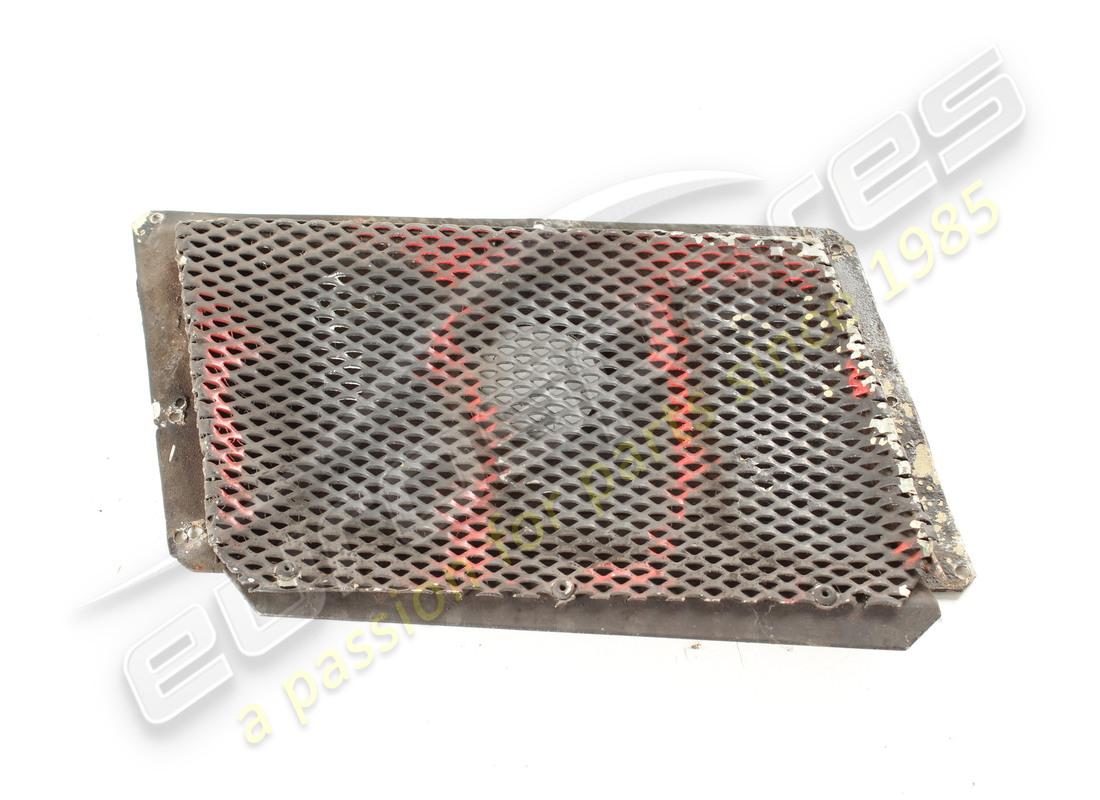

                                          AERATORE DESTRO
                                          Vale per GTS
                                          from £104.75
                                          from £104.75
                                          RH REAR ROOF AIR VENT GTS Genuine Ferrari Part - New (to order)
                                          RH REAR ROOF AIR VENT GTS Genuine Ferrari Part - Used In stock
                                          # 028
                                          MPN: 20279303
                                          AERATORE SINISTRO
                                          Vale per GTS
                                          from £104.75
                                          from £104.75
                                          LH REAR ROOF AIR VENT GTS Genuine Ferrari Part - New (to order)
                                          LH REAR ROOF AIR VENT GTS Genuine Ferrari Part - Used In stock
                                          # 029
                                          MPN: 20201901
                                          SCATOLA RIFERIMENTO TETTO
                                          Vale per GTS
                                          from £381.97
                                          from £381.97
                                          ROOF BOX Genuine Ferrari Part - New (to order)
                                          # 030
                                          MPN: 20129201
                                          OSSATURA ROLL-BAR
                                          Vale per GTS
                                          246GTS REAR ROLL BAR ROOF FRAME Genuine Ferrari Part - New (to order)
                                          # 031
                                          MPN: 20112207
                                          FIANCHETTO LATERALE POSTERIORE DX
                                          Non vale per GTS
                                          from £65.38
                                          from £65.38
                                          RH SIDE PIECE GT Genuine Ferrari Part - New (to order)
                                          # 031
                                          MPN: 20112306
                                          FIANCHETTO LATERALE POSTERIORE SX
                                          Non vale per GTS
                                          LH SIDE PIECE GT Genuine Ferrari Part - New (to order)
                                          # 031
                                          MPN: 20124806
                                          FIANCHETTO LATERALE POSTERIORE DX
                                          Vale per GTS
                                          from £64.54
                                          from £64.54
                                          RH SIDE PIECE LHD GTS Genuine Ferrari Part - New (to order)
                                          # 031
                                          MPN: 20124905
                                          FIANCHETTO LATERALE POSTERIORE SX
                                          Vale per GTS
                                          from £64.54
                                          from £64.54
                                          LH SIDE PIECE LHD GTS Genuine Ferrari Part - New (to order)
                                          # 032
                                          MPN: 20279400
                                          PIANETTO PER FINESTRA LATERALE POSTERIORE DX
                                          Vale per GTS
                                          RH REAR UNDER PANEL GTS Genuine Ferrari Part - New (to order)
                                          # 032
                                          MPN: 20279500
                                          PIANETTO PER FINESTRA LATERALE POSTERIORE SINISTRO
                                          Vale per GTS
                                          LH REAR UNDER PANEL GTS Genuine Ferrari Part - New (to order)
                                          # 033
                                          MPN: 20252102
                                          FIANCHETTO LATERALE RADIATORE SINISTRO
                                          from £168.06
                                          from £168.06
                                          246GT/S LH FLITCH PANEL Genuine Ferrari Part - New (to order)
                                          # 034
                                          MPN: 20251500
                                          FIANCHETTO ANTERTORE INFERIORE SINISTRO
                                          Non vale per USA
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 034
                                          MPN: 20253300
                                          FIANCHETTO ANTERIORE INFERIORE SINISTRO
                                          Vale per USA
                                          RH SIDE SHIELD Genuine Ferrari Part - New (to order)
                                          # 035
                                          MPN: 20233904
                                          RLPARO CERNIERE PORTA SINISTRO
                                          from £126.06
                                          from £126.06
                                          246GT LHF HINGE PROTECTION Genuine Ferrari Part - New (to order)
                                          # 036
                                          MPN: 20117700
                                          SCATOLATO LATERALE INFER, PADIGLIONE SX
                                          COVER FOR REAR LOWER PANEL Genuine Ferrari Part - New (to order)
                                          # 037
                                          MPN: 20117500
                                          SCATOLATO LATERALE SUPER, PADIGLIONE SX
                                          COVER FOR UPPER PANEL Genuine Ferrari Part - New (to order)
                                          # 038
                                          MPN: 20000907
                                          LONGHERINA COMPLETA (SINISTRA)
                                          Non vale per GTS
                                          from £3,077.67
                                          from £3,077.67
                                          PANEL Genuine Ferrari Part - New (to order)
                                          # 039
                                          MPN: 20147807
                                          SCATOLAMENTO INFERIORE PARABREZZA SX
                                          Frame Genuine Ferrari Part - New (to order)
