002 - OIL PAN

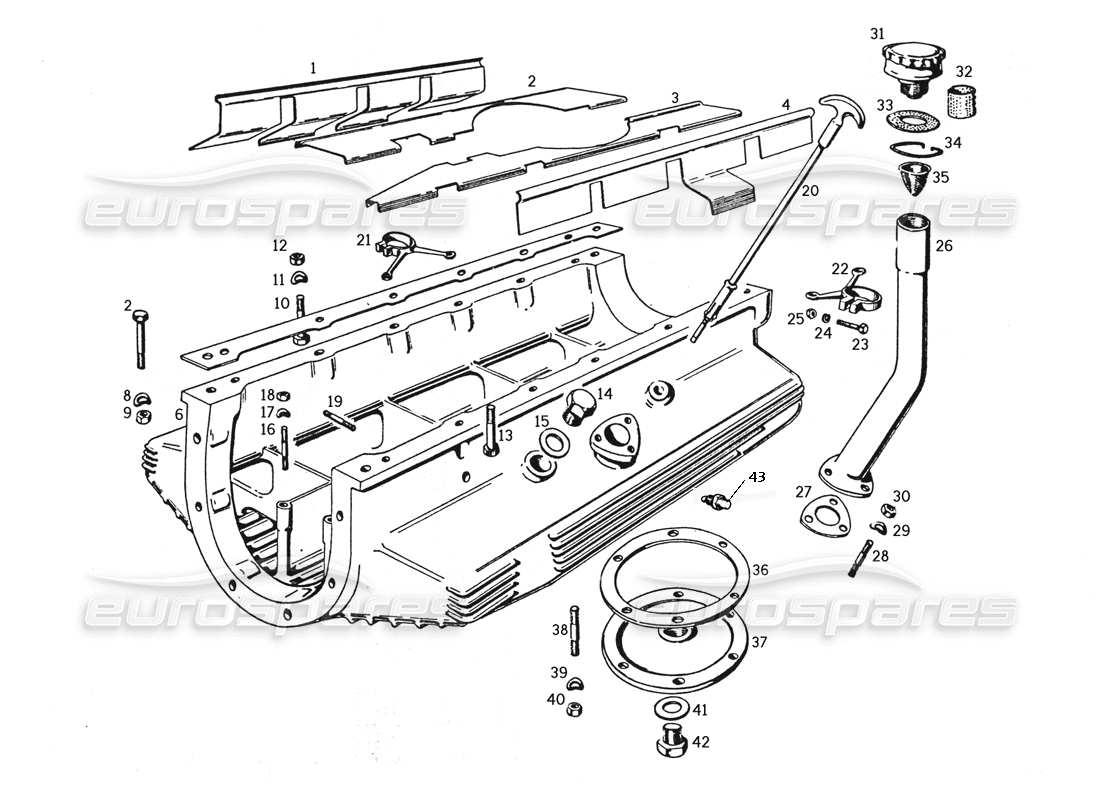

Ferrari 250 GTE (1957) Oil Pan Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 11895
SIDE OIL SEAL
# 002
MPN: 11894
PARAOLIO ORRIZZONT. DESTRO
# 003
MPN: 11935
PARAOLIO ORRIZZON.SINISTRO
# 004
MPN: 11896
LEFT SIDE OIL SEAL
# 005
MPN: 11120
GASKET
from £16.80
from £16.80
# 006
MPN: 11962
COPPA OLIO
# 007
MPN: 92262
BOLT
# 008
MPN: 93830
WASHER
from £1.52
from £1.52
# 009
MPN: 92412
NUT
from £1.56
from £1.56
# 010
MPN: 92266
BOLT
from £23.45
from £23.45
# 011
MPN: 93830
WASHER
from £1.52
from £1.52
# 012
MPN: 92412
NUT
from £1.56
from £1.56
# 013
MPN: 92266
BOLT
from £23.45
from £23.45
# 014
MPN: 93096
PLUG
from £9.66
from £9.66
# 015
MPN: 10263160
GASKET
from £0.47
from £0.47
This part replaces part number 92930
# 016
MPN: 92353
THREADED STUD
from £0.47
from £0.47
# 017
MPN: 93832
WASHER
# 018
MPN: 92405
NUT
# 019
MPN: 92353
THREADED STUD
from £0.47
from £0.47
# 020
MPN: 11964
ASIA OIL LEVEL
# 021
MPN: 11923
SUPPORTINO
# 022
MPN: 11886
SUPPORTINO
# 023
MPN: 93087
BOLT
# 024
MPN: 92516
WASHER
# 025
MPN: 92405
NUT
# 026
MPN: 11890
TUBO CARICO OLIO
# 027
MPN: 11814
GASKET
from £4.52
from £4.52
# 028
MPN: 93630
THREADED STUD
# 029
MPN: 92353
WASHER
from £0.47
from £0.47
# 030
MPN: 92393
NUT
# 031
MPN: 11863
CAP BODY
from £709.80
from £709.80
# 032
MPN: 11865
RETE
from £19.07
from £19.07
# 033
MPN: 11864
PARAPOLVERE
from £48.56
from £48.56
# 034
MPN: 24124
ANELLINO
Supersession
Supersession
# 035
MPN: 11866
RETE PARAOIIO
# 036
MPN: 11883
GASKET
from £6.00
from £6.00
# 037
MPN: 11887
COVER
# 038
MPN: 92460
THREADED STUD
# 039
MPN: 93832
WASHER
# 040
MPN: 92405
NUT
# 041
MPN: 92784
GASKET
from £0.58
from £0.58
# 042
MPN: 92783
PLUG
# 043
MPN: 100453
OIL SENDER UNIT
from £13.59
from £13.59
This part replaces part number 100345 - and 1 more. Click to view details
