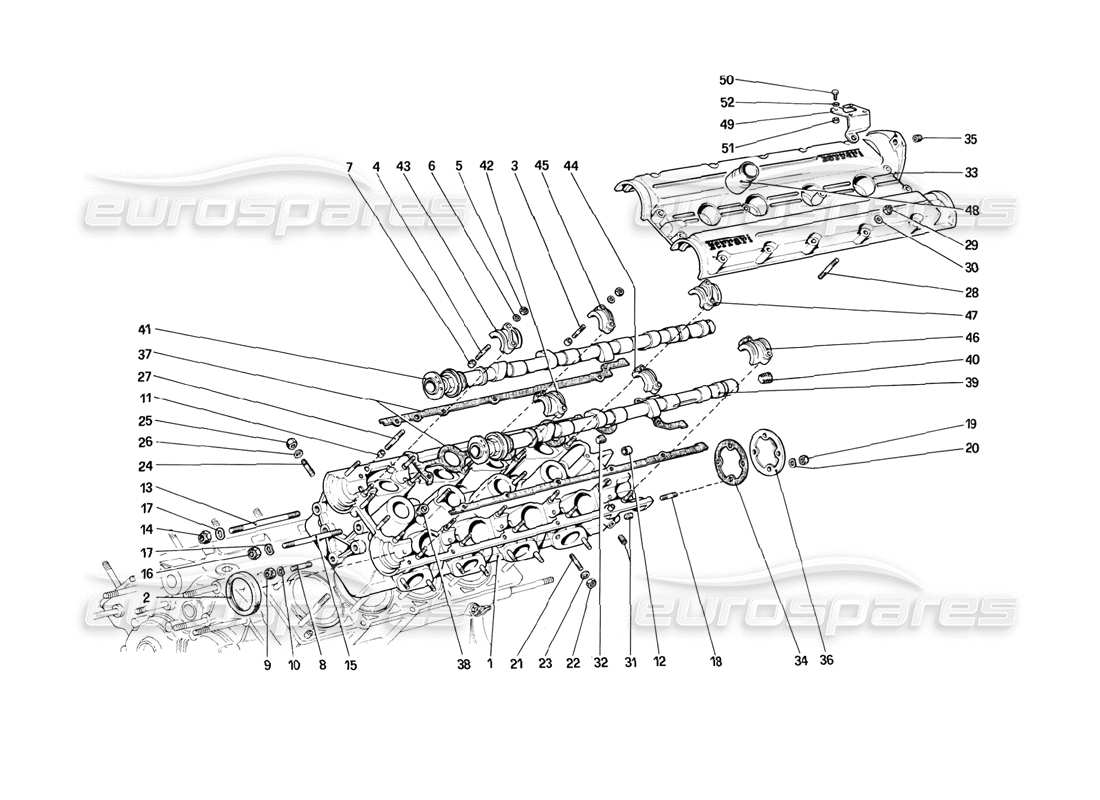

006 - cylinder head (left)
Ferrari 308 (1981) GTBi/GTSi Cylinder Head (Left) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 114644
LHS CYLINDER HEAD (USA MODEL)
from £6,995.00
from £6,995.00
# 001
MPN: 115730
LH cylinder head
# 002
MPN: 163987
SEALING RING
from £9.95
from £9.95
This part replaces part number 136526
# 003
MPN: 102735
STUD
from £11.07
from £11.07
This part replaces part number 4146561
# 004
MPN: 102754
STUD
from £5.00
from £5.00
# 005
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 006
MPN: 11197773
WASHER
Supersession
Supersession
# 007
MPN: 102725
DOWEL
from £0.56
from £0.56
# 008
MPN: 13517121
STUD
Supersession
Supersession
# 009
MPN: 16104411
SELF LOCKING NUT
from £0.53
from £0.53
# 010
MPN: 12601371
WASHER
Supersession
Supersession
# 011
MPN: 102725
CENTERING DOWEL
from £0.64
from £0.64
# 012
MPN: 102704
CENTERING DOWEL
from £1.77
from £1.77
This part replaces part number 500805
# 013
MPN: 115237
STUD
from £9.20
from £9.20
This part replaces part number 107923
# 014
MPN: 12574521
SELF LOCKING NUT
from £0.56
from £0.56
This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
# 015
MPN: 13953221
THREADED STUD
Supersession
Supersession
# 016
MPN: 102742
SELF LOCKING NUT
from £0.54
from £0.54
This part replaces part number 12557621 - and 2 more. Click to view details
# 017
MPN: 12601471
WASHER
Supersession
Supersession
# 018
MPN: 11500321
THREADED STUD
Supersession
Supersession
# 019
MPN: 102741
SELF LOCKING NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 020
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 021
MPN: 13543324
STUD
from £0.81
from £0.81
This part replaces part number 13543321
# 022
MPN: 114748
NUT
from £8.76
from £8.76
# 023
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 024
MPN: 13543621
THREADED STUD
Supersession
Supersession
# 025
MPN: 16100824
NUT
from £0.48
from £0.48
This part replaces part number 16100814 - and 1 more. Click to view details
# 026
MPN: 11198074
WASHER
from £0.53
from £0.53
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 027
MPN: 13541721
THREADED STUD
Supersession
Supersession
# 028
MPN: 13541621
THREADED STUD
Supersession
Supersession
# 029
MPN: 100044
SELF LOCKING NUT
from £0.29
from £0.29
This part replaces part number 151230 - and 1 more. Click to view details
# 030
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 031
MPN: 14326150
THREADED PLUG
from £0.50
from £0.50
This part replaces part number 12326150
# 032
MPN: 10269450
PLUG
from £16.22
from £16.22
# 033
MPN: 105964

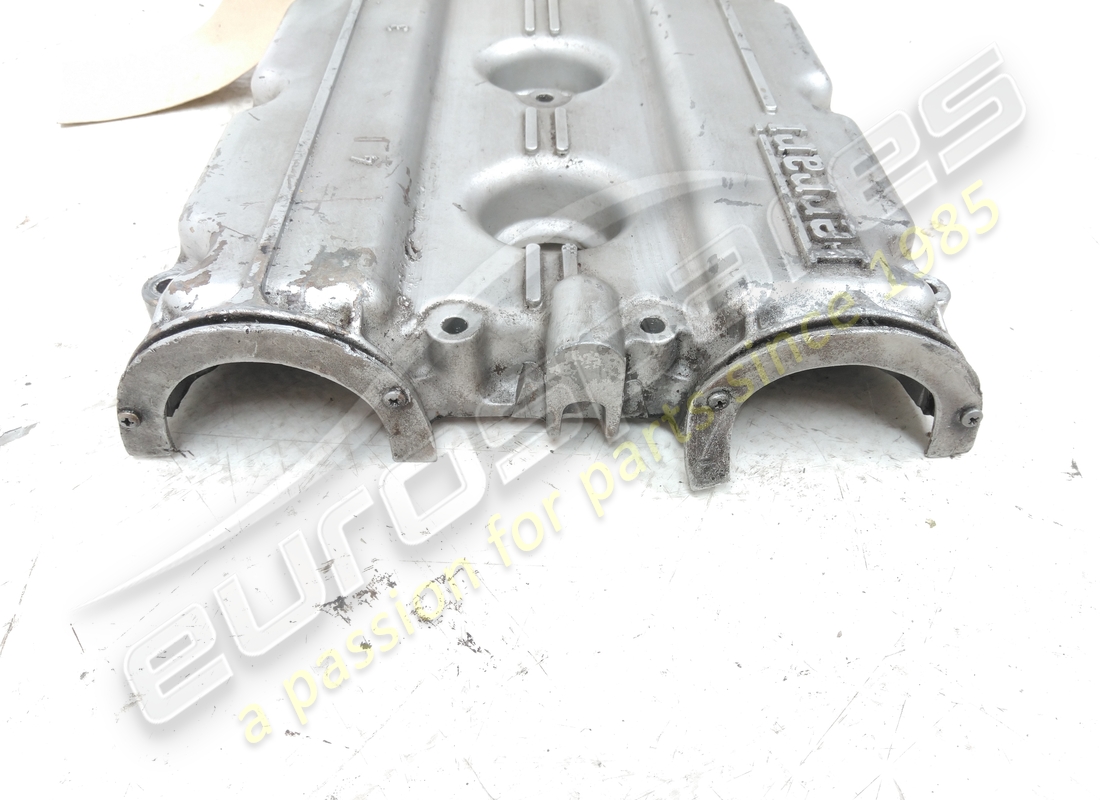

LH CAM COVER
USA model
from £325.50
from £325.50
# 034
MPN: 150075

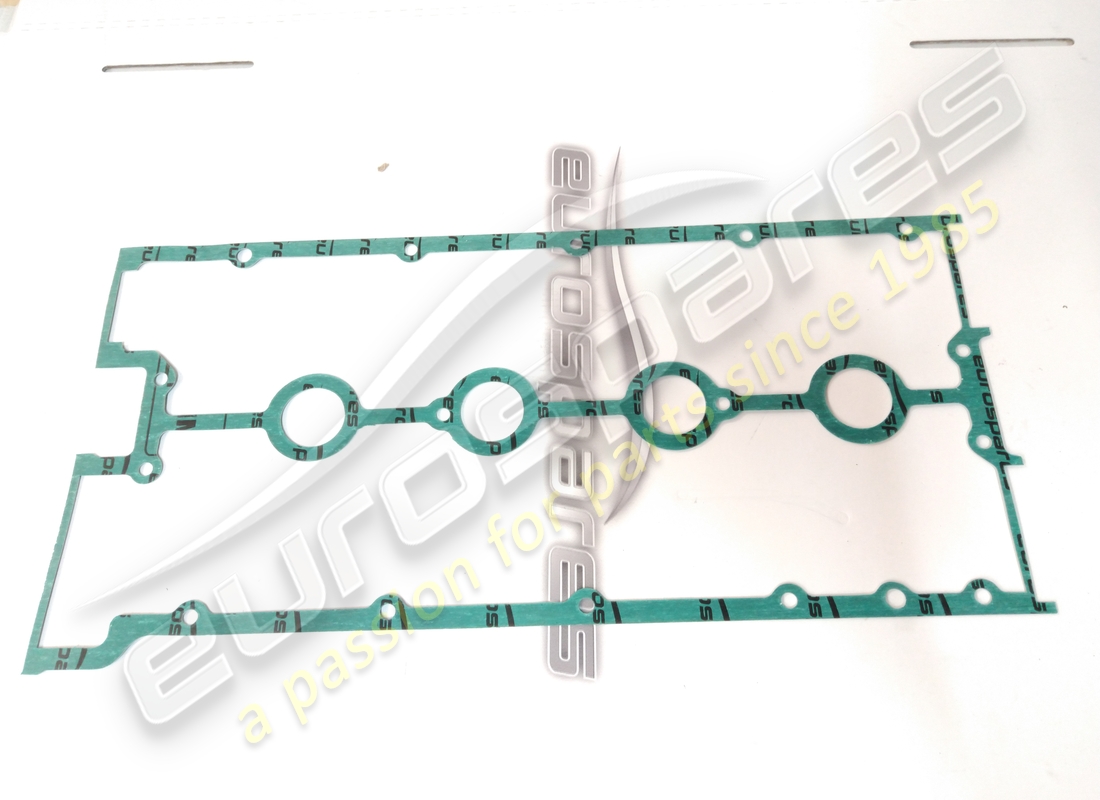

GASKET
from £16.11
from £16.11
This part replaces part number 104694 - and 3 more. Click to view details
# 035
MPN: 103830
HELI - COIL
Supersession
Supersession
# 036
MPN: 103796
COVER
from £167.71
from £167.71
# 037
MPN: 147686
LH GASKET
Alternative use : FCCG005
from £36.23
from £36.23
This part replaces part number 105965 - and 1 more. Click to view details
# 037
MPN: FCCG005
CAM COVER GASKET SET
Suitable for 2v models only - for 4v use FCCG001
from £52.32
from £52.32
# 038
MPN: 10269750
PLUG
from £0.88
from £0.88
This part replaces part number 95184
# 039
MPN: 115428
ALBERO DISTRIBUZIONE SCARICO SINISTRO COMPLETE
from £1,203.93
from £1,203.93
This part replaces part number 115429 which we have in stock
# 039
MPN: 115429
ALBERO DISTRIBUZIONE SCARICO SINISTRO
Col complessivo n. 115428
from £246.75
from £246.75
# 040
MPN: 10269750
PLUG
from £0.91
from £0.91
This part replaces part number 95184
# 041
MPN: 115048
ALBERO DISTRIBUZIONE ASPIRAZIONE SINISTRO COMPLETO
Supersession
Supersession
This part replaces part number 115427 which we have in stock
# 041
MPN: 115427
ALBERO DISTRIBUZIONE ASPIRAZIONE SX.
Col complessivo n. 115048
from £336.00
from £336.00
# 042
MPN: 115466
BEARING CAP FRONT
con la testa cilindri completa
# 043
MPN: 115467
BEARING CAP FRONT
con la testa cilindri completa
# 044
MPN: 116461
CAPPEILO INTERMEDIO
con la testa cilindri completa
# 045
MPN: 116458
BEARING CAP INTERMEDIATE
con la testa cilindri completa
# 046
MPN: 116459
REAR CAP EXHAUST SIDE
# 047
MPN: 116460
REAR CAP INLET SIDE
# 048
MPN: 112903
TERMINALE PER SEDE CANDELA
from £40.23
from £40.23
# 049
MPN: 116875
BRACKET / SUPPORT
from £8.75
from £8.75
# 050
MPN: 10373411
SCREW
from £0.47
from £0.47
# 051
MPN: 16101711
NUT
from £0.53
from £0.53
This part replaces part number 16101715
# 052
MPN: 10615171
WASHER
from £0.47
from £0.47
This part replaces part number 10615174
