ferrari 308 (1981) gtbi/gtsi inside gearbox controls parts diagram

023 - Inside Gearbox Controls

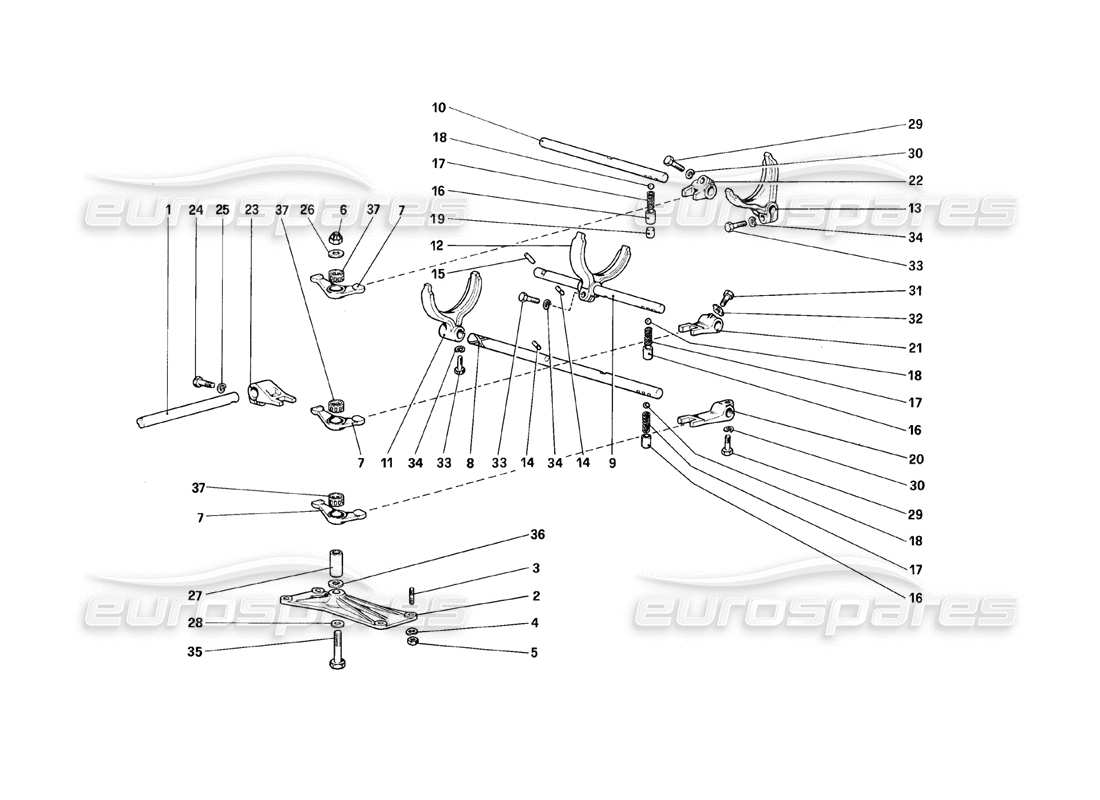

Ferrari 308 (1981) GTBi/GTSi Inside Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Key
                                                                            Price
                                                                            # 001
                                                                            MPN: 109767
                                                                            ALBERO PER LEVA
                                                                            from £423.34
                                                                            from £423.34
                                                                            This part replaces part number 105733 - and 1 more. Click to view details
                                                                            SHAFT FOR CONTROL LEVER Genuine Ferrari Part - New (to order)

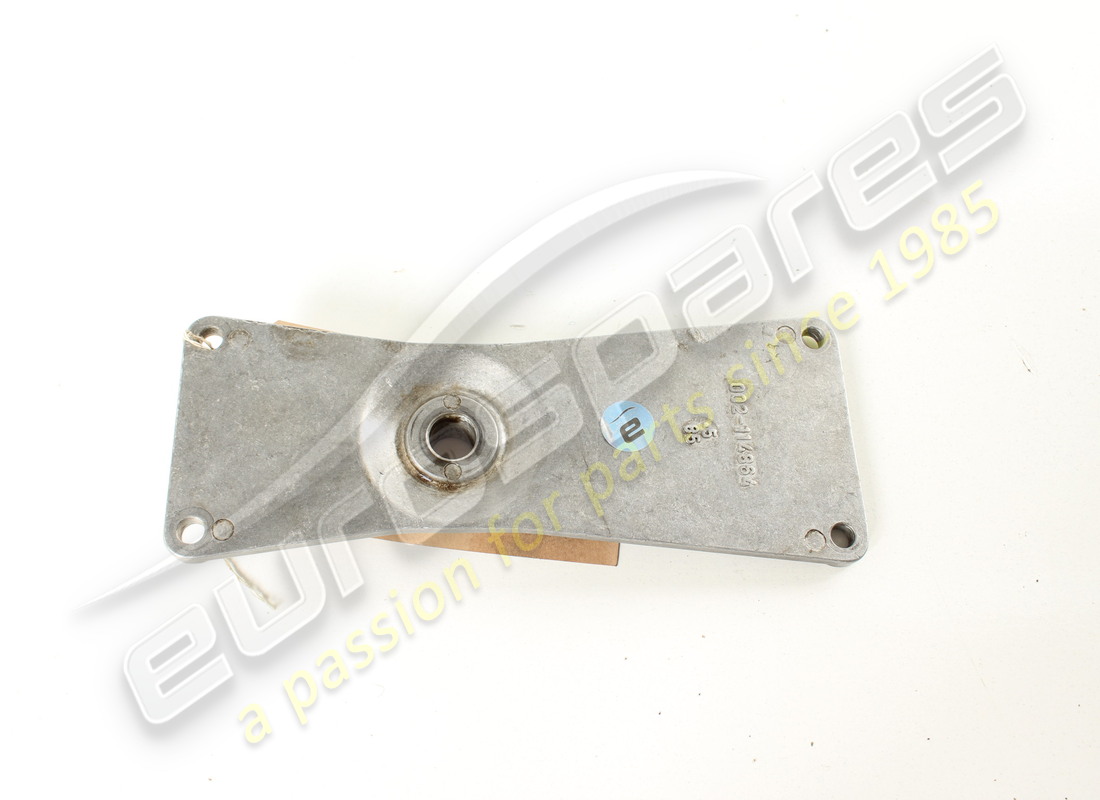

                                                                            # 002
                                                                            MPN: 114864
                                                                            SUPPORT
                                                                            from £38.82
                                                                            from £38.82
                                                                            This part replaces part number 104203 - and 5 more. Click to view details
                                                                            SUPPORT Genuine Ferrari Part - New (to order)
                                                                            SUPPORT Genuine Ferrari Part - Used In stock
                                                                            # 003
                                                                            MPN: 11500121
                                                                            THREADED STUD
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 13540820
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 004
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            WASHER Genuine Maserati Part - New In stock
                                                                            # 005
                                                                            MPN: 15896211
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896210 which we have in stock
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            Genuine Maserati Part (no longer available to order)
                                                                            # 006
                                                                            MPN: 16109221
                                                                            NUT
                                                                            from £0.61
                                                                            from £0.61
                                                                            NUT Genuine Ferrari Part - New (to order)
                                                                            # 007
                                                                            MPN: 115249
                                                                            BILANCIERE
                                                                            from £62.02
                                                                            from £62.02
                                                                            ROCKER ARM Genuine Ferrari Part - New (to order)
                                                                            ROCKER ARM Genuine Ferrari Part - Used In stock
                                                                            # 008
                                                                            MPN: 115350
                                                                            ASTA COMANDO 1ª VELOCITA E RM
                                                                            from £218.99
                                                                            from £218.99
                                                                            ROD 1ST & RM GEARS Genuine Ferrari Part - New (to order)
                                                                            # 009
                                                                            MPN: 115351
                                                                            Asta comando 2ª e 3ª velocita
                                                                            from £286.48
                                                                            from £286.48
                                                                            ROD 2ND & 3RD GEARS Genuine Ferrari Part - New (to order)
                                                                            # 010
                                                                            MPN: 115352
                                                                            Asta comando 4ª e 5ª velocita
                                                                            from £286.48
                                                                            from £286.48
                                                                            ROD 4TH & 5TH GEARS Genuine Ferrari Part - New (to order)
                                                                            # 011
                                                                            MPN: 115341
                                                                            FORK 1ª SPEED AND REVERSE
                                                                            from £167.07
                                                                            from £167.07
                                                                            SELECTOR FORK 1ST & RM Genuine Ferrari Part - New (to order)
                                                                            SELECTOR FORK 1ST & RM Genuine Ferrari Part - Used In stock
                                                                            # 012
                                                                            MPN: 115349
                                                                            FORK 2ª AND 3ª SPEED
                                                                            from £195.14
                                                                            from £195.14
                                                                            SELECTOR FORK 2ND & 3RD Genuine Ferrari Part - New (to order)
                                                                            SELECTOR FORK 2ND & 3RD Genuine Ferrari Part - Used In stock
                                                                            # 013
                                                                            MPN: 115348
                                                                            FORK 4ª AND 5ª SPEED
                                                                            from £354.80
                                                                            from £354.80
                                                                            This part replaces part number 116348
                                                                            SELECTOR FORK 4TH & 5TH Genuine Ferrari Part - New (to order)
                                                                            # 014
                                                                            MPN: 115355
                                                                            RULLINO ARRESTO ASTE LATERAL
                                                                            from £8.25
                                                                            from £8.25
                                                                            SELECTOR PIN Genuine Ferrari Part - New In stock
                                                                            # 015
                                                                            MPN: 115356
                                                                            RULLINO ARRESTO ASTA CENTRALE
                                                                            from £4.26
                                                                            from £4.26
                                                                            ROLLER Genuine Ferrari Part - New In stock
                                                                            ROLLER Genuine Ferrari Part - Used In stock
                                                                            # 016
                                                                            MPN: 115376
                                                                            BUSH
                                                                            from £29.06
                                                                            from £29.06
                                                                            BUSH Genuine Ferrari Part - New (to order)
                                                                            Maserati PART 115376 Genuine Maserati Part - New (to order)
                                                                            # 017
                                                                            MPN: 116336
                                                                            SPRING
                                                                            from £3.00
                                                                            from £3.00
                                                                            SELECTOR SPRING Genuine Ferrari Part - New (to order)
                                                                            # 018
                                                                            MPN: 101612
                                                                            SFERA
                                                                            from £0.69
                                                                            from £0.69
                                                                            This part replaces part number 93309
                                                                            BALL Genuine Ferrari Part - New In stock
                                                                            BALL Genuine Maserati Part - New (to order)
                                                                            # 019
                                                                            MPN: 115357
                                                                            SPACER
                                                                            from £4.49
                                                                            from £4.49
                                                                            SPACER Genuine Ferrari Part - New (to order)
                                                                            # 020
                                                                            MPN: 115358
                                                                            SELECTOR FORK 1ST SPEED AND REVERSE
                                                                            from £79.20
                                                                            from £79.20
                                                                            SELECTOR FORK 1ST & RM Genuine Ferrari Part - New (to order)
                                                                            SELECTOR FORK 1ST & RM Genuine Ferrari Part - Used In stock
                                                                            # 021
                                                                            MPN: 115359
                                                                            SELECTOR FORK 2ª and 3ª SPEED
                                                                            from £128.92
                                                                            from £128.92
                                                                            SELECTOR FORK 2ND & 3RD Genuine Ferrari Part - New (to order)
                                                                            # 022
                                                                            MPN: 115360
                                                                            SELECTOR FORK 4ª and 5ª SPEED
                                                                            from £66.47
                                                                            from £66.47
                                                                            SELECTOR FORK 4TH & 5TH Genuine Ferrari Part - New (to order)
                                                                            SELECTOR FORK 4TH & 5TH Genuine Ferrari Part - Used In stock
                                                                            # 023
                                                                            MPN: 106213
                                                                            LEVER
                                                                            from £81.16
                                                                            from £81.16
                                                                            This part replaces part number 525010 - and 1 more. Click to view details
                                                                            LEVER Genuine Ferrari Part - New (to order)
                                                                            LEVER Genuine Ferrari Part - Used In stock
                                                                            # 025
                                                                            MPN: 106852
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 026
                                                                            MPN: 114865
                                                                            WASHER
                                                                            from £1.16
                                                                            from £1.16
                                                                            This part replaces part number 112109
                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                            # 027
                                                                            MPN: 115374
                                                                            BUSH
                                                                            from £5.15
                                                                            from £5.15
                                                                            BUSH Genuine Ferrari Part - New (to order)
                                                                            BUSH Genuine Ferrari Part - Used In stock
                                                                            # 028
                                                                            MPN: 108281
                                                                            WASHER
                                                                            from £0.96
                                                                            from £0.96
                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                            # 029
                                                                            MPN: 16043621
                                                                            BOLT
                                                                            from £1.08
                                                                            from £1.08
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            SCREW FOR VALVE ASSEMBLY Genuine Maserati Part - New (to order)
                                                                            # 030
                                                                            MPN: 106852
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 031
                                                                            MPN: 104279
                                                                            BOLT
                                                                            from £20.23
                                                                            from £20.23
                                                                            This part replaces part number 95176 - and 1 more. Click to view details
                                                                            BOLT Genuine Ferrari Part - New (to order)
                                                                            # 032
                                                                            MPN: 103587
                                                                            PLATE
                                                                            from £5.85
                                                                            from £5.85
                                                                            This part replaces part number 92692 - and 1 more. Click to view details
                                                                            LOCKTAB Genuine Ferrari Part - New In stock
                                                                            LOCKTAB Eurospares Approved Part - New (to order)
                                                                            # 033
                                                                            MPN: 16043621
                                                                            BOLT
                                                                            from £1.08
                                                                            from £1.08
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            SCREW FOR VALVE ASSEMBLY Genuine Maserati Part - New (to order)
                                                                            # 034
                                                                            MPN: 106852
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 035
                                                                            MPN: 15541121
                                                                            BOLT
                                                                            from £0.57
                                                                            from £0.57
                                                                            BOLT Genuine Ferrari Part - New (to order)
                                                                            # 036
                                                                            MPN: 114865
                                                                            WASHER
                                                                            from £1.16
                                                                            from £1.16
                                                                            This part replaces part number 112109
                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                            # 037
                                                                            MPN: 115373
                                                                            ASTUCCIO A RULLINI
                                                                            from £2.80
                                                                            from £2.80
                                                                            CAGED ROLLER BEARING Genuine Ferrari Part - New (to order)
