ferrari 308 (1981) gtbi/gtsi body shell - inner elements parts diagram

103 - Body Shell - Inner Elements

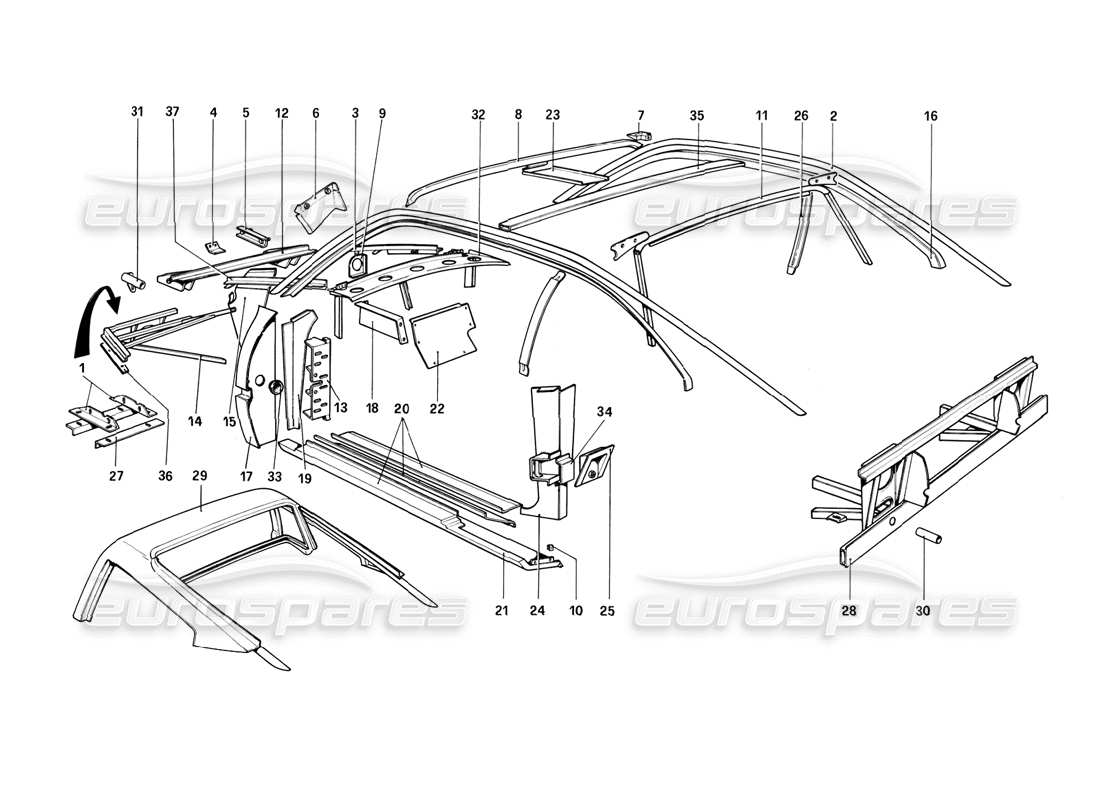

Ferrari 308 (1981) GTBi/GTSi Body Shell - Inner Elements Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 60581800
                                                        BRACKET / SUPPORT
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 001
                                                        MPN: 60581900
                                                        BRACKET / SUPPORT
                                                        from £6.10
                                                        from £6.10
                                                        LH BRACKET Genuine Ferrari Part - New (to order)
                                                        LH BRACKET Genuine Ferrari Part - Used In stock
                                                        # 002
                                                        MPN: 60260304
                                                        TUBO LONGHERINA SX. GTB
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 002
                                                        MPN: 61010000
                                                        RH RAIL GTB
                                                        from £99.13
                                                        from £99.13
                                                        This part replaces part number 60260205
                                                        RH ROOF FRAME TUBING GTB Genuine Ferrari Part - New In stock
                                                        # 003
                                                        MPN: 60350006
                                                        RINFORZO DX. VANO ANTERIORE
                                                        from £24.58
                                                        from £24.58
                                                        RH STIFFENING LHD Genuine Ferrari Part - New (to order)
                                                        # 004
                                                        MPN: 60309804
                                                        STAFFETTA PER TROMBE
                                                        from £3.47
                                                        from £3.47
                                                        BRACKET GTB Genuine Ferrari Part - New (to order)
                                                        # 005
                                                        MPN: 40111601
                                                        SUPPORT
                                                        Per GD vale 40111601
                                                        from £41.32
                                                        from £41.32
                                                        This part replaces part number 40111604
                                                        SUPPORT Genuine Ferrari Part - New In stock
                                                        # 006
                                                        MPN: 60370905
                                                        ASSIEME INTELAIATURA PADIGLIONE GTB
                                                        from £949.38
                                                        from £949.38
                                                        INTERNAL ROOF PANEL COMPLETE GTB Genuine Ferrari Part - New (to order)
                                                        # 006
                                                        MPN: 60766700
                                                        SUPPORT
                                                        Per GD vale 60781 200
                                                        from £17.14
                                                        from £17.14
                                                        BRACKET LHD Genuine Ferrari Part - New In stock
                                                        # 007
                                                        MPN: 60336807
                                                        BRACKET / SUPPORT
                                                        from £42.32
                                                        from £42.32
                                                        BRACKET Genuine Ferrari Part - New (to order)
                                                        # 008
                                                        MPN: 60371309
                                                        CENTINA ANT. SOSTEGNO PADIGLIONE GTB
                                                        from £176.94
                                                        from £176.94
                                                        This part replaces part number 60299203
                                                        ROOF SUPPORT RAIL GTB Genuine Ferrari Part - New (to order)
                                                        # 009
                                                        MPN: 60352002
                                                        PARATIA DX.
                                                        from £24.88
                                                        from £24.88
                                                        RH PANEL Genuine Ferrari Part - New In stock
                                                        # 009
                                                        MPN: 60352101
                                                        PARATIA SX.
                                                        from £24.88
                                                        from £24.88
                                                        LH PANEL Genuine Ferrari Part - New In stock
                                                        # 010
                                                        MPN: 60361805
                                                        CLIP
                                                        from £1.22
                                                        from £1.22
                                                        SPIRE CLIP Genuine Ferrari Part - New (to order)
                                                        # 011
                                                        MPN: 60296001
                                                        CENTINA POST. SOSTEGNO PADIGLIONE
                                                        from £98.53
                                                        from £98.53
                                                        ROLL BAR Genuine Ferrari Part - New (to order)
                                                        # 012
                                                        MPN: 60301504
                                                        RINFORZO ANT. VANO ANT.
                                                        from £136.11
                                                        from £136.11
                                                        This part replaces part number 60253804
                                                        FRONT FRAME Genuine Ferrari Part - New (to order)
                                                        # 013
                                                        MPN: 60285202
                                                        MONTANTE FISS. CERNIERA
                                                        from £89.75
                                                        from £89.75
                                                        BRACKET Genuine Ferrari Part - New In stock
                                                        # 014
                                                        MPN: 60651800
                                                        TELAIETTO ANT. DX. GTB
                                                        from £147.24
                                                        from £147.24
                                                        RH FRONT SPACE FRAME GTB Genuine Ferrari Part - New (to order)
                                                        # 014
                                                        MPN: 60651900
                                                        TELAIETTO ANT. SX. GTB
                                                        from £171.70
                                                        from £171.70
                                                        LH FRONT SPACE FRAME GTB Genuine Ferrari Part - New (to order)
                                                        # 015
                                                        MPN: 60304102
                                                        PARATIA DX. RADIATORE
                                                        Per GD vale 60348703
                                                        from £44.81
                                                        from £44.81
                                                        RH RADIATOR SHIELD LHD Genuine Ferrari Part - New (to order)
                                                        # 015
                                                        MPN: 60304201
                                                        PARATIA SX. RADIATORE
                                                        Per GD vale 60348802
                                                        from £39.35
                                                        from £39.35
                                                        LH RADIATOR SHIELD LHD Genuine Ferrari Part - New (to order)
                                                        # 016
                                                        MPN: 60260007
                                                        LAMIERA LONGHERINA SX. GTB
                                                        from £60.74
                                                        from £60.74
                                                        LH RAIL GTB Genuine Ferrari Part - New (to order)
                                                        LH RAIL GTB Genuine Ferrari Part - Used In stock
                                                        # 016
                                                        MPN: 60260106
                                                        LAMIERA LONGHERINA DX. GTB
                                                        from £60.64
                                                        from £60.64
                                                        RH RAIL GTB Genuine Ferrari Part - New (to order)
                                                        RH RAIL GTB Genuine Ferrari Part - Used In stock
                                                        # 017
                                                        MPN: 60252400
                                                        MONTANTE CERNIERA PORTA DX.
                                                        from £36.91
                                                        from £36.91
                                                        RH DOOR HINGE POST Genuine Ferrari Part - New (to order)
                                                        # 017
                                                        MPN: 60252509
                                                        MONTANTE CERNIERA PORTA SX.
                                                        from £59.03
                                                        from £59.03
                                                        LH DOOR HINGE POST Genuine Ferrari Part - New (to order)
                                                        # 018
                                                        MPN: 60106903
                                                        BRACKET / SUPPORT
                                                        Per GD vale 60193109
                                                        from £19.22
                                                        from £19.22
                                                        SUPPORT LHD Genuine Ferrari Part - New In stock
                                                        SUPPORT LHD Genuine Ferrari Part - Used In stock
                                                        # 019
                                                        MPN: 60397106
                                                        RIPORTO MONTANTE DX.
                                                        from £30.30
                                                        from £30.30
                                                        This part replaces part number 61009800 which we have in stock
                                                        RH PILLAR INSERT GTS Genuine Ferrari Part - New (to order)
                                                        # 019
                                                        MPN: 60397205
                                                        RIPORTO MONTANTE SX.
                                                        from £30.30
                                                        from £30.30
                                                        This part replaces part number 61009900
                                                        LH PILLAR INSERT GTS Genuine Ferrari Part - New (to order)
                                                        # 020
                                                        MPN: 60303203
                                                        RIVESTIMENTO SOTTOPORTA DX. GTB
                                                        This part replaces part number 61009600
                                                        RH DOOR SILL ASSEMBLY GTB Genuine Ferrari Part - New (to order)
                                                        # 020
                                                        MPN: 60303302
                                                        RIVESTIMENTO SOTTOPORTA SX. GTB
                                                        from £227.73
                                                        from £227.73
                                                        This part replaces part number 61009700
                                                        LH DOOR SILL ASSEMBLY GTB Genuine Ferrari Part - New (to order)
                                                        # 020
                                                        MPN: 60419504
                                                        RIVESTIMENTO SOTTOPORTA DX. GTS
                                                        from £668.78
                                                        from £668.78
                                                        RH DOOR SILL ASSEMBLY GTS Genuine Ferrari Part - New (to order)
                                                        # 020
                                                        MPN: 60419603
                                                        RIVESTIMENTO SOTTOPORTA SX. GTS
                                                        from £516.14
                                                        from £516.14
                                                        LH DOOR SILL ASSEMBLY GTS Genuine Ferrari Part - New (to order)
                                                        # 021
                                                        MPN: 60003803
                                                        RIVESTIMENTO ESTERNO SOTTOPORTA DX.
                                                        from £401.52
                                                        from £401.52
                                                        RH OUTER SILL PANEL Genuine Ferrari Part - New (to order)
                                                        # 021
                                                        MPN: 60003902
                                                        RIVESTIMENTO ESTERNO SOTTOPORTA SX.
                                                        from £402.05
                                                        from £402.05
                                                        LH OUTER SILL PANEL Genuine Ferrari Part - New (to order)
                                                        # 022
                                                        MPN: 60107109
                                                        PARATIA APPOGGIAPIEDI PASSEGGERO GTB
                                                        Per GD vale 60193406
                                                        from £48.73
                                                        from £48.73
                                                        SHIELD LHD GTB Genuine Ferrari Part - New (to order)
                                                        # 022
                                                        MPN: 60306404
                                                        PARATIA APPOGGIAPIEDI PASSEGGERO GTS
                                                        Per GD vale 60306305
                                                        from £36.49
                                                        from £36.49
                                                        SHIELD LHD GTS Genuine Ferrari Part - New (to order)
                                                        # 023
                                                        MPN: 60371002
                                                        RINFORZO CENTINE ANT. GTB
                                                        from £5.80
                                                        from £5.80
                                                        REINFORCEMENT Genuine Ferrari Part - New (to order)
                                                        # 024
                                                        MPN: 60302304
                                                        FIANCHETTO SX. GTB
                                                        from £106.32
                                                        from £106.32
                                                        This part replaces part number 60295300
                                                        LH PANEL GTB Genuine Ferrari Part - New (to order)
                                                        # 024
                                                        MPN: 60302403
                                                        FIANCHETTO DX. GTB
                                                        from £111.64
                                                        from £111.64
                                                        This part replaces part number 60295201
                                                        RH PANEL GTB Genuine Ferrari Part - New (to order)
                                                        # 024
                                                        MPN: 60421203
                                                        FIANCHETTO DX. GTS
                                                        from £70.31
                                                        from £70.31
                                                        This part replaces part number 60357704
                                                        RH PANEL GTS Genuine Ferrari Part - New (to order)
                                                        # 024
                                                        MPN: 60421302
                                                        FIANCHETTO SX. GTS
                                                        from £58.28
                                                        from £58.28
                                                        This part replaces part number 60357803
                                                        LH PANEL GTS Genuine Ferrari Part - New (to order)
                                                        # 025
                                                        MPN: 60347705
                                                        SUPPORT
                                                        from £26.85
                                                        from £26.85
                                                        SUPPORT Genuine Ferrari Part - New In stock
                                                        # 026
                                                        MPN: 60260403
                                                        MONTANTE DX. COMPLETO GTB
                                                        from £80.51
                                                        from £80.51
                                                        RH UPRIGHT PANEL GTB Genuine Ferrari Part - New (to order)
                                                        # 026
                                                        MPN: 60260502
                                                        MONTANTE SX. COMPLETO GTB
                                                        from £230.26
                                                        from £230.26
                                                        LH UPRIGHT PANEL GTB Genuine Ferrari Part - New (to order)
                                                        # 027
                                                        MPN: 60652200
                                                        BRACKET / SUPPORT
                                                        from £31.29
                                                        from £31.29
                                                        BRACKET Genuine Ferrari Part - New (to order)
                                                        # 028
                                                        MPN: 60728400
                                                        TELAIETTO POST.
                                                        Per GD vale 60728500
                                                        from £549.58
                                                        from £549.58
                                                        REAR SPACE FRAME LHD Genuine Ferrari Part - New In stock
                                                        # 029
                                                        MPN: 60879800
                                                        PADIGLIONE COMPLETO GTS
                                                        Dal 1-2-81
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 029
                                                        MPN: 61128800
                                                        PADIGLIONE COMPLETO GTS
                                                        from £2,578.45
                                                        from £2,578.45
                                                        This part replaces part number 60172509 - and 2 more. Click to view details
                                                        ROOF ASSEMBLY GTS Genuine Ferrari Part - New In stock
                                                        # 030
                                                        MPN: 60064508
                                                        TUBO FISS. PARAURTI POST.
                                                        from £43.39
                                                        from £43.39
                                                        BUMPER IRON TUBE Genuine Ferrari Part - New In stock
                                                        # 031
                                                        MPN: 60592200
                                                        TUBO FISS. PARAURTI ANT. DX.
                                                        from £26.13
                                                        from £26.13
                                                        RH BRACKET Genuine Ferrari Part - New (to order)
                                                        # 031
                                                        MPN: 60592300
                                                        TUBO FISS. PARAURTI ANT. SX.
                                                        from £26.13
                                                        from £26.13
                                                        LH BRACKET Genuine Ferrari Part - New (to order)
                                                        # 032
                                                        MPN: 60351004
                                                        RINFORZO SOTTOPARABREZZA
                                                        Per GD vale 60351103
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 033
                                                        MPN: 60284304
                                                        PLUG
                                                        from £8.97
                                                        from £8.97
                                                        PLUG Genuine Ferrari Part - New (to order)
                                                        # 034
                                                        MPN: 60302601
                                                        RINFORZO POST, SCONTRINO SERRATURA
                                                        from £8.43
                                                        from £8.43
                                                        PLATE Genuine Ferrari Part - New (to order)
                                                        # 035
                                                        MPN: 60371705
                                                        CENTINA CENTRALE GTB
                                                        from £14.83
                                                        from £14.83
                                                        BRACKET Genuine Ferrari Part - New (to order)
                                                        # 036
                                                        MPN: 60890500
                                                        BANDELLA FRA TELAIO E RIVESTIMENTO
                                                        Solo con sottoscocca ant. in acciaio
                                                        from £3.30
                                                        from £3.30
                                                        BRACKET Genuine Ferrari Part - New (to order)
                                                        # 037
                                                        MPN: 60350402
                                                        RINFORZO SX. VANO ANTERIORE .
                                                        Solo per GD
                                                        from £51.38
                                                        from £51.38
                                                        LH STIFFENING RHD Genuine Ferrari Part - New (to order)
