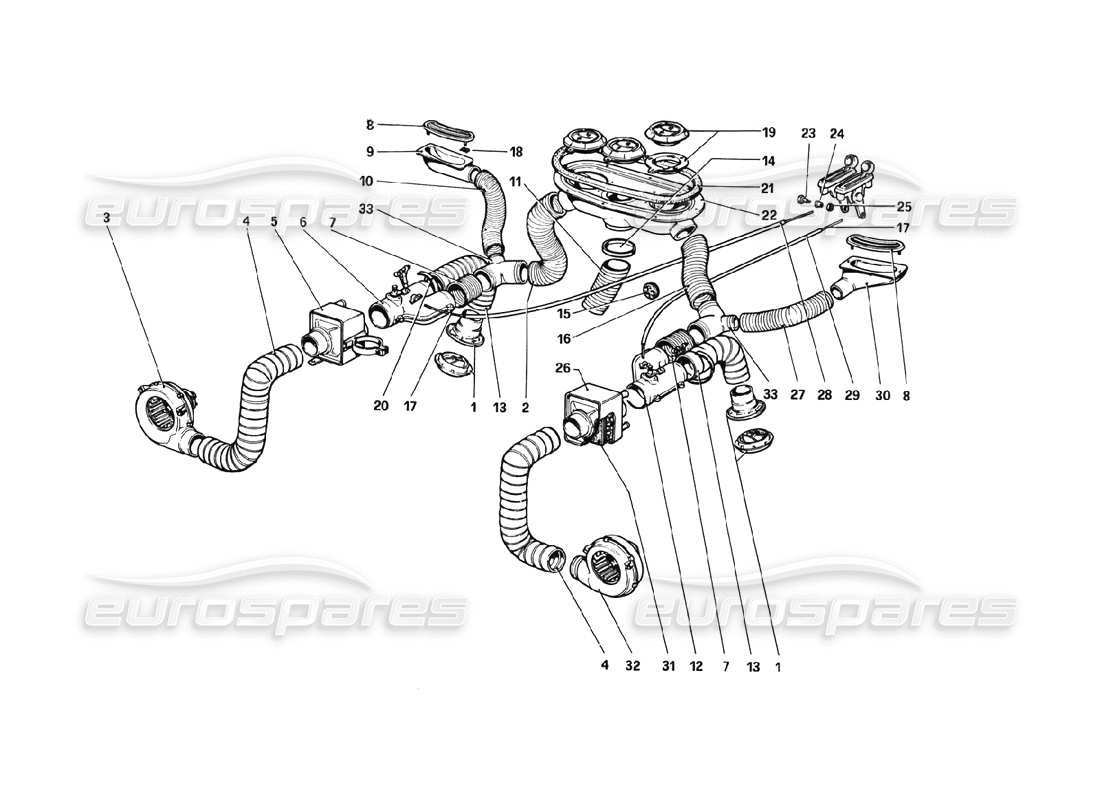

172 - Heating System (Variants for RHD - AUS Versions)
Ferrari 308 GTB (1980) Heating System (Variants for RHD - AUS Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60054400
DIFFUSER
from £234.98
from £234.98
This part replaces part number 50205707 - and 1 more. Click to view details
# 002
MPN: 60123700
CONDOTTO ARIA
from £51.13
from £51.13
# 003
MPN: 60091600

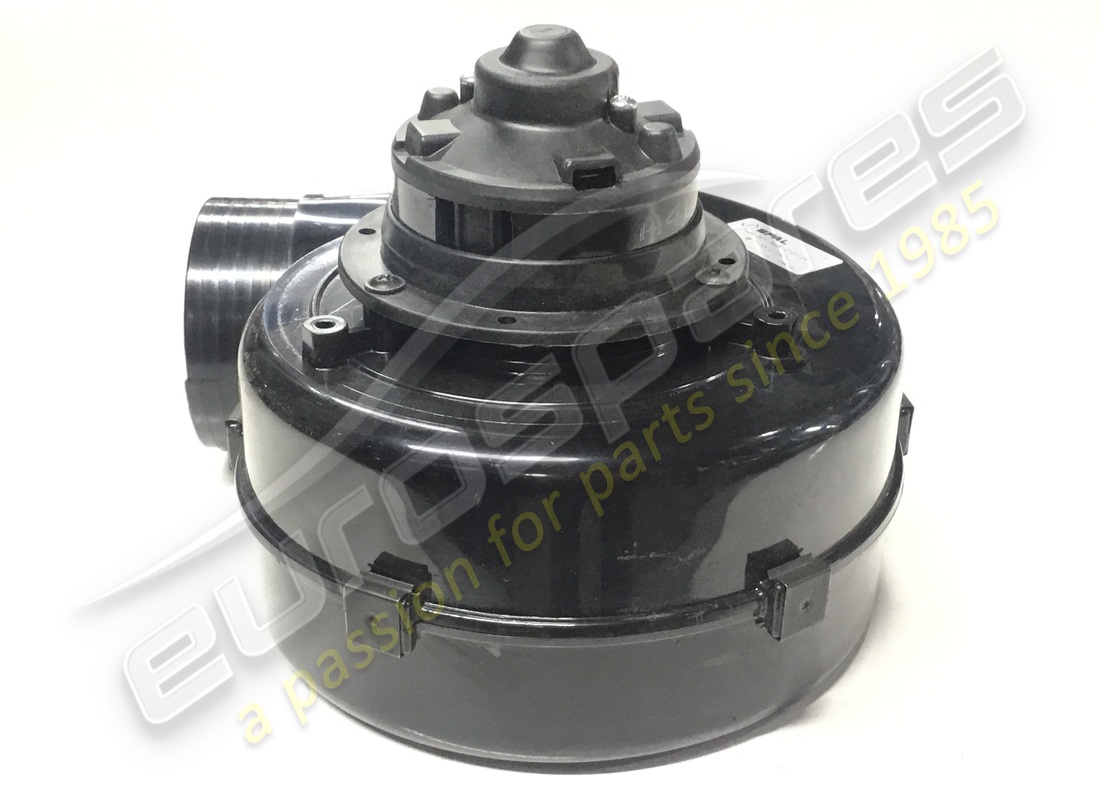

RH HEATER BLOWER
from £295.00
from £295.00
This part replaces part number 20094504 - and 1 more. Click to view details
# 003
MPN: 60658600
RHS ELECTRIC FAN
from £345.60
from £345.60
# 004
MPN: 60133204
CONDOTTO ARIA
from £31.49
from £31.49
# 005
MPN: 60151305
RISCALDATORE DX.
Vale fino alia vettura n. ............
from £1,553.15
from £1,553.15
# 005
MPN: 60361409
RISCALDATORE DX.
Dalla vettura n. .....................
from £363.78
from £363.78
# 006
MPN: 60135001
DIVERTER
from £230.51
from £230.51
# 007
MPN: 60124500
CONDOTTO ARIA Ø 80
from £76.59
from £76.59
# 008
MPN: 60044401
DIFFUSER
from £124.57
from £124.57
# 009
MPN: 60198405
CONVOGLIATORE PER DIFFUSORE DX.
from £113.50
from £113.50
# 010
MPN: 60123809
CONDOTTO ARIA Ø 60
from £30.29
from £30.29
# 011
MPN: 60124005
CONDOTTO PER ARIA CONDIZIONATA
Opzionale
from £35.91
from £35.91
# 012
MPN: 60135100
LH DIVERTER
from £105.00
from £105.00
This part replaces part number 40131609 - and 3 more. Click to view details
# 013
MPN: 60034907
CONDOTTO ARIA
Non vale per A.C.
from £169.34
from £169.34
# 014
MPN: 20143202
PLUG
from £12.85
from £12.85
# 015
MPN: 40167900
FAIRLEAD GROMMET
from £22.24
from £22.24
# 016
MPN: 60035003
CONDOTTO ARIA
from £58.67
from £58.67
# 017
MPN: 60126109
CAVO COMANDO DEFROSTER
from £7.77
from £7.77
This part replaces part number 60126107
# 018
MPN: 60048501
CLIP
from £0.77
from £0.77
# 019
MPN: 60054301
DIFFUSER
from £126.00
from £126.00
This part replaces part number 50205608 - and 1 more. Click to view details
# 020
MPN: 30047609
JUBILEE CLIP
# 021
MPN: 50091503
GASKET
from £23.42
from £23.42
# 022
MPN: 20142709
DIVERTER
from £971.46
from £971.46
This part replaces part number 50022805 - and 1 more. Click to view details
# 023
MPN: 20091609
SCREW
from £2.53
from £2.53
# 024
MPN: 20046900
BUSH
from £2.43
from £2.43
# 025
MPN: 10794011
NUT
from £0.26
from £0.26
# 026
MPN: 60208907
RISCALDATORE SX.
from £473.34
from £473.34
# 027
MPN: 60123908
CONDOTTO ARIA Ø 60
# 028
MPN: 60125903
GUAINA CAVO DEFROSTER DX.
from £60.75
from £60.75
This part replaces part number 60125901
# 029
MPN: 60126000
GUAINA CAVO DEFROSTER SX.
from £16.15
from £16.15
This part replaces part number 60126008
# 030
MPN: 60198405
CONVOGLIATORE PER DIFFUSORE DX.
from £113.50
from £113.50
# 030
MPN: 60198504
CONVOGLIATORE PER DIFFUSORE SX.
Dopo esaur. Vale n. 60055407
from £125.13
from £125.13
# 031
MPN: 60151909
RETE INTERNA RISCALDATORI
from £18.05
from £18.05
This part replaces part number 40295404
# 032
MPN: 60091709
LH ELECTRIC HEATER BLOWER
from £227.29
from £227.29
This part replaces part number 20094405 - and 2 more. Click to view details
# 032
MPN: 60658700
ELETTROVENTILATORE SX.
Dalla vettura n. ..................
Supersession
Supersession
# 033
MPN: 60153608
UNION 3-WAY
from £7.16
from £7.16
This part replaces part number 50022003 - and 3 more. Click to view details
