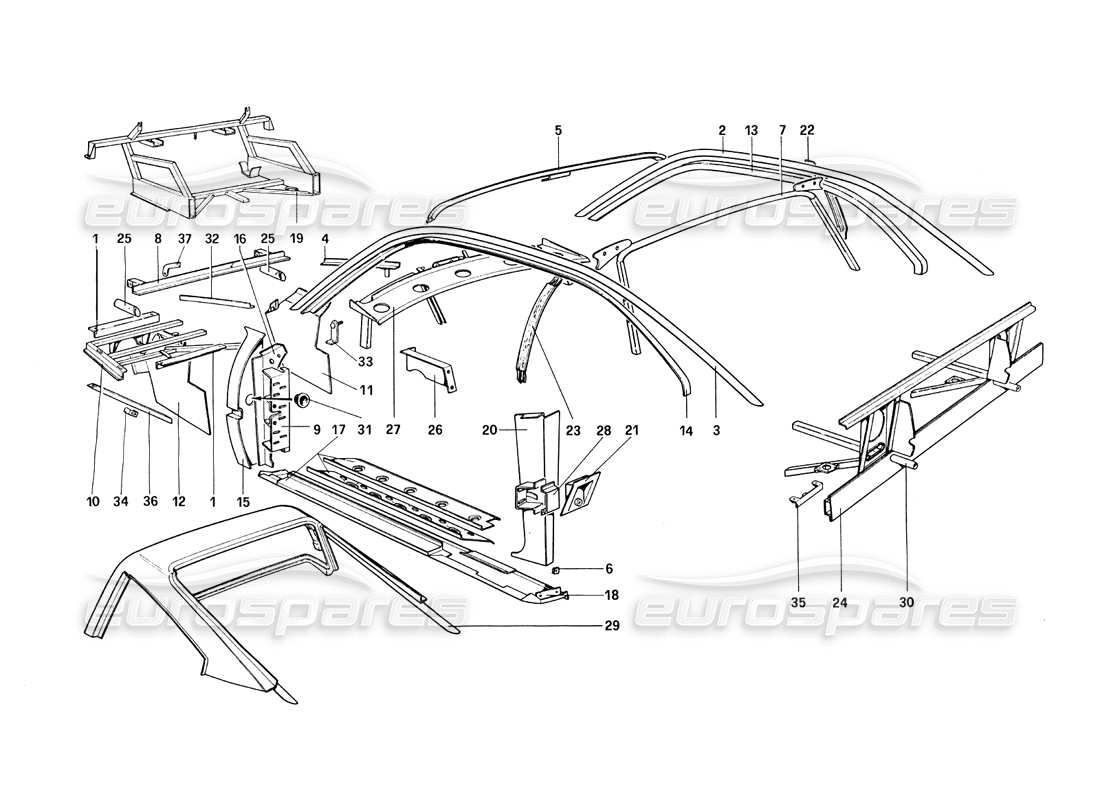

103 - Body Shell - Inner Elements
Ferrari 308 Quattrovalvole (1985) Body Shell - Inner Elements Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 61010500
ROOF FRAME ASSEMBLY GTB
from £960.64
from £960.64
# 001
MPN: 60652200
BRACKET FOR HEADLAMPS
from £31.29
from £31.29
# 002
MPN: 61010000
RH RAIL GTB
from £99.13
from £99.13
This part replaces part number 60260205
# 003
MPN: 61010100
LH RAIL GTB
from £115.89
from £115.89
This part replaces part number 60260304
# 004
MPN: 60350006
RH STIFFENING FRONT BONNET LHD
from £24.58
from £24.58
# 004
MPN: 60350204
RH STIFFENING FRONT BONNET RHD
from £15.32
from £15.32
# 005
MPN: 60371309
FRONT RIB FOR ROOF GTB
from £176.94
from £176.94
This part replaces part number 60299203
# 006
MPN: 60361801
CLIP
# 007
MPN: 60296001
REAR RIB FOR ROOF
from £98.53
from £98.53
# 008
MPN: 60301504
FRONT STIFFENING FRONT BONNET
from £136.11
from £136.11
This part replaces part number 60253804
# 009
MPN: 60285202
POST FIXING HINGE
from £89.75
from £89.75
# 010
MPN: 60651800
RH FRONT FRAME
from £147.24
from £147.24
# 010
MPN: 60651900
LH FRONT FRAME
from £171.70
from £171.70
# 011
MPN: 61181900
RH SHIELD PANEL RADIATOR LHD
from £48.25
from £48.25
# 011
MPN: 61182100
RH SHIELD PANEL RADIATOR RHD
from £52.38
from £52.38
# 012
MPN: 60304201
LH SHIELD PANEL RADIATOR LHD
from £39.35
from £39.35
# 012
MPN: 60348802
RH SHIELD PANEL RADIATOR RHD
from £31.30
from £31.30
# 013
MPN: 60260106
SHEET RH RAIL GTB
from £60.64
from £60.64
# 014
MPN: 60260007
SHEET LH RAIL GTB
from £60.74
from £60.74
# 015
MPN: 60252400
HINGE POST RH DOOR
from £36.91
from £36.91
# 015
MPN: 60252509
HINGE POST LH DOOR
from £59.03
from £59.03
# 016
MPN: 60397106
SHEET FOR RH PILLAR GTS
from £30.30
from £30.30
This part replaces part number 61009800 which we have in stock
# 016
MPN: 60397205
SHEET FOR LH PILLAR GTS
from £30.30
from £30.30
This part replaces part number 61009900
# 016
MPN: 61009800
SHEET FOR RH PILLAR GTB
from £180.60
from £180.60
# 016
MPN: 61009900
SHEET FOR LH PILLAR GTB
Supersession
Supersession
# 017
MPN: 60303203
COVERING, RH DOOR SILL GTB
This part replaces part number 61009600
# 017
MPN: 60303302
COVERING, LH DOOR SILL GTB
from £227.73
from £227.73
This part replaces part number 61009700
# 017
MPN: 60419504
COVERING, RH DOOR SILL GTS
from £668.78
from £668.78
# 017
MPN: 60419603
COVERING, LH DOOR SILL GTS
from £516.14
from £516.14
# 018
MPN: 60003803
OUTER COVERING, RH DOOR SILL
from £401.52
from £401.52
# 018
MPN: 60003902
OUTER COVERING, LH DOOR SILL
from £402.05
from £402.05
# 019
MPN: 95406068
FRONT FRAME
# 020
MPN: 60302304
LH PANEL GTB
from £106.32
from £106.32
This part replaces part number 60295300
# 020
MPN: 60302403
RH PANEL GTB
from £111.64
from £111.64
This part replaces part number 60295201
# 020
MPN: 60421203
RH PANEL GTS
from £70.31
from £70.31
This part replaces part number 60357704
# 020
MPN: 60421302
LH PANEL GTS
from £58.28
from £58.28
This part replaces part number 60357803
# 021
MPN: 60347705
SUPPORT
from £26.85
from £26.85
# 022
MPN: 60260403
RH POST COMPLETE GTB
from £80.51
from £80.51
# 023
MPN: 60260502
LH POST COMPLETE GTB
from £230.26
from £230.26
# 024
MPN: 61192500
REAR FRAME (WITH BRACKET 30) LHD
from £732.12
from £732.12
# 024
MPN: 61194500
REAR FRAME (WITH BRACKET 30) RHD
from £632.22
from £632.22
# 025
MPN: 50118908
BRACKET FOR FRONT BUMBER
# 026
MPN: 60106903
SUPPORT LHD
from £19.22
from £19.22
# 026
MPN: 60193109
SUPPORT RHD
from £25.25
from £25.25
# 027
MPN: 60351003
STIFFENING, UNDER WINDSHIELD LHD
# 027
MPN: 60351103
STIFFENING, UNDER WINDSHIELD RHD
from £232.15
from £232.15
# 028
MPN: 60302601
REAR BRACKET FOR SUPPORT LOCK STRIKER
from £8.43
from £8.43
# 029
MPN: 61128800
ROOF ASSEMBLY GTS
from £2,578.45
from £2,578.45
This part replaces part number 60172509 - and 2 more. Click to view details
# 030
MPN: 60064508
BRACKET FOR REAR BUMPER
from £43.39
from £43.39
# 031
MPN: 60284304
PLUG
from £8.97
from £8.97
# 032
MPN: 60350402
LH STIFFENING FRONT BONNET RHD
from £51.38
from £51.38
# 032
MPN: 60397908
LH STIFFENING FRONT BONNET LHD
from £16.31
from £16.31
# 033
MPN: 61181300
HORNS SUPPORT - CH EXCLUDED
from £5.80
from £5.80
# 033
MPN: 61189000
HORNS SUPPORT - CH ONLY
from £16.16
from £16.16
# 034
MPN: 60289303
SUPPORT FRONT WHEELHOUSE
from £5.80
from £5.80
# 035
MPN: 61176200
BRACKET FIXING PLATE FOR MODULE
Supersession
Supersession
# 036
MPN: 60064201
FRONT SUPPORT FRAME
from £19.26
from £19.26
This part replaces part number 61009400 - and 1 more. Click to view details
# 037
MPN: 61181400
BRACKET FIXING GRILL
from £3.98
from £3.98
