002 - oil sump

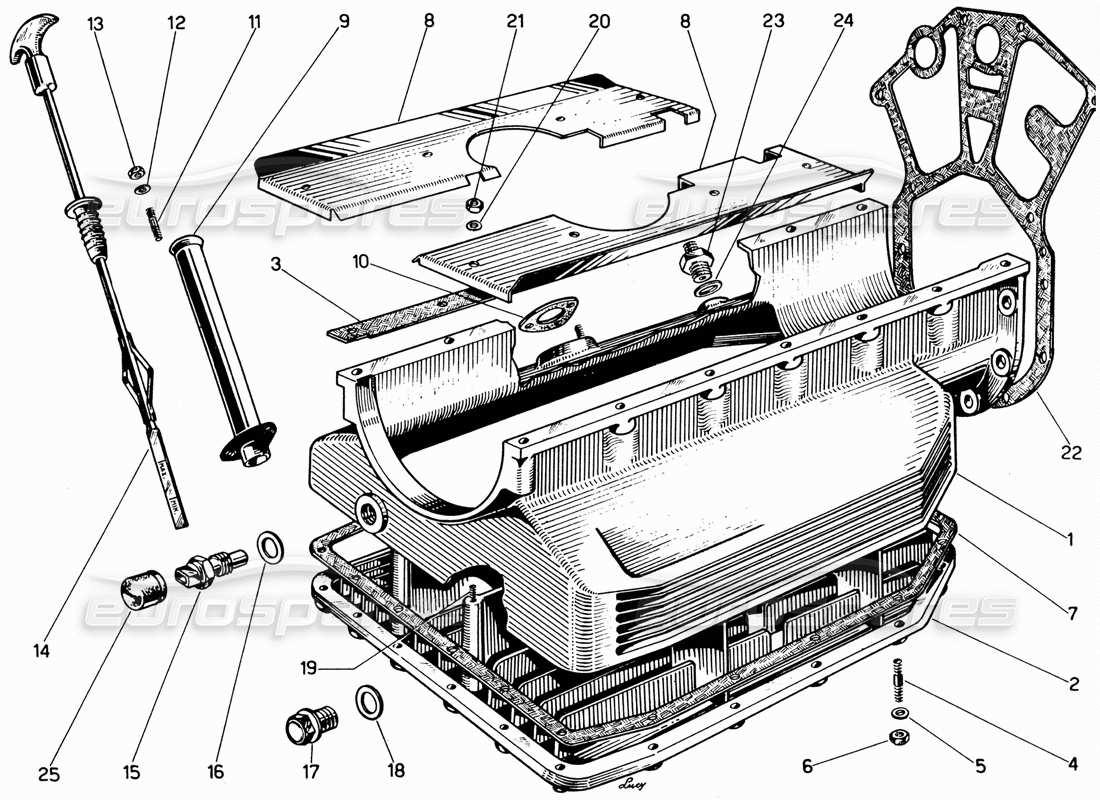

Ferrari 330 GT 2+2 Oil Sump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 9111153
COPPA OLIO
from £1,837.50
from £1,837.50
# 002
MPN: 9111154
COVER
from £2,061.72
from £2,061.72
# 003
MPN: 9111157
GASKET OR SEAL
from £14.66
from £14.66
# 004
MPN: 95920107
STUD
from £1.50
from £1.50
# 005
MPN: 6R5
WASHER
Supersession
Supersession
# 006
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 007
MPN: 9111158
GASKET OR SEAL
from £58.94
from £58.94
# 008
MPN: 9111159
PARATIA PER COPPA OLIO
from £17.81
from £17.81
# 009
MPN: 9111160
TUBO GUIDA PER ASTA LIVELLO OLIO
# 010
MPN: 9111170
GASKET OR SEAL
# 011
MPN: 95920107
STUD
from £1.50
from £1.50
# 012
MPN: 6 R 4
WASHER
Supersession
Supersession
# 013
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 014
MPN: 9111167
ASTA LIVELLO OLIO
Complessivo
from £45.95
from £45.95
# 015
MPN: 100453
OIL THERMISTOR
from £13.59
from £13.59
This part replaces part number 100345 - and 1 more. Click to view details
# 016
MPN: 10257060
WASHER
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 017
MPN: 103974
TAPPO SCARICO OLIO DALLA COPPA
from £25.70
from £25.70
This part replaces part number 101477 - and 1 more. Click to view details
# 018
MPN: 95910605
GASKET OR SEAL
from £0.47
from £0.47
# 019
MPN: 92533
STUD
from £0.98
from £0.98
# 020
MPN: 95930507
WASHER
from £0.47
from £0.47
# 021
MPN: 22708
NUT
from £20.23
from £20.23
# 022
MPN: 22708
NUT
from £20.23
from £20.23
# 023
MPN: 22708
NUT
from £20.23
from £20.23
# 024
MPN: 10257060
GASKET OR SEAL
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 025
MPN: 95860402
CAPPUCCIO PROTEZIONE TERMISTORE
