034 - Rear Brakes and Handbrake

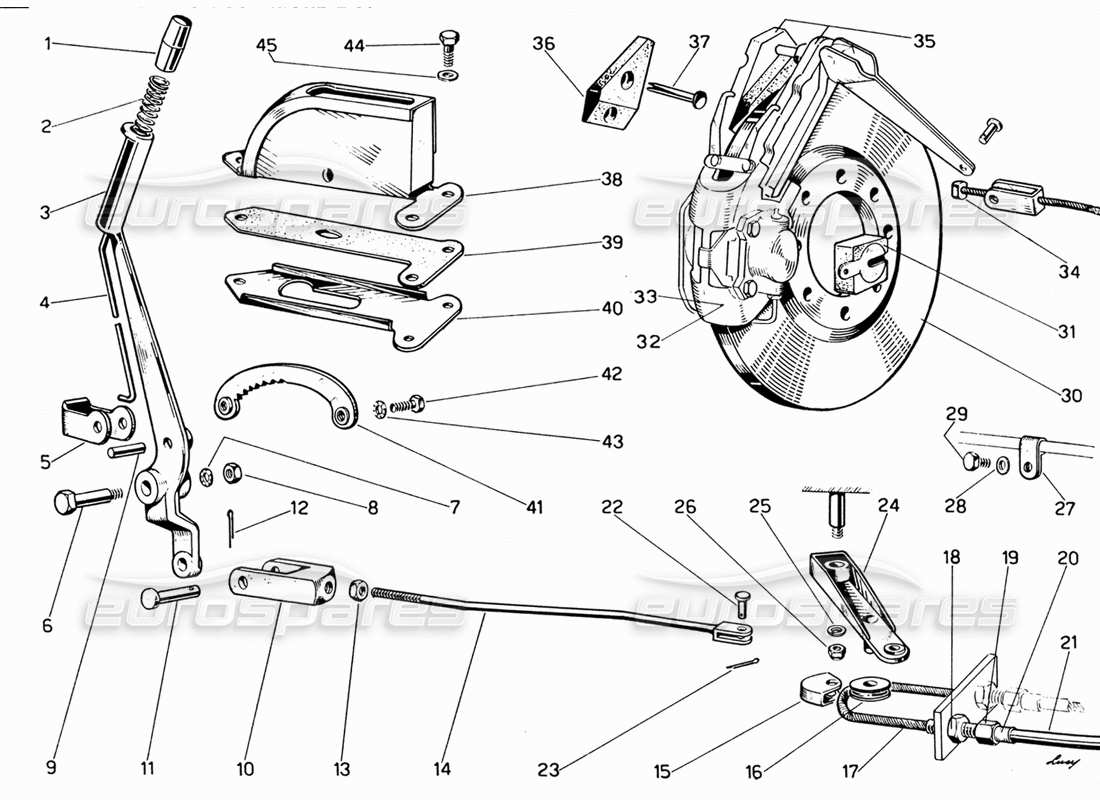

Ferrari 330 GT 2+2 Rear Brakes and Handbrake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 69512
ASSIEME LEVA COMANDO FRENO A MANO
from £194.15
from £194.15
# 001
MPN: 9080
PULSANTE PER DISINNESTO LEVA
# 002
MPN: 51214
SPRING
# 003
MPN: 69675
LEVER
from £2,155.46
from £2,155.46
# 004
MPN: 69524
TIE ROD
from £47.68
from £47.68
# 005
MPN: 330
GANCIO ARRESTO LEVA
# 006
MPN: 327
PIVOT
# 007
MPN: 70
WASHER
# 008
MPN: 38299
NUT
# 009
MPN: 94816
PIN
from £1.37
from £1.37
# 010
MPN: 10248711
FORK
from £11.05
from £11.05
This part replaces part number 680349
# 011
MPN: 10033414
PIVOT
from £8.63
from £8.63
This part replaces part number 10033411 which we have in stock
# 012
MPN: C I
COPIGLIA PER DETTO
# 013
MPN: 94666
CONTRODADO PER TIRANTE FRENO A MANO
from £1.14
from £1.14
# 014
MPN: 680016
TIE ROD
from £50.19
from £50.19
# 015
MPN: 69395
GUIDA PER CAVO
# 016
MPN: 69153
CARRUCOLA PER FRENO A MANO
Supersession
Supersession
# 017
MPN: 94885
CAVO BOWDEN PER FRENO A MANO
# 018
MPN: UNI 210
CONTRODADO PER REGISTRO TRENO A MANO
# 019
MPN: 69296
REGISTRO PER FRENO A MANO
from £55.71
from £55.71
# 020
MPN: 94886
GHIERA PER GUAINA SUL REGISTRO
from £14.01
from £14.01
# 021
MPN: 92939
GUAINA FLESSIBILE PER CAVO
# 022
MPN: 94626
PIVOT
from £1.60
from £1.60
# 023
MPN: C I
COPIGLIA PER DETTO
# 024
MPN: 69512
ASSIEME LEVA RINVIO PER FRENO A MANO
from £194.15
from £194.15
# 025
MPN: 8 R 1
WASHER
# 026
MPN: NB
NUT
# 027
MPN: 69161
FASCETTA PER GUAINA
from £1.59
from £1.59
# 028
MPN: 95930508
WASHER
# 029
MPN: UNI 187
BOLT
# 030
MPN: 680189
DISCO FRENO POSTERIORE
from £767.17
from £767.17
# 031
MPN: 95690701
REAR BRAKE PADS
from £84.00
from £84.00
This part replaces part number MC3105/2
# 032

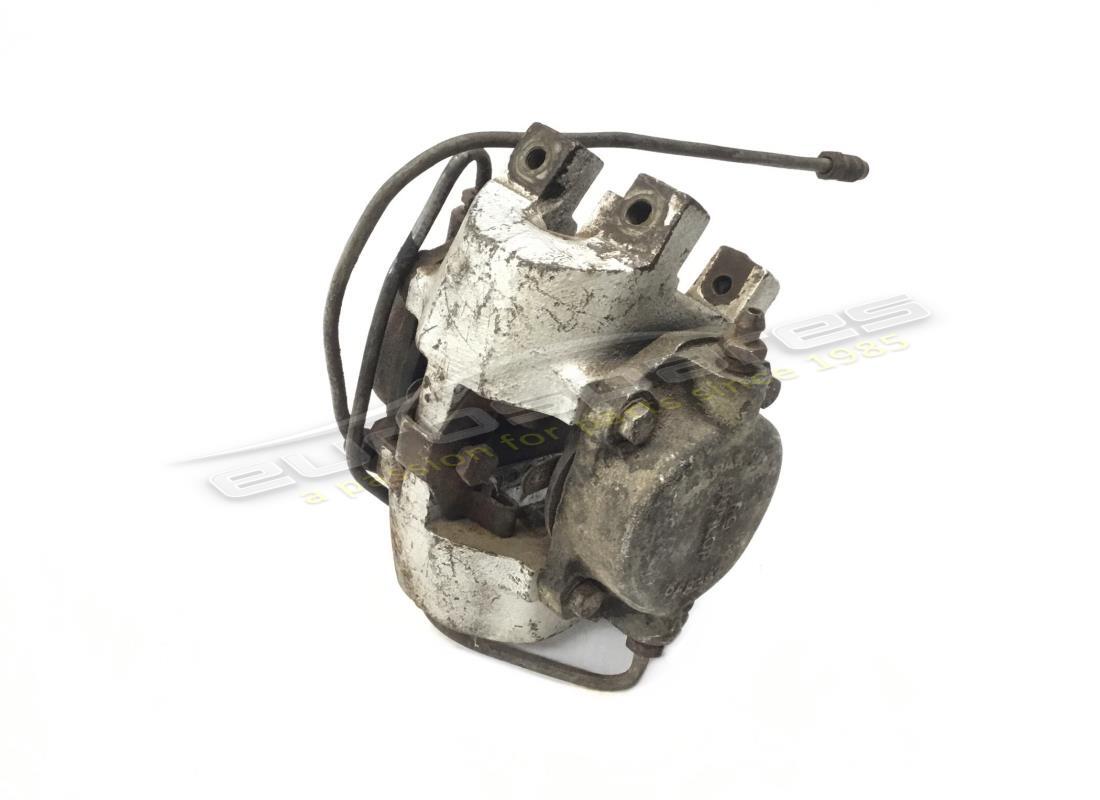

MPN: 1279/A/N
CALIPER DESTRO-CILINDR. F 1 5/8 (DUNLOP)
from £939.75
from £939.75
# 033
MPN: 1279/B/N
CALIPER SINISTRO-CILINDR. F 1 5/8 (DUNLOP)
# 034
MPN: 680022
CUBETTO PER ESTREMITA CAVO .
from £2.80
from £2.80
# 035
MPN: 3739 A-B
PINZE PER FRENO A MANO (DESTRO E SINISTRO) .
# 036

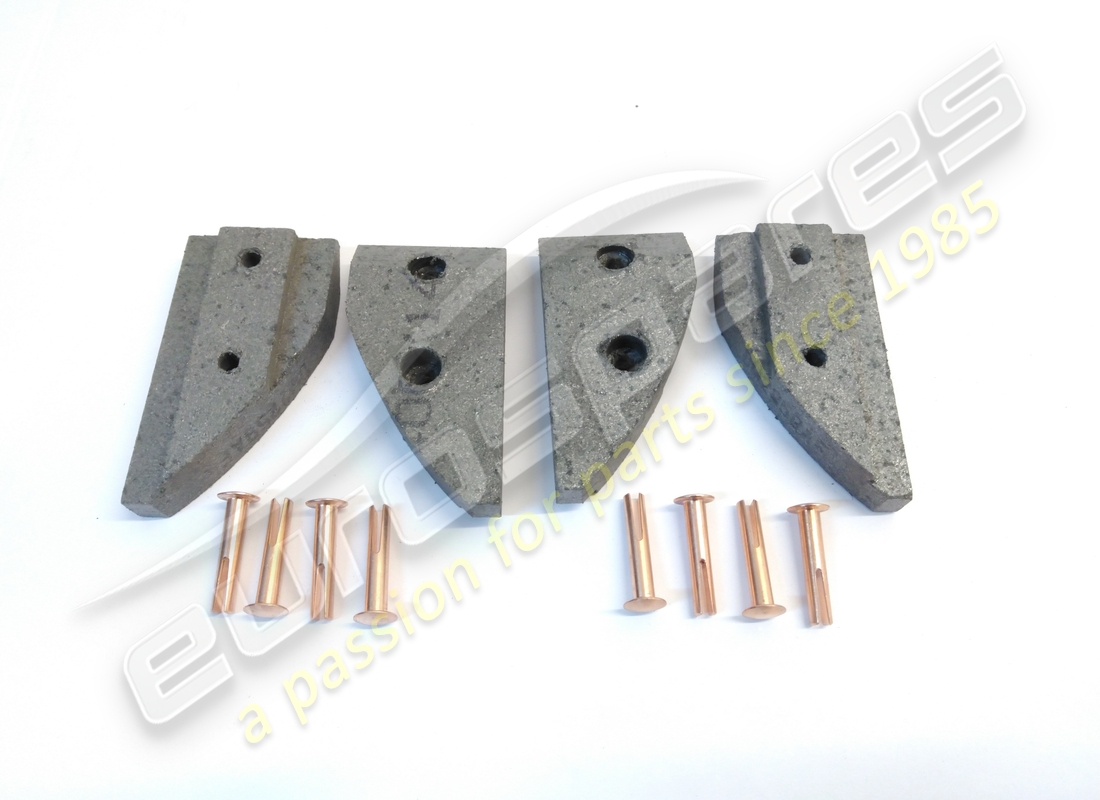

MPN: 95690705
HANDBRAKE PADS SET
triangolar shape
from £164.00
from £164.00
# 036

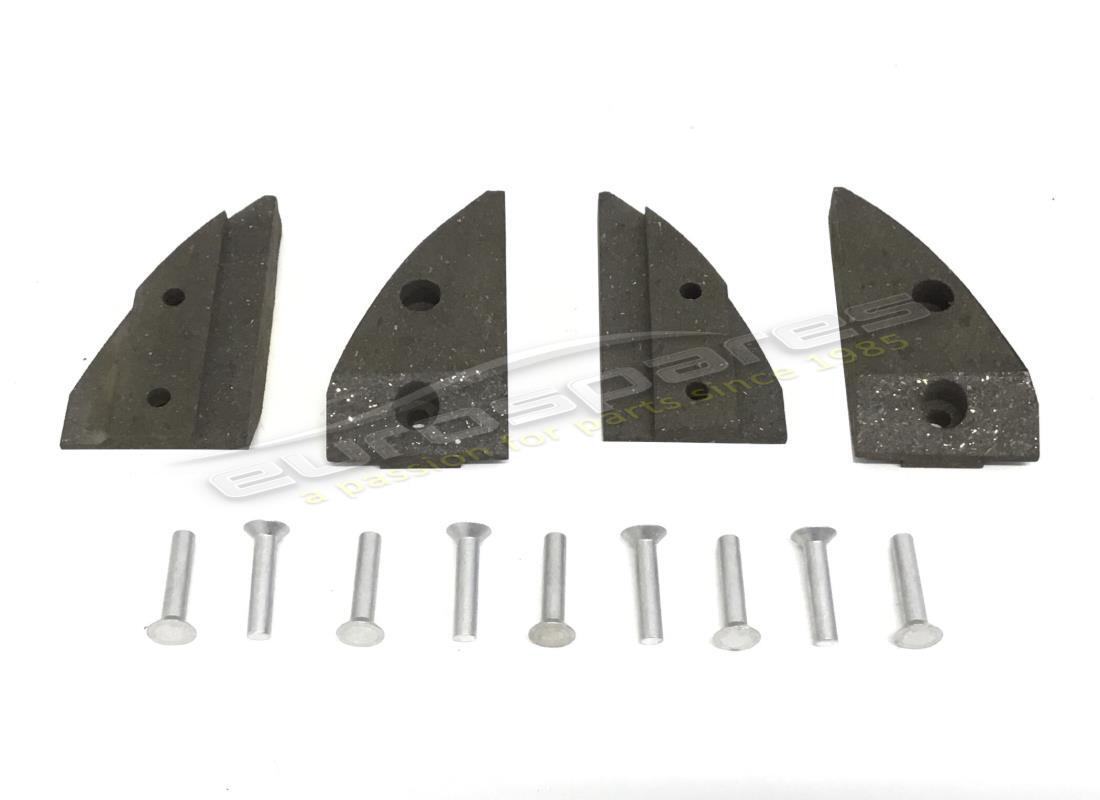

MPN: MC3105/3
HANDBRAKE PADS SET
square shape
from £106.00
from £106.00
# 037
-
SPINE PER FISSAGGIO PASTIGLIE
# 038
MPN: 69523
COVER
# 039
MPN: 69530
G UARNIZIONE FRA CONTENITORE E SCATOLA
from £10.95
from £10.95
# 040
MPN: 69529
CONTENITORE SCATOLA E GOMMA
from £24.78
from £24.78
# 041
MPN: 69677
SETTORE DENTATO
from £91.68
from £91.68
# 042
MPN: 38313
BOLT
# 043
MPN: 70
WASHER
# 044
MPN: B2
BOLT
Supersession
Supersession
# 045
MPN: 8R4
WASHER
Supersession
Supersession
