ferrari 330 gt 2+2 tyres - wheels - hubs - axle parts diagram

035 - Tyres - Wheels - Hubs - Axle

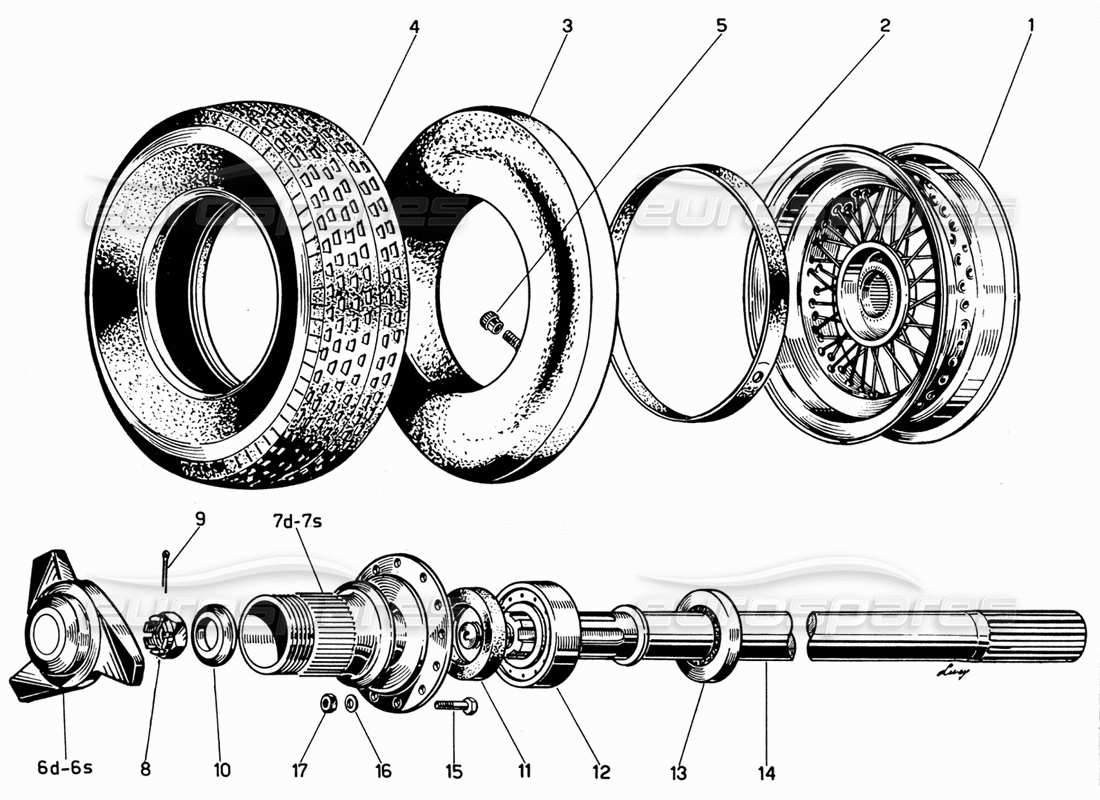

Ferrari 330 GT 2+2 Tyres - Wheels - Hubs - Axle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 6.50 L/15
                                  WHEEL RIM
                                  # 002
                                  -
                                  RUBBER PROTECTION
                                  # 003
                                  -
                                  TUBE 6.50 X 15
                                  # 004
                                  MPN: 205 x 15
                                  TYRE
                                  # 005
                                  -
                                  VALVE CAP
                                  # 006
                                  MPN: 64350
                                  SPINNERS
                                  # 007
                                  MPN: 71031D
                                  RH SPLINED HUB
                                  from £495.98
                                  from £495.98
                                  # 007
                                  MPN: 71032S
                                  LH SPLINED HUB
                                  # 008
                                  MPN: 10723021
                                  NUT
                                  from £39.52
                                  from £39.52
                                  This part replaces part number 92433
                                  # 011
                                  MPN: 95850318
                                  SEALING RING
                                  from £15.36
                                  from £15.36
                                  # 012
                                  MPN: 95892311
                                  BEARING
                                  37x72x23mm
                                  from £187.77
                                  from £187.77
                                  # 012
                                  MPN: 95892311
                                  BEARING
                                  37x72x23mm
                                  from £187.77
                                  from £187.77
                                  # 013
                                  MPN: 600007
                                  OIL SEAL FOR BEARING
                                  from £51.21
                                  from £51.21
                                  # 014
                                  MPN: 600122
                                  DRIVE SHAFT
                                  from £1,992.80
                                  from £1,992.80
                                  # 015
                                  MPN: 94673
                                  BOLT
                                  from £20.08
                                  from £20.08
                                  # 016
                                  MPN: 8R4
                                  WASHER
                                  Supersession
                                  Supersession
                                  # 017
                                  MPN: 95900412
                                  DADI PER DETTO
                                  from £6.36
                                  from £6.36
                                  This part replaces part number 92401
