ferrari 365 gtc4 (mechanical) tool kits - revision parts diagram

045A - Tool Kits - Revision

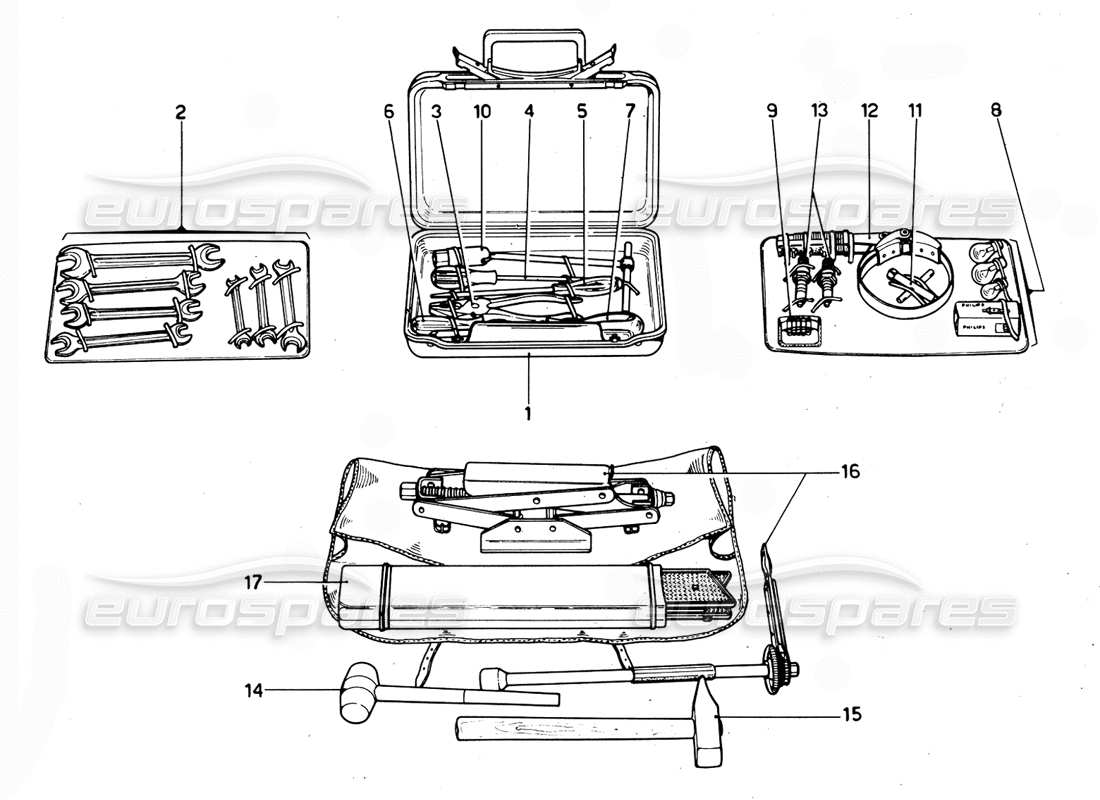

Ferrari 365 GTC4 (Mechanical) Tool Kits - Revision Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 000
                    MPN: 840001 / RW 01.4244
                    CHIAVE PER DADO OTTOGONALE
                    Valid for October 1972 revision
                    CHIAVE PER DADO OTTOGONALE Genuine Ferrari Part - New (to order)
                    # 000
                    MPN: 840023
                    ARTIFICIAL LEATHER CASE CONTAINING EMERGENCY TOOLS COMPOSED OF:
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 000
                    MPN: 840036
                    ARTIFICIAL LEATHER CASE CONTAINING EMERGENCY TOOLS
                    Valid for October 1972 revision
                    TOOL KIT Genuine Ferrari Part - New (to order)
                    # 001
                    MPN: 101509
                    TOOL CASE
                    Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                    This part replaces part number 105976 - and 1 more. Click to view details
                    TOOL BOX Genuine Ferrari Part - New (to order)
                    # 002
                    -
                    DISTANZIALE - GD
                    Valid for October 1972 revision
                    # 003
                    -
                    UNIVERSAL CLAMP MM 180
                    # 004
                    -
                    AMERICAN TYPE SCREWDRIVER MM 120
                    # 005
                    -
                    AMERICAN TYPE SCREWDRIVER MM 150
                    # 006
                    -
                    CACCIAVITE TIPO PHILIPS PER VITE FINO A + 4 MM
                    # 007
                    -
                    CACCIAVITE TIPO PHILIPS PER VITI DA + 5A + 9MM
                    # 008
                    -
                    SET OF SPARE BULBS
                    # 009
                    -
                    FUSE SET
                    # 010
                    MPN: 38126 / ART. 278
                    SPARK PLUG WRENCH L = 230 MM
                    Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                    SPARK PLUG WRENCH L = 230 MM Genuine Ferrari Part - New (to order)
                    # 011
                    MPN: 84114
                    CHIAVE PER CARBURATORE
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 012
                    MPN: 38125 / 36.901.000
                    CHIAVE PER FILTRO FRAM
                    Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                    CHIAVE PER FILTRO FRAM Genuine Ferrari Part - New (to order)
                    # 013
                    MPN: 29322 / N 6 Y
                    CANDELE
                    Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                    CANDELE Genuine Ferrari Part - New (to order)
                    # 014
                    -
                    LEAD HAMMER KG 2,300
                    Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                    # 015
                    -
                    STEEL HAMMER KG 0,500
                    Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                    # 016
                    -
                    MARTINETTO SOLLEVAMENTO VETTURA
                    # 017
                    MPN: 181150
                    PIVOT - GD
                    Valid for October 1972 revision
                    PIVOT - GD Genuine Ferrari Part - New (to order)
                    # 018
                    MPN: 10734201
                    COPIGLIA - GD
                    Valid for October 1972 revision
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 019
                    -
                    WASHER
                    Valid for October 1972 revision
                    # 020
                    -
                    FORK
                    Valid for October 1972 revision
                    # 023
                    MPN: 10516471
                    WASHER
                    Valid for October 1972 revision
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 025
                    MPN: 127496
                    WASHER
                    Valid for October 1972 revision
                    from £0.53
                    from £0.53
                    This part replaces part number 10516671 - and 2 more. Click to view details
                    WASHER Genuine Ferrari Part - New In stock
                    WASHER Genuine Maserati Part - New In stock
                    # 027
                    MPN: 11501421
                    THREADED STUD
                    Valid for October 1972 revision
                    from £0.47
                    from £0.47
                    THREADED STUD Genuine Ferrari Part - New In stock
