ferrari 365 gt 2+2 (coachwork) electric wipers parts diagram

023 - Electric Wipers

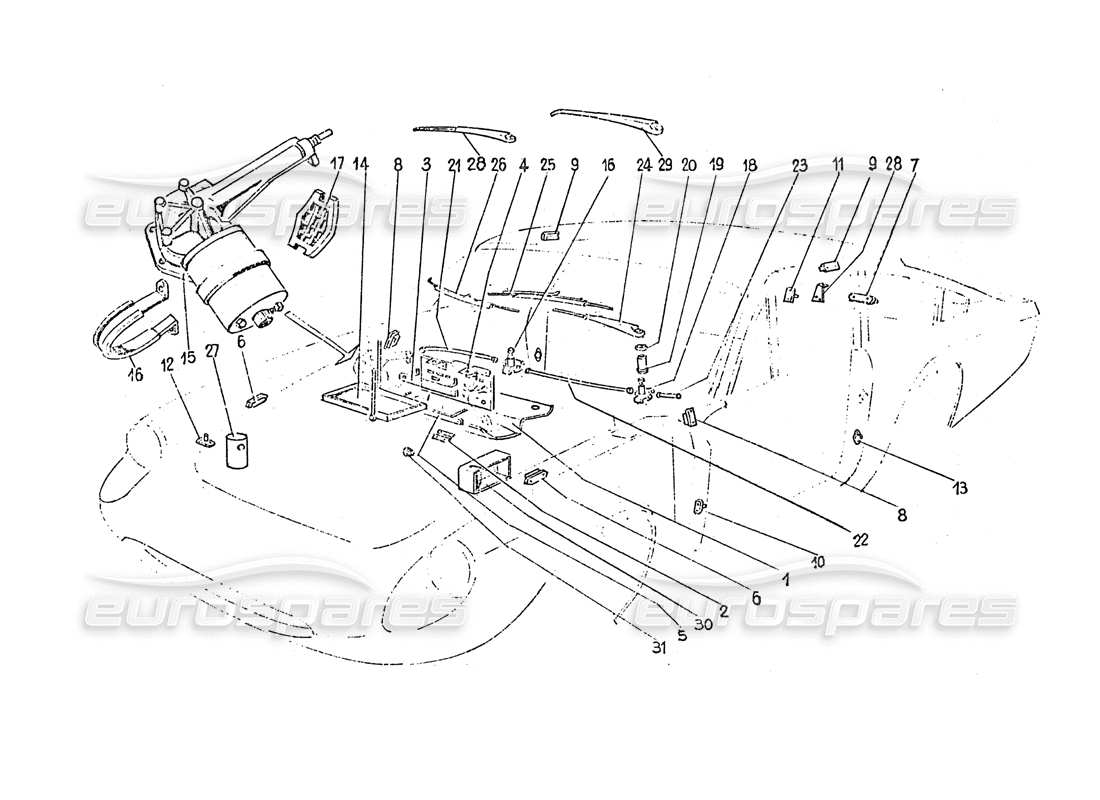

Ferrari 365 GT 2+2 (Coachwork) Electric Wipers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 251-80-130-00
                                              RICOPRIMENTO PER QUADRO IMPIANTO ELETTR.
                                              SOLO G.S.
                                              # 001
                                              MPN: 252-80-130-00
                                              RICOPRIMENTO PER QUADRO IMPIANTO ELETTR.
                                              SOLO G.D.
                                              # 002
                                              MPN: 251-80-134-06
                                              HINGE FOR SQUARE COVERING
                                              # 003
                                              MPN: 251-80-142-06
                                              RINFORZO FISS.SUP.QUADRO IMPIANTO ELETTR.
                                              # 004
                                              MPN: 251-80-144-06
                                              SQUADRETTA FISS.SUP.QUADRO IMP.ELETTR.
                                              # 005
                                              MPN: 251-80-146-06
                                              RINFORZO FISS.INF.QUADRO IMPIANTO ELETTR.
                                              # 006
                                              MPN: 242-80-802-00
                                              PLAFONIERA ILLUMINAZ.VANO COFANO
                                              from £12.87
                                              from £12.87
                                              # 007
                                              MPN: 242-80-800-00
                                              PLAFONIERA ILLUMINAZ.VANO BAULE
                                              # 008
                                              MPN: 251-80-804-00
                                              PLAFONIERA ILLUMINAZ.SOTTO PLANCIA
                                              from £28.70
                                              from £28.70
                                              # 009

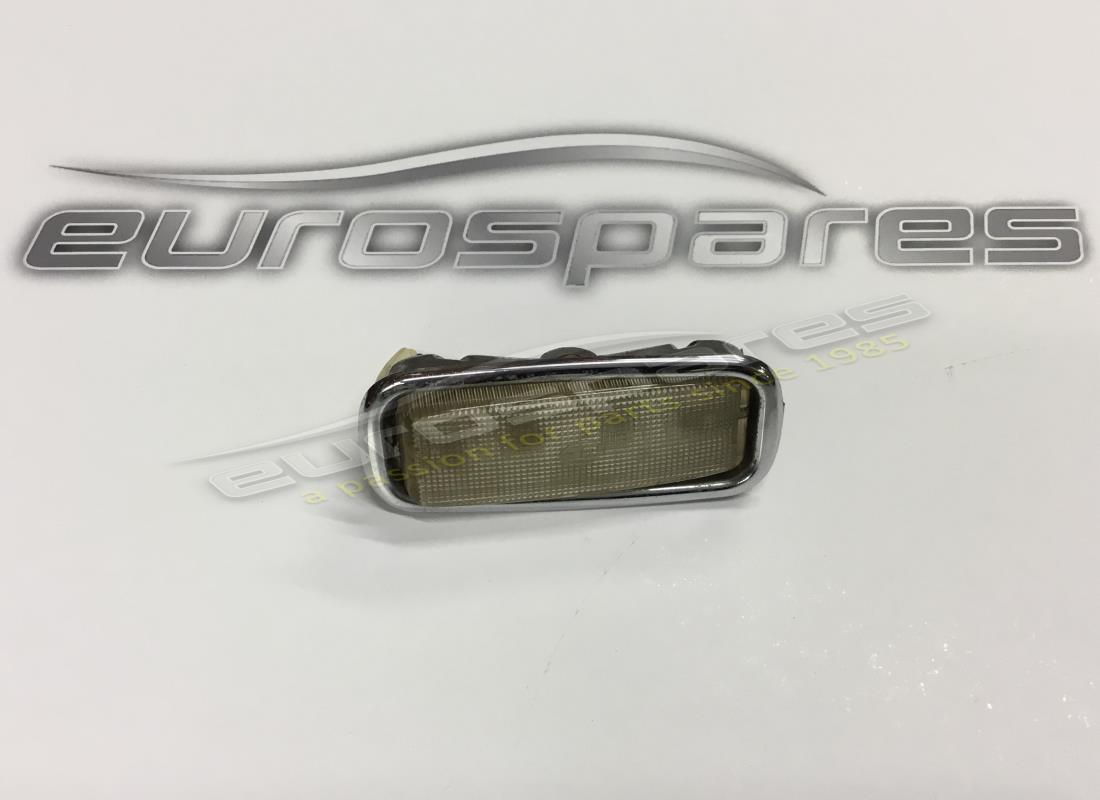

                                              MPN: 251-80-830-00
                                              INTERIOR LAMP
                                              from £129.03
                                              from £129.03
                                              # 010
                                              MPN: 242-80-832-00
                                              DOOR LIGHT SWITCH
                                              from £65.49
                                              from £65.49
                                              # 011
                                              MPN: 242-80-832-00
                                              DOOR LIGHT SWITCH
                                              from £65.49
                                              from £65.49
                                              # 012
                                              MPN: 242-80-832-00
                                              DOOR LIGHT SWITCH
                                              from £65.49
                                              from £65.49
                                              # 013
                                              MPN: 251-80-840-00
                                              OPEN DOOR INDICATOR LIGHT
                                              Supersession
                                              Supersession
                                              # 014
                                              MPN: 242-80-960-10
                                              FONDOLLO ALLOGGIAMENTO BATTERIA
                                              # 015

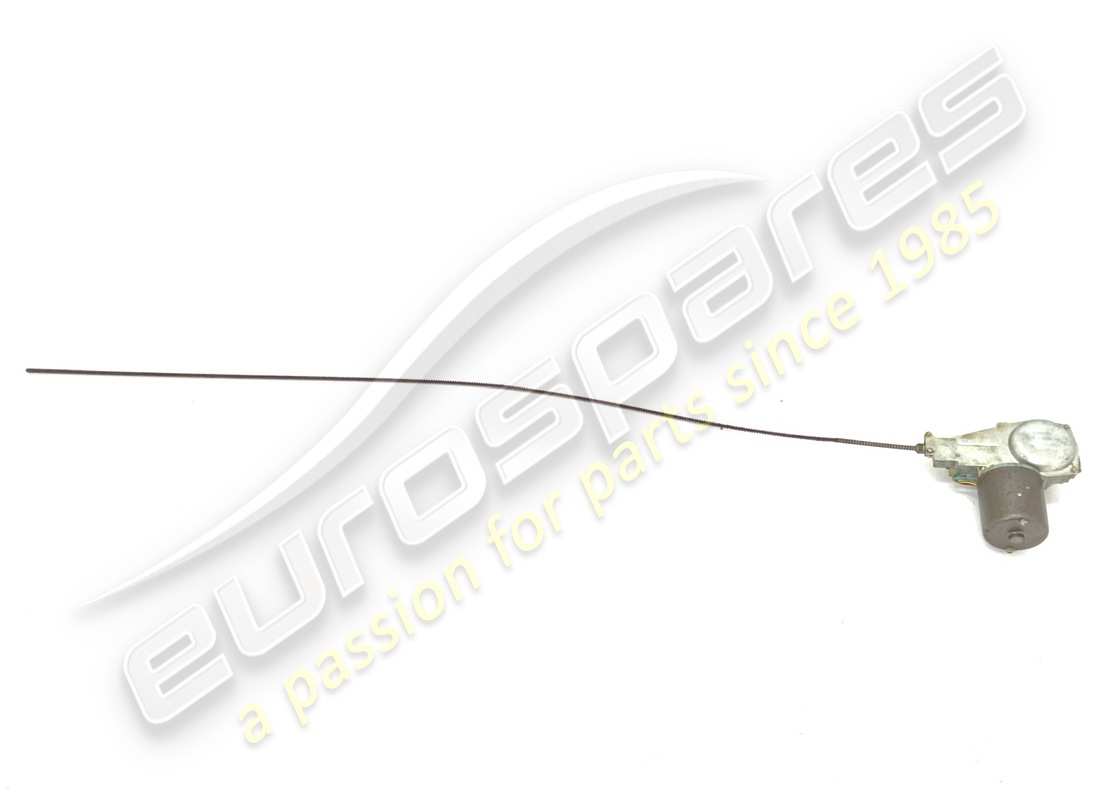

                                              MPN: 251-84-012-00
                                              MOTORINO TERGICRISTALLO CPL.DI TRASMISS. COMPLETA E DISTANZIALE (N° 16-17)
                                              from £1,195.00
                                              from £1,195.00
                                              This part replaces part number 95403550
                                              # 016

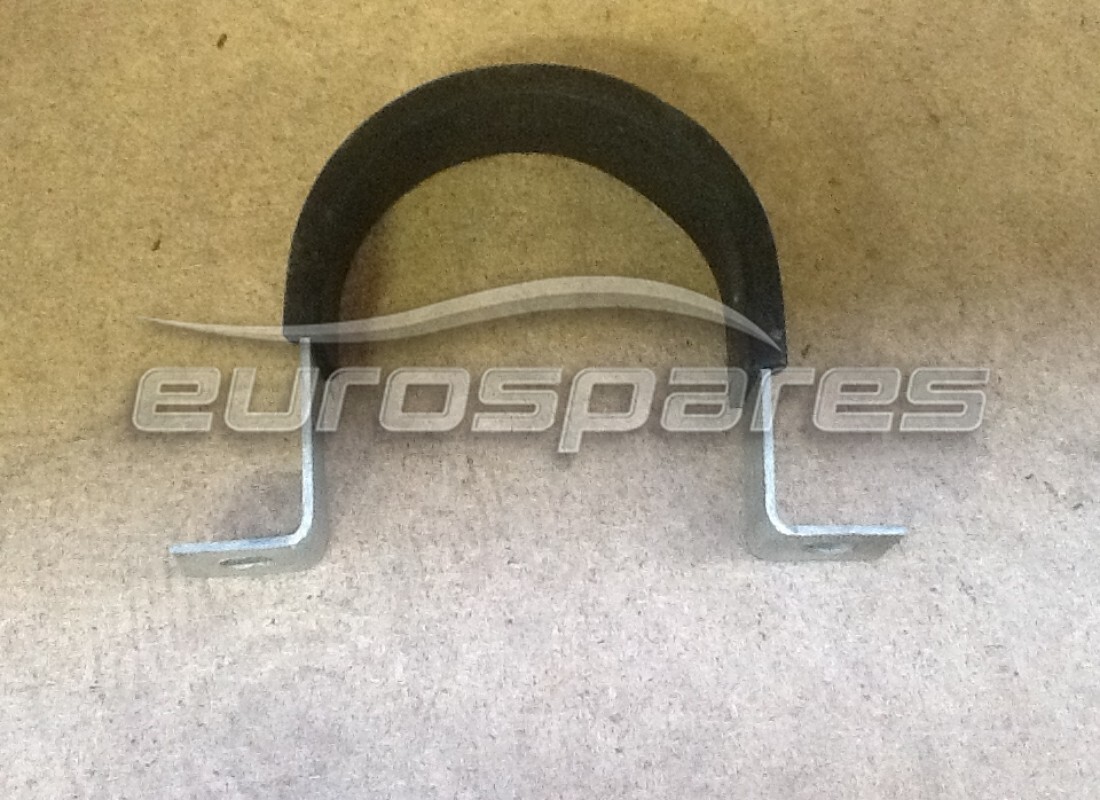

                                              MPN: 251-84-014-00
                                              FASCETTA SOSTEGNO MOTORINO TERGICRIST.
                                              Forniti con motorino tergicristallo N° 15
                                              from £29.40
                                              from £29.40
                                              # 017
                                              MPN: 251-84-016-00
                                              SPACER FOR WIPER MOTOR SUPPORT
                                              Not available as a replacement
                                              from £29.40
                                              from £29.40
                                              # 018
                                              MPN: 241-84-070-00
                                              WINDSHIELD WIPER PINS
                                              # 019
                                              MPN: 239-84-110-00
                                              BUSH
                                              from £50.95
                                              from £50.95
                                              # 020
                                              MPN: 242-84-112-02
                                              CAP FOR WIPER PIN
                                              # 021
                                              MPN: 251-84-170-01
                                              TUBO INIZIALE PROTEZ.FLESS.TERGICRIST.GS
                                              # 021
                                              MPN: 252-84-170-01
                                              TUBO INIZIALE PROTEZ.FLESS.TERGIER. GD
                                              # 022
                                              MPN: 251-84-180-01
                                              TUBO CENTRALE PROTEZ.FLESS.TERGICRIST.GS
                                              # 022
                                              MPN: 252-84-180-01
                                              TUBO CENTRALE PROTEZ.FLESS.TERGIER. GD
                                              # 023
                                              MPN: 241-84-190-01
                                              TUBO CORTO PROTEZ.ESTREMITÀ FLESS.TERGI
                                              # 024
                                              MPN: 251-84-250-00
                                              WINDSHIELD WIPER ARM
                                              EUROPA
                                              This part replaces part number 246-84-251-02 - and 2 more. Click to view details
                                              # 025
                                              MPN: 251-84-280-00
                                              DRIVER'S SIDE WIPER BLADE
                                              Escluso U.S.A.
                                              # 025
                                              MPN: 251-84-290-00
                                              SPAZZOLA TERGI LATO PASSEGGARO
                                              SOLO U.S.A.
                                              # 025
                                              MPN: 251-84-291-00
                                              DRIVER'S SIDE WIPER BRUSH
                                              SOLO U.S.A.
                                              # 026
                                              MPN: 251-84-281-00
                                              PASSENGER SIDE WIPER BLADE
                                              from £55.81
                                              from £55.81
                                              This part replaces part number 104601 - and 1 more. Click to view details
                                              # 027
                                              MPN: 251-82-960-00
                                              PROTECTION FOR COMPRESSOR HORNS
                                              # 028
                                              MPN: 251-84-260-00
                                              PASSENGER SIDE WIPER ARM
                                              SOLO U.S.A.
                                              # 029
                                              MPN: 251-84-261-00
                                              DRIVER'S SIDE WIPER ARM
                                              SOLO U.S.A.
                                              # 030
                                              MPN: 251-80-132-05
                                              COVER
                                              SOLO U.S.A.
                                              from £31.50
                                              from £31.50
                                              # 031
                                              MPN: 239-80-348-02
                                              ENGINE COMPARTMENT COVER FIXING KNOB
                                              SOLO U.S.A.
                                              from £12.77
                                              from £12.77
