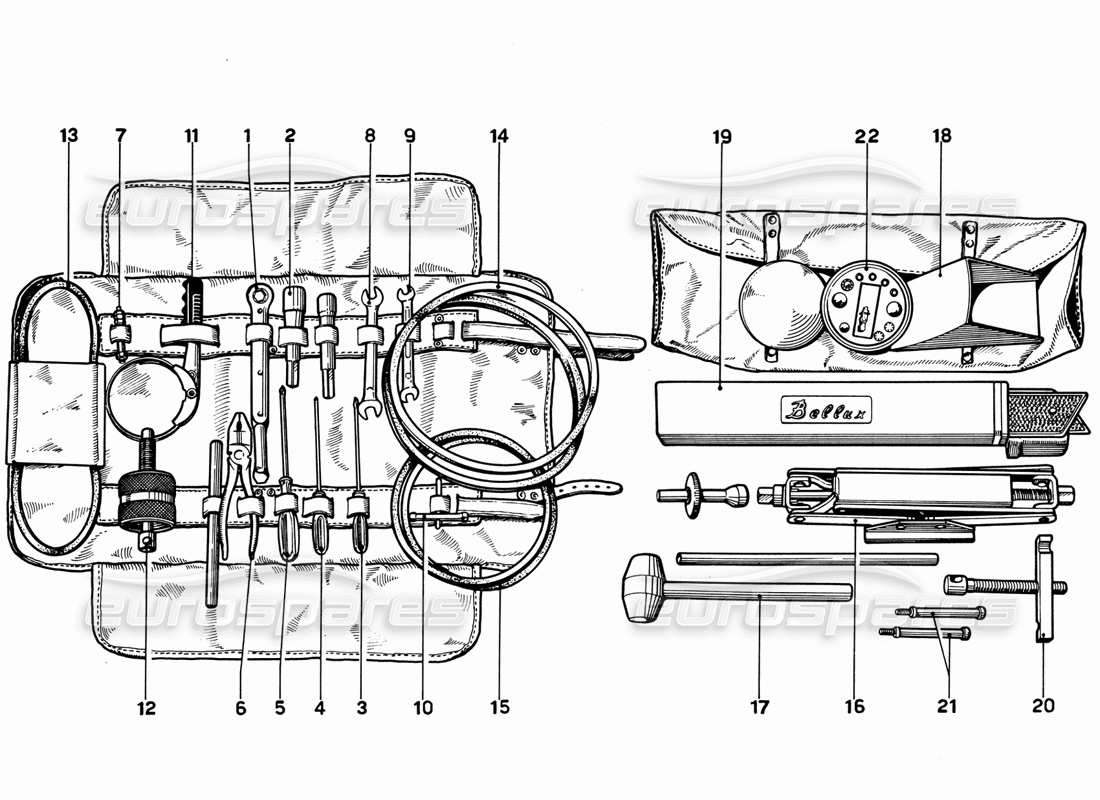

045 - Tool-Kit
Ferrari 365 GT 2+2 (Mechanical) Tool-Kit Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 95990008/365
HANDBOOK 365 GT 2+2 (COPY)
from £91.42
from £91.42
# 000
MPN: 95991911

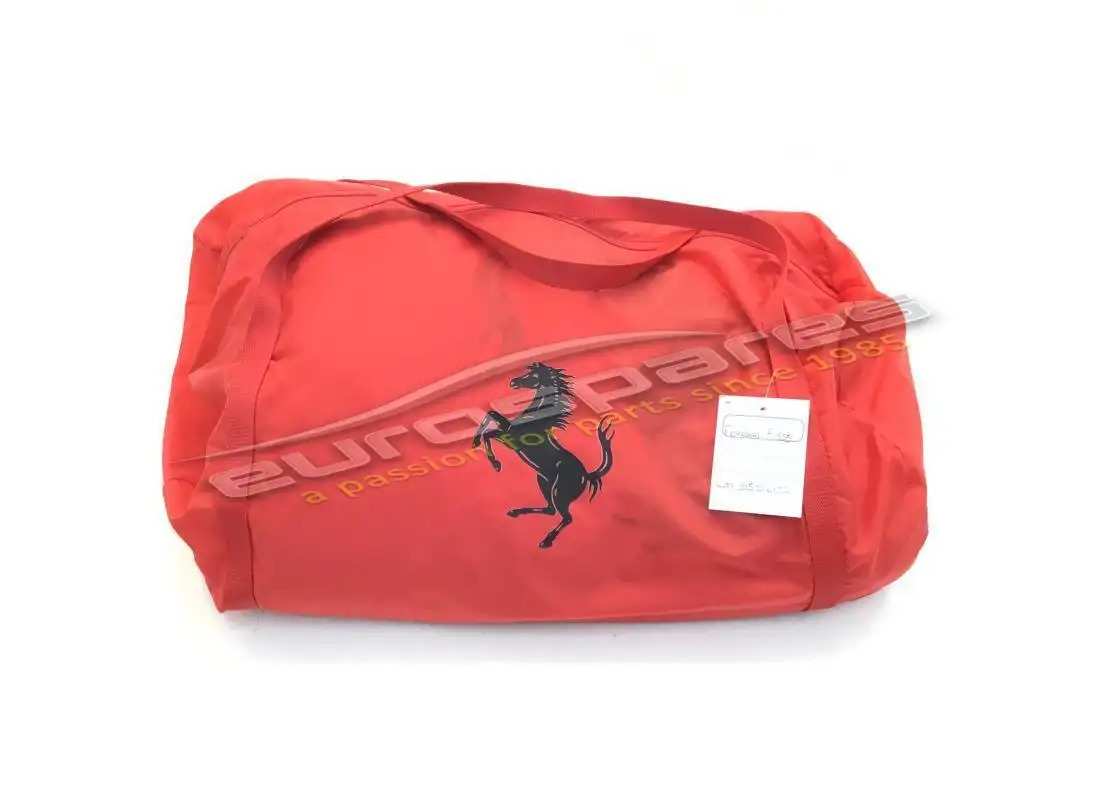

INDOOR CAR COVER
red
from £341.25
from £341.25
# 001
MPN: 840017
RATCHET WRENCH
# 002
MPN: 840016
CHIAVE PER CANDELE
# 003
-
CACCIAVITE
# 004
-
CROSS SCREWDRIVER UP TO F 4
# 005
-
CACCIAVITE A CROCE F. F 7-9
# 006
-
PINZA UNIVERSAL0 DA 190 MM
# 007
-
TUBETTO RIGIDO PER INGRAS SARE
# 008
-
FIXED WRENCH MM. 12 X 14
# 009
-
FIXED WRENCH MM. 10 X 11
# 010
MPN: 84114
CHIAVE PER CARBURATORE
Supersession
Supersession
# 011
MPN: 36.901.000
OIL FILTER WRENCH
# 012
MPN: 84055
FRONT HUB PULLER
# 013
MPN: 95840045
GENERATOR BELT
Supersession
Supersession
# 014
MPN: 60190
COMPRESSOR BELTS
Supersession
Supersession
# 015
MPN: 9,5x8.25x700
BELTS FOR HYDRAULIC PUMP
# 016
MPN: BR 232
MARTINETTO PER SOLLEVAMENTO
# 017
-
MAZZUOLO DI PIOMBO (KG.1.500)
# 018
-
SHEET METAL WEDGE
# 019
-
TRIANGOLO DI SEGNALAZIONE
# 020
MPN: 840018
REAR HUB PULLER
# 021
-
SCREWS FOR EXTRACTOR
# 022
MPN: 12 V. 21 W
CONTENITORE CON: LAMPADA
# 022
MPN: 12 V. 4 W
CONTENITORE CON: LAMPADA
# 022
MPN: 12 V. 5 W
CONTENITORE CON: LAMPADA
# 022
MPN: 12 V. 5/21 W
CONTAINER WITH: DOUBLE FILAMENT LAMP
# 022
MPN: 15 Amp.
CONTENITORE CON: FUSIBILE
# 022
MPN: 30 Amp.
CONTENITORE CON: FUSIBILE
# 022
MPN: 55 W.
CONTENITORE CON: LAMPADA PER PROIETTORE CONZOCCOLO P 14.5 S
# 022
MPN: 8 Amp.
CONTENITORE CON: FUSIBILE
