-Valid for Spider
ferrari 355 (5.2 motronic) passengers compartment insulations parts diagram

109 - Passengers Compartment Insulations

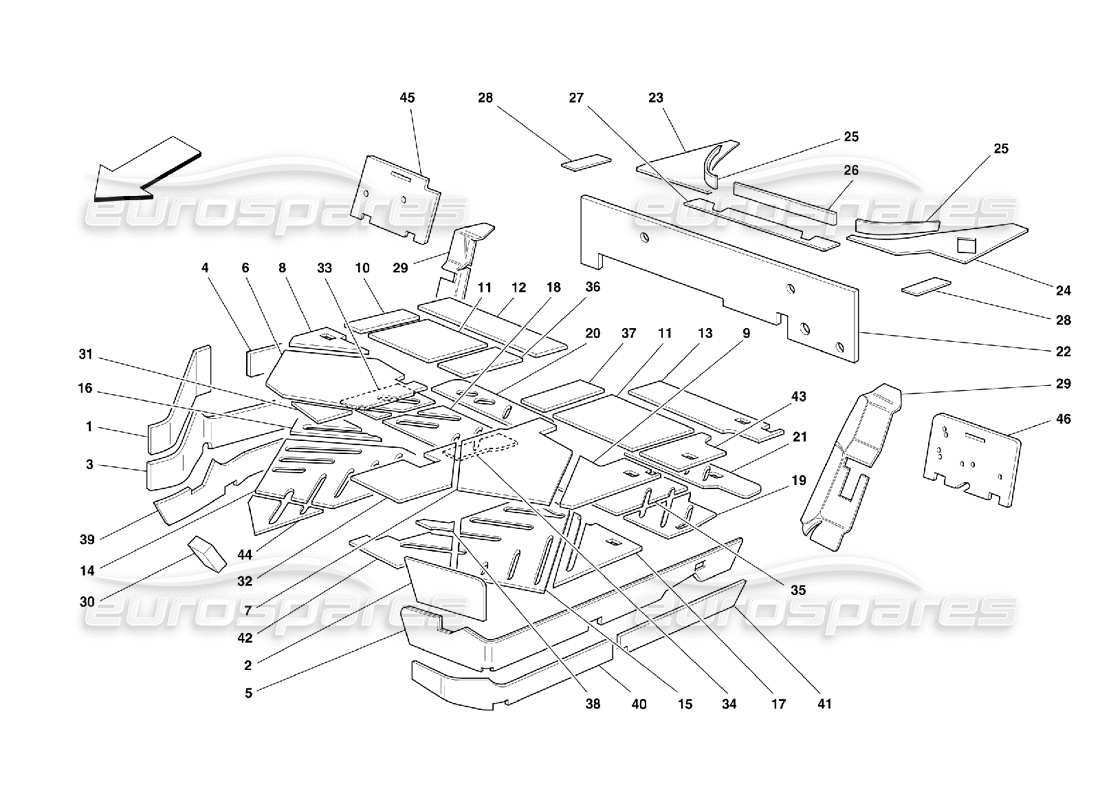

Ferrari 355 (5.2 Motronic) Passengers Compartment Insulations Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 62806900
                                    FRONT RH WHEELHOUSE INSULATION
                                    -Not for GD
                                    from £102.63
                                    from £102.63
                                    # 001
                                    MPN: 62988600
                                    FRONT RH WHEELHOUSE INSULATION
                                    -Valid for GD
                                    from £10.67
                                    from £10.67
                                    # 002
                                    MPN: 62807000
                                    FRONT LH WHEELHOUSE INSULATION
                                    -Not for GD
                                    from £102.63
                                    from £102.63
                                    # 002
                                    MPN: 62988500
                                    FRONT LH WHEELHOUSE INSULATION
                                    -Valid for GD
                                    from £29.09
                                    from £29.09
                                    # 003
                                    MPN: 62806700
                                    RH SIDE MEMBER FRONT INSULATION
                                    -Not for GD
                                    from £42.59
                                    from £42.59
                                    # 004
                                    MPN: 62806800
                                    RH SIDE MEMBER REAR INSULATION
                                    -Not for GD
                                    from £102.81
                                    from £102.81
                                    # 005
                                    MPN: 62806600
                                    LH SIDE MEMBER INSULATION
                                    -Not for GD
                                    from £9.41
                                    from £9.41
                                    # 006
                                    MPN: 64841800
                                    UPPER FRONT RH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £6.58
                                    from £6.58
                                    # 006
                                    MPN: 64911700
                                    UPPER FRONT RH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £285.39
                                    from £285.39
                                    # 007
                                    MPN: 64841900
                                    UPPER FRONT LH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £244.77
                                    from £244.77
                                    # 007
                                    MPN: 64911600
                                    UPPER FRONT LH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £271.80
                                    from £271.80
                                    # 008
                                    MPN: 64842200
                                    OUTER UPPER FRONT RH INSULATION FOR PLATFORM
                                    from £46.68
                                    from £46.68
                                    # 009
                                    MPN: 64842400
                                    OUTER UPPER FRONT LH INSULATION FOR PLATFORM
                                    from £46.68
                                    from £46.68
                                    # 010
                                    MPN: 63995500
                                    CENTRAL UPPER RH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £9.41
                                    from £9.41
                                    # 010
                                    MPN: 64274800
                                    CENTRAL UPPER RH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £10.01
                                    from £10.01
                                    # 011
                                    MPN: 63995600
                                    CENTRAL UPPER INSULATION FOR PLATFORM
                                    from £9.41
                                    from £9.41
                                    # 012
                                    MPN: 63298500
                                    UPPER REAR RH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £107.61
                                    from £107.61
                                    # 012
                                    MPN: 63299700
                                    UPPER REAR RH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £104.94
                                    from £104.94
                                    # 013
                                    MPN: 63298400
                                    UPPER REAR LH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £107.61
                                    from £107.61
                                    # 013
                                    MPN: 63299900
                                    UPPER REAR LH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £104.94
                                    from £104.94
                                    # 014
                                    MPN: 64842000
                                    LOWER FRONT RH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £48.29
                                    from £48.29
                                    # 014
                                    MPN: 64911500
                                    LOWER FRONT RH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £235.95
                                    from £235.95
                                    # 015
                                    MPN: 64842100
                                    LOWER FRONT LH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £46.85
                                    from £46.85
                                    # 015
                                    MPN: 64911300
                                    LOWER FRONT LH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £271.80
                                    from £271.80
                                    # 016
                                    MPN: 64842300
                                    OUTER LOWER FRONT RH INSULATION FOR PLATFORM
                                    from £93.30
                                    from £93.30
                                    # 017
                                    MPN: 64842500
                                    OUTER LOWER FRONT LH INSULATION FOR PLATFORM
                                    from £156.39
                                    from £156.39
                                    # 018
                                    MPN: 63995300
                                    LOWER CENTRAL RH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £183.96
                                    from £183.96
                                    # 018
                                    MPN: 64274400
                                    LOWER CENTRAL RH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £29.72
                                    from £29.72
                                    # 019
                                    MPN: 63995000
                                    LOWER CENTRAL LH OUTER INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £13.56
                                    from £13.56
                                    # 019
                                    MPN: 64274500
                                    LOWER CENTRAL LH OUTER INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £15.47
                                    from £15.47
                                    # 020
                                    MPN: 62804600
                                    LOWER REAR RH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £119.94
                                    from £119.94
                                    # 020
                                    MPN: 62985300
                                    LOWER REAR RH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £19.50
                                    from £19.50
                                    # 021
                                    MPN: 62805000
                                    LOWER REAR LH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £119.94
                                    from £119.94
                                    # 021
                                    MPN: 62985000
                                    LOWER REAR LH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £102.80
                                    from £102.80
                                    # 022
                                    MPN: 64739400
                                    UPPER INSULATION FOR ENGINE COMPARTMENT
                                    from £44.85
                                    from £44.85
                                    # 023
                                    MPN: 64524600
                                    RH PANEL INSULATION UNDER REAR WINDOW
                                    from £12.35
                                    from £12.35
                                    # 024
                                    MPN: 64524700
                                    LH PANEL INSULATION UNDER REAR WINDOW
                                    from £13.31
                                    from £13.31
                                    # 025
                                    MPN: 64523900
                                    VERTICAL INSULATION UNDER REAR WINDOW
                                    from £7.58
                                    from £7.58
                                    # 026
                                    MPN: 64524100
                                    CENTRAL VERTICAL INSULATION UNDER REAR WINDOW
                                    from £4.08
                                    from £4.08
                                    # 027
                                    MPN: 64524200
                                    CENTRAL PANEL INSULATION UNDER REAR WINDOW
                                    from £5.02
                                    from £5.02
                                    # 028
                                    MPN: 64620800
                                    PANEL INSULATION UNDER REAR WINDOW
                                    from £3.52
                                    from £3.52
                                    # 029
                                    MPN: 64733500
                                    BENCH VERTICAL RH INSULATION
                                    from £6.92
                                    from £6.92
                                    # 029
                                    MPN: 64733600
                                    BENCH VERTICAL LH INSULATION
                                    from £10.34
                                    from £10.34
                                    # 030
                                    MPN: 64602000
                                    TUNNEL INSULATION
                                    from £1.88
                                    from £1.88
                                    # 031
                                    MPN: 64529000
                                    UPPER INNER FRONT RH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £7.88
                                    from £7.88
                                    # 031
                                    MPN: 64883600
                                    UPPER INNER FRONT RH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £186.77
                                    from £186.77
                                    # 032
                                    MPN: 64529100
                                    UPPER INNER FRONT LH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £10.35
                                    from £10.35
                                    # 032
                                    MPN: 64883400
                                    UPPER INNER FRONT LH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £186.77
                                    from £186.77
                                    # 033
                                    MPN: 63995100
                                    RH OUTER LOWER CENTRAL INSULATION
                                    -Not for GD
                                    from £9.41
                                    from £9.41
                                    # 033
                                    MPN: 64274300
                                    RH OUTER LOWER CENTRAL INSULATION
                                    -Valid for GD
                                    from £15.47
                                    from £15.47
                                    # 034
                                    MPN: 64239100
                                    RH INNER LOWER CENTRAL INSULATION
                                    -Not for GD
                                    from £9.41
                                    from £9.41
                                    # 034
                                    MPN: 64274700
                                    RH INNER LOWER CENTRAL INSULATION
                                    -Valid for GD
                                    from £10.22
                                    from £10.22
                                    # 035
                                    MPN: 63995200
                                    LH MIDDLE LOWER CENTRAL INSULATION
                                    -Not for GD
                                    from £142.67
                                    from £142.67
                                    # 035
                                    MPN: 64274600
                                    LH MIDDLE LOWER CENTRAL INSULATION
                                    -Valid for GD
                                    from £29.72
                                    from £29.72
                                    # 036
                                    MPN: 64239200
                                    RH INNER UPPER CENTRAL INSULATION
                                    from £46.26
                                    from £46.26
                                    # 037
                                    MPN: 64239300
                                    LH INNER UPPER CENTRAL INSULATION
                                    from £46.26
                                    from £46.26
                                    # 038
                                    MPN: 64538700
                                    UNDER ACCELERATOR PEDAL LOWER INSULATION
                                    from £56.36
                                    from £56.36
                                    # 039
                                    MPN: 62988200
                                    RH SIDE MEMBER INSULATION
                                    -Valid for GD
                                    from £42.60
                                    from £42.60
                                    # 040
                                    MPN: 62988300
                                    LH SIDE MEMBER FRONT INSULATION
                                    -Valid for GD
                                    from £73.14
                                    from £73.14
                                    # 041
                                    MPN: 62988400
                                    LH SIDE MEMBER REAR INSULATION
                                    -Valid for GD
                                    from £16.40
                                    from £16.40
                                    # 042
                                    MPN: 64529400
                                    LOWER INNER FRONT LH INSULATION FOR PLATFORM
                                    -Not for GD
                                    from £98.91
                                    from £98.91
                                    # 042
                                    MPN: 64883000
                                    LOWER INNER FRONT LH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £163.04
                                    from £163.04
                                    # 043
                                    MPN: 63995400
                                    LH OUTER UPPER CENTRAL INSULATION
                                    -Not for GD
                                    from £51.84
                                    from £51.84
                                    # 043
                                    MPN: 63995500
                                    LH OUTER UPPER CENTRAL INSULATION
                                    -Valid for GD
                                    from £9.41
                                    from £9.41
                                    # 044
                                    MPN: 64883200
                                    LOWER FRONT RH INSULATION FOR PLATFORM
                                    -Valid for GD
                                    from £108.69
                                    from £108.69
                                    # 045
                                    MPN: 64799300
                                    RH CONTROL STATION INSULATION
                                    -Not for 355 F1
                                    from £10.61
                                    from £10.61
                                    # 045
                                    MPN: 65082400
                                    RH CONTROL STATION INSULATION
                                    -Valid for 355 F1
                                    from £18.85
                                    from £18.85
                                    # 046
                                    MPN: 65053100
                                    LH CONTROL STATION INSULATION
                                    -Not for 355 F1
                                    from £15.29
                                    from £15.29
                                    # 046
                                    MPN: 65482100
                                    LH CONTROL STATION INSULATION
                                    -Valid for 355 F1
                                    from £13.98
                                    from £13.98
