013 - Lubrication

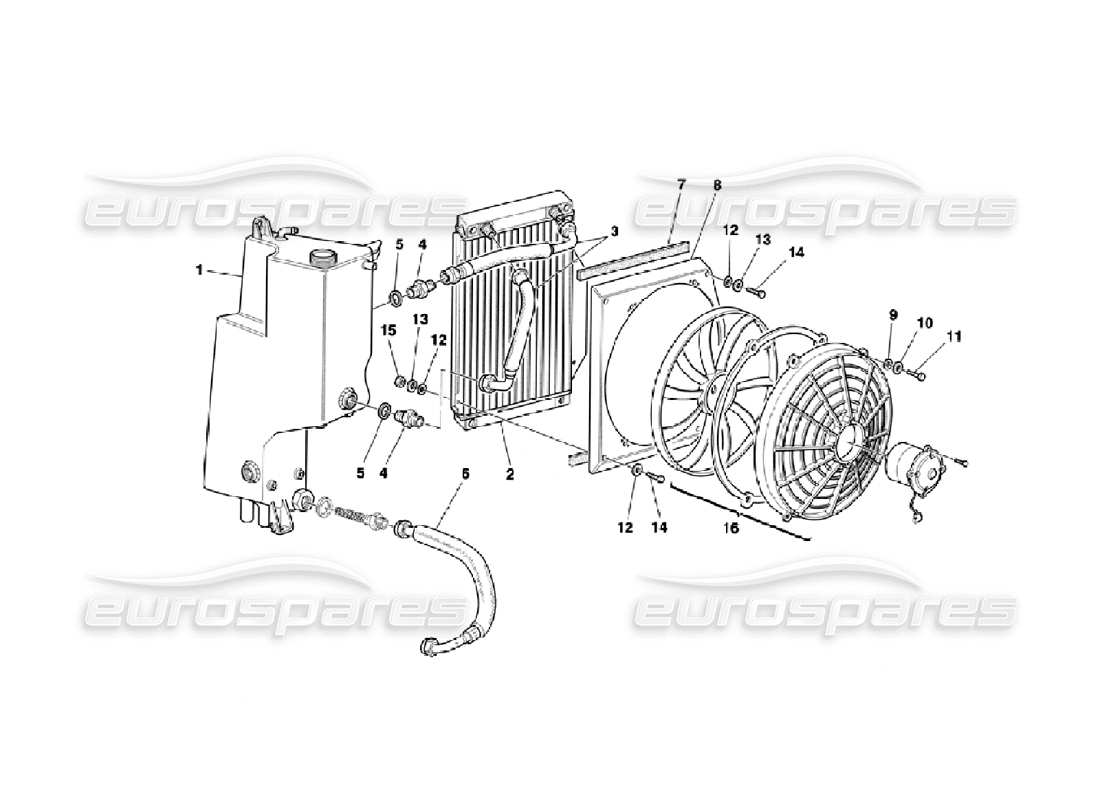

Ferrari 355 Challenge (1996) Lubrication Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 166666
OIL TANK
from £464.69
from £464.69
# 002
MPN: 166665
OIL RADIATOR
from £711.81
from £711.81
# 003
MPN: 141820
TANK-RADIATOR CONN, PIPE
Supersession
Supersession
# 004
MPN: 145085
CONNECTOR
from £5.78
from £5.78
# 005
MPN: 144485
GASKET
from £12.60
from £12.60
# 006
MPN: 166000
PUMP-TANK CONN, PIPE
from £625.70
from £625.70
# 007
MPN: 170484
GASKET
from £1.20
from £1.20
# 008
MPN: 170187
RADIATOR HOOD
from £397.16
from £397.16
# 009
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 - and 1 more. Click to view details
# 010
MPN: 127493
WASHER
from £0.51
from £0.51
This part replaces part number 106849 - and 1 more. Click to view details
# 011
MPN: 10977824
SCREW
from £1.03
from £1.03
This part replaces part number 10977814 - and 1 more. Click to view details
# 012
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 - and 3 more. Click to view details
# 013
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.51
from £0.51
This part replaces part number 10516470 - and 4 more. Click to view details
# 014
MPN: 10902224
SCREW
from £0.48
from £0.48
# 015
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 016
MPN: 170443
COOLING FAN ASSEMBLY
not as spare part - use part number: 173941
Supersession
Supersession
# 016
MPN: 173941
COOLING FAN ASSEMBLY
replaces: 170443
from £363.98
from £363.98
This part replaces part number 170443
