106 - ROOF - STRUCTURE

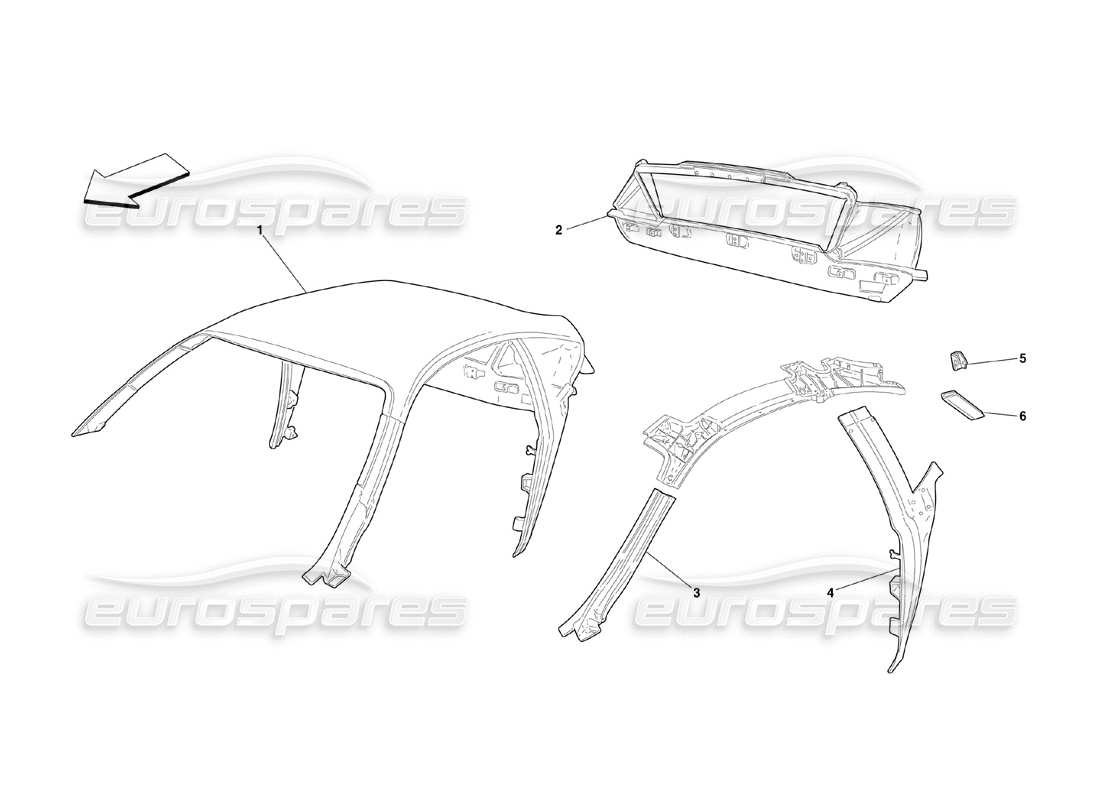

Ferrari 360 Challenge (2000) Roof - Structure Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66143000
COMPLETE ROOF
Supersession
Supersession
# 002
MPN: 66143200
REAR WINDOW MOULDING
from £644.07
from £644.07
# 003
MPN: 65943400
RH SIDE MOLDING
from £495.36
from £495.36
# 003
MPN: 65943500
LH SIDE MOLDING
from £360.74
from £360.74
# 004
MPN: 66145800
RH CENTRAL PILLAR
Supersession
Supersession
# 004
MPN: 66146000
LH CENTRAL PILLAR
Supersession
Supersession
# 005
MPN: 64807900
BRACKET FOR RH PROP FIXING
Supersession
Supersession
# 005
MPN: 64854300
BRACKET FOR LH PROP FIXING
Supersession
Supersession
# 006
MPN: 64807200
COMPLETE LH REAR PANEL
Supersession
Supersession
# 006
MPN: 64807300
COMPLETE RH REAR PANEL
Supersession
Supersession
