122 - Tunnel - Framework and Accessories

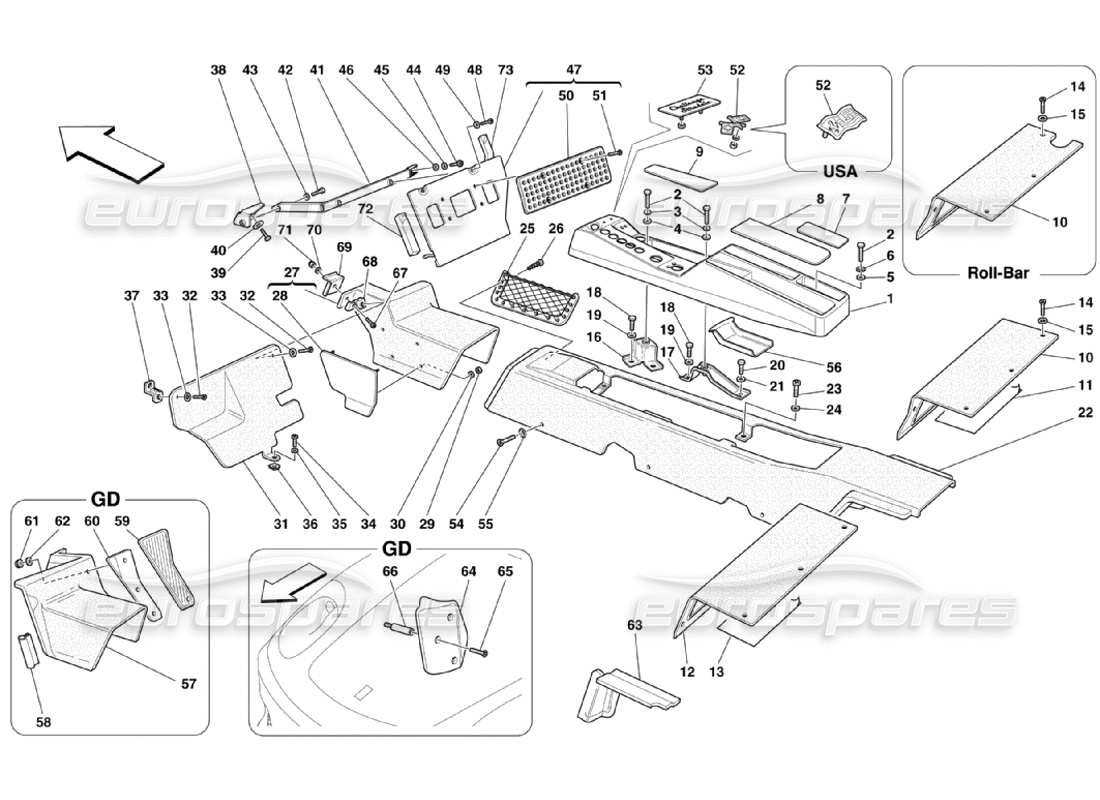

Ferrari 360 Challenge Stradale Tunnel - Framework and Accessories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67493100
CENTRAL UPPER TUNNEL COVER
-Valid for descending glass - Not for GD
from £1,197.33
from £1,197.33
# 001
MPN: 67757000
CENTRAL UPPER TUNNEL COVER
-Valid for fixing glass - Not for GD (light scratches)
from £1,842.70
from £1,842.70
# 001
MPN: 67804900
CENTRAL UPPER TUNNEL COVER
-Valid for descending glass - Valid for GD
from £1,181.17
from £1,181.17
# 001
MPN: 67836600
CENTRAL UPPER TUNNEL COVER
-Valid for fixing glass - Valid for GD
# 002
MPN: 16043424
SCREW
from £0.52
from £0.52
This part replaces part number 16043411 - and 1 more. Click to view details
# 003
MPN: 12604474
WASHER
from £0.54
from £0.54
This part replaces part number 12604479 which we have in stock
# 004
MPN: 14496524
WASHER
from £0.53
from £0.53
This part replaces part number 14496525 - and 1 more. Click to view details
# 005
MPN: 13550301
WASHER
from £0.54
from £0.54
# 006
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 007
MPN: 679175..
RH REAR DRAWER CARPET SHIELD
Supersession
Supersession
# 008
MPN: 676861..
REAR DRAWER CARPET SHIELD
Supersession
Supersession
# 009
MPN: 676860..
FRONT DRAWER CARPET SHIELD
-Not for GD
Supersession
Supersession
# 009
MPN: 678364..
FRONT DRAWER CARPET SHIELD
-Valid for GD
Supersession
Supersession
# 010
MPN: 674926..
RH COVER FOR CONTROL UNIT
-Valid for Roll-Bar cars - Not for USA, CDN and AUS
Supersession
Supersession
# 010
MPN: 677395..
RH COVER FOR CONTROL UNIT
-Not for Roll-Bar cars
Supersession
Supersession
# 011
MPN: 168850
RH RELAYS AND FUSES NAMEPLATE
-Not for USA and CDN
from £2.40
from £2.40
# 011
MPN: 186647
RH RELAYS AND FUSES NAMEPLATE
# 012
MPN: 674927..
LH COVER FOR CONTROL UNIT
-Valid for Roll-Bar cars - Not for USA, CDN and AUS
Supersession
Supersession
# 012
MPN: 677396..
LH COVER FOR CONTROL UNIT
-Not for Roll-Bar cars - Not for USA and CDN
Supersession
Supersession
# 012
MPN: 677783..
LH COVER FOR CONTROL UNIT
-Not for Roll-Bar cars - Valid for USA and CDN
Supersession
Supersession
# 013

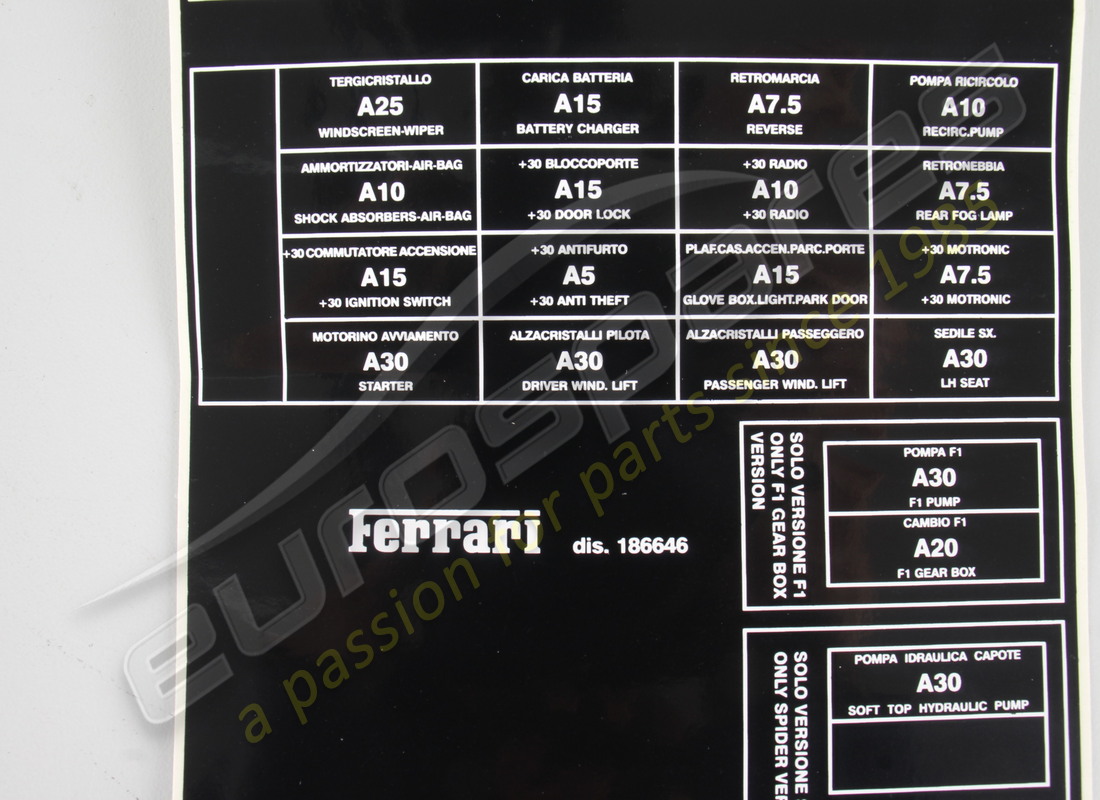

MPN: 186646
LH RELAYS AND FUSES NAMEPLATE
-For clear carpets
from £1.78
from £1.78
# 014
MPN: 13301770
SCREW
from £0.47
from £0.47
# 014
MPN: 13313477
SCREW
-For dark carpets
from £0.47
from £0.47
# 015
MPN: 12611407
WASHER
-For dark carpets
from £0.53
from £0.53
# 015
MPN: 12611442
WASHER
-For clear carpets
from £0.53
from £0.53
# 016
MPN: 67638200
FRONT BRACKET
from £20.02
from £20.02
# 017
MPN: 67638400
REAR BRACKET
from £19.81
from £19.81
# 018
MPN: 16043421
SCREW
from £2.71
from £2.71
This part replaces part number 95524
# 019
MPN: 14496524
WASHER
from £0.53
from £0.53
This part replaces part number 14496525 - and 1 more. Click to view details
# 020
MPN: 10902421
SCREW
from £0.54
from £0.54
# 021
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 022
MPN: 674627..
REAR SIDE TUNNEL COVER
-Not for GD
Supersession
Supersession
# 022
MPN: 678337..
REAR SIDE TUNNEL COVER
-Valid for GD
Supersession
Supersession
# 023
MPN: 13276470
SCREW
from £0.53
from £0.53
# 024
MPN: 12644424
WASHER
from £0.53
from £0.53
This part replaces part number 12644401 - and 1 more. Click to view details
# 025
MPN: 67774200
NET POCKET
-Not for GD
from £226.80
from £226.80
# 025
MPN: 67967500
NET POCKET
-Valid for GD
from £266.09
from £266.09
# 026
MPN: 168133
SCREW
from £0.54
from £0.54
# 027
MPN: 674626..
FRONT SIDE TUNNEL COVER
-Not for GD
Supersession
Supersession
# 028
MPN: 65305300
ACCELERATOR PEDAL PROTECTION
-Not for GD
from £18.78
from £18.78
# 029
MPN: 10794014
NUT
-Not for GD
from £0.48
from £0.48
This part replaces part number 10794034
# 030
MPN: 12642801
WASHER
-Not for GD
from £0.53
from £0.53
This part replaces part number 12642824
# 031
MPN: 65712600
UNDER PEDAL COVER
-Valid for GD
from £274.15
from £274.15
# 031
MPN: 67494500
UNDER PEDAL COVER
-Not for GD
from £443.48
from £443.48
# 032
MPN: 13311077
SCREW
from £0.53
from £0.53
# 033
MPN: 12611107
WASHER
Supersession
Supersession
This part replaces part number 12611342
# 034
MPN: 13311077
SCREW
from £0.53
from £0.53
# 035
MPN: 12611107
WASHER
Supersession
Supersession
This part replaces part number 12611342
# 036
MPN: 14370971
BRACKET
from £0.54
from £0.54
# 037
MPN: 65709300
LH UPPER BRACKET
from £3.86
from £3.86
# 038
MPN: 65523500
BRACKET
-Not for GD
from £25.47
from £25.47
# 038
MPN: 65538800
BRACKET
-Valid for GD
from £21.70
from £21.70
# 039
MPN: 10902324
SCREW
from £0.54
from £0.54
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 040
MPN: 12640624
WASHER
from £0.54
from £0.54
This part replaces part number 12640601 - and 1 more. Click to view details
# 041
MPN: 65522900
SUPPORT PIPE
-Not for GD
from £107.31
from £107.31
# 041
MPN: 65538700
SUPPORT PIPE
-Valid for GD
from £197.25
from £197.25
# 042
MPN: 10902324
SCREW
from £0.54
from £0.54
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 043
MPN: 12640624
WASHER
from £0.54
from £0.54
This part replaces part number 12640601 - and 1 more. Click to view details
# 044
MPN: 10902324
SCREW
from £0.54
from £0.54
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 045
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 046
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 047
MPN: 67494400
COMPLETE FOOT-REST FOR PASSENGER
-Not for GD
from £604.02
from £604.02
# 047
MPN: 67832100
COMPLETE FOOT-REST FOR PASSENGER
-Valid for GD
from £150.02
from £150.02
# 048
MPN: 13276211
SCREW
from £0.53
from £0.53
# 049
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 050
MPN: 66122200
COVER
from £61.33
from £61.33
# 051
MPN: 65847800
SCREW
from £1.91
from £1.91
# 052
MPN: 64460400
Ferrari-PININFARINA MARK
from £58.50
from £58.50
# 052
MPN: 68401600
50 YEARS USA MARK
-Valid for USA MY 2004
from £66.20
from £66.20
# 053
MPN: 67753700
CHALLENGE STRADALE PLATE
from £36.80
from £36.80
# 054
MPN: 13299877
SCREW
from £1.37
from £1.37
# 055
MPN: 12611107
WASHER
Supersession
Supersession
This part replaces part number 12611342
# 056
MPN: 67917600
SHIELD
from £30.92
from £30.92
# 057
MPN: 678347..
FRONT SIDE TUNNEL COVER
-Valid for GD
Supersession
Supersession
# 058
MPN: 67681200
GASKET -L.=140MM-
-Valid for GD
from £2.06
from £2.06
# 059
MPN: 65918000
SLAB FOR DRIVER SIDE FOOT REST PLATE
-Valid for GD
from £39.63
from £39.63
# 060
MPN: 65917200
FOOT-REST FOR DRIVER
-Valid for GD
from £15.09
from £15.09
# 061
MPN: 14059111
NUT
-Valid for GD
from £0.53
from £0.53
# 062
MPN: 14447001
WASHER
-Valid for GD
Supersession
Supersession
# 063
MPN: 679503..
RH SIDE SHIELD
Supersession
Supersession
# 063
MPN: 679504..
LH SIDE SHIELD
Supersession
Supersession
# 064
MPN: 67963200
ACCELERATOR PEDAL PROTECTION
-Valid for GD
from £45.53
from £45.53
# 065
MPN: 13301470
SCREW
-Valid for GD
from £0.52
from £0.52
# 066
MPN: 182363
STUD
-Valid for GD
from £23.34
from £23.34
# 066
MPN: 68025100
PIN
-Valid for GD - Not as spare part - Replaced by 182363
Supersession
Supersession
# 067
MPN: 13274177
SCREW
(minimum order quantity = 10)
from £0.53
from £0.53
This part replaces part number 13274172
# 068
MPN: 65709200
BRACKET
from £4.05
from £4.05
# 069
MPN: 68078700
SPACER
-Not for GD
from £3.01
from £3.01
# 070
MPN: 12637878
WASHER
from £0.54
from £0.54
This part replaces part number 12637806
# 071
MPN: 113647
NUT
from £0.54
from £0.54
# 072
MPN: 68161200
ANTI-VIBRATIONS
from £0.47
from £0.47
# 073
MPN: 68161300
ANTI-VIBRATIONS
from £0.47
from £0.47
