015 - Blow - By System (400 GT)

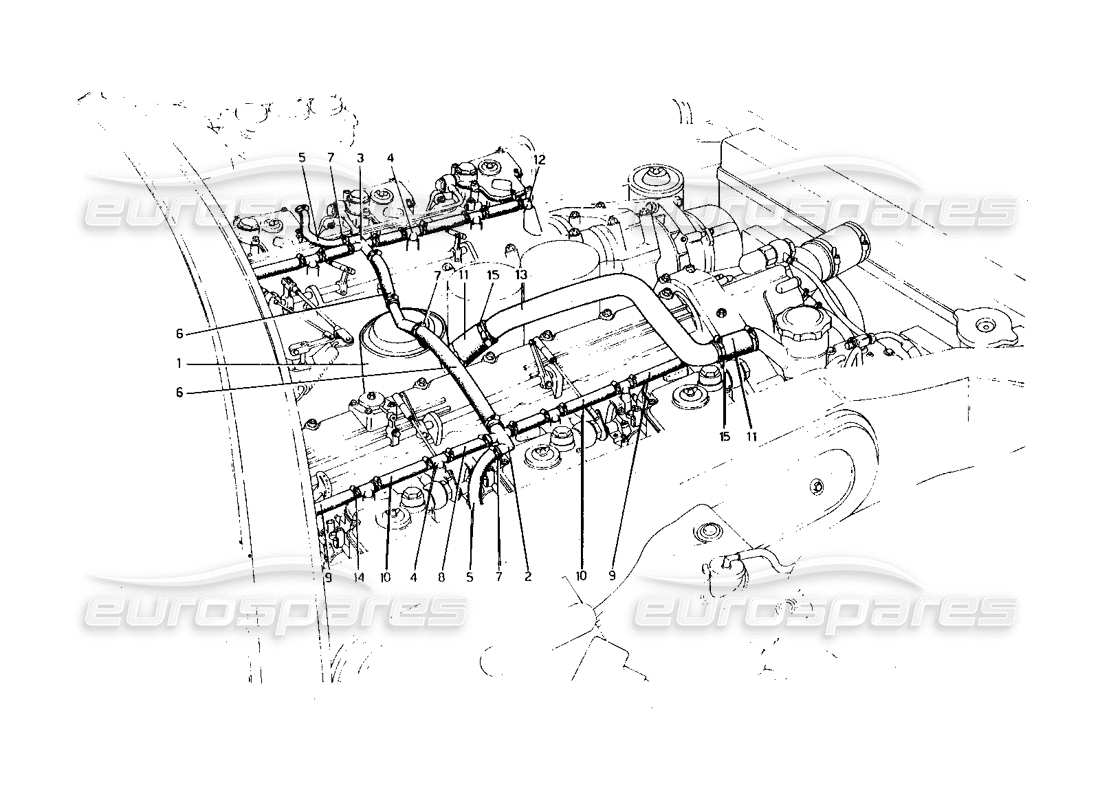

Ferrari 400 GT (Mechanical) Blow - By System (400 GT) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 110460
ASSIEME SFIATO E BLOW - BY
from £360.57
from £360.57
# 002
MPN: 100066
UNION
# 003
MPN: 100067
UNION
from £27.75
from £27.75
This part replaces part number 210175
# 004
MPN: 100068
UNION
from £11.93
from £11.93
# 005
MPN: 100071
PIPE FROM 4 WAY TO THE AIR INTAKE
from £9.55
from £9.55
# 006
MPN: 100072
TUBO DAL 4 VIE AL BUIOLO
# 007
MPN: 102604
JUBILEE CLIP
Supersession
Supersession
# 008
MPN: 100074
TUBO CORTO
from £7.50
from £7.50
# 009
MPN: 100075
TUBOMEDIO
Supersession
Supersession
# 010
MPN: 100076
LONG TUBE
Supersession
Supersession
This part replaces part number 100075
# 011
MPN: 122829
SLEEVE
from £15.65
from £15.65
This part replaces part number 100077 - and 1 more. Click to view details
# 012
MPN: 100078
UNION
from £26.85
from £26.85
# 013
MPN: 102024
VENT HOSE FOR OIL FILLER BODY
# 014
MPN: 102721
JUBILEE CLIP
Supersession
Supersession
# 015
MPN: 101292
JUBILEE CLIP
from £5.80
from £5.80
