ferrari 400 gt / 400i (coachwork) doors parts diagram

007 - Doors

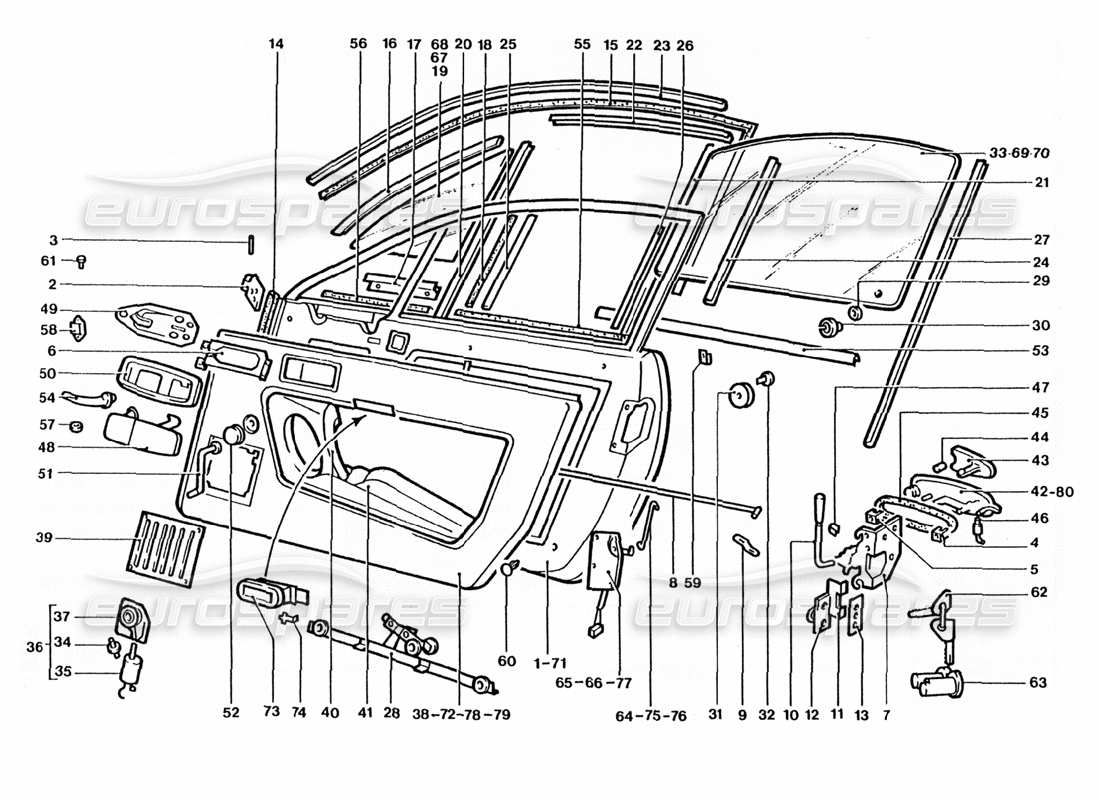

Ferrari 400 GT / 400i (Coachwork) Doors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price

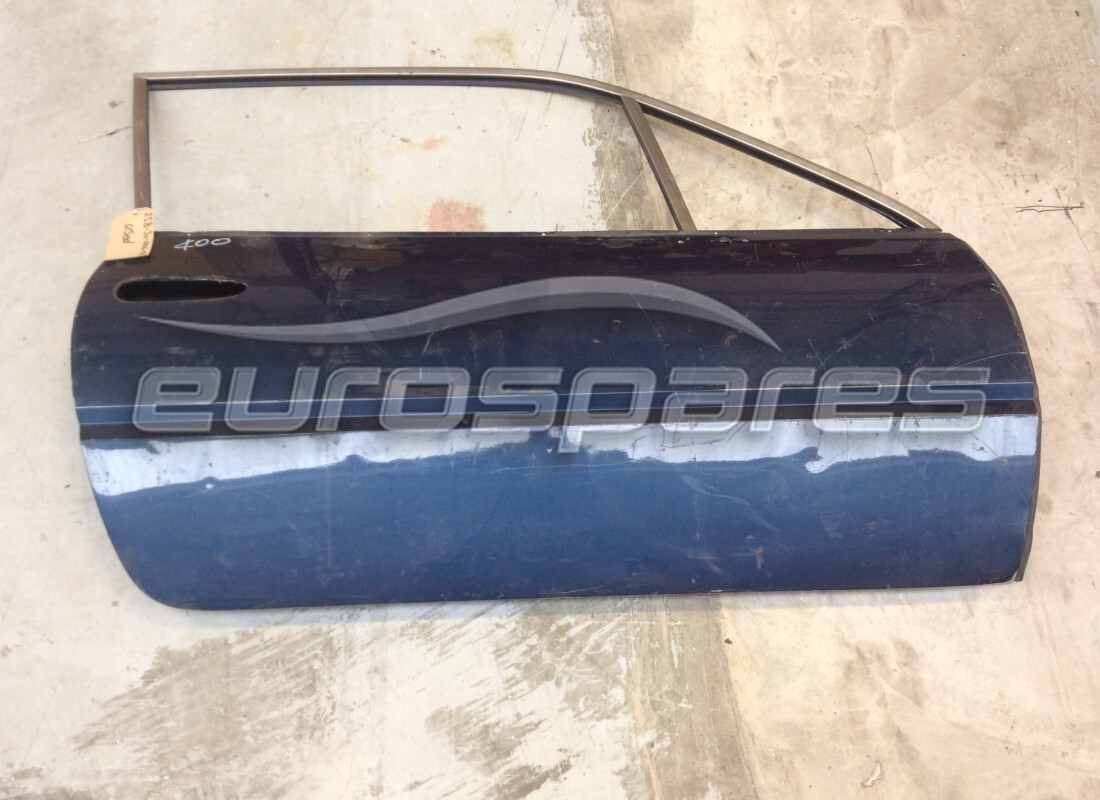

    # 001
    MPN: 257-30-004-06
    DOOR
    Porta Ds. G.S.
    Supersession
    Supersession

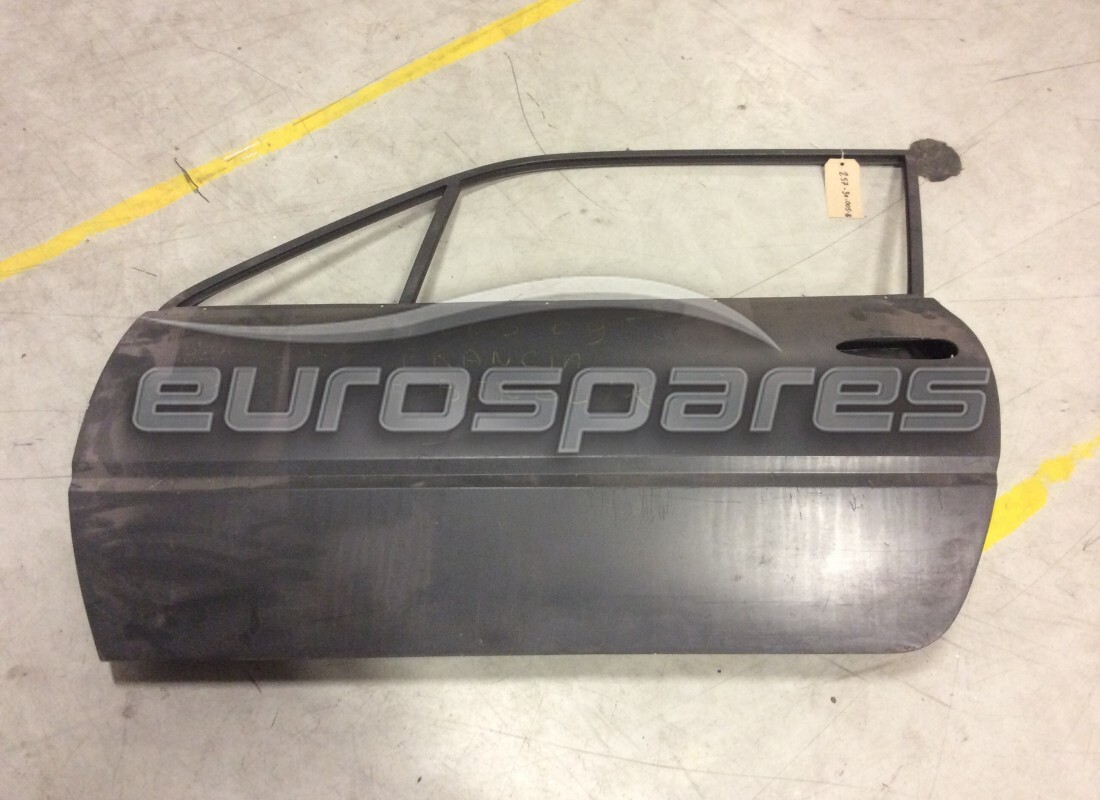

    # 001
    MPN: 257-30-005-06
    DOOR
    Porta Sn. G.S.
    from £995.00
    from £995.00

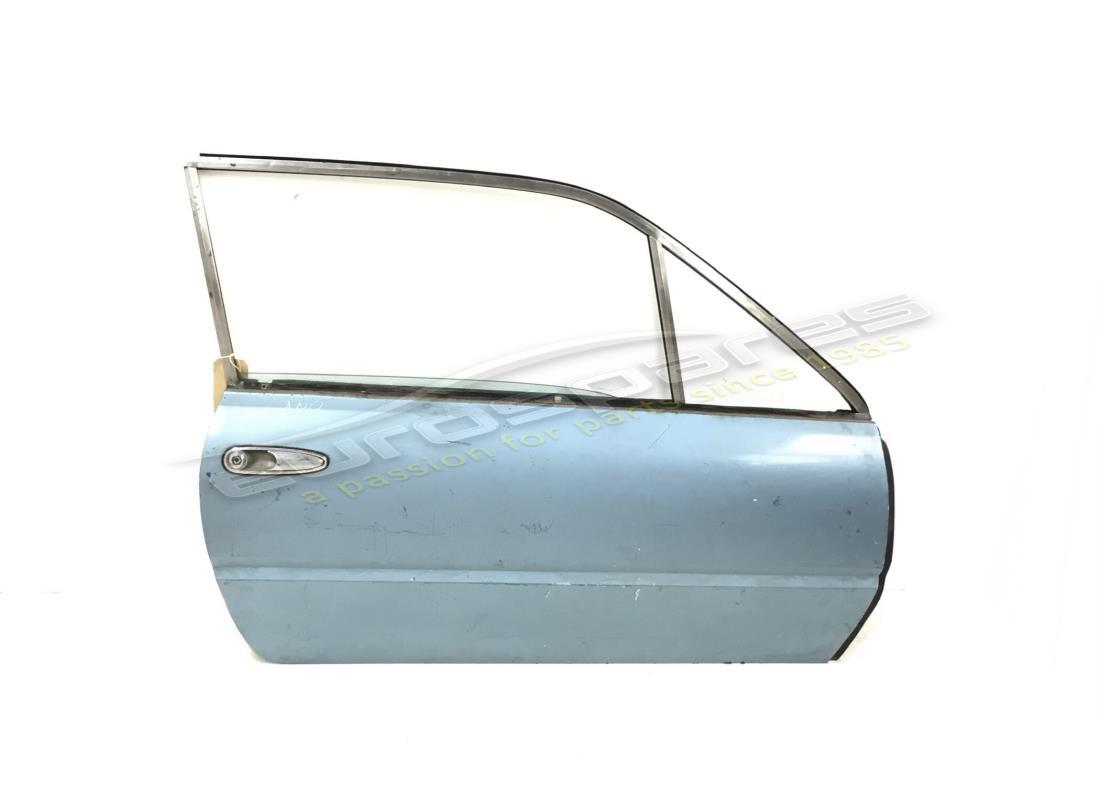

    # 001
    MPN: 258-30-004-06
    RH DOOR ASSY
    from £939.75
    from £939.75
    # 001

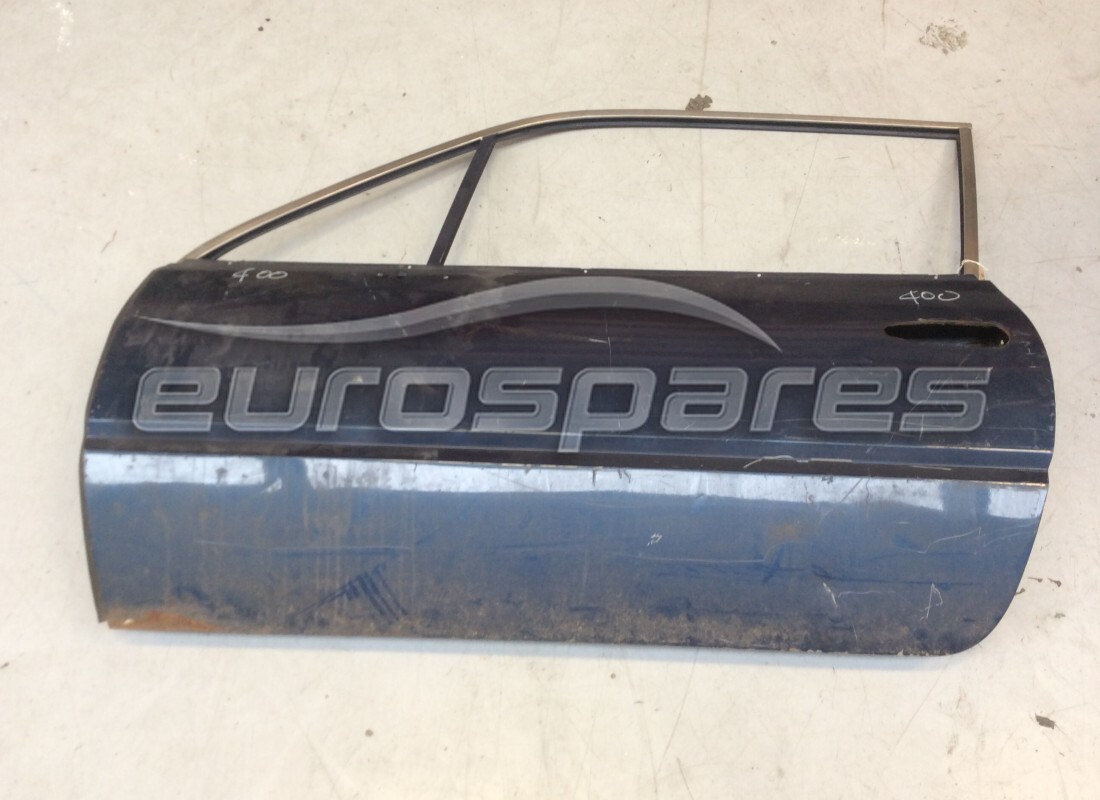

    MPN: 258-30-005-06
    DOOR
    Porta Sn. G.D.
    from £4,442.64
    from £4,442.64
    # 002
    MPN: 255-30-074-00
    HINGE
    CERNIERA
    from £74.18
    from £74.18
    # 003
    MPN: 253-30-068-00
    PIN
    PERNO
    from £15.07
    from £15.07
    # 004
    MPN: 806-30-152-01
    CLIP
    PONTICELLO
    from £1.50
    from £1.50
    # 005
    MPN: 806-30-158-01
    CLIP
    PONTICELLO
    from £1.58
    from £1.58
    # 006
    MPN: 257-30-158-05
    BRACKET
    Staffa Ds.
    from £17.14
    from £17.14
    # 006
    MPN: 257-30-159-05
    BRACKET
    Staffa Sn.
    from £16.65
    from £16.65
    # 007
    MPN: 255-30-170-01
    lock
    Serratura Ds.
    from £210.00
    from £210.00
    This part replaces part number 20170809 which we have in stock - and 3 more. Click to view details
    # 007
    MPN: 255-30-171-01
    lock
    Serratura Sn.
    from £231.99
    from £231.99
    This part replaces part number 20170908 which we have in stock - and 8 more. Click to view details
    # 008
    MPN: 257-30-176-01
    ROD
    ASTA
    from £8.43
    from £8.43
    # 009
    MPN: 410-30-180-01
    CLIP
    MOLLETTA
    from £0.67
    from £0.67
    # 009
    MPN: 410-30-180-01
    CLIP
    MOLLETTA
    from £0.67
    from £0.67
    # 010
    MPN: 257-30-190-01
    ROD
    ASTA
    from £19.29
    from £19.29
    # 011
    MPN: 253-30-204-02
    GASKET
    Guarnizione Ds.
    from £7.71
    from £7.71
    # 011
    MPN: 253-30-205-02
    LH PLATE
    from £7.96
    from £7.96
    # 012
    MPN: 152-30-212-01
    STRIKER PLATE
    Scontrino Ds.
    from £44.76
    from £44.76
    This part replaces part number 20019105 - and 1 more. Click to view details
    # 012
    MPN: 152-30-213-01
    STRIKER PLATE
    Scontrino Sn.
    from £102.03
    from £102.03
    # 013
    MPN: 253-30-216-00
    PLATE
    SPESSORE
    from £2.21
    from £2.21
    # 014
    MPN: 0-902-8-030-0
    GASKET
    GOMMA
    from £2.05
    from £2.05
    # 015
    MPN: 255-30-244-00
    GASKET
    GOMMA
    from £141.81
    from £141.81
    # 015
    MPN: 255-30-245-00
    GASKET
    Gomma Sn.
    from £141.81
    from £141.81
    # 016
    MPN: 255-30-312-00
    WINDOW GUIDE
    CANALINA
    from £4.35
    from £4.35
    # 017
    MPN: 255-30-316-01
    SUPPORT
    SUPPORTO
    from £5.44
    from £5.44
    # 018
    MPN: 255-30-348-00
    GASKET
    GOMMA
    from £2.62
    from £2.62
    # 019
    MPN: 257-30-368-00
    DEFLECTOR
    Voletto Ds.
    from £41.29
    from £41.29
    # 019
    MPN: 257-30-369-00
    DEFLECTOR
    Voletto Sn.
    from £35.71
    from £35.71
    # 020
    MPN: 255-30-450-00
    WINDOW GUIDE
    Canalino
    from £7.28
    from £7.28
    # 021
    MPN: 255-30-452-00
    WINDOW GUIDE
    Canalino
    from £6.44
    from £6.44
    # 022
    MPN: 255-30-454-00
    WINDOW GUIDE
    Canalino
    from £7.28
    from £7.28
    # 023
    MPN: 255-30-464-08
    MOULDING
    Ricoprimento Ds.
    from £43.30
    from £43.30
    # 023
    MPN: 255-30-465-08
    MOULDING
    Ricoprimento Sn.
    from £80.15
    from £80.15
    # 024
    MPN: 255-30-466-08
    MOULDING
    Ricoprimento Ds.
    from £20.26
    from £20.26
    # 024
    MPN: 255-30-467-08
    MOULDING
    Ricoprimento Sn.
    from £30.48
    from £30.48
    # 025
    MPN: 255-30-468-08
    MOULDING
    Ricoprimento Ds.
    from £23.05
    from £23.05
    # 025
    MPN: 255-30-469-08
    MOULDING
    Ricoprimento Sn.
    from £86.51
    from £86.51
    # 026
    MPN: 255-30-476-08
    DEFLECTOR
    Deflettore Ds.
    from £25.52
    from £25.52
    # 026
    MPN: 255-30-477-08
    DEFLECTOR
    Deflettore Sn.
    from £25.52
    from £25.52
    # 027
    MPN: 255-30-510-01
    WINDOW GUIDE
    Guida Ds.
    from £26.85
    from £26.85
    # 027
    MPN: 255-30-511-01
    WINDOW GUIDE
    Guida Sn.
    from £26.85
    from £26.85
    # 028
    MPN: 255-30-520-01
    CROSSPIECE
    Traversa Ds.
    from £76.09
    from £76.09
    # 028
    MPN: 255-30-521-01
    CROSSPIECE
    Traversa Sn.
    from £72.61
    from £72.61
    # 029
    MPN: 0-214-8-045-0
    RING
    ANELLO
    from £0.57
    from £0.57
    # 030
    MPN: 0-977-1-012-5
    BUSH
    BOCCOLA
    from £8.48
    from £8.48
    # 031
    MPN: 802-30-576-00
    PULLEY
    PULEGGIA
    from £0.71
    from £0.71
    # 032
    MPN: 251-30-578-01
    PIN
    PERNO
    from £5.44
    from £5.44
    # 033
    MPN: 257-30-552-00
    Glass
    Cristallo Ds.
    from £83.78
    from £83.78
    # 033
    MPN: 257-30-553-00
    Glass
    CristalloSn.
    from £94.99
    from £94.99
    This part replaces part number 255-30-551-00 - and 2 more. Click to view details
    # 034
    MPN: 410-30-534-00
    JOINT
    G Junto
    from £26.25
    from £26.25
    # 035
    MPN: 251-30-542-10
    MOTOR
    MOTORINO
    from £413.45
    from £413.45
    # 036
    MPN: 255-30-570-01
    WINDOW LIFTER
    Alzacristallo Ds.
    from £209.49
    from £209.49
    This part replaces part number 95403523
    # 036
    MPN: 255-30-571-01
    WINDOW LIFTER
    Alzacristallo Sn.
    from £409.23
    from £409.23
    This part replaces part number 95403524
    # 037
    MPN: 255-30-574-01
    WINDOW LIFTER
    Alzacristallo Ds.
    from £107.53
    from £107.53
    # 037
    MPN: 255-30-575-01
    WINDOW LIFTER
    Alzacristallo Sn.
    from £107.02
    from £107.02
    # 038
    MPN: 257-30-630-00
    PANEL
    Pannello Ds.
    from £812.98
    from £812.98
    # 038
    MPN: 257-30-631-00
    PANEL
    Pannello Sn.
    from £812.98
    from £812.98
    # 039
    MPN: 253-30-628-17
    GRILL
    GRIGLIA
    Supersession
    Supersession
    This part replaces part number 253-30-628-00
    # 040
    MPN: 255-30-700-00
    ARMREST
    Appoggiabraccia Ds.
    from £433.54
    from £433.54
    # 040
    MPN: 255-30-701-00
    ARMREST
    Appoggiabraccia Sn.
    from £433.54
    from £433.54
    # 041
    MPN: 255-30-720-00
    ARMREST
    Appoggiabraccia Ds.
    from £178.64
    from £178.64
    # 041
    MPN: 255-30-721-00
    ARMREST
    Appoggiabraccia Sn.
    from £243.04
    from £243.04
    # 042
    MPN: 253-30-750-09
    HANDLE
    Maniglia Ds.
    Supersession
    Supersession
    # 042
    MPN: 253-30-751-09
    HANDLE
    Maniglia Sn.
    from £73.50
    from £73.50
    # 042
    MPN: 257-30-750-09
    HANDLE
    Maniglia Ds.
    from £130.00
    from £130.00
    This part replaces part number 253-30-750-09 - and 1 more. Click to view details
    # 042
    MPN: 257-30-751-09
    HANDLE
    Maniglia Sn.
    from £426.54
    from £426.54
    # 043
    MPN: 251-30-752-02
    LEVER
    LEVA
    # 045
    MPN: 253-30-780-00
    GASKET
    GUARNIZLONE
    Supersession
    Supersession
    # 046
    MPN: 152-30-784-01
    TIE ROD
    TIRANTE
    from £34.75
    from £34.75
    # 047
    MPN: 152-30-807-00
    CLIP
    MOLLETTA
    from £2.66
    from £2.66
    This part replaces part number 500-02-302-04
    # 048
    MPN: 257-30-810-02
    HANDLE
    Maniglia Ds.
    from £156.12
    from £156.12
    # 048
    MPN: 257-30-811-02
    HANDLE
    Maniglia Sn.
    from £160.53
    from £160.53
    # 049
    MPN: 152-30-818-00
    GASKET
    GUARNIZLONE
    from £1.56
    from £1.56
    # 050
    MPN: 152-30-830-02
    ORNAMENT
    MOSTRINA
    from £20.67
    from £20.67
    # 051
    MPN: 410-30-880-00
    HANDLE
    HANDLE
    # 052
    MPN: 257-30-886-00
    PLUG
    TAPPO
    from £32.94
    from £32.94
    # 053
    MPN: 255-30-920-08
    MOULDING
    Modanatura Ds.
    from £108.21
    from £108.21
    # 053
    MPN: 255-30-921-08
    MOULDING
    Modanatura Sn.
    from £108.21
    from £108.21
    # 054
    MPN: 255-30-962-01
    TIE-ROD
    TIRANTE
    # 055
    MPN: 255-30-910-00
    GASKET
    Guarnizione
    from £22.12
    from £22.12
    # 056
    MPN: 255-30-911-00
    GASKET
    Guarnizione
    from £7.05
    from £7.05
    # 057
    MPN: 0-147-1-003-5
    NUT
    DADO
    # 058
    MPN: 255-30-978-01
    DOOR STOP
    ARRESTO
    from £33.81
    from £33.81
    # 059
    MPN: 253-42-588-00
    CLIP
    MOLLETTA
    Supersession
    Supersession
    This part replaces part number 63117300
    # 060
    MPN: 0-216-8-031-0
    CLIP
    MOLLETTA
    from £0.47
    from £0.47
    # 061
    MPN: 0-918-1-055-1
    SCREW
    VITE
    # 062
    MPN: 257-30-762-09
    Key
    not as spare part - se part number: 95401149
    # 062
    MPN: 95401149
    DOOR BLANK KEY
    Supersession
    Supersession
    This part replaces part number 95401032
    # 063
    MPN: 255-30-760-00
    DOOR LOCK SET
    from £406.02
    from £406.02
    # 064
    MPN: 257-30-200-01
    ROD
    ASTA
    from £1.05
    from £1.05
    # 065
    MPN: 257-30-202-00
    LOCK DEVICE
    Closure
    # 066
    MPN: 257-30-203-00
    LOCK DEVICE
    Closure
    # 067
    MPN: 257-30-366-00
    BRONZE DEFLECTOR
    Cristallo Ds. bronzo
    from £107.86
    from £107.86
    # 068
    MPN: 257-30-367-00
    BRONZE DEFLECTOR
    Cristallo Sn. bronzo
    from £40.95
    from £40.95
    # 069
    MPN: 257-30-554-00
    BRONZE GLA
    Cristallo Ds. bronzo
    from £236.28
    from £236.28
    # 070
    MPN: 257-30-555-00
    BRONZE GLASS
    Cristallo Sn. bronzo
    from £236.28
    from £236.28
    # 071
    MPN: 257-30-004-16
    DOOR
    Porta Ds.
    from £1,044.75
    from £1,044.75
    This part replaces part number 257-30-004-06 - and 3 more. Click to view details
    # 071
    MPN: 257-30-005-16
    DOOR
    PortaSn.
    from £2,475.88
    from £2,475.88
    This part replaces part number 257-30-005-06 which we have in stock
    # 072
    MPN: 257-30-630-10
    PANEL
    Pannello Ds. G.S.
    # 072
    MPN: 257-30-631-10
    PANEL
    Pannello Sn. G.S.
    # 072
    MPN: 258-30-630-00
    PANEL
    Pannello Ds. G.D.
    # 072
    MPN: 258-30-631-00
    PANEL
    Pannello Ds. G.D.
    # 073
    MPN: 257-80-834-00
    SWITCH
    INTERRUTTORE
    Supersession
    Supersession
    # 074
    MPN: 257-80-836-03
    CLIP
    MOLLETTA
    from £2.00
    from £2.00
    This part replaces part number 257-80-836-00
    # 075
    MPN: 257-30-206-05
    ROD
    Aste Ds.
    from £5.44
    from £5.44
    # 076
    MPN: 257-30-207-05
    ROD
    Aste Sn.
    from £2.00
    from £2.00
    # 077
    MPN: 257-30-202-10
    LOCK DEVICE
    Dispositivo
    # 077
    MPN: 257-30-203-10
    LOCK DEVICE
    Dispositivo
    # 078
    MPN: 257-30-630-20
    PANEL
    Pannello Ds. G.S.
    # 078
    MPN: 257-30-631-20
    PANEL
    Pannello Sn. G.S.
    from £1,916.04
    from £1,916.04
    # 079
    MPN: 258-30-630-10
    PANEL
    Pannello Ds. G.D.
    # 079
    MPN: 258-30-631-10
    PANEL
    Pannello Sn. G.D.
    from £812.98
    from £812.98
    # 080
    MPN: 257-30-740-02
    HANDLE UNIT WITH LOCKS
    Serie maniglia porta Ds. e Sn. con blocchetti
    from £256.83
    from £256.83
