ferrari 400i (1983 mechanical) throttles controls (valid for rhd versions) parts diagram

013 - Throttles Controls (Valid for RHD Versions)

Ferrari 400i (1983 Mechanical) Throttles Controls (Valid for RHD Versions) Parts Diagram

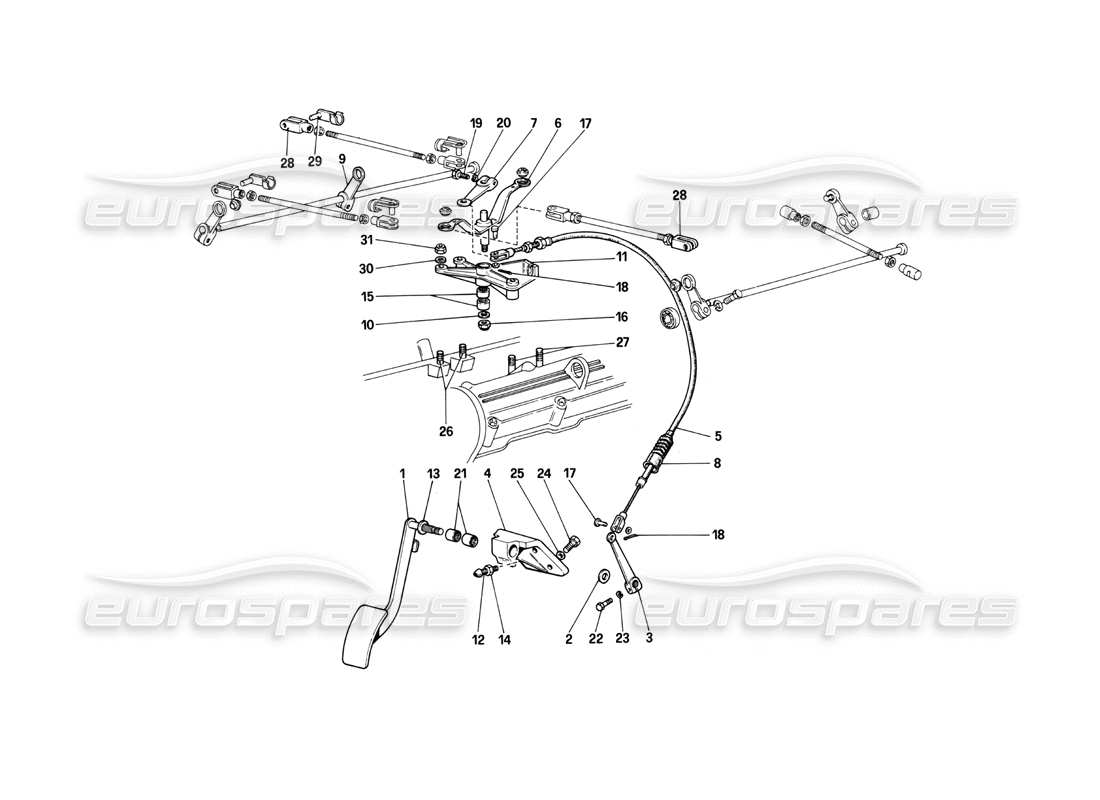

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 102348
                                                                PEDALE ACCELERATORE
                                                                from £194.25
                                                                from £194.25
                                                                This part replaces part number 9181835 - and 1 more. Click to view details
                                                                # 002
                                                                MPN: 102354
                                                                SPACER
                                                                from £32.76
                                                                from £32.76
                                                                This part replaces part number 9181832
                                                                # 003
                                                                MPN: 102352
                                                                LEVER
                                                                from £171.23
                                                                from £171.23
                                                                This part replaces part number 9181831
                                                                # 004
                                                                MPN: 103614
                                                                SUPPORT
                                                                from £129.43
                                                                from £129.43
                                                                # 005
                                                                MPN: 116004
                                                                FLESSIBILE COMANDO ACCELERATORE
                                                                from £40.65
                                                                from £40.65
                                                                # 006
                                                                MPN: 103617
                                                                LEVER
                                                                from £120.90
                                                                from £120.90
                                                                # 007
                                                                MPN: 103615
                                                                LEVER
                                                                from £46.84
                                                                from £46.84
                                                                # 008
                                                                MPN: 10-32-40
                                                                SOFF IETTO PER F LESSIBILE
                                                                from £34.53
                                                                from £34.53
                                                                # 009
                                                                MPN: 102087
                                                                LEVER
                                                                from £117.59
                                                                from £117.59
                                                                This part replaces part number 9181660
                                                                # 010
                                                                MPN: 103623
                                                                WASHER
                                                                from £15.32
                                                                from £15.32
                                                                This part replaces part number 9181795
                                                                # 011
                                                                MPN: 110708
                                                                SUPPORT
                                                                from £161.37
                                                                from £161.37
                                                                # 012
                                                                MPN: 100640
                                                                SCREW
                                                                from £1.64
                                                                from £1.64
                                                                This part replaces part number 9181141 - and 1 more. Click to view details
                                                                # 013
                                                                MPN: 100649
                                                                WASHER
                                                                from £0.75
                                                                from £0.75
                                                                This part replaces part number 9181602
                                                                # 014
                                                                MPN: 16100824
                                                                LOCKNUT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 16100814 - and 1 more. Click to view details
                                                                # 015
                                                                MPN: 101677
                                                                ROLLER BEARING
                                                                from £2.05
                                                                from £2.05
                                                                # 016
                                                                MPN: 104030
                                                                SELF LOCKING NUT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 16104125
                                                                # 017
                                                                MPN: 104887
                                                                PIVOT
                                                                from £7.50
                                                                from £7.50
                                                                This part replaces part number 9181150
                                                                # 018
                                                                MPN: 10734101
                                                                CAPIGLIA
                                                                from £1.55
                                                                from £1.55
                                                                This part replaces part number C1
                                                                # 019
                                                                MPN: 16043421
                                                                BOLT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 95524
                                                                # 020
                                                                MPN: 106852
                                                                WASHER
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                # 021
                                                                MPN: 101677
                                                                ROLLER BEARING
                                                                from £2.05
                                                                from £2.05
                                                                # 022
                                                                MPN: 10902421
                                                                BOLT
                                                                from £0.47
                                                                from £0.47
                                                                # 023
                                                                MPN: 106850
                                                                WASHER
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 10516473 - and 1 more. Click to view details
                                                                # 024
                                                                MPN: 16043421
                                                                BOLT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 95524
                                                                # 025
                                                                MPN: 106852
                                                                WASHER
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                # 026
                                                                MPN: 11500511
                                                                THREADED STUD
                                                                from £0.49
                                                                from £0.49
                                                                # 027
                                                                MPN: 11501421
                                                                THREADED STUD
                                                                from £0.47
                                                                from £0.47
                                                                # 028
                                                                MPN: 100655
                                                                FORK
                                                                from £56.31
                                                                from £56.31
                                                                This part replaces part number 550015 - and 2 more. Click to view details
                                                                # 029
                                                                MPN: 100656
                                                                PIVOT
                                                                from £1.09
                                                                from £1.09
                                                                # 030
                                                                MPN: 12601271
                                                                WASHER
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 103372 - and 1 more. Click to view details
                                                                # 031
                                                                MPN: 101239
                                                                SELF LOCKING NUT
                                                                from £0.81
                                                                from £0.81
                                                                This part replaces part number 92310
