015 - Exhaust System

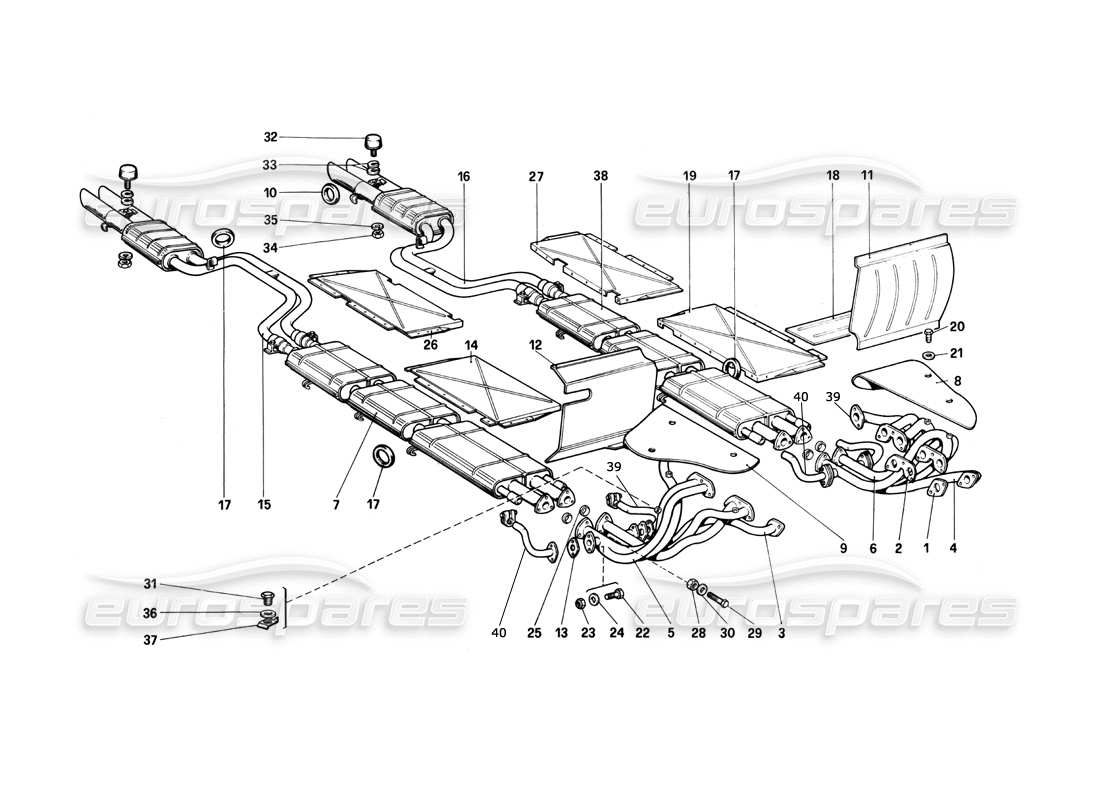

Ferrari 400i (1983 Mechanical) Exhaust System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 147630

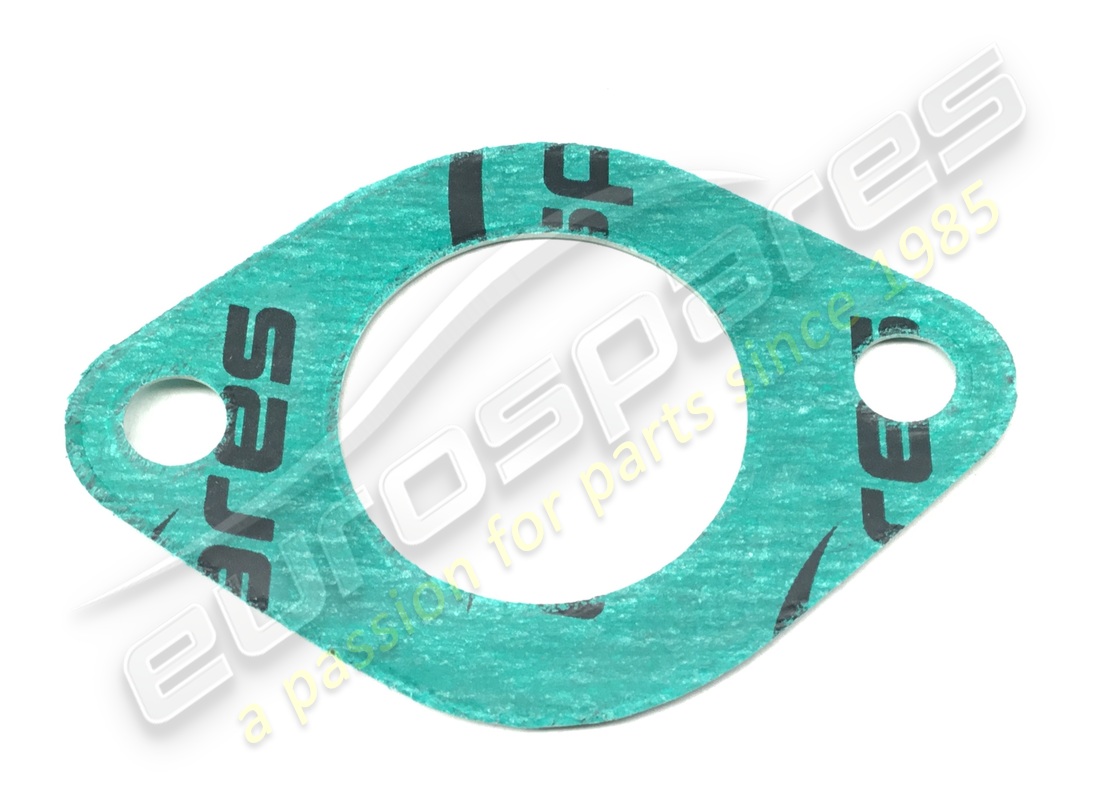

GASKET
(replaces: 102015)
from £2.46
from £2.46
This part replaces part number 10-20-15
# 002
MPN: 147631
GASKET
from £4.20
from £4.20
This part replaces part number 10-20-17
# 003
MPN: 118724
COLLETTORE SCARICO ANTERIORE RH
from £849.00
from £849.00
# 004
MPN: 118725
COLLETTORE SCARICO ANTERIORE SX.
from £849.00
from £849.00
# 005
MPN: 118726
RIGHT REAR EXHAUST MANIFOLD.
from £818.43
from £818.43
# 006
MPN: 118727
COLLETTORE SCARICO POSTERIORE SX.
from £818.43
from £818.43
# 007
MPN: 110894
CENTER RH EXHAUST.
from £1,707.62
from £1,707.62
# 008
MPN: 10-20-02
PARATIA SUPERIORE SX.
from £351.71
from £351.71
This part replaces part number 20472
# 009
MPN: 103571
UPPER RH BULKHEAD.
from £74.98
from £74.98
This part replaces part number 20514 - and 1 more. Click to view details

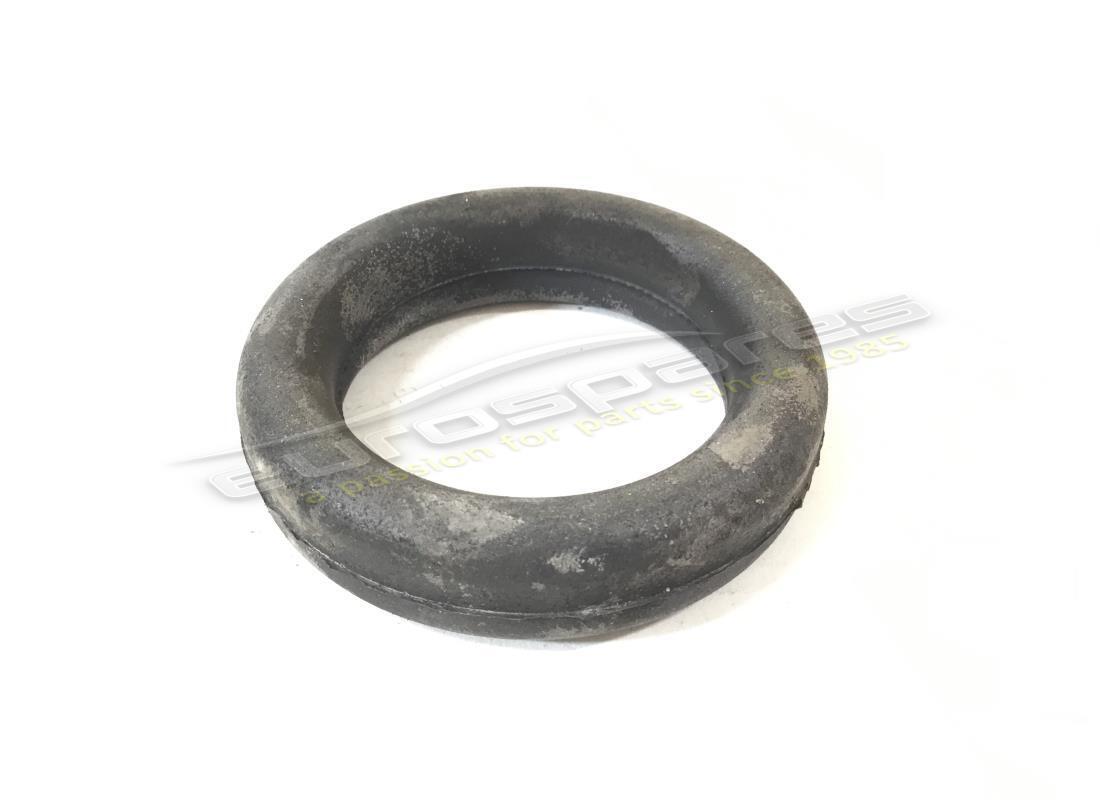

# 010
MPN: 103631
RING
from £9.32
from £9.32
This part replaces part number 20457
# 011
MPN: 10-20-05
PARATIA ANTERIORE SX. SUL PARAFIAMMA
Vale per GD
from £136.67
from £136.67
This part replaces part number 20474
# 011
MPN: 103573
PARATIA ANTERIORE SX. SUL PARAFIAMMA
Non vale per GD
from £77.77
from £77.77
This part replaces part number 20516
# 012
MPN: 105084
RIGHT FRONT BULKHEAD. ON THE FIREPROOF
Non vale per^GD
from £178.65
from £178.65
# 012
MPN: 105090
RIGHT FRONT BULKHEAD ON THE FIREPROOF
Vale per GD
from £148.02
from £148.02
# 013
MPN: 147697/A
GASKET
from £6.12
from £6.12
# 014
MPN: 110604
RIGHT INTERMEDIATE BULKHEAD FOR FLOOR PROTECTION
from £260.30
from £260.30
# 015
MPN: 114271
SILENZIATORE POSTERIORE DX.
from £1,250.54
from £1,250.54
This part replaces part number 110896
# 016
MPN: 114272
SILENZIATORE POSTERIORE SX.
from £1,250.54
from £1,250.54
This part replaces part number 110897

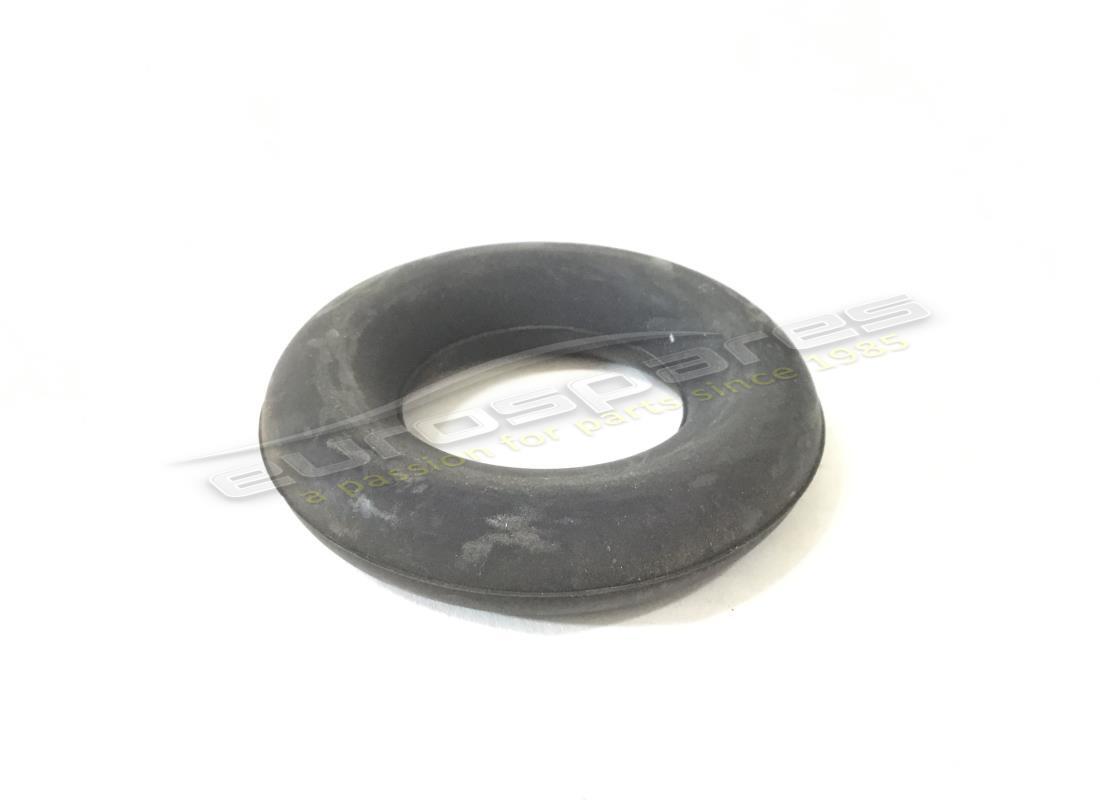

# 017
MPN: 101999
RING
from £4.26
from £4.26
# 018
MPN: 110603
PARATIA INFER LORE LATO PILOTA
Non vale per GD
from £70.44
from £70.44
# 018
MPN: 110608
PILOT SIDE LOWER BULKHEAD
Vale per GD
from £54.12
from £54.12
# 019
MPN: 110605
PARATIA INTERMEDIA SX. PROTEZIONE PAVIMENTI
from £260.30
from £260.30
# 020
MPN: 10902121
BOLT
from £0.71
from £0.71
This part replaces part number 20146601
# 021
MPN: 11197773
WASHER
Supersession
Supersession
# 022
MPN: 102026
BOLT
from £27.42
from £27.42
This part replaces part number 92885
# 023
MPN: 10720240
NUT
7Mm Brass=10720240
from £7.99
from £7.99
# 024
MPN: 106851
WASHER
Supersession
Supersession
This part replaces part number 10516571

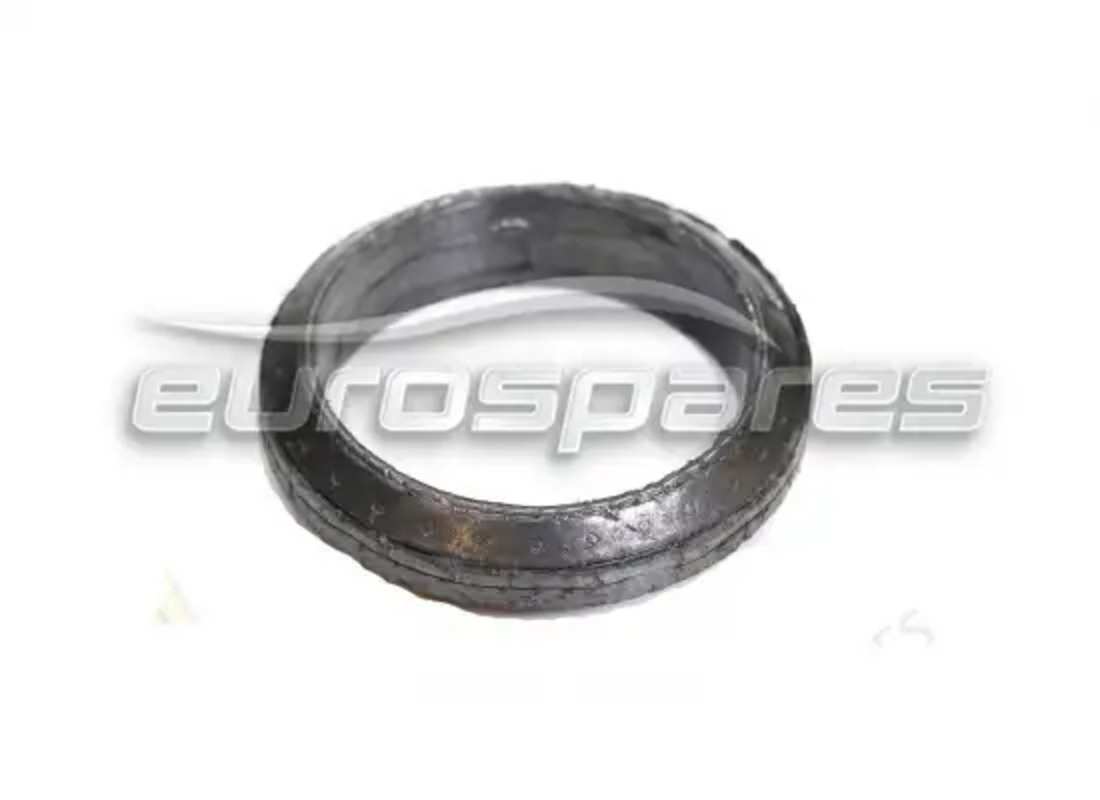

# 025
MPN: 146698
GASKET
Alternative use :154984
from £7.77
from £7.77
This part replaces part number 103377 - and 1 more. Click to view details
# 026
MPN: 110606
RIGHT REAR BULKHEAD.
from £219.81
from £219.81
# 027
MPN: 110607
PARATIA POSTERIORE SX.
from £219.81
from £219.81
# 028
MPN: 114748
NUT
from £7.78
from £7.78
# 029
MPN: 16044021
BOLT
from £0.47
from £0.47
This part replaces part number 119631 which we have in stock
# 030
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 031
MPN: 110860
CAP FOR BUSHING ON THE MANIFOLDS
from £9.32
from £9.32
This part replaces part number 11903240
# 032
MPN: 105863
TAMPONE ANTIVIBRANTE PER MARMITTE
from £23.97
from £23.97
# 033
MPN: 105864
WASHER
from £0.88
from £0.88
This part replaces part number 95404
# 034
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 035
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 036
MPN: 10298460
GASKET OR SEAL
from £0.47
from £0.47
This part replaces part number 93353
# 037
MPN: 14198901
PIASTINA DI SICUREZZA
from £4.72
from £4.72
# 038
MPN: 110895
MARMITTA CENTRALE SINISTRA
from £1,707.62
from £1,707.62
# 039
MPN: MC2356/1
LH BALANCE PIPE
from £22.41
from £22.41
# 040
MPN: MC2356/2
RH BALANCE PIPE
from £22.41
from £22.41
