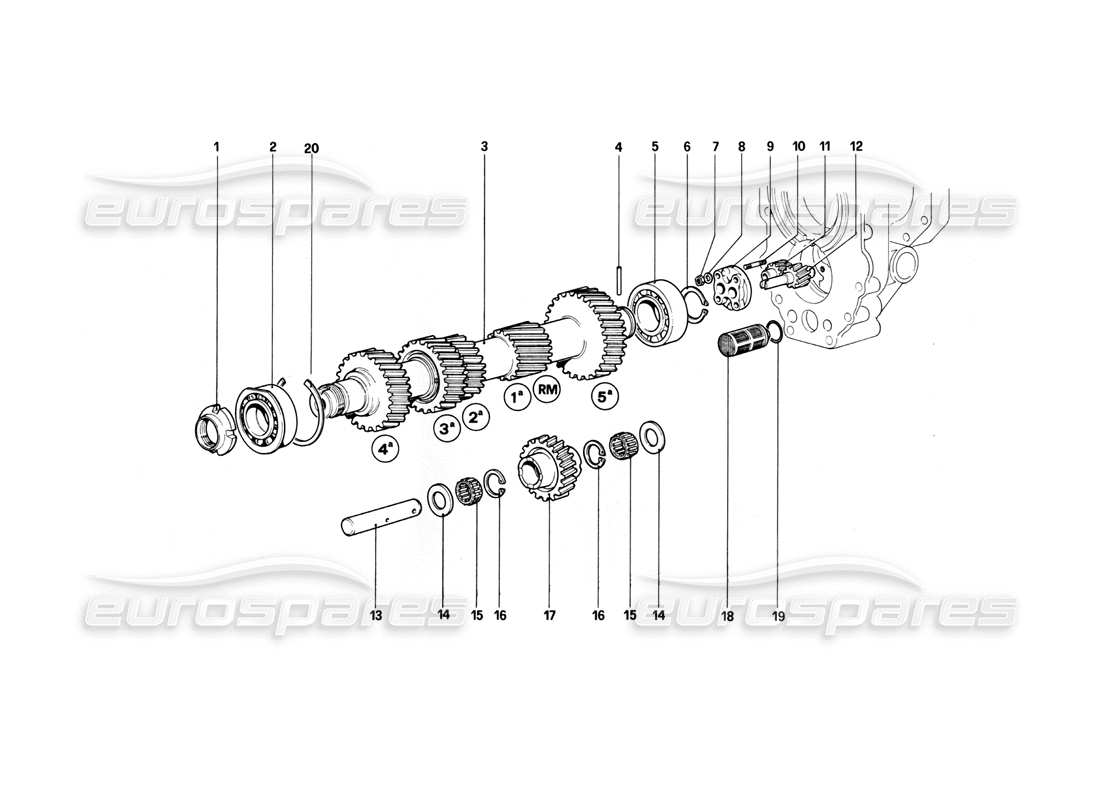

027 - Main Shaft and Oil Pump (400 GT)
Ferrari 400i (1983 Mechanical) Main Shaft and Oil Pump (400 GT) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 153068
RING NUT
from £70.35
from £70.35
This part replaces part number 100729 - and 1 more. Click to view details
# 002
MPN: 119270
FRONT MAIN SHAFT BEARING
Dopo esaurimento n. 100708
from £218.09
from £218.09
This part replaces part number 100708 - and 1 more. Click to view details
# 003
MPN: 119840
ALBERO PRIMARIO
Supersession
Supersession
# 004
MPN: 13907770
PIN
from £0.54
from £0.54
# 005
MPN: 110988
REAR MAIN SHAFT BEARING
In alternativa con n. 101605
Supersession
Supersession
# 006
MPN: 11068375
SEEGER RING
from £0.49
from £0.49
# 007
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 008
MPN: 12601171
WASHER
from £0.47
from £0.47
# 009
MPN: 109656
COVER
from £83.48
from £83.48
# 010
MPN: 11001220
THREADED STUD
from £2.31
from £2.31
# 011
MPN: 109653
DRIVEN GEAR
from £167.94
from £167.94
# 012
MPN: 109652
DRIVING GEAR
from £255.20
from £255.20
# 013
MPN: 100691
PIVOT
from £108.37
from £108.37
This part replaces part number 523588
# 014
MPN: 100703
SPACER
from £14.24
from £14.24
This part replaces part number 523589
# 015
MPN: 101606

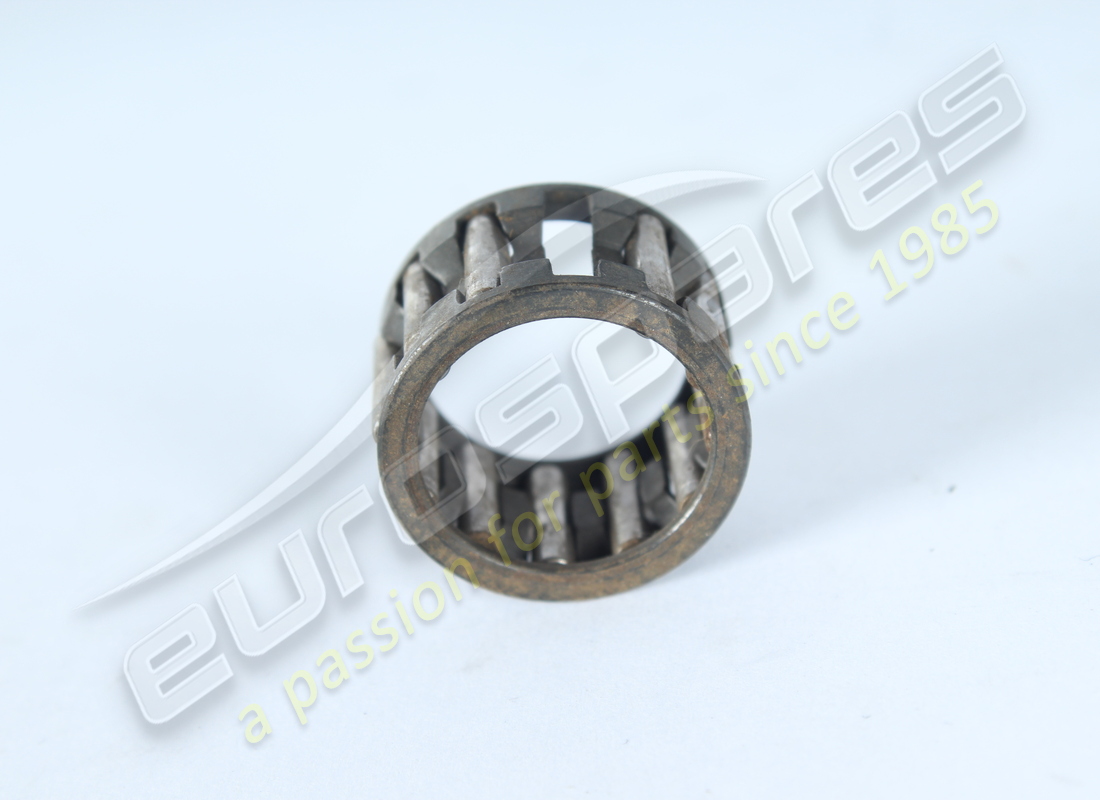

PM GEAR ROLLER CAGE
from £6.27
from £6.27
# 016
MPN: 102681
SEEGER RING
from £0.91
from £0.91
# 017
MPN: 119839
INGRANAGGIO FOLLE R.M.
from £518.62
from £518.62
# 018
MPN: 109655
OIL PUMP FILTER
from £33.58
from £33.58
# 019
MPN: 101034
SEAL
from £1.00
from £1.00
# 020
MPN: 119272
WASHER
With bearing no. 119270
from £24.88
from £24.88
