030 - propeller shaft

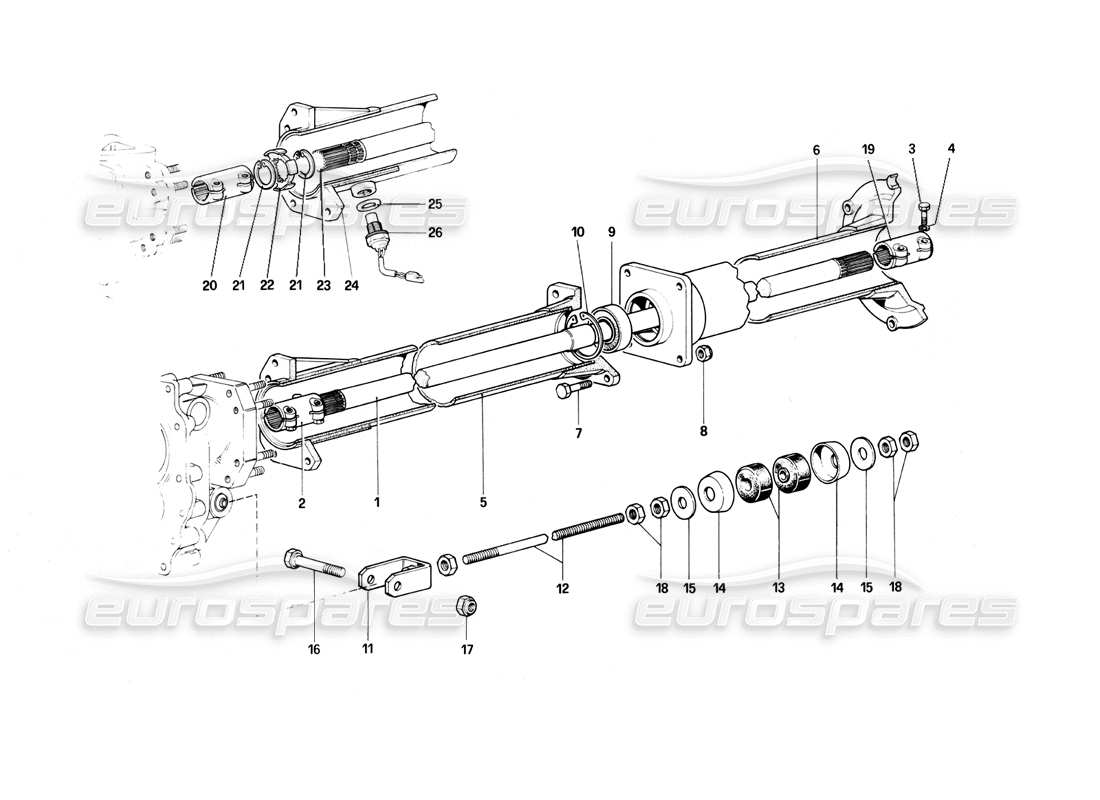

Ferrari 400i (1983 Mechanical) Propeller Shaft Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 109269
ALBERO DI TRASMISSIONE
Vale per 400 GT
from £1,309.68
from £1,309.68
# 002
MPN: 105283
SLEEVE
Vale per 400 GT
from £232.24
from £232.24
# 003
MPN: 102294
BOLT
from £2.50
from £2.50
This part replaces part number 8x35 UNI 1184
# 004
MPN: 10516677
WASHER
Supersession
Supersession
# 005
MPN: 109270
FRONT GEARBOX PIPE
Vale per 400 GT
from £572.27
from £572.27
# 006
MPN: 105287
REAR TRANSMISSION PIPE BRIDGE
from £814.13
from £814.13
# 007
MPN: 101264
BOLT
from £16.92
from £16.92
This part replaces part number 95393
# 008
MPN: 148020
NUT
from £2.21
from £2.21
This part replaces part number 102825 - and 3 more. Click to view details
# 009
MPN: 104990
BEARING
from £58.56
from £58.56
# 010
MPN: 11061076
SEEGER RING
from £0.54
from £0.54
This part replaces part number 11061075 - and 1 more. Click to view details
# 011
MPN: 109950
FORK
from £58.28
from £58.28
This part replaces part number 100731
# 012
MPN: 109952
TIE ROD
Vale per 400 GT
from £63.90
from £63.90
# 012
MPN: 109958
TIE ROD
Vale per 400 automatic
from £50.55
from £50.55

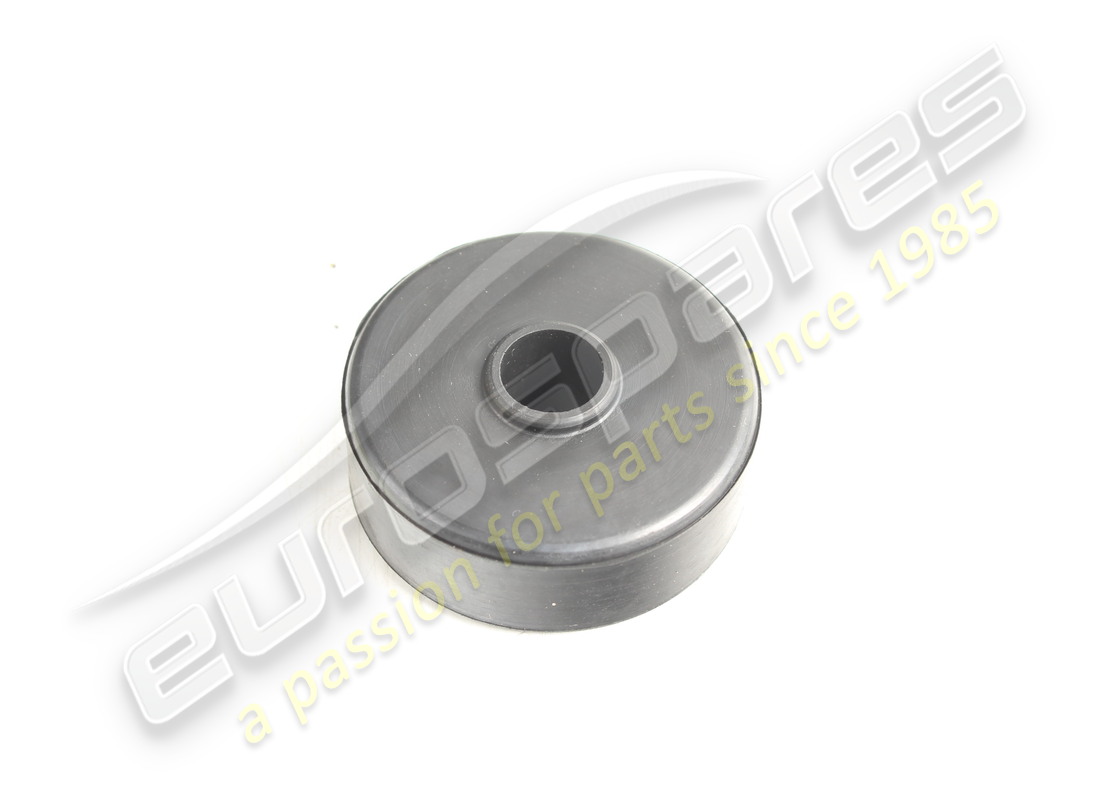

# 013
MPN: 100734
TAMPONE
from £39.97
from £39.97
This part replaces part number 520641
# 014
MPN: 100735
SCODELLINO PER TAMPONE
Supersession
Supersession
This part replaces part number 520938 - and 1 more. Click to view details
# 015
MPN: 101622
WASHER
from £1.05
from £1.05
This part replaces part number 95555
# 016
MPN: 15541231
BOLT
from £2.42
from £2.42
# 017
MPN: 148020
NUT
from £2.21
from £2.21
This part replaces part number 102825 - and 3 more. Click to view details
# 018
MPN: 16101521
NUT
from £0.57
from £0.57
This part replaces part number 16101520
# 019
MPN: 105283
SLEEVE
from £232.24
from £232.24
# 020
MPN: 111218
CLAMP
Vale per 400 automatic
from £0.56
from £0.56
# 021
MPN: 13398776
SEEGER RING
Vale per 400 automatic
from £0.47
from £0.47
# 022
MPN: 119229
TRANSMITTER DISC
Vale per 400 automatic
from £126.12
from £126.12
# 023
MPN: 119228
ALBERO DI TRASMISSIONE
Vale per 400 automatic
from £639.28
from £639.28
# 024
MPN: 119230
FRONT GEARBOX PIPE
Vale per 400 automatic
from £406.56
from £406.56
# 025
MPN: 10263460
GASKET
Vale per 400 automatic
from £0.47
from £0.47
This part replaces part number 95119
# 026
MPN: 116987
CAPTATORE D'IMPULSI
Vale per 400 automatic
from £95.62
from £95.62
This part replaces part number 113962 - and 2 more. Click to view details
