037 - Brake Booster Vacuum Pump

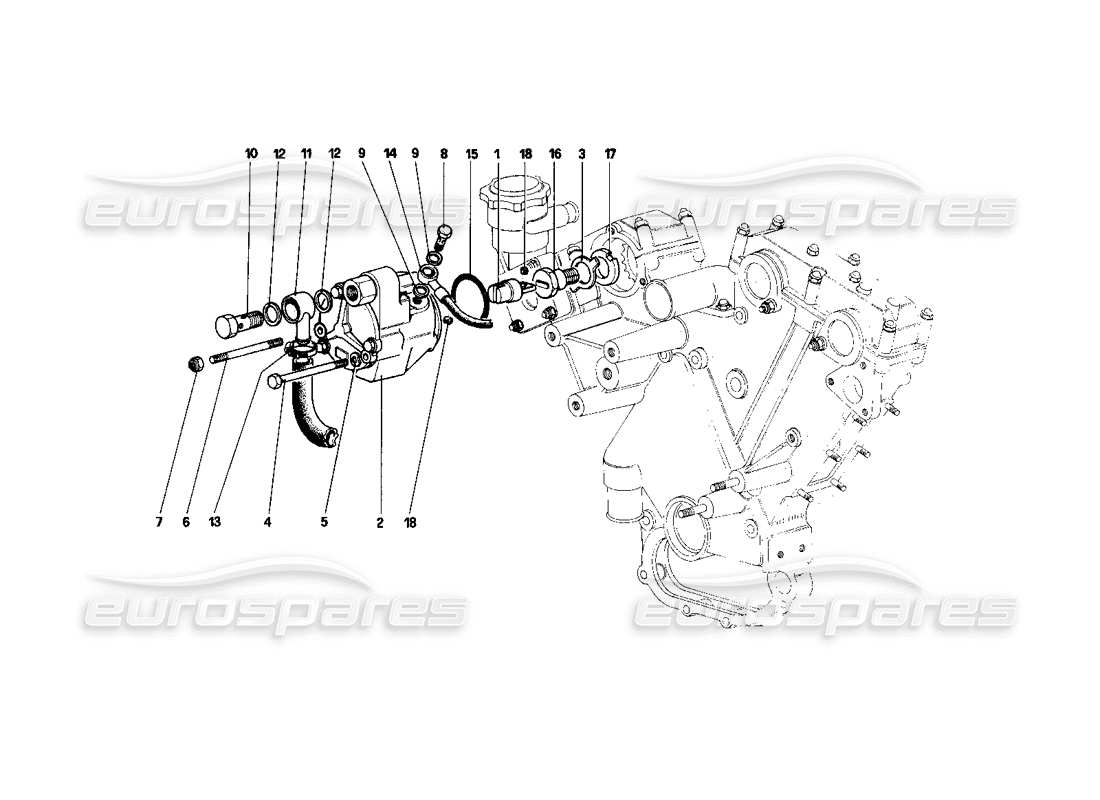

Ferrari 400i (1983 Mechanical) Brake Booster Vacuum Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 115728
DRAG BODY
from £123.55
from £123.55
# 002
MPN: 170759
DEPRESSORE ARIA
Supersession
Supersession
# 003
MPN: 100205

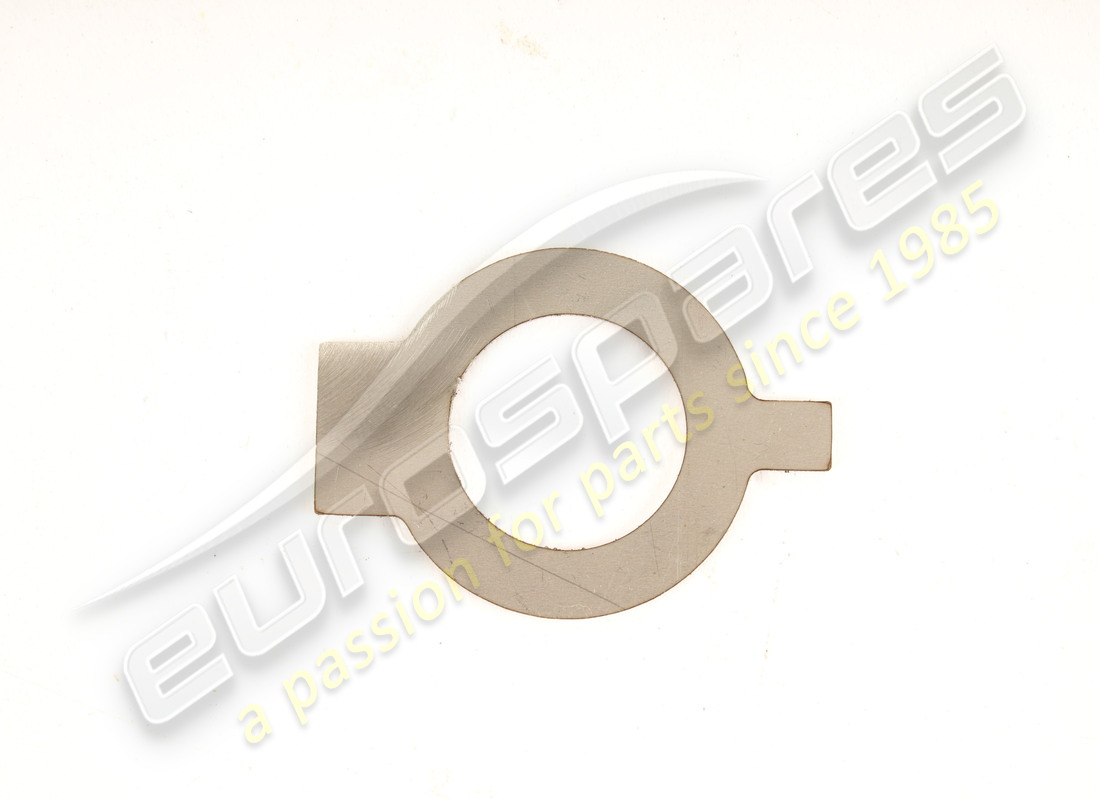

PLATE
from £3.62
from £3.62
# 004
MPN: 100495
BOLT
from £5.31
from £5.31
This part replaces part number 95407
# 005
MPN: 11197773
WASHER
Supersession
Supersession
# 006
MPN: 100496
STUD
from £2.55
from £2.55
# 007
MPN: 15896221
NUT
from £0.71
from £0.71
This part replaces part number 15896225
# 008
MPN: 11903817
UNION
from £11.05
from £11.05
# 009
MPN: 10260160
GASKET
from £0.47
from £0.47
This part replaces part number 10260170
# 010
MPN: 100498
UNION
from £10.56
from £10.56
This part replaces part number 95456
# 011
MPN: 100499
UNION
Non vale per 400 automatic
from £25.09
from £25.09
This part replaces part number 95457
# 012
MPN: 10257460
GASKET
from £0.47
from £0.47
This part replaces part number 94702
# 013
MPN: 13000490
JUBILEE CLIP
from £0.47
from £0.47
This part replaces part number 10169090 - and 3 more. Click to view details
# 014
MPN: 110459
PIPE CONNECTING DEPRESSOR TO OIL FILTER BASE
from £210.66
from £210.66
# 015
MPN: 101025
SEALING RING
from £3.89
from £3.89
# 016
MPN: 100206
BOLT
from £24.05
from £24.05
# 017
MPN: 106612
WASHER
from £36.24
from £36.24
# 018
MPN: 116420
RUBBER PLUG
from £5.80
from £5.80
