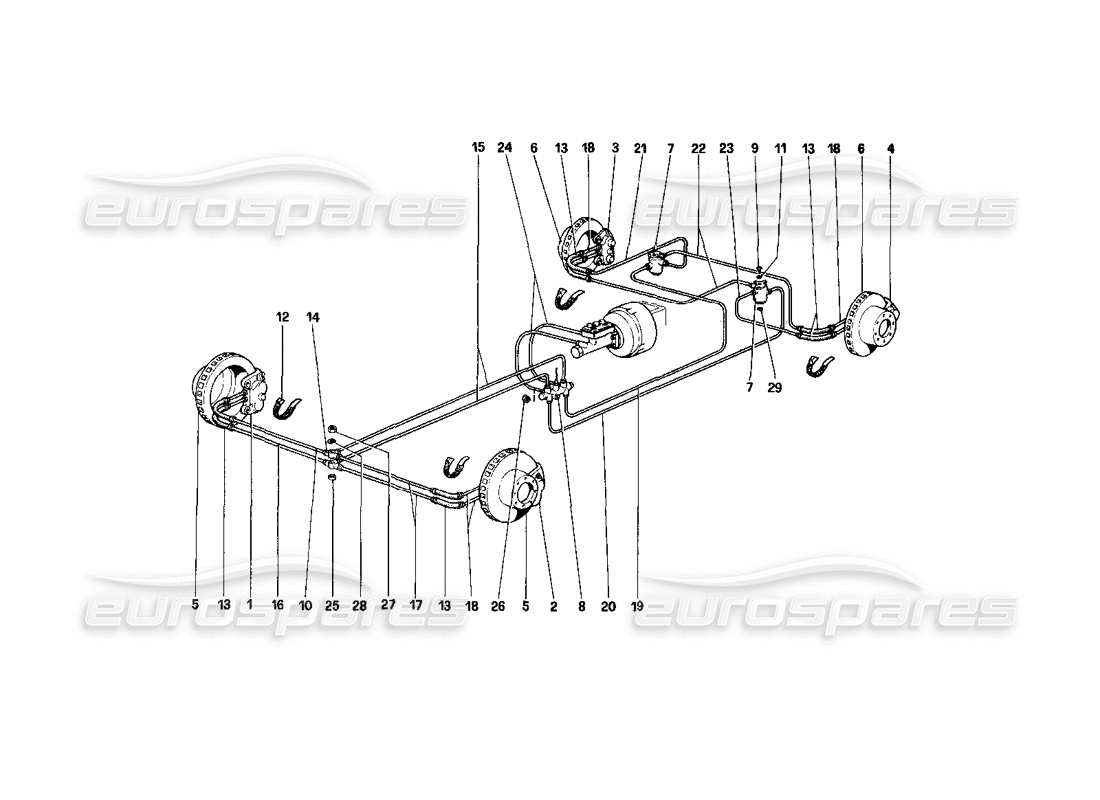

Ferrari 400i (1983 Mechanical) Brakes System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 108074
RHS REAR CALIPER
This part replaces part number 105106
# 000
MPN: 108075
LHS REAR CALIPER
This part replaces part number 105107
# 000
MPN: 120831
LHS FRONT CALIPER
from £1,037.51
from £1,037.51
This part replaces part number 109893
# 001
MPN: 120830
RHS FRONT CALIPER
from £739.92
from £739.92
This part replaces part number 109892
# 005
MPN: 110585
DISCO FRENO ANTERIORE
from £865.86
from £865.86
# 006
MPN: 110586
REAR BRAKE DISC
(price each disc)
from £565.51
from £565.51
# 007
MPN: 110833

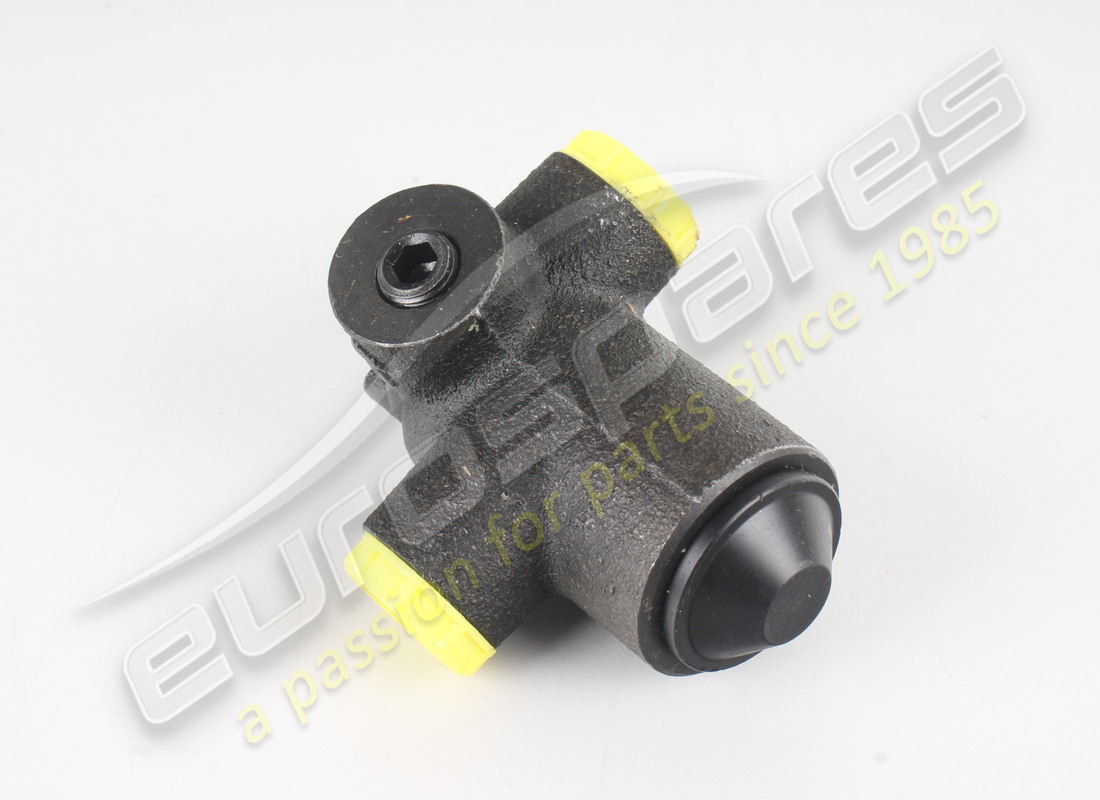

BRAKING LIMIT VALVE
from £410.02
from £410.02
# 008
MPN: 101415
PRESSURE DIFFERENCE SIGNAL VALVE
from £505.60
from £505.60
This part replaces part number 680979
# 009
MPN: 16043021
BOLT
from £0.47
from £0.47
# 010
MPN: 105278
HOSE FROM THE FRONT RIGHT HOSE TO THE FRONT 3 UPPER CIRCUIT
from £15.59
from £15.59
# 011
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 012
MPN: 103755
FIXING CLAMP Tubi HOSES
from £0.47
from £0.47
This part replaces part number 680994
# 013
MPN: 101393

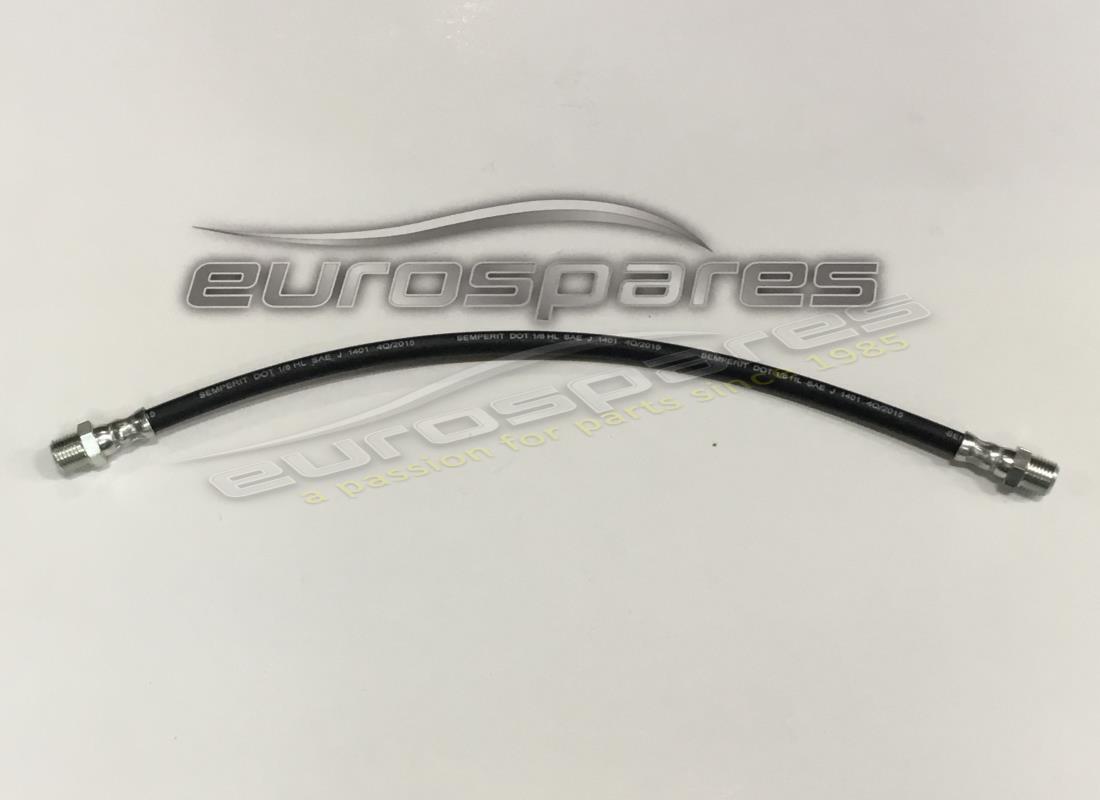

FRONT BRAKE HOSES
from £27.12
from £27.12
This part replaces part number 680666
# 014
MPN: 101394
UNION 3-WAY
from £26.78
from £26.78
This part replaces part number 680980 - and 7 more. Click to view details
# 015
MPN: 101397
HOSE FROM THE SIGNAL VALVE TO 3 FRONT WAY LOWER AND UPPER CIRCUIT
from £16.08
from £16.08
This part replaces part number 680841
# 016
MPN: 104469
HOSE FROM THE RIGHT FRONT HOSE TO THE LOWER CIRCUIT 3 WAY
from £11.10
from £11.10
# 017
MPN: 105851
HOSE WITH FRONT FLEXIBLE. LEFT TO 3 LOWER AND UPPER CIRCUIT WAY
from £9.63
from £9.63
# 018
MPN: 101401
TUBE FROM THE FRONT CALIPERS AND POST, AF FLEXIBLE LOWER AND UPPER CIRCUIT
Supersession
Supersession
This part replaces part number 680675
# 019
MPN: 101408

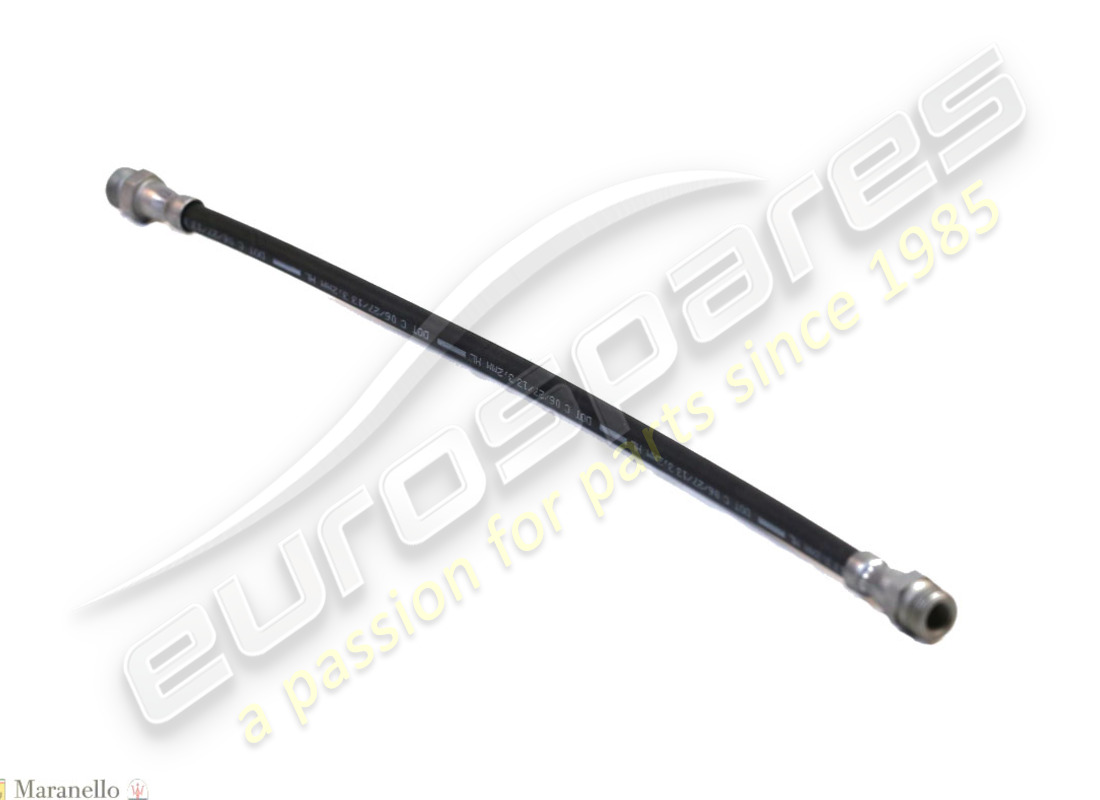

HOSE FROM THE PRESSURE SIGNAL VALVE TO THE REAR VALVE
Non vale per GD
This part replaces part number 680844
# 019
MPN: 104472
HOSE FROM THE PRESSURE SIGNAL VALVE TO THE REAR VALVE
Vale per GD
# 020
MPN: 101405
HOSE FROM THE PRESSURE SIGNAL VALVE TO THE REAR VALVE
Non vale per. GD
from £22.98
from £22.98
This part replaces part number 680843
# 020
MPN: 106182
HOSE FROM THE PRESSURE SIGNAL VALVE TO THE REAR VALVE
Vale per GD
from £25.96
from £25.96
# 021
MPN: 101406
HOSE FROM THE VALVE TO THE UPPER CIRCUIT RIGHT FLEXIBLE
from £5.15
from £5.15
This part replaces part number 680674
# 022
MPN: 101407
HOSE FROM THE VALVES TO THE RIGHT CALIPER OF THE LOWER CIRCUIT AND TO THE LEFT CALIPER OF THE UPPER CIRCUIT.
from £26.03
from £26.03
This part replaces part number 680683
# 023
MPN: 107366
HOSE FROM VALVE TO LEFT REAR HOSE LOWER CIRCUIT
from £8.75
from £8.75
This part replaces part number 101409 - and 2 more. Click to view details
# 024
MPN: 101395
HOSE FROM BRAKE SERVO TO LOWER CIRCUIT PRESSURE SIGNAL VALVE
Supersession
Supersession
This part replaces part number 680839
# 025
MPN: 104339
SPACER FOR 3 WAY CONNECTION
from £2.96
from £2.96
# 026
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 027
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 028
MPN: 10516471
WASHER
Supersession
Supersession
# 029
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
