049 - Rear Suspension - Brake Disc

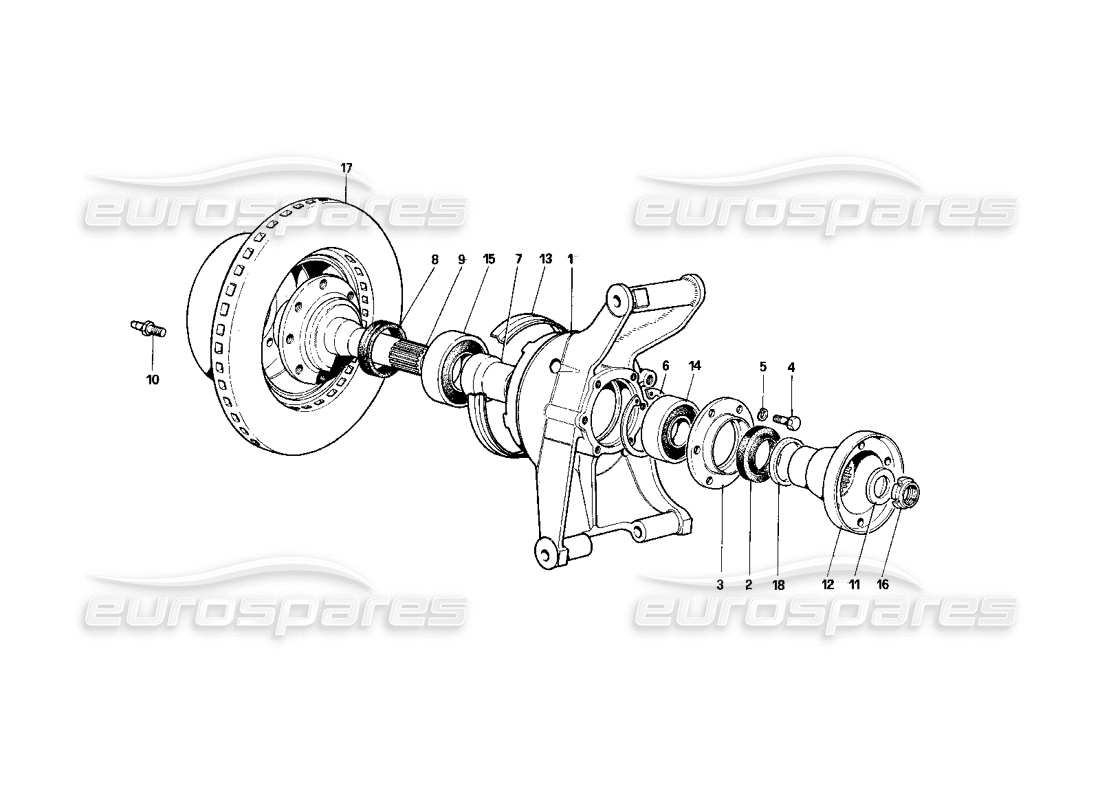

Ferrari 400i (1983 Mechanical) Rear Suspension - Brake Disc Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 111613
PORTAMOZZO SX.
from £812.98
from £812.98
# 001
MPN: 111614
PORTAMOZZO DX.
from £812.98
from £812.98
# 002
MPN: 115968/A
SEALING RING
from £32.12
from £32.12

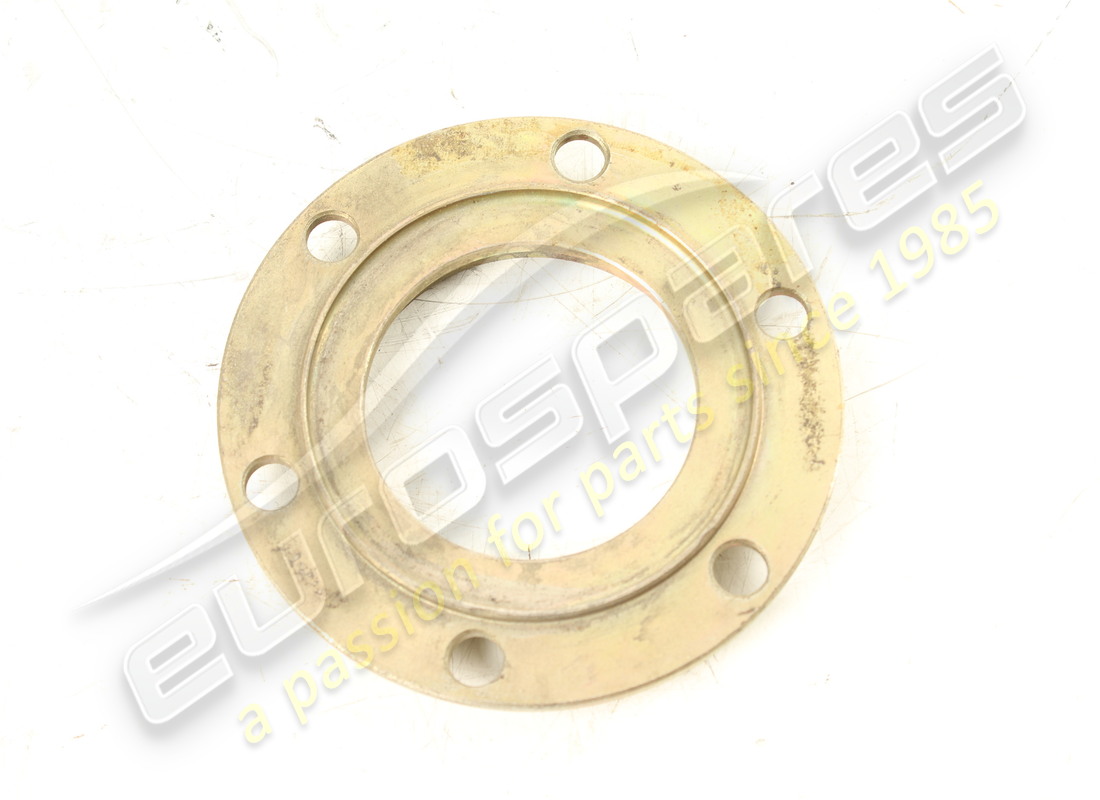

# 003
MPN: 119374
FLANGIA TENUTA CUSCINETTO
from £87.93
from £87.93
# 004
MPN: 16043521
SCREW
Supersession
Supersession
# 005
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 - and 2 more. Click to view details
# 006
MPN: 11061575
SEEGER RING
Supersession
Supersession
# 007
MPN: 110578
DISTANZIALE FRA I CUSCINETTI
from £439.33
from £439.33
# 008
MPN: 110579
RING
from £6.13
from £6.13
# 009
MPN: 110576
WHEEL HUB
from £754.02
from £754.02
# 010
MPN: 104370
SCREW
from £5.12
from £5.12
This part replaces part number 139981
# 011
MPN: 105511
RONDEILA TENUTA FLANGIA SEMIASSE
from £33.71
from £33.71
This part replaces part number 700753
# 012
MPN: 119372
FLANGE FOR HALF SHAFT ON THE WHEEL HUB
from £341.84
from £341.84
# 013
MPN: 101546
COPERCHIETTO PARA ACQUA
from £17.33
from £17.33
This part replaces part number 601519

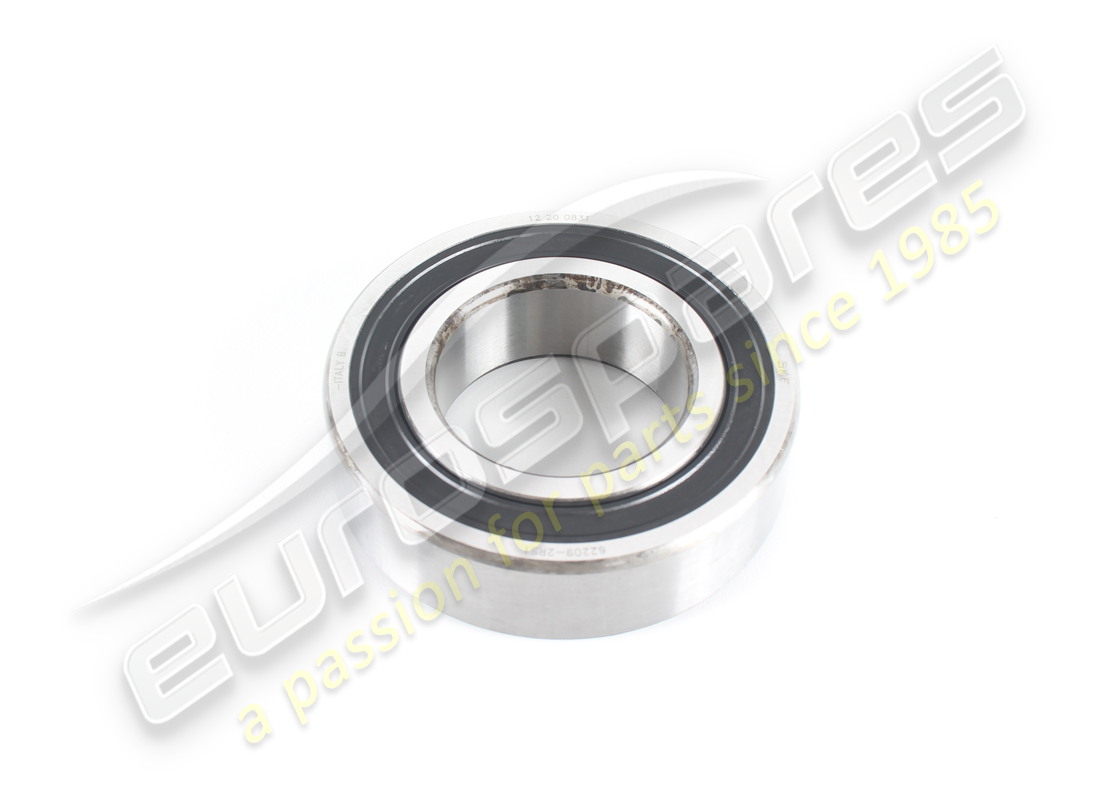

# 014
MPN: 101220
CUSCINETTO INTERNO
Supersession
Supersession
# 015
MPN: 110577
CUSCINETTO ESTERNO
from £36.05
from £36.05
# 016
MPN: 102289
RING NUT
from £45.52
from £45.52
This part replaces part number 700648
# 017
MPN: 110586
REAR BRAKE DISC
(price each disc)
from £565.51
from £565.51
# 018
MPN: 112475
SPACER
Di eventuale montaggio
from £42.98
from £42.98
