103 - Cooling Electric Fans - Heating - Windscreen Washer and Safety Belts

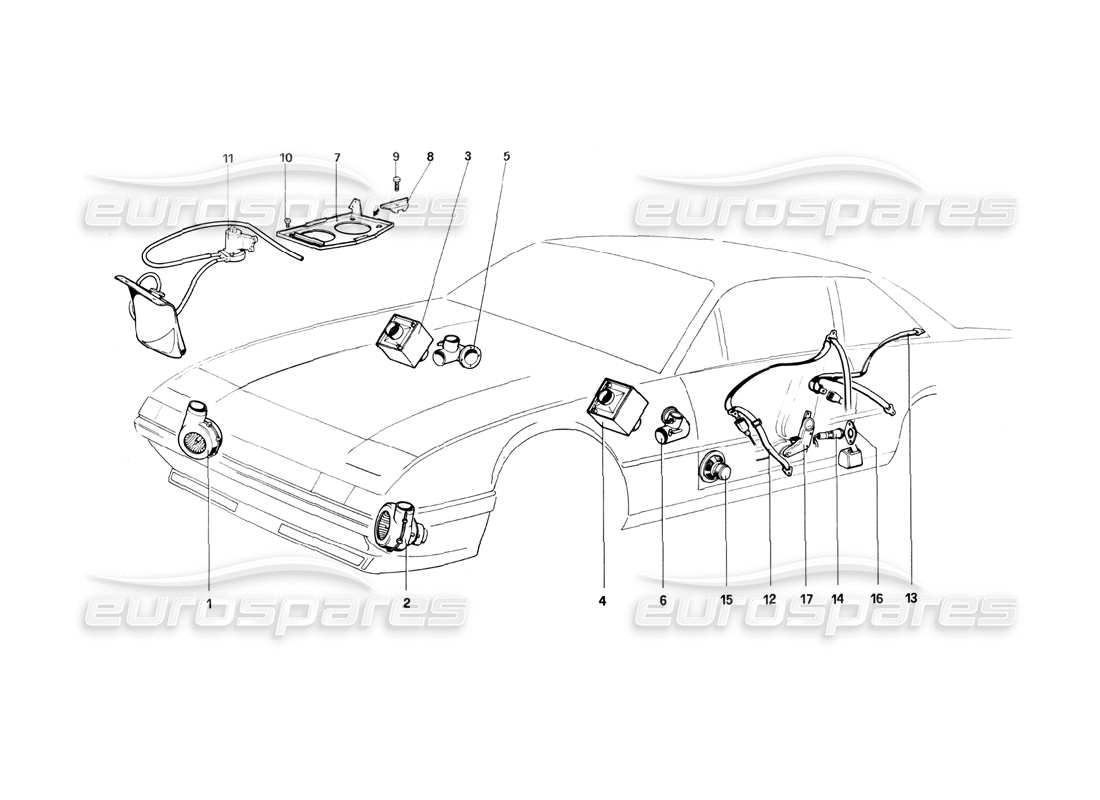

Ferrari 400i (1983 Mechanical) Cooling Electric Fans - Heating - Windscreen Washer and Safety Belts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 119727

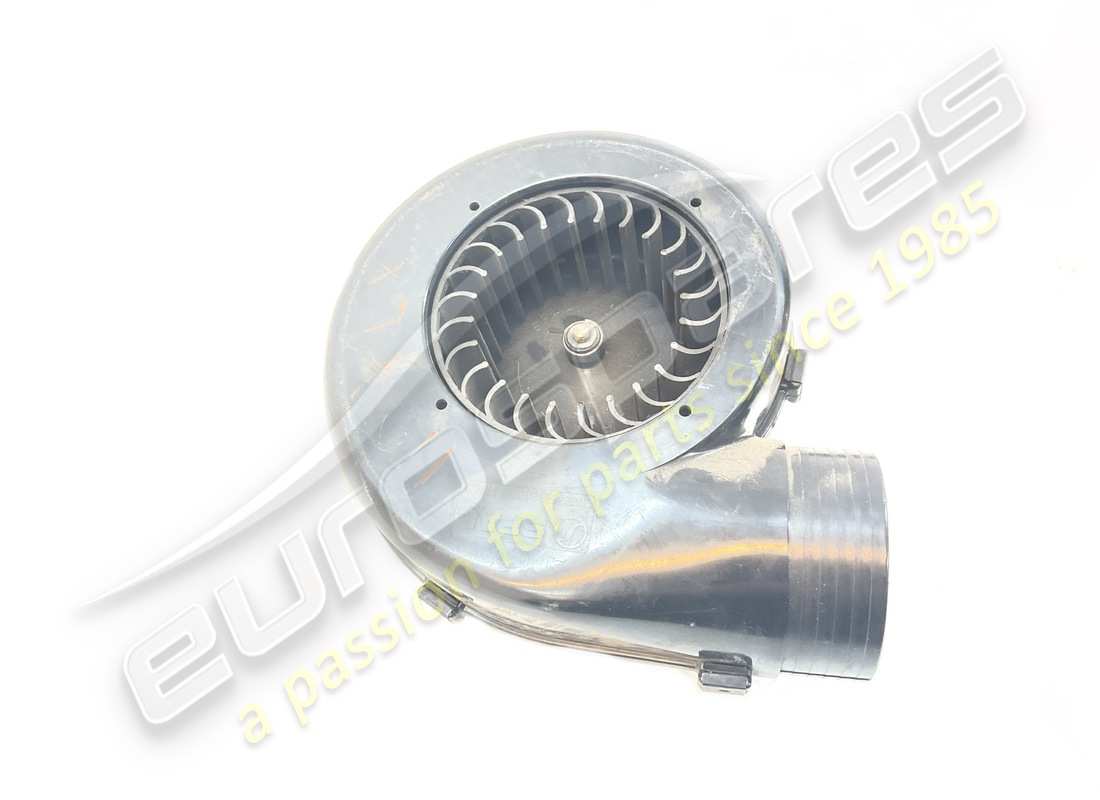

ELETTROVENTILATORE DX.
from £168.29
from £168.29
# 002
MPN: 119726
ELETTROVENTILATORE SX.
from £168.29
from £168.29
# 003
MPN: 102184
RISCALDATORE DX.
Supersession
Supersession
# 004
MPN: 100868
RISCALDATORE SX.
from £210.00
from £210.00
# 005
MPN: 103873
DIVERTER
from £294.71
from £294.71
This part replaces part number 100883
# 006
MPN: 103872
DIVERTER
from £288.13
from £288.13
This part replaces part number 100882
# 007
MPN: 105684
PIASTRA SUPPORTO BATTERIA GS
from £170.60
from £170.60
This part replaces part number 100837
# 007
MPN: 105685
PIASTRA SUPPORTO BATTERIA GD
# 008
MPN: 62573400
BRACKET / SUPPORT
from £22.50
from £22.50
# 009
MPN: 13826021
BOLT
from £1.44
from £1.44
# 010
MPN: 13301201
SCREW
# 011
MPN: 60375706
WASHER BOTTLE
Supersession
Supersession
# 012
MPN: 116897
CINTURE DI SICUREZZA ANTERIOR!
from £294.25
from £294.25
This part replaces part number 112133 - and 1 more. Click to view details
# 013
MPN: 117815
CINTURE DI SICUREZZA POSTERIORI
This part replaces part number 110846
# 014
MPN: 60291200

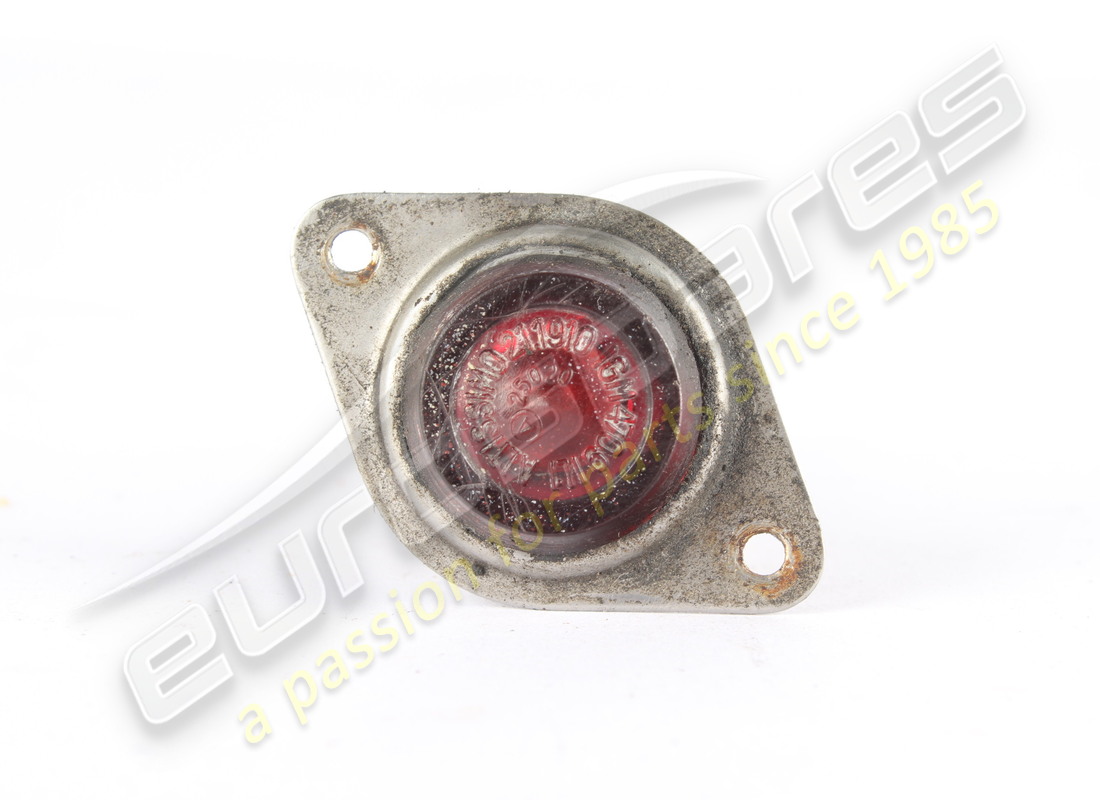

DOOR LAMP
Altissimo
from £39.24
from £39.24
This part replaces part number 102248 - and 19 more. Click to view details
# 014
MPN: 60291200/A

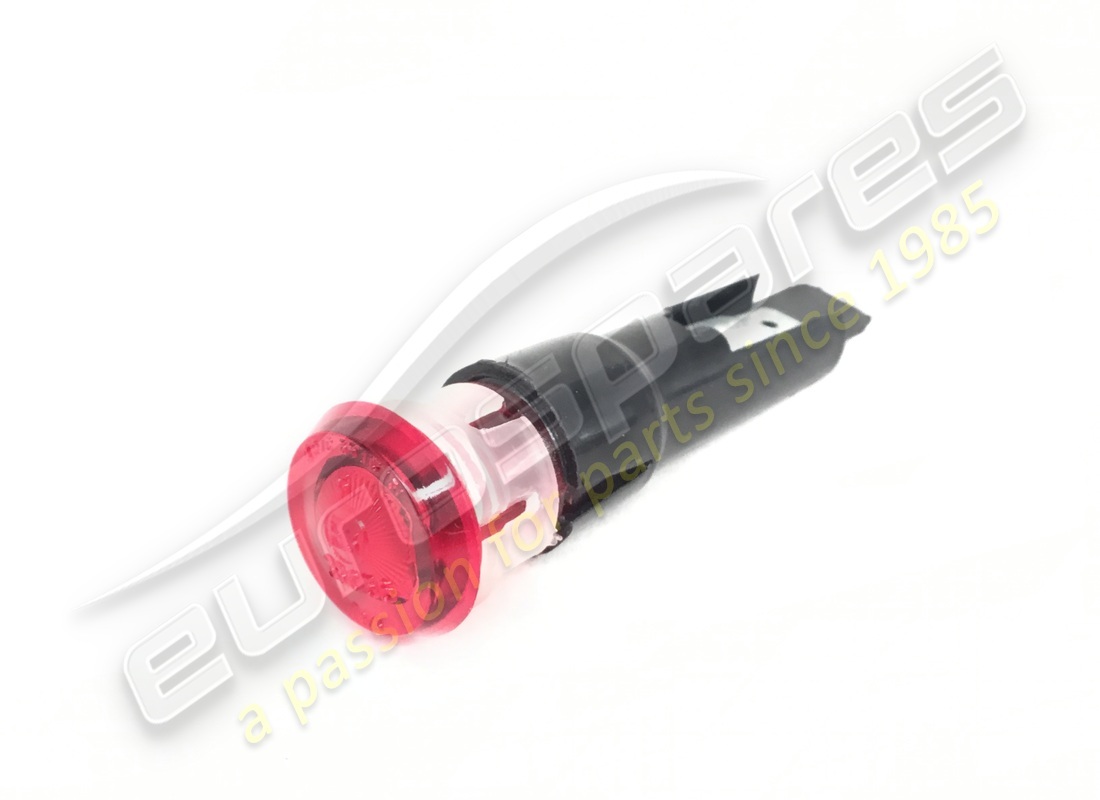

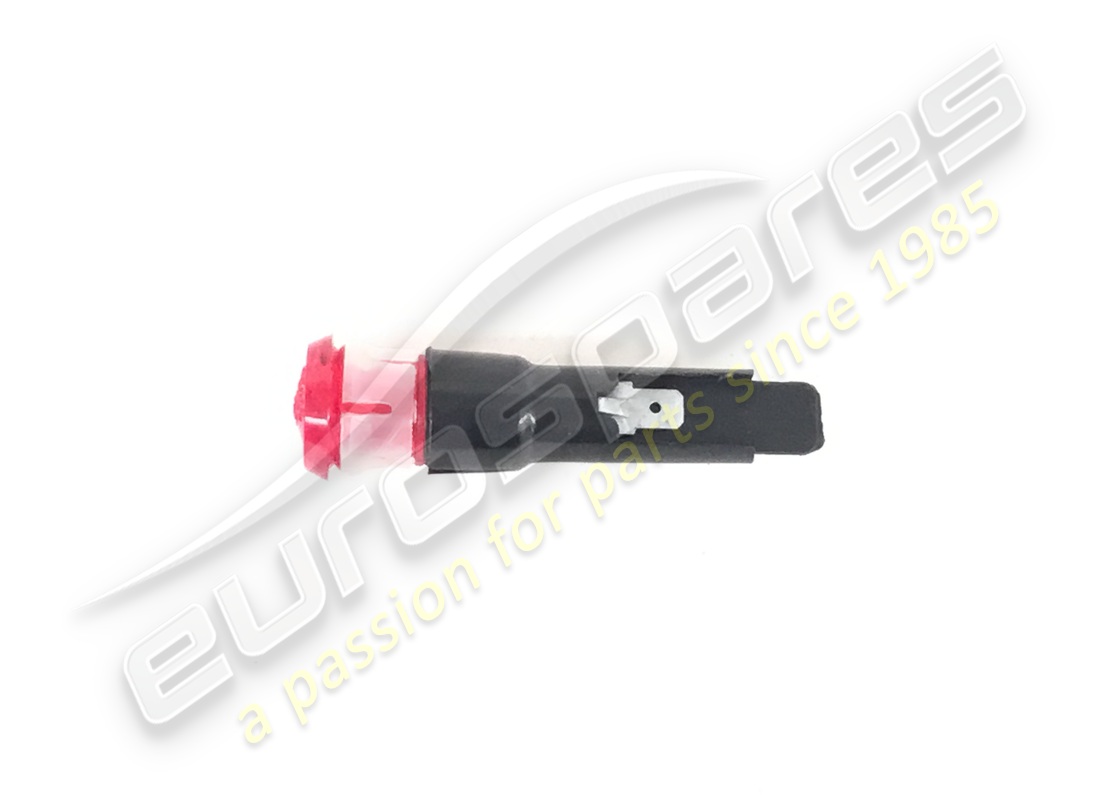

DOOR COURTESY LAMP
RED WITH BASEPLATE
from £49.99
from £49.99
# 015
MPN: 60870900
ALTOPARLANTE
# 016
MPN: 102249
DOOR LIGHT FRAME
from £1.00
from £1.00
This part replaces part number 95408973
# 017
MPN: 110817
RIGHT SEAT ADJUSTER.
# 017
MPN: 110818
REGOLATORE SEDILE SX.
from £308.70
from £308.70
