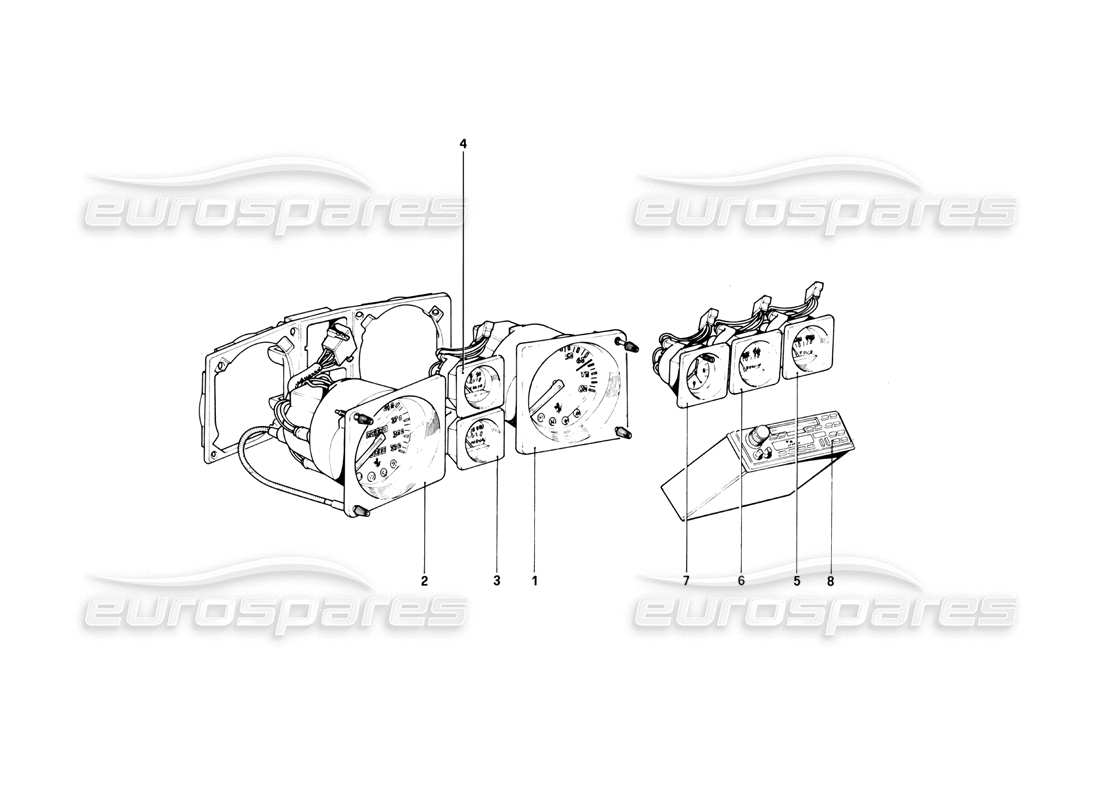

Ferrari 400i (1983 Mechanical) Instruments Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 119633

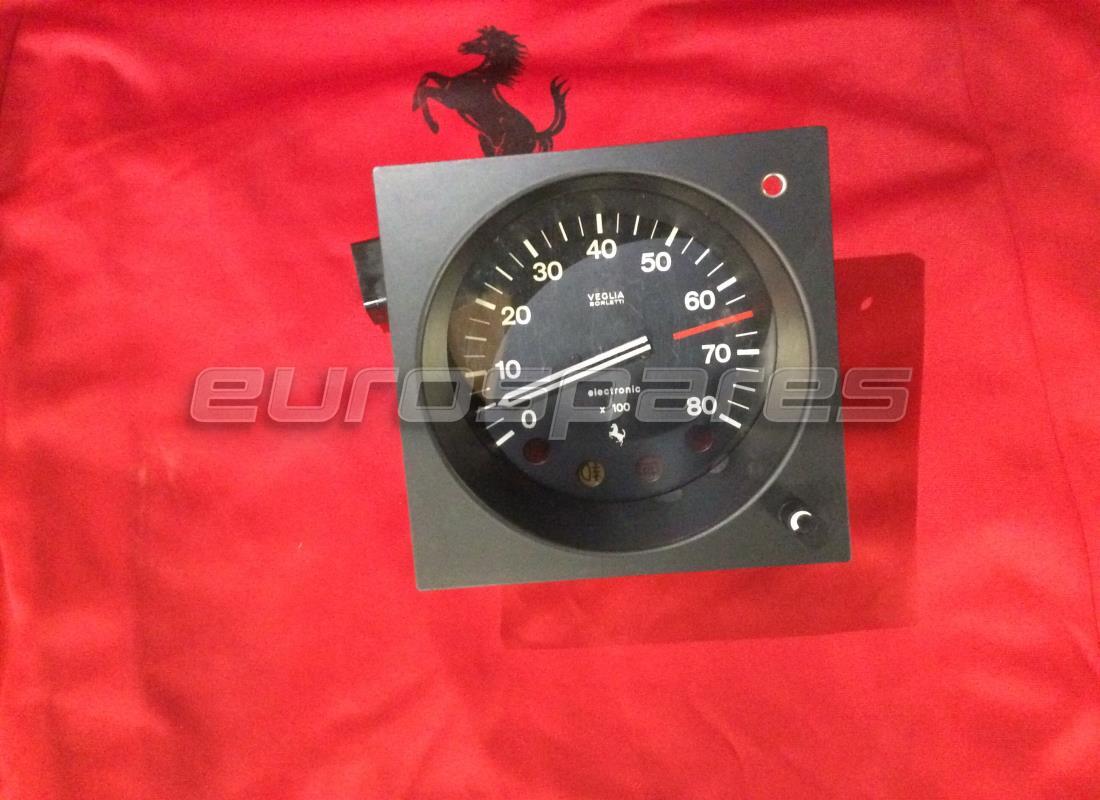

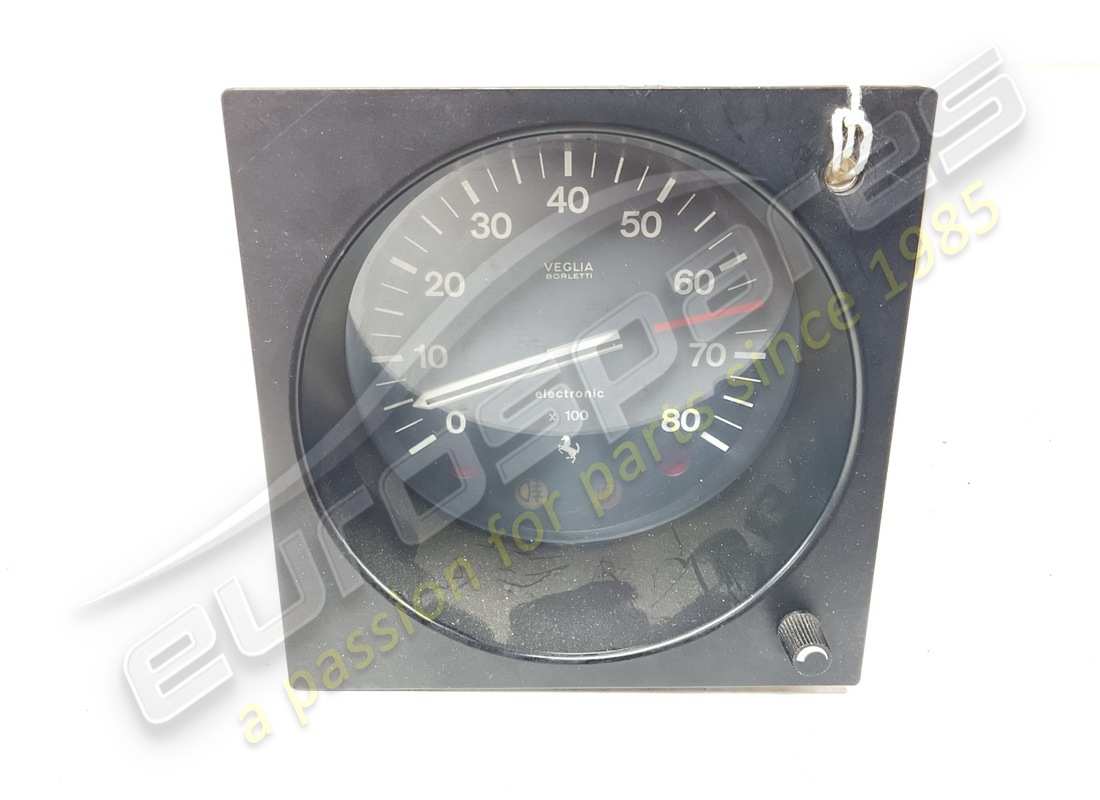

CONTAGIRI
Vale per GS - NZ e ZA
from £183.52
from £183.52
This part replaces part number 257-80-304-00 - and 1 more. Click to view details
# 002
MPN: 119217
CONTACHILOMETRI - 400 GT
Vale per GB
from £277.76
from £277.76
This part replaces part number 257-80-302-00
# 002
MPN: 119218
ELECTRONIC SPEEDO MPH
Vale per GB - NZ e ZA
from £302.38
from £302.38
# 002
MPN: 119224
CONTACHILOMETRI - 400 AUT.
With bevel gear 12 / 41
from £335.21
from £335.21
This part replaces part number 257-80-308-00
# 002
MPN: 119225
CONTACHILOMETRI - 400 AUT.
Vale per GS - NZ e ZA - Con coppia conica 12 / 39
from £335.21
from £335.21
# 002
MPN: 119234
ELECTRONIC SPEEDO IN MPH
Vale per GB -with crown & wheel R12 /41
from £451.28
from £451.28
# 002
MPN: 119235
ELECTRONIC SPEEDO IN MPH - 400 GT AUT./400 GTI
Vale per GB - with crown & wheel R12/39
from £335.52
from £335.52
# 003
MPN: 101421

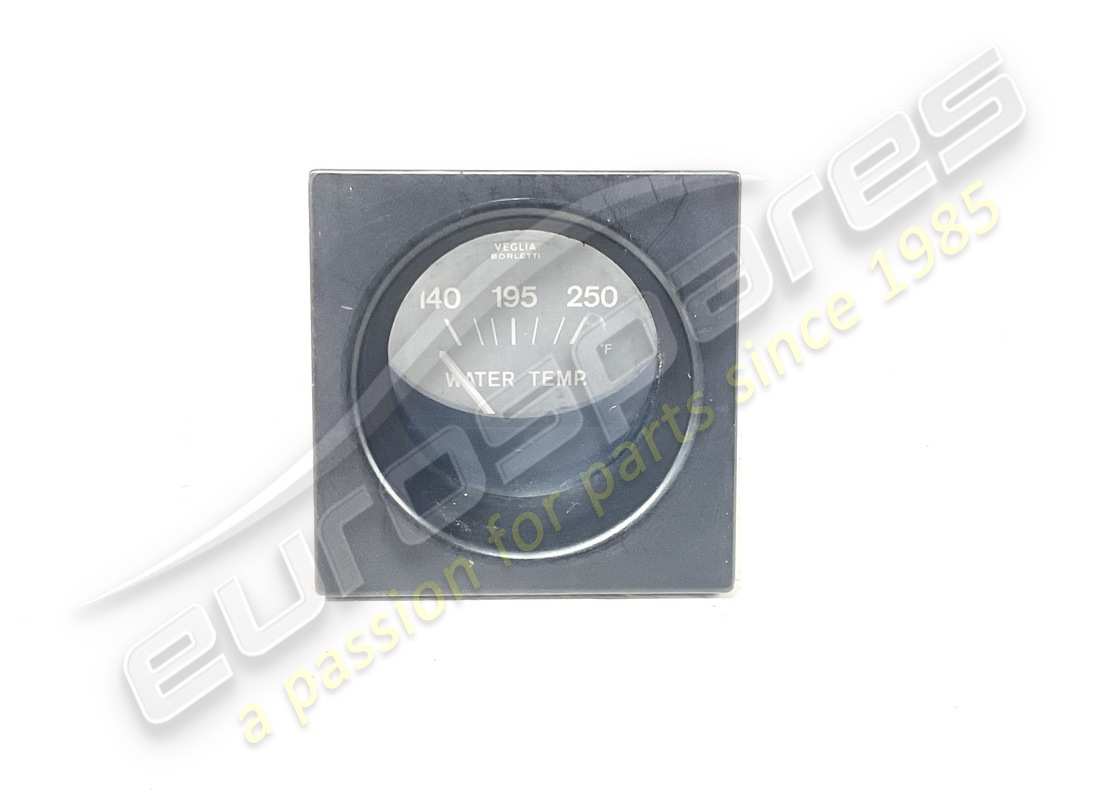

TERMOMETRO ACQUA PER GS
from £84.73
from £84.73
This part replaces part number 257-80-358-00
# 003
MPN: 103106
TERMOMETRO ACQUA PER GD
from £48.63
from £48.63
This part replaces part number 258-80-358-00 - and 3 more. Click to view details
# 004
MPN: 114331

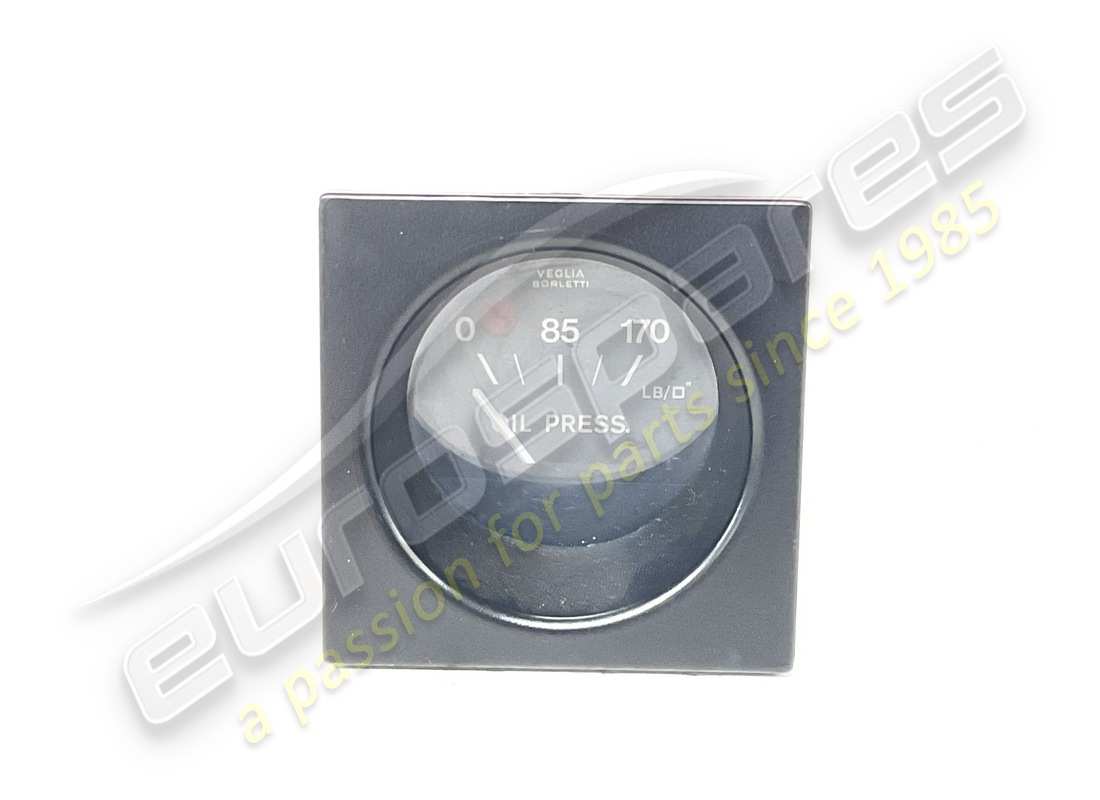

MANOMETRO OLIO PER GS
from £80.70
from £80.70
This part replaces part number 257-80-362-00
# 004
MPN: 114332
MANOMETRO OLIO PER GD
from £46.29
from £46.29
This part replaces part number 258-80-362-00 - and 1 more. Click to view details
# 005
MPN: 101423
TERMOMETRO OLIO PER GS
from £53.07
from £53.07
This part replaces part number 257-80-310-00 which we have in stock - and 1 more. Click to view details
# 005
MPN: 103107
TERMOMETRO OLIO PER GD
from £88.41
from £88.41
This part replaces part number 401283
# 006
MPN: 101428

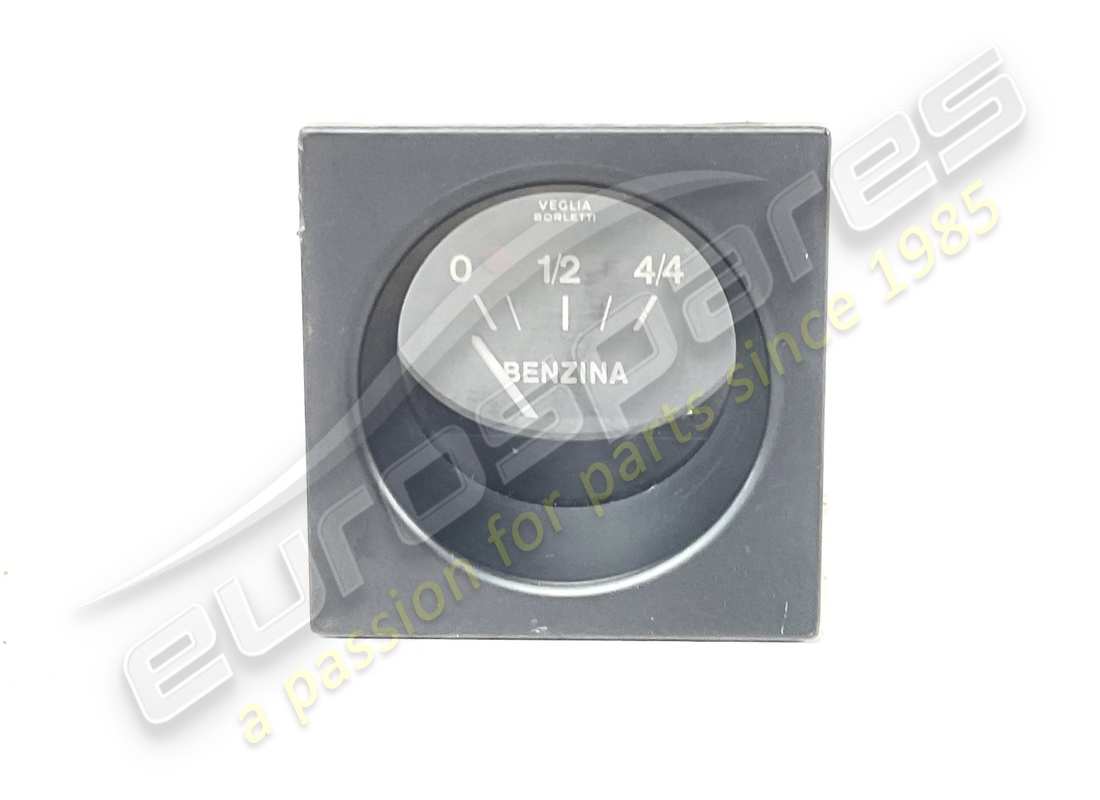

INDICATORE LIVELLO CARBURANTE
Vale per GS
from £68.82
from £68.82
This part replaces part number 401280 - and 1 more. Click to view details
# 006
MPN: 103109
INDICATORE LIVELLO CARBURANTE
Vale per GD
from £66.74
from £66.74
This part replaces part number 101428 which we have in stock - and 5 more. Click to view details
# 007
MPN: 106650
OROLOGIO
from £503.51
from £503.51
This part replaces part number 101430
# 008
MPN: 119701

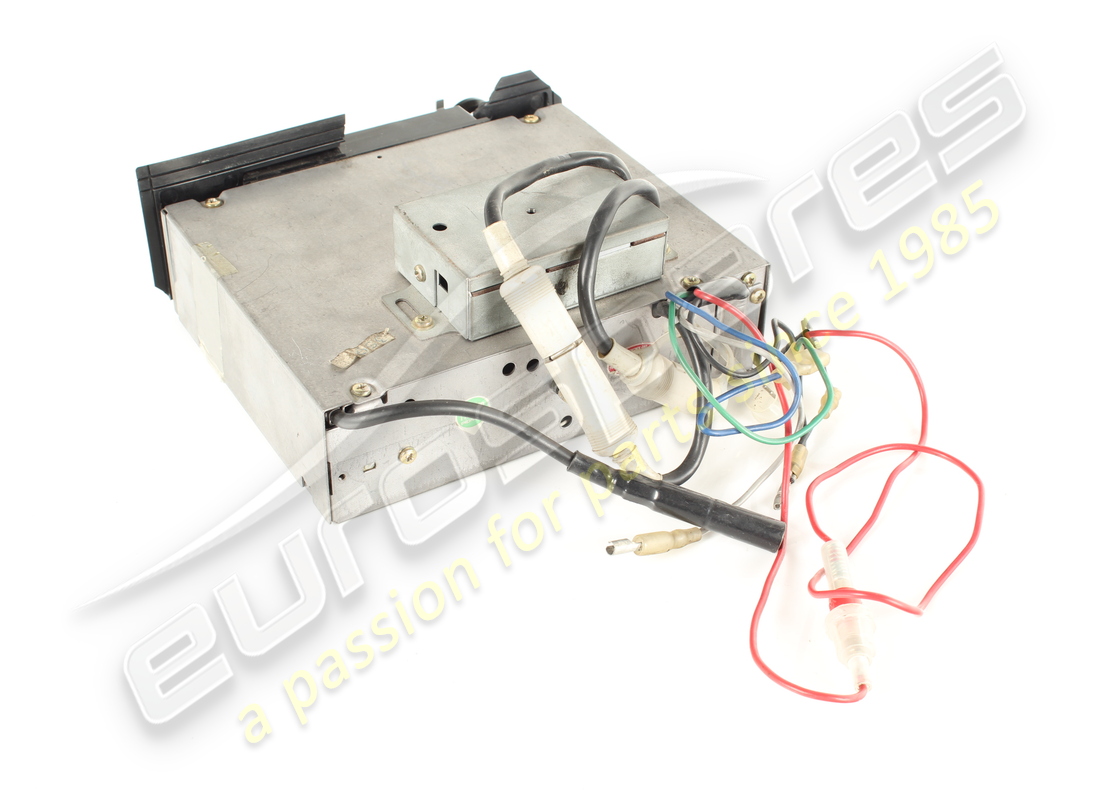

Radio with cassette player on the dashboard
Non vale per D
RADIO WITH CASSETTE CEILING Genuine Ferrari Part - Damaged In stock
damaged to the surround as per picture
damaged to the surround as per picture
# 008
MPN: 120192
RADIO WITH TAPE PLAYER
Vale per D
# 008
MPN: 120207
Radio with cassette player on the ceiling
Non vale per D
