006 - FRONT BONNET

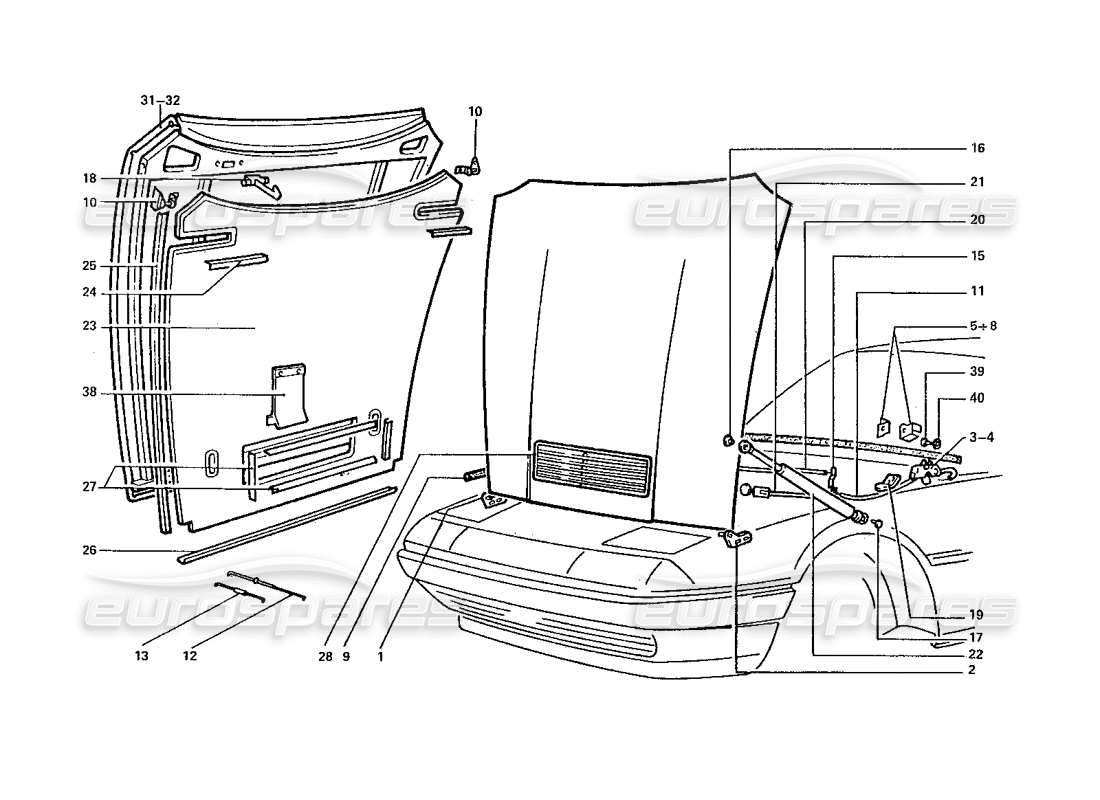

Ferrari 412 (Coachwork) Front Bonnet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 253-28-070-06
RIGHT HOOD FIXED HINGE
from £35.43
from £35.43
This part replaces part number 253-28-070-07
# 002
MPN: 253-28-071-06
LEFT BONNET FIXED HINGE
from £26.20
from £26.20
This part replaces part number 253-28-071-07
# 003
MPN: 144-28-170-05
RIGHT BONNET LOCK
from £41.43
from £41.43
# 004
MPN: 255-28-171-05
SERRATURA SINISTRA COFANC
from £39.45
from £39.45
# 005
MPN: 257-28-172-05
BRACKET / SUPPORT
from £3.47
from £3.47
# 006
MPN: 258-28-172-05
BRACKET / SUPPORT
from £3.47
from £3.47
# 007
MPN: 257-28-174-05
BRACKET / SUPPORT
from £3.15
from £3.15
# 008
MPN: 258-28-174-05
BRACKET / SUPPORT
from £3.15
from £3.15
# 009
MPN: 255-28-200-00
GASKET OR SEAL
from £12.21
from £12.21
# 010
MPN: 255-28-216-05
RECEIPT FOR COMPLETE BONNET LOCK
from £39.21
from £39.21
# 011
MPN: 255-28-300-00
CAVO PER AGGANCIP SERRATURA COFANO
from £4.18
from £4.18
# 012
MPN: 257-28-310-01
BONNET OPENING CONTROL ROD
from £8.75
from £8.75
# 013
MPN: 258-28-310-01
BONNET OPENING CONTROL ROD GD
from £8.75
from £8.75
# 014
MPN: 257-28-312-00
CAVO CENTRALE APERTURA COFANO (PREVISTO MAI MONTATO)
# 015
MPN: 255-28-356-01
LEVER
from £4.78
from £4.78
# 016
MPN: 253-28-464-01
PIVOT
from £9.90
from £9.90
# 017
MPN: 255-28-464-01
PIVOT
from £7.82
from £7.82
# 018
MPN: 239-28-500-01
GANCIO SICUREZZA COFANO COMPL.
from £51.09
from £51.09
# 019
MPN: 255-28-510-01
RECEIPT FOR BONNET SAFETY HOOK
from £37.98
from £37.98
# 020
MPN: 255-28-512-00
COM SAFETY CABLE, PASSENGER SIDE BONNET OPENING
from £11.09
from £11.09
# 021
MPN: 255-28-513-00
COM. SAFETY CABLE OPENING THE BONNET ON THE DRIVER'S SIDE
from £6.40
from £6.40
# 022
MPN: 253-28-550-00
BONNET OPENING AND SUPPORT DEVICE
Supersession
Supersession
# 023
MPN: 257-28-606-10
INSULATING MAT UNDER THE BONNET
from £263.43
from £263.43
# 024
MPN: 257-28-618-00
MOLURA ANTERIORE I ATE RALE F ISS. MATERASSINO SOTTO COFANO
# 025
MPN: 255-28-620-00
MOLURA LATERALE FISS. MATERASSINO SOTTO COFANO
# 026
MPN: 255-28-622-00
MOLURA ANTERIORE FISSAG. MATERASSINO SOTTO COFANO
from £3.30
from £3.30
# 027
MPN: 255-28-624-00
MOLURA MAT FIXING AIR OUTLET COMPARTMENT
from £6.28
from £6.28
# 028
MPN: 257-28-700-06
AIR OUTLET GRILLE ON THE BONNET
from £306.15
from £306.15
# 029
MPN: 257-29-002-06
COFANO COMPL. OSSATURA E RIVESTIM. SOLO TROPICO INIEZ. G.S.
from £4,086.22
from £4,086.22
# 030
MPN: 258-29-002-06
COFANO COMPL. OSSATURA E RIVESTIM. SOLO TROPICO INIEZ. G.D.
from £4,086.22
from £4,086.22
# 031
MPN: 257-29-004-06
COMPLETE BONNET OF FRAME AND COVERING - GS ONLY INJECTION TYPE ONLY
from £1,149.75
from £1,149.75
# 032
MPN: 258-29-004-06
COFANO COMPL. DI OSSATURA E RIVESTIMENTO - SOLO G.D.
from £2,041.42
from £2,041.42
# 033
MPN: 257-29-610-00
SOUNDPROOFING UNDER THE HOOD - TROPICO ONLY
# 034
MPN: 257-29-612-00
SOUNDPROOFING UNDER THE HOOD - TROPICO ONLY
from £30.24
from £30.24
# 035
MPN: 257-29-624-00
GASKET OR SEAL
from £17.81
from £17.81
# 036
MPN: 257-29-700-06
ENGINE AIR OUTLET GRILLE ON THE BONNET - TROPICO ONLY
from £659.36
from £659.36
# 037
MPN: 257-29-720-04
PARTIAL CLOSING BULKHEAD FOR GRILLE AND COMPLETE ALTERNATOR PROTECTION. - TROPICAL ONLY
from £344.10
from £344.10
# 038
MPN: 257-80-440-07
RIPARO ALTERNATORE
from £19.66
from £19.66
# 039
MPN: 09-181-03-21
SCREW
from £2.46
from £2.46
# 040
MPN: 0-950-1-047-1
WASHER
# 041
MPN: 0-977-1-030-1
MORSETTO FISSAGGIO APERTURA COFANO (PREVLSTO MAI MONTATO)
from £4.71
from £4.71
