Ferrari 412 (Coachwork) Car Loom Parts Diagram

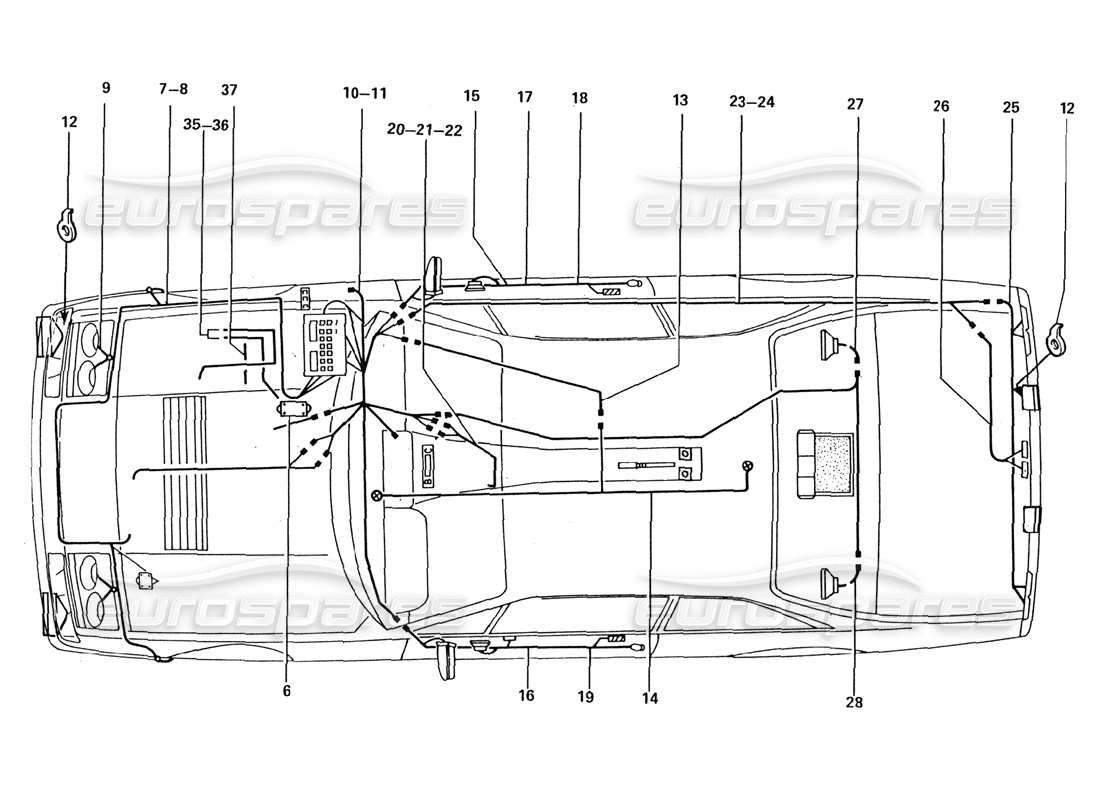

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 006
                                          MPN: 257-80-478-00
                                          TERMINAL BLOCK WITH LEG. DIRECT CURRENT CABLES
                                          from £13.52
                                          from £13.52
                                          # 007
                                          MPN: 257-80-480-10
                                          ASSIEME CAVI COLLEGAM. PARTE ANTER. G.S.
                                          from £647.04
                                          from £647.04
                                          # 008
                                          MPN: 258-80-480-10
                                          ASSIEME CAVI COLLEGAM. PARTE ANTER. G;D.
                                          F.V.N. 2075
                                          from £487.32
                                          from £487.32
                                          # 008
                                          MPN: 258-80-480-20
                                          ASSIEME CAVI COLLEG. PARTE ANT .GD
                                          D.V.N. 2076
                                          from £596.82
                                          from £596.82
                                          # 009
                                          MPN: 257-80-484-00
                                          ASSIEME CAVI COLLEGAM. PROIETTORI ABBAGL. / ANABBAGL.
                                          from £11.05
                                          from £11.05
                                          # 010
                                          MPN: 257-80-510-20
                                          ASSIEME CAVI COLLEGAM. PLAN CI A G.S.
                                          F.V.N. 2037
                                          # 010
                                          MPN: 257-80-510-30
                                          ASSIEME CAVI COLLEG. PLANCIA
                                          D.V.N. 2038
                                          from £632.22
                                          from £632.22
                                          # 011
                                          MPN: 258-80-510-20
                                          ASSIEME CAVI COLLEGAM. PLANCIA G.D.
                                          F.V.N. 2075
                                          from £774.61
                                          from £774.61
                                          # 011
                                          MPN: 258-80-510-30
                                          CONNECTED CABLE ASSEMBLY GD DASHBOARD
                                          D.V.N. 2076
                                          from £568.00
                                          from £568.00
                                          # 012
                                          MPN: 257-80-542-00
                                          EARTH TERMINAL FOR FRONT LIGHT. FOG LIGHTS
                                          from £1.24
                                          from £1.24
                                          # 013
                                          MPN: 257-80-552-10
                                          CONNECTION CABLE ASSEMBLY DASHBOARD AND ROOF CEILING LIGHT
                                          from £18.98
                                          from £18.98
                                          # 014
                                          MPN: 257-80-554-00
                                          ASSIEME CAVI COLLEGAM. PLAFONIERA TETTO
                                          from £30.43
                                          from £30.43
                                          # 015
                                          MPN: 257-80-570-10
                                          ASSIEME CAVI COLLEGAM. PBRTA DESTRA
                                          from £101.76
                                          from £101.76
                                          # 016
                                          MPN: 257-80-571-10
                                          ASSIEME CAVI COLLEGAM. PORTA SINISTRA
                                          from £101.76
                                          from £101.76
                                          # 017
                                          MPN: 258-80-571-20
                                          R DOOR CABLES
                                          from £95.19
                                          from £95.19
                                          # 018
                                          MPN: 257-80-574-00
                                          CAVI CHIUSURA PORT A D.
                                          from £13.34
                                          from £13.34
                                          # 019
                                          MPN: 257-80-575-00
                                          L. DOOR CLOSURE CABLES
                                          from £13.34
                                          from £13.34
                                          # 020
                                          MPN: 257-80-580-20
                                          CABLE ASSEMBLY WITH LEG. CONSOLE CONTROLS
                                          from £168.78
                                          from £168.78
                                          # 021
                                          MPN: 258-80-580-00
                                          CONSOLE CONTROL CABLES GD
                                          from £191.82
                                          from £191.82
                                          # 022
                                          MPN: 257-80-588-00
                                          TUNNEL CABLES
                                          from £214.87
                                          from £214.87
                                          # 023
                                          MPN: 257-80-600-10
                                          ASSIEME CAVI COLLEGAM PARTE POSTERIORE
                                          F.V.N. 2011
                                          from £279.11
                                          from £279.11
                                          # 023
                                          MPN: 257-80-600-20
                                          ASSIEME CAVI PARTE POST. (FINO 2109 SOLO PER VERSIONE SVIZZERA)
                                          F.V.N. 2078
                                          from £450.29
                                          from £450.29
                                          # 023
                                          MPN: 257-80-600-30
                                          ASSIEME CAVI PARTE POST. (FINO 2109 SOLO PER VERSIONE SVIZZERA)
                                          D.V.N. 2079
                                          from £307.06
                                          from £307.06
                                          # 024
                                          MPN: 258-80-600-00
                                          REAR CABLES G . D
                                          F.V.N.2011
                                          from £286.48
                                          from £286.48
                                          # 024
                                          MPN: 258-80-600-10
                                          CAVI PARTE POST. GD.
                                          D.V.N. 2012
                                          from £286.48
                                          from £286.48
                                          # 024
                                          MPN: 258-80-600-10
                                          CAVI PARTE POST. GD.
                                          F.V.N. 2037
                                          from £286.48
                                          from £286.48
                                          # 024
                                          MPN: 258-80-600-20
                                          REAR CABLES GD
                                          D.V.N. 2038
                                          from £324.33
                                          from £324.33
                                          # 024
                                          MPN: 258-80-600-20
                                          REAR CABLES GD
                                          F.V.N.2075
                                          from £324.33
                                          from £324.33
                                          # 024
                                          MPN: 258-80-600-30
                                          REAR CABLES GD
                                          D.V.N.2076
                                          from £136.49
                                          from £136.49
                                          # 025
                                          MPN: 257-80-604-10
                                          REAR LIGHT CABLE ASSEMBLY
                                          F.V.N. 2011
                                          from £89.42
                                          from £89.42
                                          # 025
                                          MPN: 257-80-604-20
                                          REAR LIGHT CABLE ASSEMBLY
                                          D.V.N. 2012
                                          from £89.42
                                          from £89.42
                                          # 026
                                          MPN: 257-80-642-10
                                          CABLE ASSEMBLY FOR LICENSE PLATE LIGHTS
                                          from £17.97
                                          from £17.97
                                          # 027
                                          MPN: 257-80-646-00
                                          SPEAKER CABLE R.
                                          from £4.84
                                          from £4.84
                                          # 028
                                          MPN: 257-80-647-00
                                          L SPEAKER CABLE
                                          from £6.40
                                          from £6.40
                                          # 035
                                          MPN: 257-80-990-10
                                          POSITIVE CABLE FOR CONNECTION STARTER MOTOR BATTERY
                                          from £70.48
                                          from £70.48
                                          # 036
                                          MPN: 258-80-990-10
                                          POSITIVE CABLE FOR CONNECTION GD STARTER MOTOR BATTERY
                                          from £76.40
                                          from £76.40
                                          # 037
                                          MPN: 257-80-996-00
                                          CAVO NEGATIVE PER COLLEGAM. BATTERIA AD ACCUMULATOR!
                                          from £32.51
                                          from £32.51
