023 - Outside Gearbox Controls - 412 A.

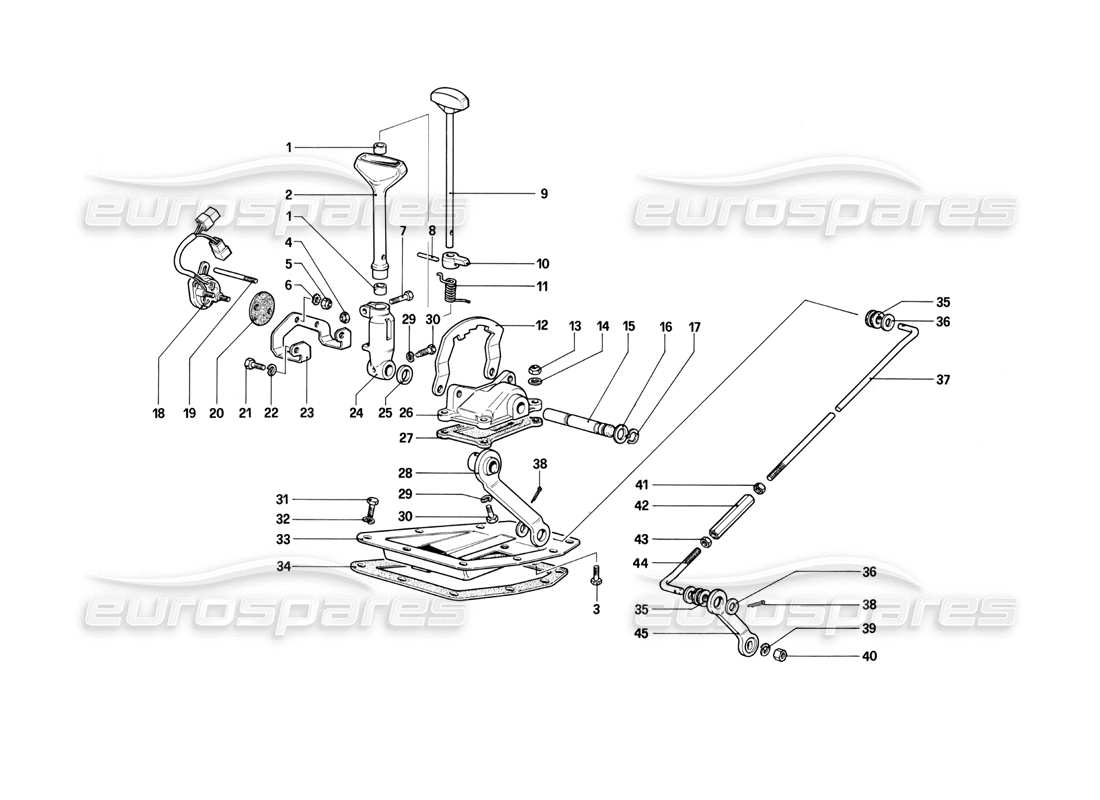

Ferrari 412 (Mechanical) Outside Gearbox Controls - 412 A. Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

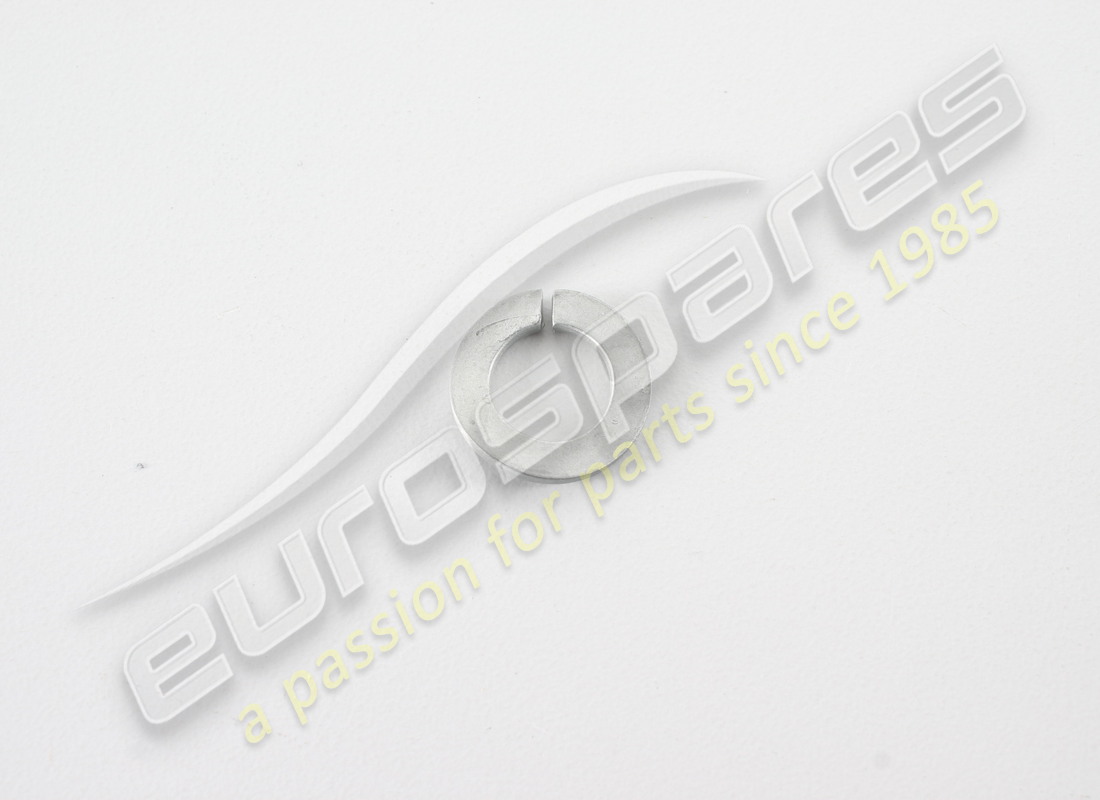

# 001
MPN: 109202
BUSHING
from £5.03
from £5.03

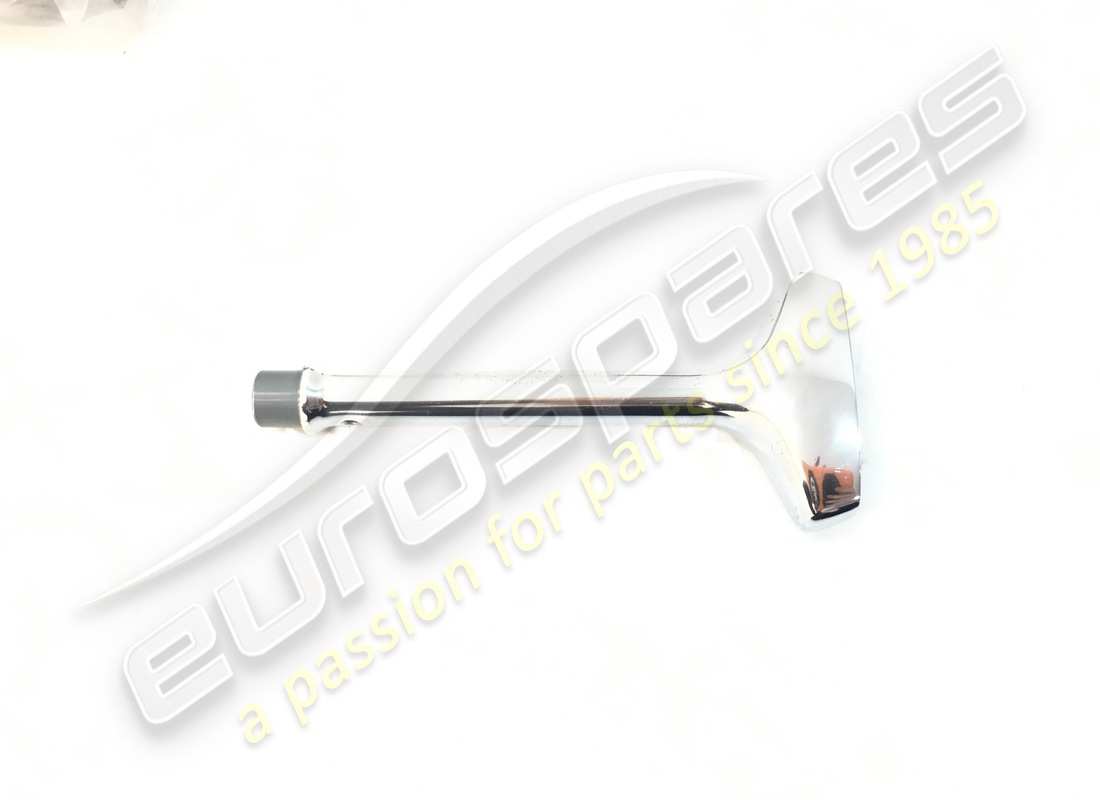

# 002
MPN: 109201
LEVER HANDLE
from £28.17
from £28.17
# 003
MPN: 10902621
SCREW
Supersession
Supersession
This part replaces part number 10902611 which we have in stock

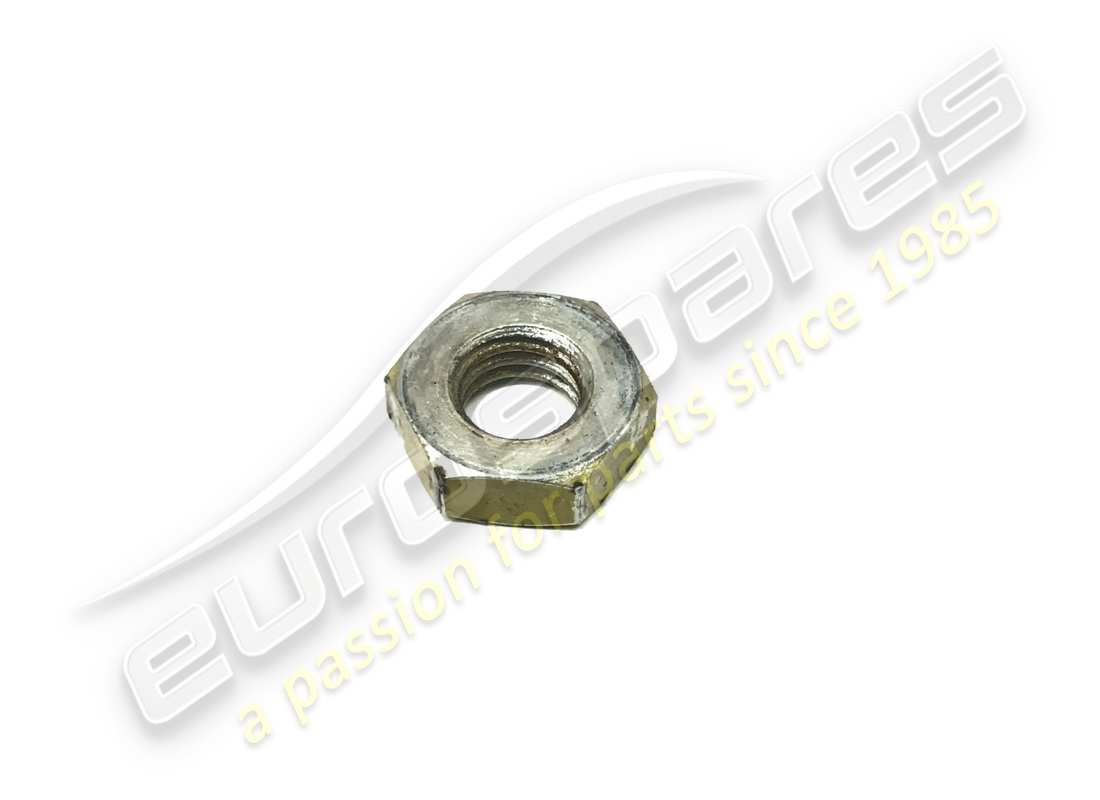

# 004
MPN: 12574221
NUT
Supersession
Supersession
This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
# 005
MPN: 10725911
NUT
Supersession
Supersession
This part replaces part number 95900403
# 006
MPN: 12605371
TOOTHED WASHER
from £0.48
from £0.48
# 007
MPN: 10903031
BOLT
from £0.87
from £0.87
# 008
MPN: 14162070
PIN
# 009
MPN: 109247
LEVER KNOB
from £21.10
from £21.10
# 010
MPN: 109205
PAWL
from £44.20
from £44.20
# 011
MPN: 109206
SPRING
from £2.54
from £2.54
# 012
MPN: 109212
SPEED SELECTOR
from £73.27
from £73.27
# 013
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 014
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 015
MPN: 109199
PIN FOR LEVER SUPPORT
from £19.38
from £19.38
# 016
MPN: 109218
WASHER
from £0.84
from £0.84
# 017
MPN: 11066475
SEEGER RING
# 018
MPN: 118277
STARTING CONTROL SWITCH
from £73.71
from £73.71
This part replaces part number 109215 - and 1 more. Click to view details
# 019
MPN: 120764
CONTROL PIN FOR SWITCH
from £4.29
from £4.29
# 020
MPN: 109214
INSULATING PLATE
from £1.64
from £1.64
# 021
MPN: 16043421
BOLT
from £2.69
from £2.69
This part replaces part number 95524
# 022
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 023
MPN: 109213
BRACKET FOR SWITCH
from £9.79
from £9.79
# 024
MPN: 109200
HOUSING FOR HAND LEVER
from £167.99
from £167.99
# 025
MPN: 109216
SPACER
from £1.34
from £1.34
# 026
MPN: 109198
SUPPORT FOR HAND LEVER
from £62.76
from £62.76
# 027
MPN: 109223
GASKET FOR SUPPORT
from £4.44
from £4.44
# 028
MPN: 109319
GEAR LEVER
from £150.97
from £150.97
# 029
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 030
MPN: 109217
BOLT
from £1.65
from £1.65
# 031
MPN: 10902321
BOLT
from £0.71
from £0.71
# 032
MPN: 127494
SPRING WASHER
from £0.51
from £0.51
This part replaces part number 10516470 - and 4 more. Click to view details
# 033
MPN: 109222
PLATE SUPPORTING LEVER ASSEMBLY
from £27.64
from £27.64
# 034
MPN: 109230
GASKET FOR PLATE
from £50.38
from £50.38
# 035
MPN: 109211
FLEXIBLE BUSH
from £7.22
from £7.22
# 036
MPN: 12625201
WASHER
from £1.08
from £1.08
# 037
MPN: 109220
TERMINAL (LH THREAD)
from £13.70
from £13.70
# 038
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 039
MPN: 127497
WASHER
from £0.54
from £0.54
This part replaces part number 10516871 - and 2 more. Click to view details
# 040
MPN: 10788711
NUT
from £0.39
from £0.39
This part replaces part number 100965 which we have in stock - and 1 more. Click to view details
# 041
MPN: 16102911
NUT (LH THREAD)
Supersession
Supersession
# 042
MPN: 10092511
ADJUSTMENT SLEEVE
from £5.25
from £5.25
# 043
MPN: 16102311
NUT (RH THREAD)
from £0.42
from £0.42
This part replaces part number 16102315
# 044
MPN: 109221
TERMINAL (RH THREAD)
from £7.54
from £7.54
# 045
MPN: 109219
LEVER ON AUTOMATIC TRANSMISSION
from £35.43
from £35.43
