051 - Rear Suspension - Brake Disc

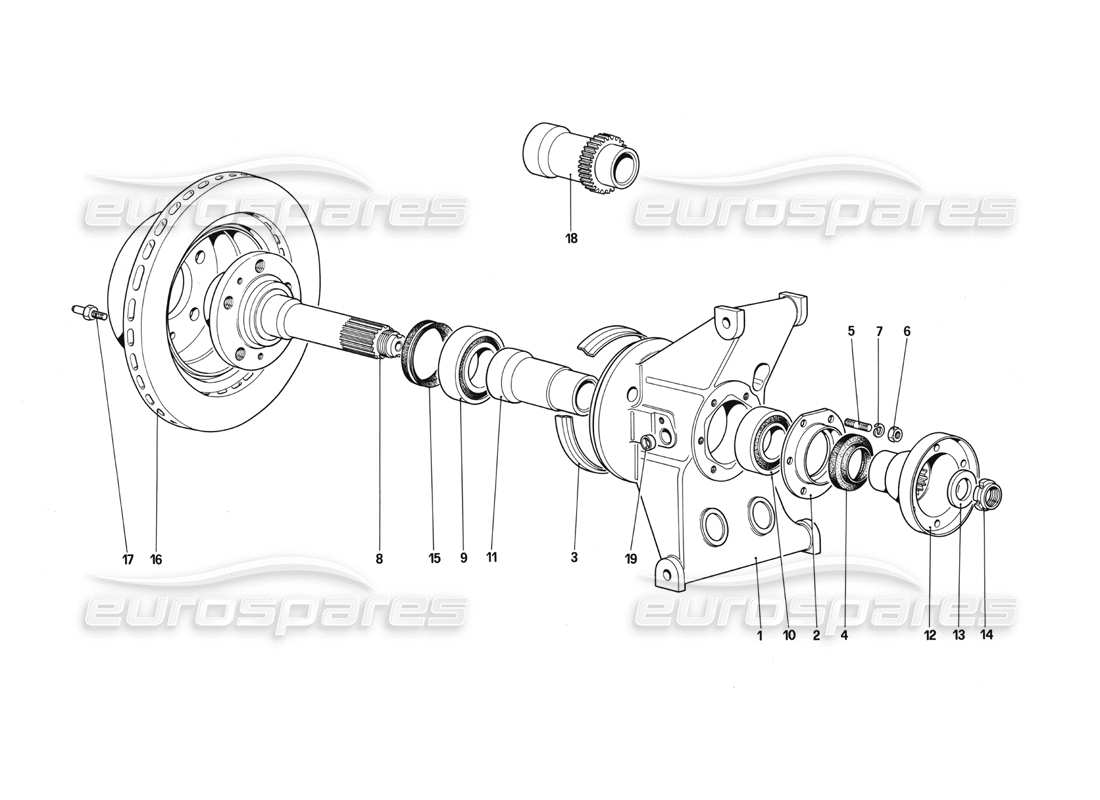

Ferrari 412 (Mechanical) Rear Suspension - Brake Disc Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 125618
HUB HOLDER, RIGHT
from £729.75
from £729.75
# 001
MPN: 125619
HUB HOLDER, LEFT
from £729.75
from £729.75
# 002
MPN: 125976
FLANGE
from £28.01
from £28.01
# 003
MPN: 101546
SPLASH GUARD
from £18.20
from £18.20
This part replaces part number 601519
# 004
MPN: 115968/A
SEALING RING
from £32.12
from £32.12
# 005
MPN: 13643321
STUD
# 006
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 007
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 008
MPN: 125628
SHAFT WITH HUB
from £570.47
from £570.47

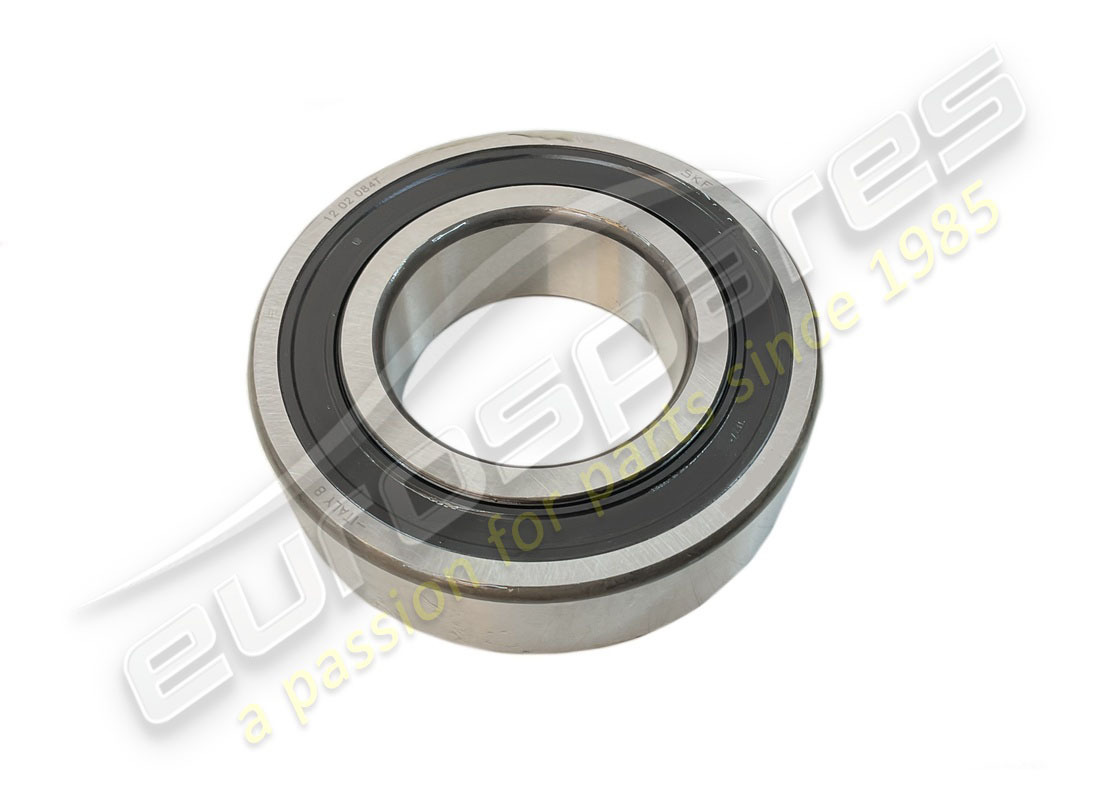

# 009
MPN: 144807
OUTER BEARING
from £125.00
from £125.00
This part replaces part number 125935
# 010
MPN: 145805
INNER BEARING
from £75.46
from £75.46
This part replaces part number 125934
# 011
MPN: 125629
SPACER
Not for A.B.S.
# 012
MPN: 119372
FLANGE CONNECTING AXLE SHAFTS
from £341.84
from £341.84
# 013
MPN: 105511
WASHER
from £33.71
from £33.71
This part replaces part number 700753
# 014
MPN: 102289
RING NUT
from £82.25
from £82.25
This part replaces part number 700648
# 015
MPN: 110579
CENTRIFUGAL RING
from £6.44
from £6.44

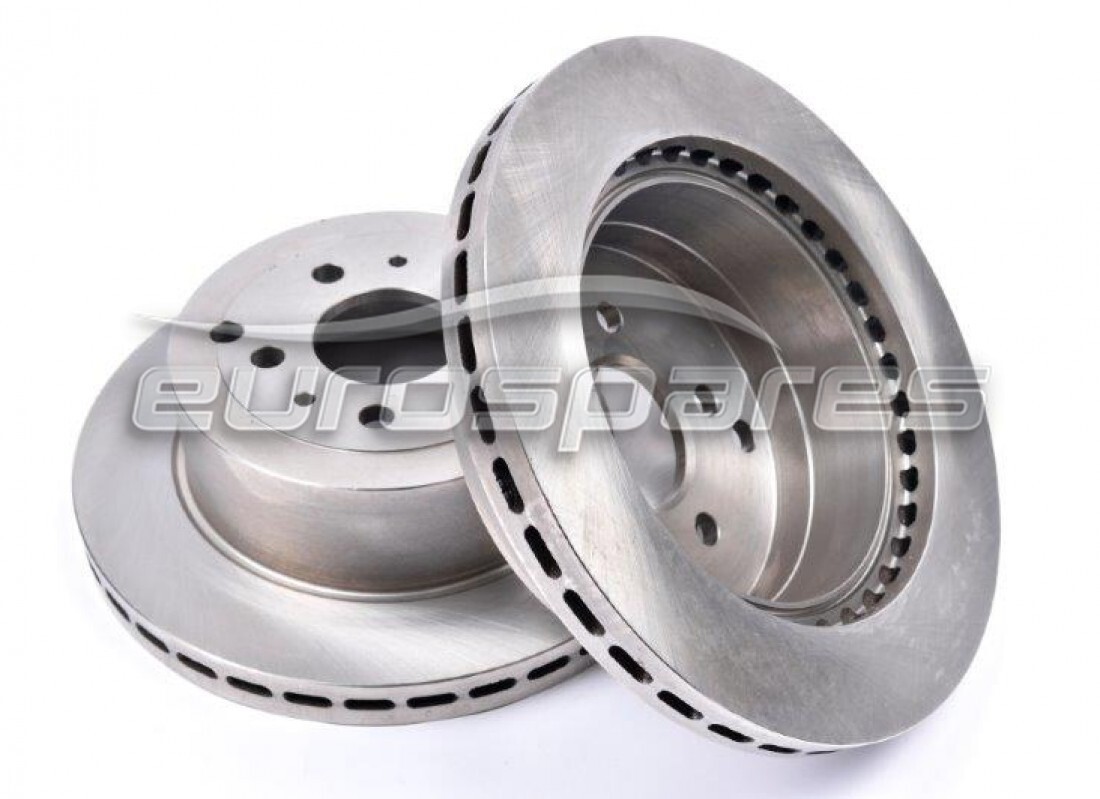

# 016
MPN: 110586
REAR BRAKE DISC
(price each disc)
from £565.51
from £565.51

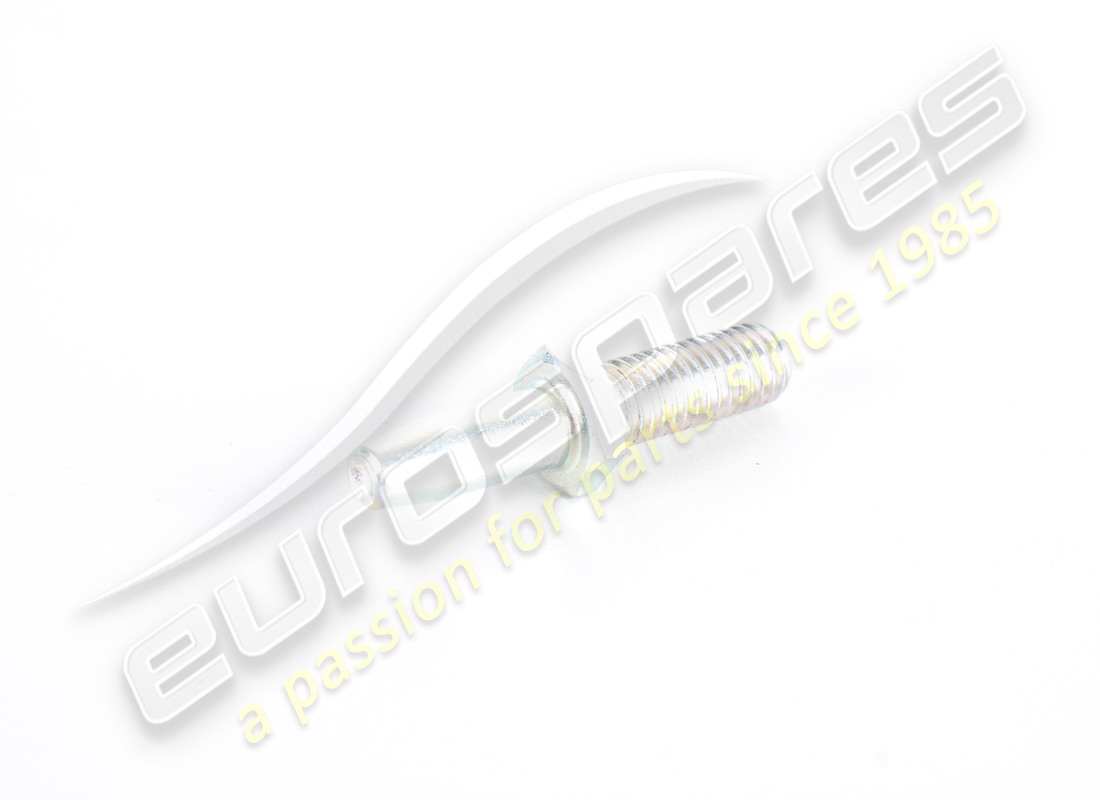

# 017
MPN: 104370
CENTERING SCREW
from £6.03
from £6.03
This part replaces part number 139981
# 018
MPN: 126337
SPACER WITH TOOTHED WHEEL
For A.B.S.
# 019
MPN: 14328601
PLUG
Not for A.B.S.
from £0.79
from £0.79
