053 - Wheels

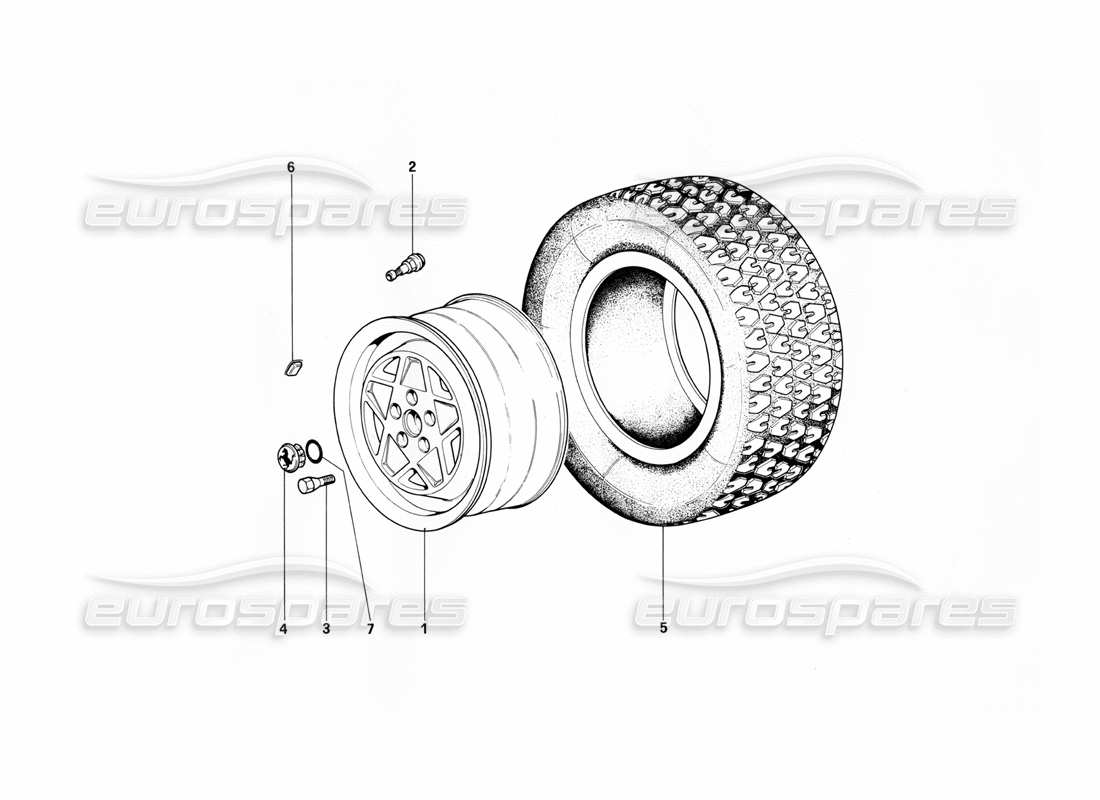

Ferrari 412 (Mechanical) Wheels Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 125620
RIM 7 1/2 J X 16 - FOR GOODYEAR
from £625.88
from £625.88
# 001
MPN: 127151
WHEEL 180 TR 415 - FOR MICHELIN
from £438.19
from £438.19
# 002
MPN: 174166
VALVE
from £5.20
from £5.20
This part replaces part number 105069 - and 1 more. Click to view details
# 002
MPN: 70002212
VALVE CAP KIT
(includes 4x Ferrari logo chromium valve caps)
from £42.72
from £42.72
# 003

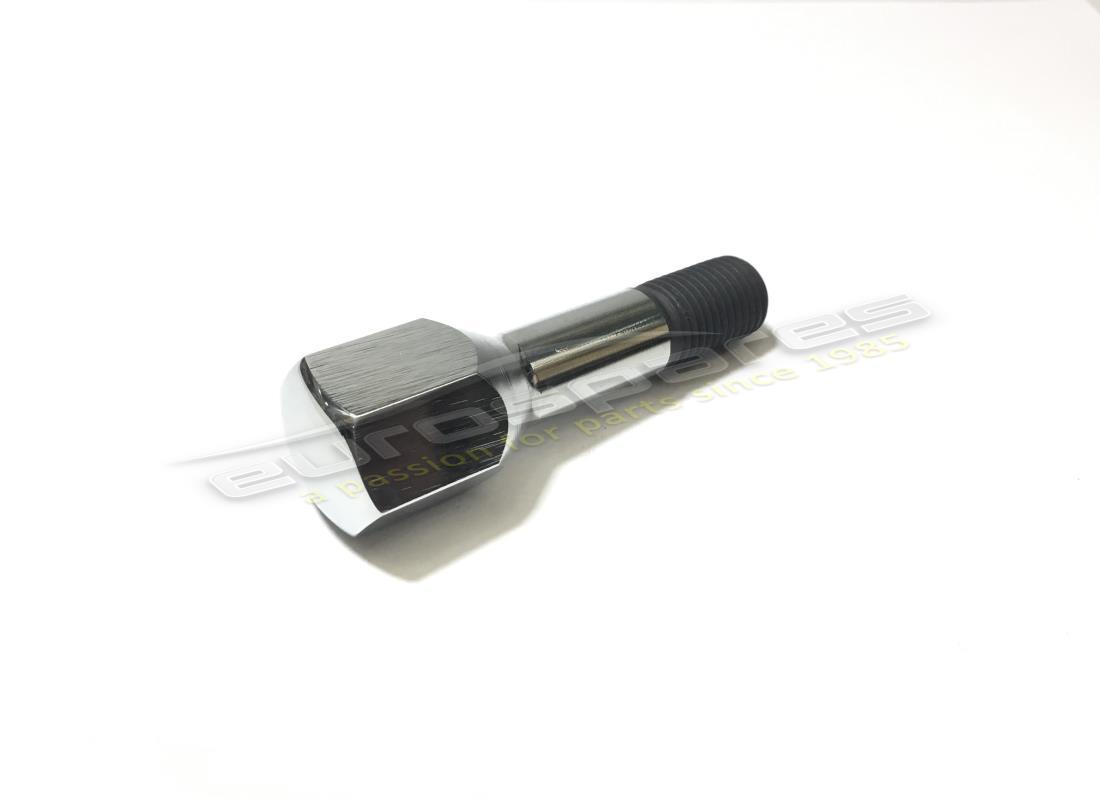

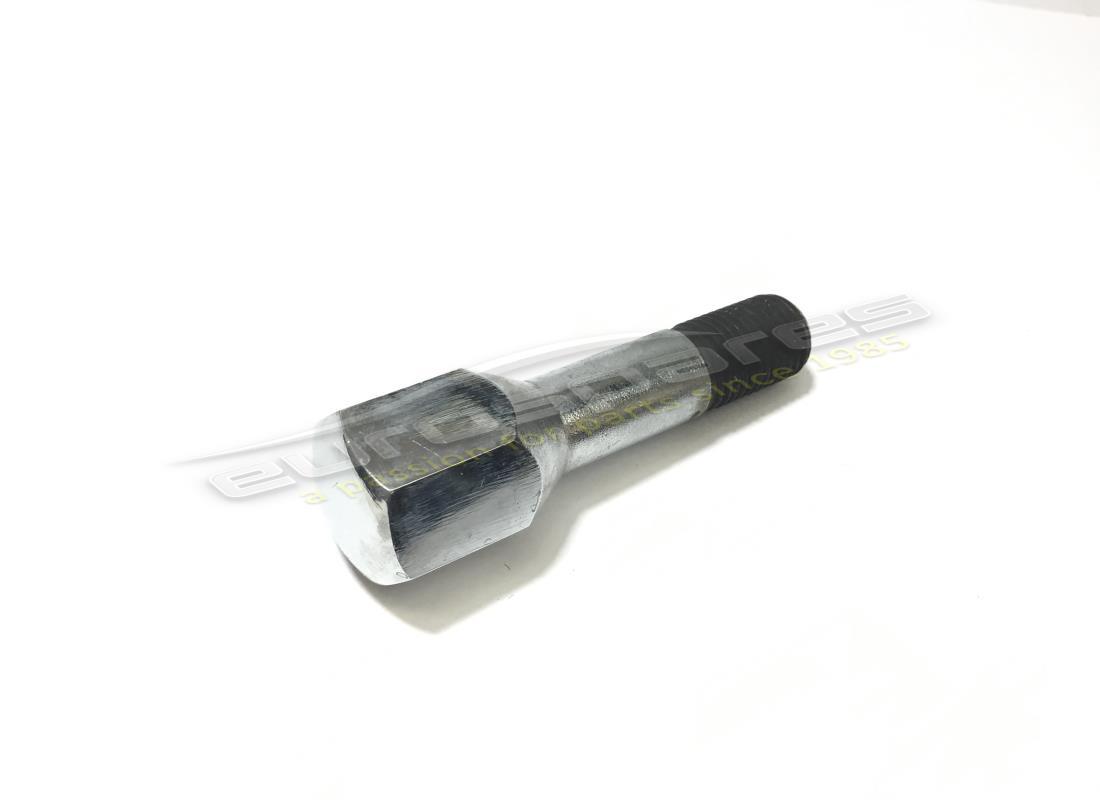

MPN: 110580
WHEEL STUD
from £13.60
from £13.60
# 004
MPN: 340066
WHEEL BADGE
from £8.23
from £8.23
This part replaces part number 226245 - and 1 more. Click to view details
# 005
MPN: 116135
TYRE MICHELIN TRX 240/55 VR 41 5
from £530.90
from £530.90
# 005
MPN: 126110
TYRE - GOODYEAR 245/55 VR 16
# 006
MPN: 108851
COUNTER WEIGHT 10 GR.
Supersession
Supersession
This part replaces part number 108852
# 007
MPN: 120065
SEALING RING
from £0.83
from £0.83
