ferrari 430 challenge (2006) frame - central elements and plates parts diagram

103 - Frame - Central Elements and Plates

Ferrari 430 Challenge (2006) Frame - Central Elements and Plates Parts Diagram

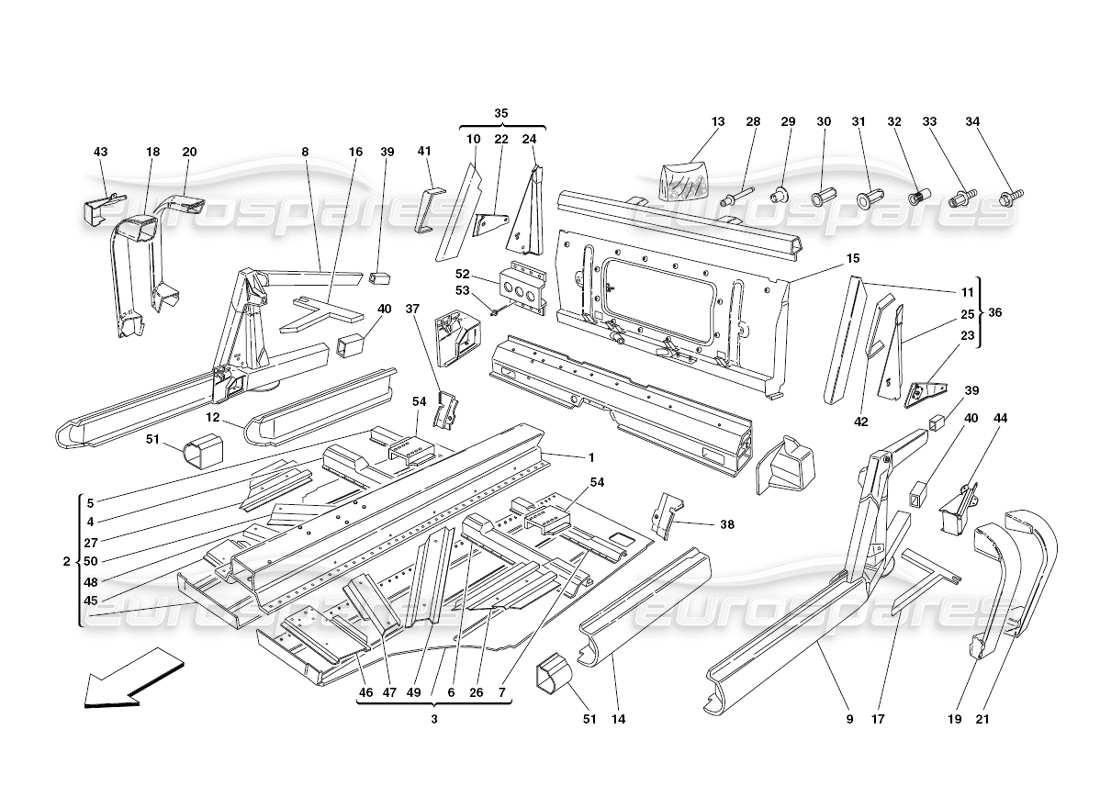

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Key
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 194938
                                                                                                            COMPLETE TUNNEL
                                                                                                            from £965.59
                                                                                                            from £965.59
                                                                                                            This part replaces part number 68886200 - and 1 more. Click to view details
                                                                                                            COMPLETE TUNNEL Genuine Ferrari Part - New (to order)
                                                                                                            # 002
                                                                                                            MPN: 68886311
                                                                                                            COMPLETE RH LATERAL HALF FLOOR
                                                                                                            from £2,238.47
                                                                                                            from £2,238.47
                                                                                                            This part replaces part number 68886300
                                                                                                            COMPLETE RH LATERAL HALF F Genuine Ferrari Part - New (to order)
                                                                                                            # 003
                                                                                                            MPN: 68886400
                                                                                                            COMPLETE LH LATERAL HALF FLOOR
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 004
                                                                                                            MPN: 207193
                                                                                                            RH FRONT CROSS MEMBER
                                                                                                            from £65.38
                                                                                                            from £65.38
                                                                                                            This part replaces part number 205201 - and 1 more. Click to view details
                                                                                                            RH FRONT CROSS MEMBER Genuine Ferrari Part - New (to order)
                                                                                                            # 005
                                                                                                            MPN: 20-52-03
                                                                                                            RH REAR CROSS MEMBER
                                                                                                            from £61.05
                                                                                                            from £61.05
                                                                                                            This part replaces part number 985205203
                                                                                                            RH REAR FLOOR CROSSMEMBER Genuine Ferrari Part - New (to order)
                                                                                                            # 006
                                                                                                            MPN: 207192
                                                                                                            LH FRONT CROSS MEMBER
                                                                                                            from £65.38
                                                                                                            from £65.38
                                                                                                            This part replaces part number 205200 - and 1 more. Click to view details
                                                                                                            LH FRONT CROSS MEMBER Genuine Ferrari Part - New (to order)
                                                                                                            # 007
                                                                                                            MPN: 20-52-02
                                                                                                            LH REAR CROSS MEMBER
                                                                                                            from £61.05
                                                                                                            from £61.05
                                                                                                            This part replaces part number 985205202
                                                                                                            LH REAR FLOOR CROSSMEMBER Genuine Ferrari Part - New (to order)
                                                                                                            # 008
                                                                                                            MPN: 68886500
                                                                                                            RH LATERAL REAR CROSSMEMBER
                                                                                                            from £614.28
                                                                                                            from £614.28
                                                                                                            This part replaces part number 68886511
                                                                                                            RH LATERAL REAR CROSSMEMBA Genuine Ferrari Part - New (to order)
                                                                                                            # 009
                                                                                                            MPN: 68886600
                                                                                                            LH LATERAL REAR CROSSMSMBER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 68886611
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 010
                                                                                                            MPN: 166232
                                                                                                            RH REINFORCEMENT FRAME
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 011
                                                                                                            MPN: 166132
                                                                                                            LH REINFORCEMENT FRAME
                                                                                                            from £27.86
                                                                                                            from £27.86
                                                                                                            This part replaces part number 985166132
                                                                                                            LH REINFORCEMENT FRAME Genuine Ferrari Part - New (to order)
                                                                                                            # 012
                                                                                                            MPN: 201435
                                                                                                            RH CROSSMEMBER
                                                                                                            from £208.80
                                                                                                            from £208.80
                                                                                                            This part replaces part number 985201435
                                                                                                            RH CROSSMEMBER Genuine Ferrari Part - New (to order)
                                                                                                            # 013
                                                                                                            MPN: 70000950
                                                                                                            INSERTS KIT FOR REPAIR
                                                                                                            from £989.57
                                                                                                            from £989.57
                                                                                                            INSERT KIT FOR REPAIRS. Genuine Ferrari Part - New In stock
                                                                                                            # 014
                                                                                                            MPN: 201434
                                                                                                            LH CROSSMEMBER
                                                                                                            from £353.45
                                                                                                            from £353.45
                                                                                                            This part replaces part number 985201434
                                                                                                            LH CROSSMEMBER Genuine Ferrari Part - New (to order)
                                                                                                            # 015
                                                                                                            MPN: 202560
                                                                                                            REAR SHIELD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 016
                                                                                                            MPN: 64811011
                                                                                                            RH REAR FIXING FRAME
                                                                                                            replaces: 64811000
                                                                                                            from £138.47
                                                                                                            from £138.47
                                                                                                            This part replaces part number 64811000
                                                                                                            RH REAR FIXING FRAME PLUS C Genuine Ferrari Part - New In stock
                                                                                                            # 016
                                                                                                            MPN: 64811011
                                                                                                            RH REAR FIXING FRAME
                                                                                                            from £138.47
                                                                                                            from £138.47
                                                                                                            This part replaces part number 64811000
                                                                                                            RH REAR FIXING FRAME PLUS C Genuine Ferrari Part - New In stock
                                                                                                            # 017
                                                                                                            MPN: 64811111
                                                                                                            LH REAR FIXING FRAME
                                                                                                            from £138.47
                                                                                                            from £138.47
                                                                                                            This part replaces part number 64811100
                                                                                                            LH REAR FIXING FRAME PLUS C Genuine Ferrari Part - New In stock
                                                                                                            # 018
                                                                                                            MPN: 65153400
                                                                                                            RH FRONT SIDE MOULDING
                                                                                                            from £64.20
                                                                                                            from £64.20
                                                                                                            RH FRONT CHASSIS PART Genuine Ferrari Part - New In stock
                                                                                                            RH FRONT CHASSIS PART Genuine Ferrari Part - Used In stock
                                                                                                            # 019
                                                                                                            MPN: 65153500
                                                                                                            LH FRONT SIDE MOULDING
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)

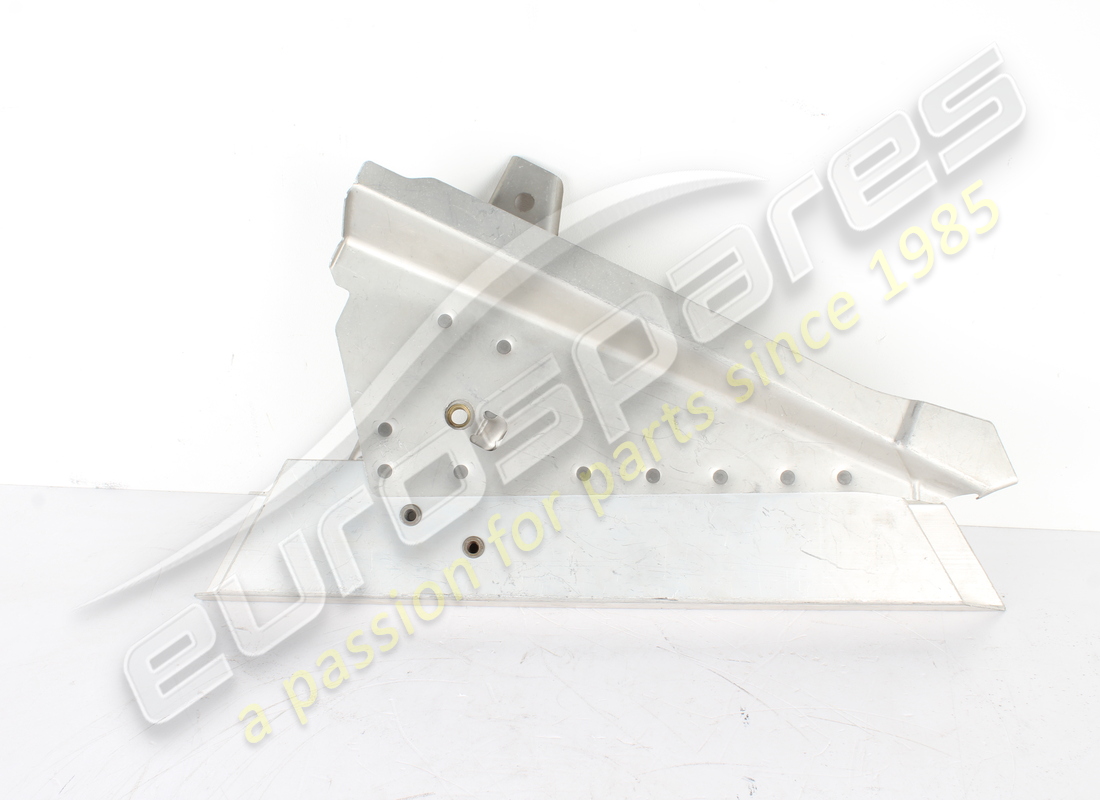

                                                                                                            # 020
                                                                                                            MPN: 65998100
                                                                                                            RH REAR SIDE MOULDING
                                                                                                            from £156.80
                                                                                                            from £156.80
                                                                                                            RH REAR FRAMEWORK Genuine Ferrari Part - New In stock
                                                                                                            # 021
                                                                                                            MPN: 65998211
                                                                                                            LH REAR SIDE MOULDING
                                                                                                            from £191.84
                                                                                                            from £191.84
                                                                                                            This part replaces part number 65998200 - and 1 more. Click to view details
                                                                                                            LH REAR SIDE MOLDING Genuine Ferrari Part - New (to order)
                                                                                                            LH REAR SIDE MOLDING Genuine Ferrari Part - Used In stock

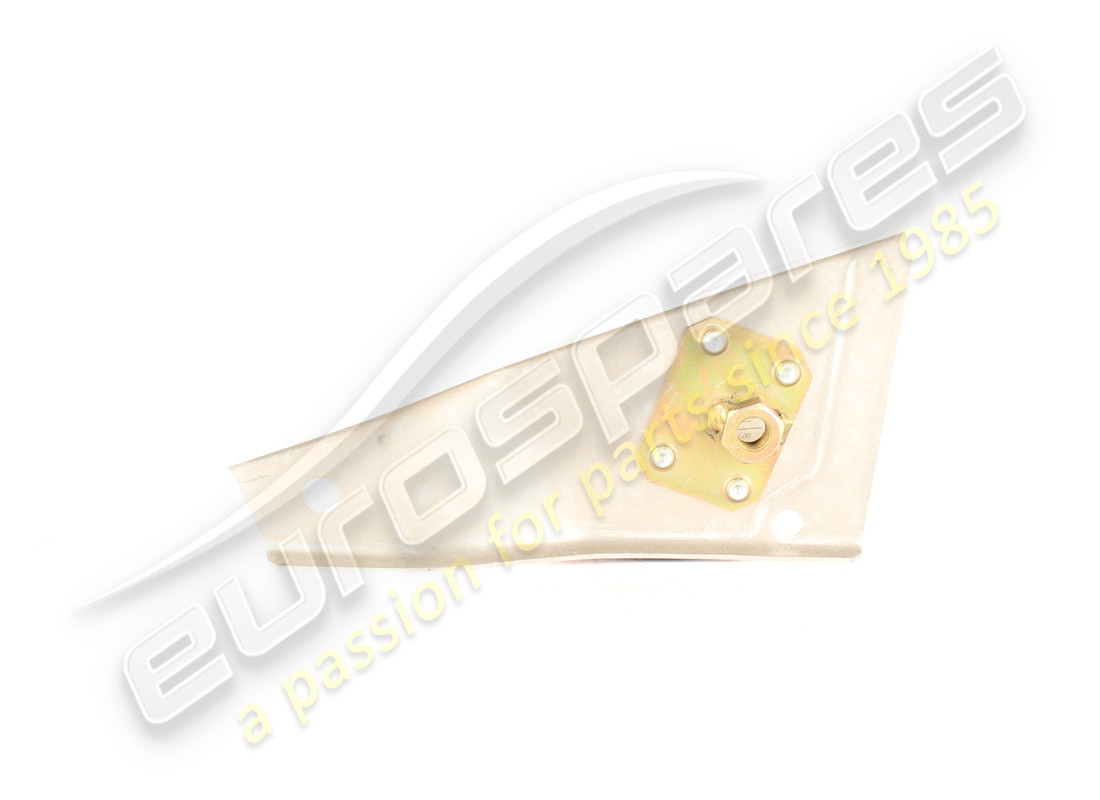

                                                                                                            # 022
                                                                                                            MPN: 64804300
                                                                                                            RH REWINDER FIXING REINFORCEMENT
                                                                                                            from £43.85
                                                                                                            from £43.85
                                                                                                            This part replaces part number 64803900
                                                                                                            RH REAR FIXING Genuine Ferrari Part - New In stock
                                                                                                            # 023
                                                                                                            MPN: 64804400
                                                                                                            LH REWINDER FIXING REINFORCEMENT
                                                                                                            from £75.60
                                                                                                            from £75.60
                                                                                                            This part replaces part number 64804000
                                                                                                            LH REAR FIXING Genuine Ferrari Part - New In stock

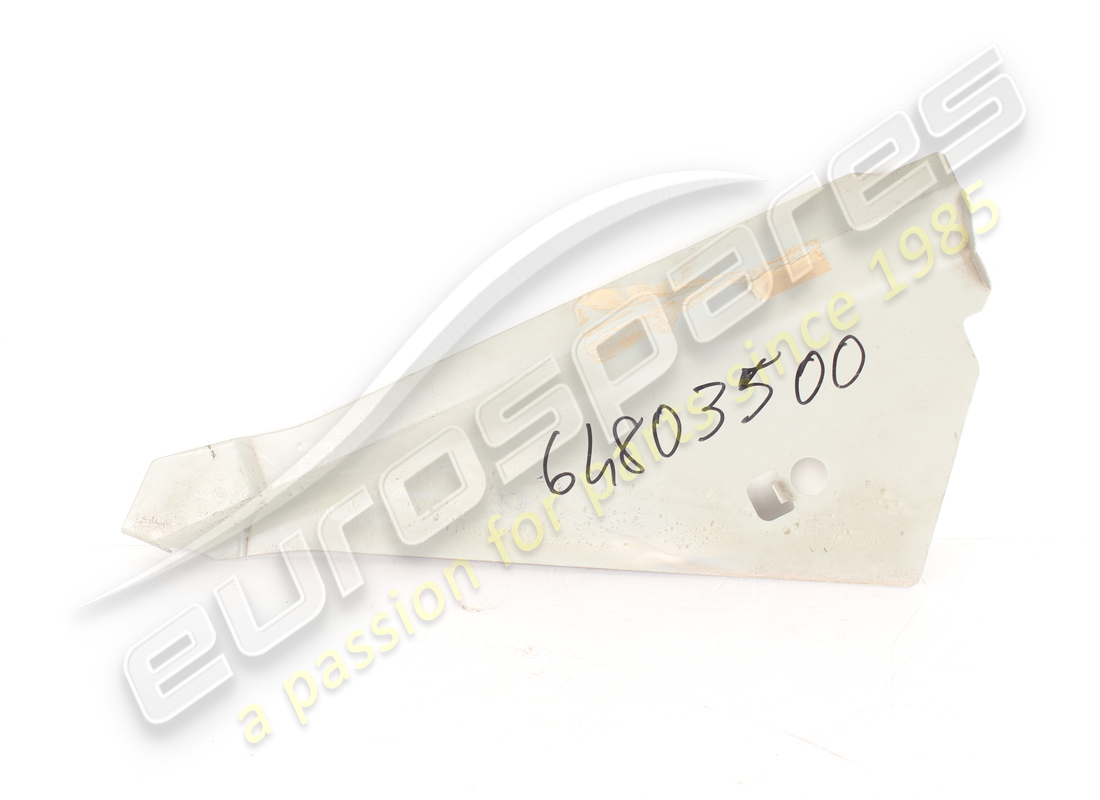

                                                                                                            # 024
                                                                                                            MPN: 64803500
                                                                                                            RH LATERAL MOLDING
                                                                                                            from £7.34
                                                                                                            from £7.34
                                                                                                            This part replaces part number 64803511
                                                                                                            RH LATERAL MOLDING Genuine Ferrari Part - New In stock
                                                                                                            # 025
                                                                                                            MPN: 64803600
                                                                                                            LH LATERAL MOLDING
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 026
                                                                                                            MPN: 196081
                                                                                                            LH REINFORCEMENT
                                                                                                            from £23.27
                                                                                                            from £23.27
                                                                                                            This part replaces part number 985196081
                                                                                                            LH REINFORCEMENT Genuine Ferrari Part - New (to order)
                                                                                                            # 027
                                                                                                            MPN: 196082
                                                                                                            RH REINFORCEMENT
                                                                                                            from £23.27
                                                                                                            from £23.27
                                                                                                            This part replaces part number 985196082
                                                                                                            RH REINFORCEMENT Genuine Ferrari Part - New (to order)
                                                                                                            # 028
                                                                                                            MPN: 14642891
                                                                                                            POP RIVET L. 14 MM
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            ALUMINIUM RIVET 14MM Genuine Ferrari Part - New (to order)
                                                                                                            # 029
                                                                                                            MPN: 65133800
                                                                                                            RIVET L. 6,4 MM
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            RIVET Genuine Ferrari Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: 15180411
                                                                                                            HEXAGONAL RIVET M5
                                                                                                            from £0.91
                                                                                                            from £0.91
                                                                                                            BLIND ESAGONAL RIVET Genuine Ferrari Part - New In stock
                                                                                                            RIVETTO EF/TC CIECO M 6X22.5 Genuine Maserati Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: 15624211
                                                                                                            HEXAGONAL RIVET
                                                                                                            from £0.81
                                                                                                            from £0.81
                                                                                                            ESAGONAL RIVET M4 Genuine Ferrari Part - New In stock
                                                                                                            # 030
                                                                                                            MPN: 15624311
                                                                                                            HEXAGONAL RIVET M5
                                                                                                            from £1.85
                                                                                                            from £1.85
                                                                                                            ESAGONAL RIVET M5 Genuine Ferrari Part - New In stock
                                                                                                            RIVET FOR BRACKET ON INTE Genuine Maserati Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: 15624411
                                                                                                            HEXAGONAL RIVET M6
                                                                                                            from £0.85
                                                                                                            from £0.85
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            RIVET Genuine Maserati Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: 15624511
                                                                                                            HEXAGONAL RIVET M8
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            RIVET 8MM Genuine Ferrari Part - New In stock
                                                                                                            # 031
                                                                                                            MPN: 65151200
                                                                                                            RIVET M6
                                                                                                            from £0.58
                                                                                                            from £0.58
                                                                                                            RIVET M6 Genuine Ferrari Part - New In stock
                                                                                                            # 032
                                                                                                            MPN: 166101
                                                                                                            RIVET M4
                                                                                                            from £1.02
                                                                                                            from £1.02
                                                                                                            RIVET M4 Genuine Ferrari Part - New (to order)
                                                                                                            # 032
                                                                                                            MPN: 60853400
                                                                                                            RIVET M10 BLIND
                                                                                                            from £0.87
                                                                                                            from £0.87
                                                                                                            BLACK POP RIVET - LARGE HEAD - 3.2X8 Genuine Ferrari Part - New (to order)
                                                                                                            # 032
                                                                                                            MPN: 65135000
                                                                                                            RIVET M8
                                                                                                            from £0.69
                                                                                                            from £0.69
                                                                                                            RIVET M8 Genuine Ferrari Part - New In stock
                                                                                                            # 032
                                                                                                            MPN: 65319800
                                                                                                            RIVET M8 BLIND
                                                                                                            from £0.59
                                                                                                            from £0.59
                                                                                                            RIVET M8 BLIND Genuine Ferrari Part - New In stock
                                                                                                            # 032
                                                                                                            MPN: 65930400
                                                                                                            RIVET M6
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            RIVET M6 Genuine Ferrari Part - New In stock
                                                                                                            # 033
                                                                                                            MPN: 65065400
                                                                                                            STUD HEXAGONAL HEAD M6
                                                                                                            from £2.31
                                                                                                            from £2.31
                                                                                                            STUD ESAGONAL HEAD M6 Genuine Ferrari Part - New In stock
                                                                                                            # 034
                                                                                                            MPN: 13836771
                                                                                                            SCREW
                                                                                                            from £1.48
                                                                                                            from £1.48
                                                                                                            SCREW. Genuine Ferrari Part - New In stock
                                                                                                            # 035
                                                                                                            MPN: 66464800
                                                                                                            RH PANEL UPPER FRAME
                                                                                                            from £374.19
                                                                                                            from £374.19
                                                                                                            RH PANEL Genuine Ferrari Part - New In stock
                                                                                                            # 036
                                                                                                            MPN: 66464900
                                                                                                            LH PANEL UPPER FRAME
                                                                                                            from £374.19
                                                                                                            from £374.19
                                                                                                            LH PANEL Genuine Ferrari Part - New In stock
                                                                                                            # 037
                                                                                                            MPN: 69413400
                                                                                                            RH SUPPORT CENTRAL OVERLAP
                                                                                                            from £9.15
                                                                                                            from £9.15
                                                                                                            RH SUPPORT CENTRAL OVERLAP Genuine Ferrari Part - New (to order)
                                                                                                            # 038
                                                                                                            MPN: 69413500
                                                                                                            LH SUPPORT CENTRAL OVERLAP
                                                                                                            from £9.57
                                                                                                            from £9.57
                                                                                                            LH SUPPORT CENTRAL OVERLAP Genuine Ferrari Part - New (to order)
                                                                                                            # 039
                                                                                                            MPN: 181980
                                                                                                            UPPER INNER CORE
                                                                                                            from £171.09
                                                                                                            from £171.09
                                                                                                            This part replaces part number 985181980
                                                                                                            CORE FOR REPAIR Genuine Ferrari Part - New In stock
                                                                                                            # 040
                                                                                                            MPN: 181979
                                                                                                            LOWER INNER CORE
                                                                                                            from £6.39
                                                                                                            from £6.39
                                                                                                            This part replaces part number 985181979
                                                                                                            CORE FOR REPAIR Genuine Ferrari Part - New (to order)
                                                                                                            # 041
                                                                                                            MPN: 65903600
                                                                                                            RH STRIKER REINFORCEMENT
                                                                                                            from £3.32
                                                                                                            from £3.32
                                                                                                            This part replaces part number 65903611
                                                                                                            RH STRIKER REINFORCEMENT. Genuine Ferrari Part - New (to order)
                                                                                                            # 042
                                                                                                            MPN: 65903700
                                                                                                            LH STRIKER REINFORCEMENT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 043
                                                                                                            MPN: 202682
                                                                                                            RH REAR REINFORCEMENT
                                                                                                            from £11.25
                                                                                                            from £11.25
                                                                                                            This part replaces part number 985202682
                                                                                                            RH REAR REINFORCEMENT Genuine Ferrari Part - New (to order)
                                                                                                            # 044
                                                                                                            MPN: 202681
                                                                                                            LH REAR REINFORCEMENT
                                                                                                            from £11.25
                                                                                                            from £11.25
                                                                                                            This part replaces part number 985202681
                                                                                                            LH REAR REINFORCEMENT Genuine Ferrari Part - New (to order)
                                                                                                            # 045
                                                                                                            MPN: 207194
                                                                                                            FRONT CROSS MEMBER FOR PATTERY BIN
                                                                                                            from £78.27
                                                                                                            from £78.27
                                                                                                            This part replaces part number 985207194
                                                                                                            RH FRONT CROSS MEMBER Genuine Ferrari Part - New (to order)
                                                                                                            # 046
                                                                                                            MPN: 207195
                                                                                                            FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING
                                                                                                            from £87.09
                                                                                                            from £87.09
                                                                                                            This part replaces part number 985207195
                                                                                                            LH FRONT CROSS MEMBER Genuine Ferrari Part - New (to order)
                                                                                                            # 047
                                                                                                            MPN: 194132
                                                                                                            LH FRONT REINFORCEMENT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 048
                                                                                                            MPN: 194987
                                                                                                            RH FRONT REINFORCEMENT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                            # 049
                                                                                                            MPN: 207198
                                                                                                            LH REAR REINFORCEMENT
                                                                                                            from £58.87
                                                                                                            from £58.87
                                                                                                            This part replaces part number 194986 - and 3 more. Click to view details
                                                                                                            LH REAR REINFORCEMENT Genuine Ferrari Part - New (to order)
                                                                                                            # 050
                                                                                                            MPN: 207199
                                                                                                            RH REAR REINFORCEMENT
                                                                                                            from £64.23
                                                                                                            from £64.23
                                                                                                            This part replaces part number 194988 - and 1 more. Click to view details
                                                                                                            RH REAR REINFORCEMENT Genuine Ferrari Part - New (to order)
                                                                                                            # 051
                                                                                                            MPN: 181981
                                                                                                            CORE FOR RIPAIR
                                                                                                            from £9.03
                                                                                                            from £9.03
                                                                                                            This part replaces part number 985181981
                                                                                                            CORE FOR REPAIR Genuine Ferrari Part - New (to order)
                                                                                                            # 052
                                                                                                            MPN: 69494300
                                                                                                            ACQUIREMENT CONTROL UNIT BRACKET
                                                                                                            from £15.39
                                                                                                            from £15.39
                                                                                                            ACQUIREMENT CONTROL UNIT BRA Genuine Ferrari Part - New (to order)
                                                                                                            # 053
                                                                                                            MPN: 14641993
                                                                                                            RIVET
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            RIVET Genuine Ferrari Part - New (to order)
                                                                                                            RIVET Genuine Maserati Part - New (to order)
                                                                                                            # 054
                                                                                                            MPN: 69238800
                                                                                                            BRACKET
                                                                                                            from £66.53
                                                                                                            from £66.53
                                                                                                            BRACKET Genuine Ferrari Part - New (to order)
                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
