125 - Front Passenger Compartment Control Stations

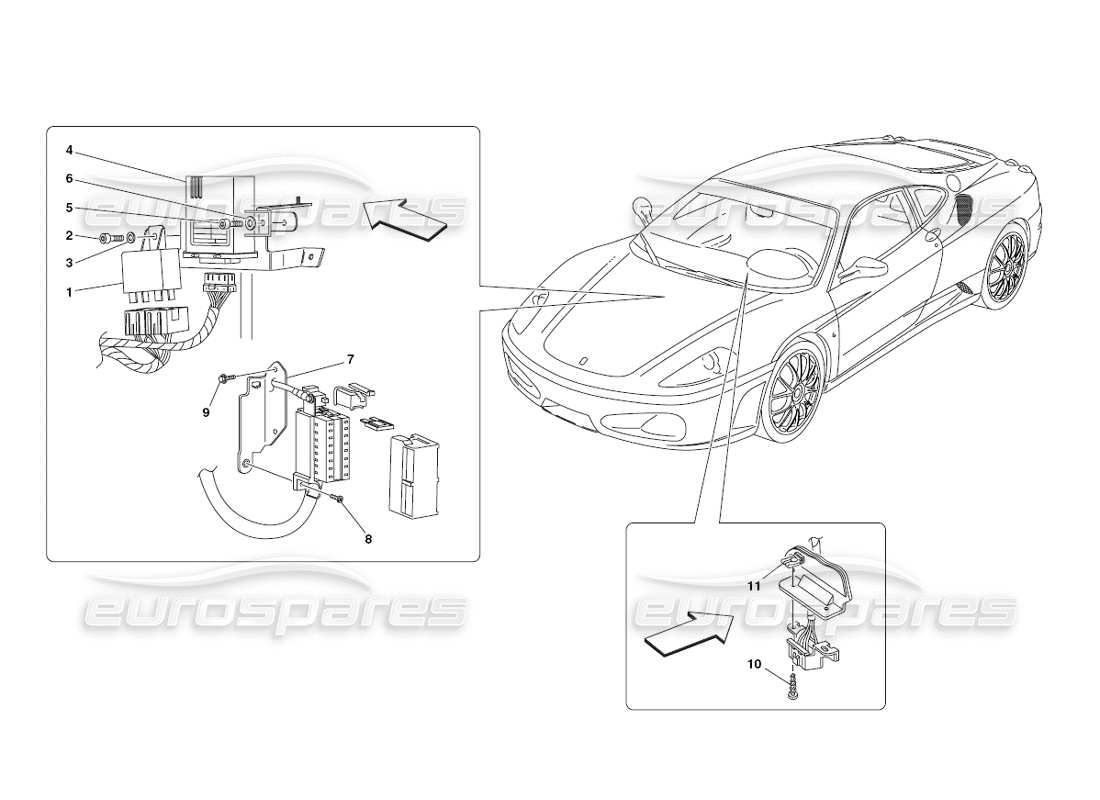

Ferrari 430 Challenge (2006) Front Passenger Compartment Control Stations Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 253060
WINDSHIELD WIPER INTERMITTER
from £52.56
from £52.56
This part replaces part number 180199 which we have in stock
# 002
MPN: 14304324
SCREW
from £0.78
from £0.78
# 003
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 004
MPN: 205713
DIRECTION-EMERGENCY LIGHT RELAY
from £365.46
from £365.46
# 005
MPN: 14304324
SCREW
from £0.78
from £0.78
# 006
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 007
MPN: 68266300
BRACKET
from £7.18
from £7.18
# 008
MPN: 16285127
SCREW
(minimum order quantity = 10)
from £0.53
from £0.53
# 009
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 010
MPN: 15688170
SCREW
from £0.53
from £0.53
This part replaces part number 15688101
# 011
MPN: 40136707
CLIP
from £1.03
from £1.03
