ferrari f430 coupe (europe) front bumper parts diagram

0118 - FRONT BUMPER

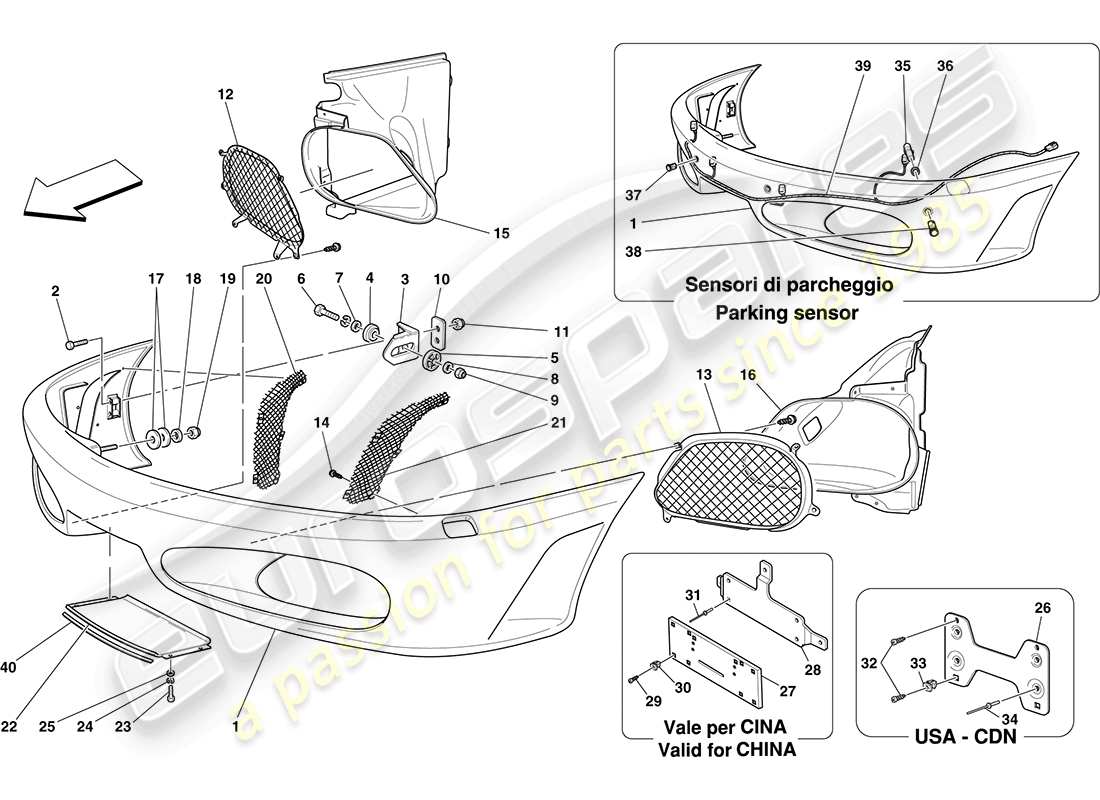

Ferrari F430 Coupe (Europe) FRONT BUMPER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 001
                                          MPN: 83111010
                                          FRONT BUMPER (NO PARKING SENSOR)
                                          -Not for USA, CDN-
                                          from £2,094.75
                                          from £2,094.75
                                          This part replaces part number 67768910
                                          FRONT BUMPER Genuine Ferrari Part - New (to order)
                                          FRONT BUMPER Eurospares Approved Part - New In stock
                                          # 001
                                          MPN: 83111110
                                          FRONT BUMPER
                                          -Parking sensors- -Optional- -Does not contain sensors- -Not for USA, CDN-
                                          from £2,094.75
                                          from £2,094.75
                                          This part replaces part number 69449710
                                          FRONT BUMPER -NOT FOR USA AN Genuine Ferrari Part - New (to order)
                                          FRONT BUMPER Eurospares Approved Part - New In stock
                                          # 001
                                          MPN: 83111210
                                          FRONT BUMPER
                                          -Applicable for USA, CDN-
                                          from £3,482.06
                                          from £3,482.06
                                          This part replaces part number 68637110
                                          FRONT BUMPER USA/CDN.non parking sensor, with headlamp washer holes Genuine Ferrari Part - New (to order)
                                          # 001
                                          MPN: 83111310
                                          FRONT BUMPER
                                          -Parking sensors- -Optional- -Does not contain sensors- -Applicable for USA, CDN-
                                          from £3,482.06
                                          from £3,482.06
                                          This part replaces part number 69450210
                                          FRONT BUMPER -VALID FOR USA Genuine Ferrari Part - New (to order)
                                          # 002
                                          MPN: 16043724
                                          SCREW
                                          from £0.71
                                          from £0.71
                                          This part replaces part number 16043721
                                          SCREW Genuine Ferrari Part - New (to order)
                                          SCREW Genuine Maserati Part - New (to order)
                                          # 003
                                          MPN: 68148300
                                          LATERAL LH BUMPER MOUNTING BRACKET
                                          from £72.05
                                          from £72.05
                                          BUMPER LATERAL FIXING BRACKE Genuine Ferrari Part - New (to order)
                                          # 004
                                          MPN: 62128200
                                          EXTERNAL SPACER
                                          from £0.99
                                          from £0.99
                                          SMALL BLOCK Genuine Ferrari Part - New In stock
                                          # 005
                                          MPN: 62128300
                                          INTERNAL SPACER
                                          from £0.67
                                          from £0.67
                                          This part replaces part number 83203700
                                          SMALL BLOCK Genuine Ferrari Part - New In stock
                                          # 006
                                          MPN: 11307021
                                          SCREW
                                          from £3.48
                                          from £3.48
                                          SCREW Genuine Ferrari Part - New In stock
                                          # 007
                                          MPN: 12646801
                                          WASHER
                                          from £0.76
                                          from £0.76
                                          This part replaces part number 12644682
                                          WASHER Genuine Ferrari Part - New In stock
                                          # 008
                                          MPN: 12601474
                                          WASHER
                                          from £0.54
                                          from £0.54
                                          This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                          WASHER Genuine Ferrari Part - New In stock
                                          WASHER Genuine Maserati Part - New (to order)
                                          # 009
                                          MPN: 104114
                                          NUT
                                          Supersession
                                          Supersession
                                          This part replaces part number 15503711 - and 1 more. Click to view details
                                          Genuine Ferrari Part (no longer available to order)
                                          Genuine Maserati Part (no longer available to order)
                                          # 010
                                          MPN: 62126600
                                          PLATE
                                          from £1.52
                                          from £1.52
                                          PLATE Genuine Ferrari Part - New In stock
                                          PIASTRINA FISS.LAT.PARAUR.AN Genuine Maserati Part - New (to order)
                                          # 011
                                          MPN: 104030
                                          NUT
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 16104125
                                          LOCKING NUT Genuine Ferrari Part - New In stock
                                          LOCKING NUT M8 X 9.5 Genuine Maserati Part - New (to order)
                                          # 012
                                          MPN: 68252900
                                          RH BUMPER GRILLE
                                          -Applicable up to Ass. No. 78059- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 012
                                          MPN: 81034800
                                          RH BUMPER GRILLE
                                          -Applicable from Ass. No. 78060- -Applicable after depletion of 68252900-
                                          from £67.93
                                          from £67.93
                                          This part replaces part number 68252900 - and 1 more. Click to view details
                                          BUMPER RH GRILL Genuine Ferrari Part - New (to order)
                                          BUMPER RH GRILL Genuine Ferrari Part - Used In stock
                                          # 013
                                          MPN: 68253100
                                          LH BUMPER GRILLE
                                          -Applicable up to Ass. No. 78059- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 013
                                          MPN: 81034900
                                          LH BUMPER GRILLE
                                          -Applicable from Ass. No. 78060- -Applicable after depletion of 68253100-
                                          from £123.50
                                          from £123.50
                                          This part replaces part number 68253100
                                          BUMPER LH GRILL Genuine Ferrari Part - New (to order)
                                          # 014
                                          MPN: 15783104
                                          SCREW
                                          -Applicable up to Ass. No. 78059- -Applicable until depletion-
                                          from £3.97
                                          from £3.97
                                          SCREW. Genuine Ferrari Part - New (to order)
                                          # 014
                                          MPN: 15783204
                                          SCREW
                                          -Applicable from Ass. No. 78060- -Applicable after depletion of 15783104-
                                          from £0.51
                                          from £0.51
                                          This part replaces part number 15783201
                                          SCREW Genuine Ferrari Part - New In stock
                                          Alternative (#15689501) SCREW Genuine Ferrari Part - New In stock
                                          # 015
                                          MPN: 67909800
                                          RH AIR DUCT
                                          from £216.06
                                          from £216.06
                                          CONVOGLI ARIA RADIATORE ACQU Genuine Ferrari Part - New (to order)
                                          # 016
                                          MPN: 67909900
                                          LH AIR DUCT
                                          from £164.85
                                          from £164.85
                                          LH AIR INLET Genuine Ferrari Part - New (to order)
                                          # 017
                                          MPN: 65921200
                                          SHIM
                                          -Installed if necessary-
                                          from £1.70
                                          from £1.70
                                          SPACER Genuine Ferrari Part - New In stock
                                          # 018
                                          MPN: 12646801
                                          WASHER
                                          from £0.76
                                          from £0.76
                                          This part replaces part number 12644682
                                          WASHER Genuine Ferrari Part - New In stock
                                          # 019
                                          MPN: 104114
                                          NUT
                                          Supersession
                                          Supersession
                                          This part replaces part number 15503711 - and 1 more. Click to view details
                                          Genuine Ferrari Part (no longer available to order)
                                          Genuine Maserati Part (no longer available to order)
                                          # 020
                                          MPN: 68087100
                                          RH LATERAL GRILLE
                                          from £107.16
                                          from £107.16
                                          RH SIDE GRILL Genuine Ferrari Part - New (to order)
                                          # 021
                                          MPN: 68087200
                                          LH LATERAL GRILLE
                                          from £107.16
                                          from £107.16
                                          LH SIDE GRILL Genuine Ferrari Part - New (to order)
                                          # 022
                                          MPN: 68084110
                                          STD FRONT SPOILER
                                          -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          This part replaces part number 68084100
                                          Genuine Ferrari Part (no longer available to order)
                                          # 022
                                          MPN: 68614900
                                          CARBON FRONT SPOILER
                                          Optional-
                                          from £2,070.34
                                          from £2,070.34
                                          CARBON FRONT SPOILER Genuine Ferrari Part - New In stock
                                          CARBON FRONT SPOILER Genuine Ferrari Part - Used In stock
                                          # 022
                                          MPN: 80866310
                                          STD FRONT SPOILER
                                          -Applicable after depletion of 68084110-
                                          from £535.54
                                          from £535.54
                                          This part replaces part number 68084110
                                          FRONT SPOILER Genuine Ferrari Part - New In stock
                                          # 023
                                          MPN: 10902424
                                          SCREW
                                          from £0.51
                                          from £0.51
                                          This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                          SCREW Genuine Ferrari Part - New In stock
                                          SCREW Genuine Maserati Part - New In stock
                                          # 024
                                          MPN: 12644404
                                          WASHER
                                          from £0.73
                                          from £0.73
                                          WASHER Genuine Ferrari Part - New In stock
                                          WASHER Genuine Maserati Part - New (to order)
                                          # 025
                                          MPN: 12601274
                                          WASHER
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                          WASHER Genuine Ferrari Part - New In stock
                                          WASHER Genuine Maserati Part - New In stock
                                          # 026
                                          MPN: 65886300
                                          LICENSE PLATE MOUNT
                                          -Applicable for USA, CDN-
                                          from £46.84
                                          from £46.84
                                          FRONT PLATE FRAME. Genuine Ferrari Part - New (to order)
                                          # 027
                                          MPN: 68304700
                                          LICENSE PLATE MOUNTING
                                          -Applicable for CINA-
                                          from £59.18
                                          from £59.18
                                          FRONT PLATE FRAME Genuine Ferrari Part - New (to order)
                                          # 028
                                          MPN: 69302500
                                          LICENSE PLATE MOUNTING BRACKET
                                          -Applicable for CINA-
                                          from £89.46
                                          from £89.46
                                          BRACKET FOR NUMBER PLATE SUP Genuine Ferrari Part - New In stock
                                          # 029
                                          MPN: 15687275
                                          SCREW
                                          -Applicable for CINA-
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 15687206
                                          SCREW Genuine Ferrari Part - New In stock
                                          TBIC S-THREAD.SCREW D.3.5X 13 T Genuine Maserati Part - New (to order)
                                          # 030
                                          MPN: 14215480
                                          BLOCK
                                          -Applicable for CINA-
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 14211580
                                          CLIP Genuine Ferrari Part - New In stock
                                          BLOCCHETTO G X VITE AUTO Genuine Maserati Part - New In stock
                                          # 031
                                          MPN: 14641793
                                          RIVET
                                          -Applicable for CINA-
                                          from £0.71
                                          from £0.71
                                          RIVET Genuine Ferrari Part - New (to order)
                                          # 032
                                          MPN: 16084370
                                          SCREW
                                          -Applicable for USA, CDN-
                                          from £0.80
                                          from £0.80
                                          SCREW. Genuine Ferrari Part - New In stock
                                          # 033
                                          MPN: 14201980
                                          BLOCK
                                          -Applicable for USA, CDN-
                                          from £0.54
                                          from £0.54
                                          BLOCK Genuine Ferrari Part - New In stock
                                          BLOCK Genuine Maserati Part - New (to order)
                                          # 034
                                          MPN: 14295696
                                          RIVET
                                          -Applicable for USA, CDN-
                                          from £0.53
                                          from £0.53
                                          RIVET. Genuine Ferrari Part - New In stock
                                          # 035
                                          MPN: 214561
                                          PARKING SENSOR
                                          -Parking sensors- -Optional-
                                          from £108.25
                                          from £108.25
                                          PARKING SENSOR Genuine Ferrari Part - New In stock
                                          HORIZONTAL PARKING SENSOR Genuine Maserati Part - New In stock
                                          # 036
                                          MPN: 223516
                                          GASKET
                                          -Parking sensors- -Optional-
                                          from £4.53
                                          from £4.53
                                          GASKET -PARKING SENSORS- Genuine Ferrari Part - New In stock
                                          PARKING SENSORS GASKET Genuine Maserati Part - New In stock
                                          # 037
                                          MPN: 69880100
                                          CENTRAL AIR VENT TUBE
                                          -Parking sensors- -Optional-
                                          from £93.63
                                          from £93.63
                                          CENTRAL SLEEVE -PARKING SENS Genuine Ferrari Part - New In stock
                                          # 038
                                          MPN: 69318100
                                          PIPE CONNECTOR
                                          -Parking sensors- -Optional-
                                          from £93.63
                                          from £93.63
                                          PIPE CONNECTOR (SENSORS) Genuine Ferrari Part - New In stock
                                          # 039
                                          MPN: 222091
                                          BUMPER CABLE WITH PARKING SENSORS
                                          -Parking sensors- -Optional-
                                          from £278.88
                                          from £278.88
                                          BUMPER CABLE WITH PARKING SE Genuine Ferrari Part - New In stock
                                          BUMPER CABLE WITH PARKING SE Genuine Ferrari Part - Used In stock
                                          # 040
                                          MPN: 69489400
                                          GUARD
                                          from £11.32
                                          from £11.32
                                          CRUSCHED STONE ADHESIVE PROT Genuine Ferrari Part - New (to order)
