0138 - ANTITHEFT SYSTEM ECUs AND DEVICES

Ferrari F430 Coupe (Europe) ANTITHEFT SYSTEM ECUs AND DEVICES Parts Diagram

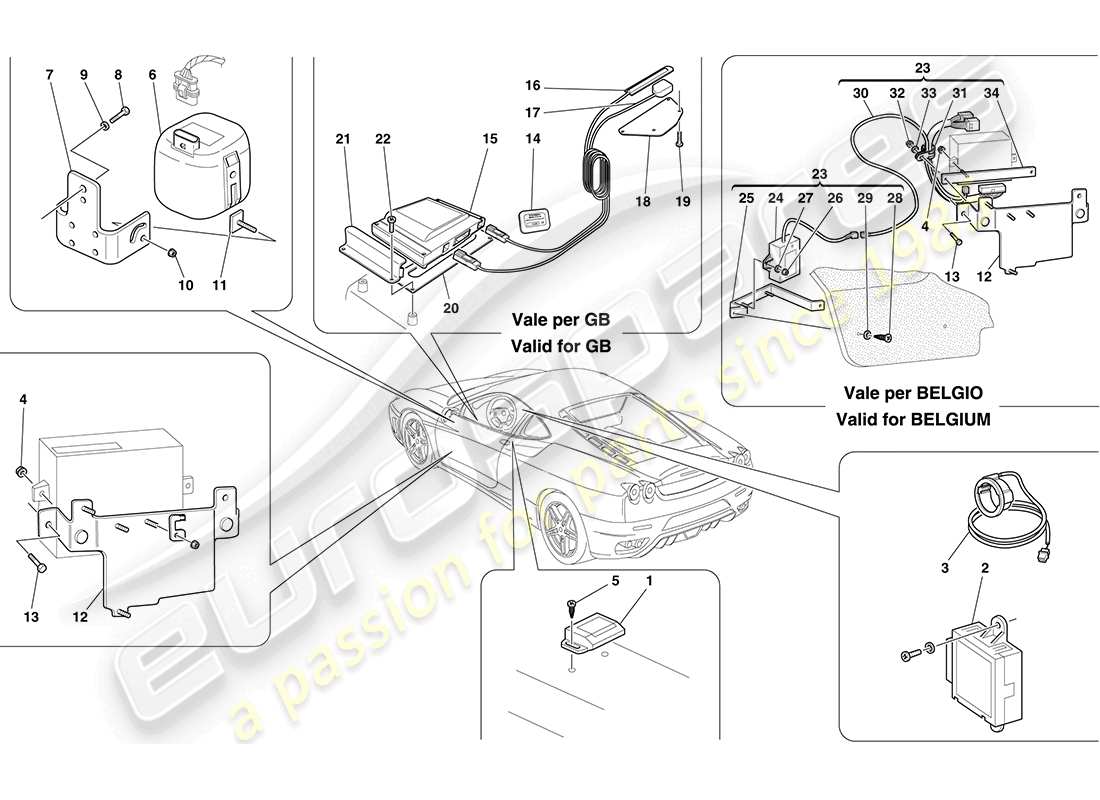

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 186594
                      ANTI-LIFT SENSOR
                      from £135.28
                      from £135.28
                      ANTI-LIFT SENSOR Genuine Ferrari Part - New (to order)
                      ANTI-LIFT SENSOR M160 Genuine Maserati Part - New (to order)
                      # 002
                      MPN: 60673131
                      ECU IMMOBILIZER
                      from £108.32
                      from £108.32
                      This part replaces part number 171754 - and 2 more. Click to view details
                      IMMOBILIZER CONTROL STATION Genuine Ferrari Part - New (to order)
                      CENTR. IMMOBILIZER HITAG II Genuine Maserati Part - New (to order)
                      IMMOBILIZER CONTROL STATION Genuine Ferrari Part - Used In stock
                      # 003
                      MPN: 60692064
                      ANTENNA IMMOBILIZER
                      from £11.80
                      from £11.80
                      This part replaces part number 60674641
                      IMMOBILIZER ANTENNA Genuine Ferrari Part - New (to order)
                      IMMOBILIZER ANTENNA Genuine Maserati Part - New (to order)
                      # 004
                      MPN: 62790300
                      NUT
                      from £0.53
                      from £0.53
                      This part replaces part number 12574011 - and 1 more. Click to view details
                      NUT Genuine Ferrari Part - New In stock
                      NUT Genuine Maserati Part - New (to order)
                      # 005
                      MPN: 10444624
                      SCREW
                      -No longer supplied- -Replaced by 13272011-
                      from £0.53
                      from £0.53
                      SCREW. Genuine Ferrari Part - New In stock
                      # 005
                      MPN: 13272011
                      SCREW
                      from £0.53
                      from £0.53
                      SCREW Genuine Ferrari Part - New (to order)
                      SCREW Genuine Ferrari Part - New (to order)
                      TCIC PZ SCREW M4X12 Genuine Maserati Part - New (to order)
                      # 006
                      MPN: 186593
                      SELF-SUSTAINING SIREN
                      -Applicable until depletion-
                      from £131.25
                      from £131.25
                      Genuine Ferrari Part (no longer available to order)
                      ALARM SIREN SC1 Genuine Maserati Part - New (to order)
                      ALARM SIREN SC1 Genuine Maserati Part - Used In stock
                      # 006
                      MPN: 243877
                      SELF-SUSTAINING SIREN
                      -Applicable after depletion of 186593-
                      from £92.00
                      from £92.00
                      This part replaces part number 186593 - and 2 more. Click to view details
                      SIREN Genuine Ferrari Part - New In stock
                      SIREN Genuine Ferrari Part - Used In stock
                      # 008
                      MPN: 16051921
                      SCREW
                      from £0.86
                      from £0.86
                      SCREW Genuine Ferrari Part - New In stock
                      SCREW Genuine Maserati Part - New (to order)
                      # 009
                      MPN: 10519624
                      WASHER
                      from £0.54
                      from £0.54
                      This part replaces part number 10519601 - and 3 more. Click to view details
                      WASHER Genuine Ferrari Part - New In stock
                      WASHER Genuine Maserati Part - New In stock
                      # 010
                      MPN: 102948
                      NUT
                      from £0.54
                      from £0.54
                      This part replaces part number 12574211 - and 3 more. Click to view details
                      NUT Genuine Ferrari Part - New In stock
                      DADO E NYLON STOP M 6X8 Genuine Maserati Part - New (to order)
                      # 011
                      MPN: 179810
                      SCREW
                      from £2.71
                      from £2.71
                      SCREW Genuine Ferrari Part - New In stock
                      # 012
                      MPN: 67912000
                      BRACKET
                      -No longer supplied- -Replaced by 69743500-
                      from £22.37
                      from £22.37
                      BRACKET Genuine Ferrari Part - New (to order)
                      # 012
                      MPN: 69743500
                      BRACKET
                      from £26.57
                      from £26.57
                      BRACKET Genuine Ferrari Part - New (to order)
                      # 013
                      MPN: 16286024
                      SCREW
                      from £0.53
                      from £0.53
                      VITE TE FLANGIATA M 6X16 Genuine Ferrari Part - New In stock
                      SCREW. Genuine Maserati Part - New (to order)
                      # 014
                      MPN: 226183
                      ADR3 CARD
                      -Applicable for satellite alarm system- -Applicable for UK-
                      This part replaces part number 226128
                      ADR3 CARD Genuine Ferrari Part - New (to order)
                      # 014
                      MPN: 226183
                      ADR3 CARD
                      -Applicable for satellite alarm system- -Optional- -Not for UK, J-
                      This part replaces part number 226128
                      ADR3 CARD Genuine Ferrari Part - New (to order)
                      # 015
                      MPN: 226129
                      ADR3 ECU
                      -Applicable for satellite alarm system- -Applicable for UK-
                      from £1,046.38
                      from £1,046.38
                      ADR3 CONTROL STATION -VALID Genuine Ferrari Part - New (to order)
                      ADR3 CONTROL STATION -VALID Genuine Ferrari Part - Used In stock
                      # 015
                      MPN: 226129
                      ADR3 ECU
                      -Applicable for satellite alarm system- -Optional- -Not for UK, J-
                      from £1,046.38
                      from £1,046.38
                      ADR3 CONTROL STATION -VALID Genuine Ferrari Part - New (to order)
                      ADR3 CONTROL STATION -VALID Genuine Ferrari Part - Used In stock
                      # 016
                      MPN: 226131
                      GSM ANTENNA-PHANTOM 918
                      -Applicable for satellite alarm system- -Applicable for UK-
                      from £19.71
                      from £19.71
                      GSM ANTENNA-PHANTOM 918 -VAL Genuine Ferrari Part - New In stock
                      GSM ANTENNA Genuine Maserati Part - New (to order)
                      GSM ANTENNA-PHANTOM 918 -VAL Genuine Ferrari Part - Used In stock
                      # 016
                      MPN: 226131
                      GSM ANTENNA-PHANTOM 918
                      -Applicable for satellite alarm system- -Optional- -Not for UK, J-
                      from £19.71
                      from £19.71
                      GSM ANTENNA-PHANTOM 918 -VAL Genuine Ferrari Part - New In stock
                      GSM ANTENNA Genuine Maserati Part - New (to order)
                      GSM ANTENNA-PHANTOM 918 -VAL Genuine Ferrari Part - Used In stock
                      # 017
                      MPN: 226130
                      GPS ANTENNA-SM76 MINI GPS
                      -Applicable for satellite alarm system- -Applicable for UK-
                      from £33.07
                      from £33.07
                      GPS ANTENNA-SM76 MINI GPS -V Genuine Ferrari Part - New In stock
                      GPS ANTENNA Genuine Maserati Part - New (to order)
                      GPS ANTENNA-SM76 MINI GPS -V Genuine Ferrari Part - Used In stock
                      # 017
                      MPN: 226130
                      GPS ANTENNA-SM76 MINI GPS
                      -Applicable for satellite alarm system- -Optional- -Not for UK, J-
                      from £33.07
                      from £33.07
                      GPS ANTENNA-SM76 MINI GPS -V Genuine Ferrari Part - New In stock
                      GPS ANTENNA Genuine Maserati Part - New (to order)
                      GPS ANTENNA-SM76 MINI GPS -V Genuine Ferrari Part - Used In stock
                      # 018
                      MPN: 69082100
                      PLATE
                      -Applicable for satellite alarm system- -Applicable for UK-
                      from £5.24
                      from £5.24
                      PLATE Genuine Ferrari Part - New (to order)
                      # 018
                      MPN: 69082100
                      PLATE
                      -Applicable for satellite alarm system- -Optional- -Not for UK, J-
                      from £5.24
                      from £5.24
                      PLATE Genuine Ferrari Part - New (to order)
                      # 019
                      MPN: 15900270
                      SCREW
                      -Applicable for satellite alarm system- -Applicable for UK-
                      from £0.53
                      from £0.53
                      SCREW Genuine Ferrari Part - New In stock
                      # 019
                      MPN: 15900270
                      SCREW
                      -Applicable for satellite alarm system- -Optional- -Not for UK, J-
                      from £0.53
                      from £0.53
                      SCREW Genuine Ferrari Part - New In stock
                      # 020
                      MPN: 69732800
                      LOWER PLATE
                      -Applicable for satellite alarm system- -Applicable for UK-
                      from £12.97
                      from £12.97
                      LOWER PLATE Genuine Ferrari Part - New (to order)
                      # 020
                      MPN: 69732800
                      LOWER PLATE
                      -Applicable for satellite alarm system- -Optional- -Not for UK, J-
                      from £12.97
                      from £12.97
                      LOWER PLATE Genuine Ferrari Part - New (to order)
                      # 021
                      MPN: 69733000
                      UPPER PLATE
                      -Applicable for satellite alarm system- -Applicable for UK-
                      from £17.15
                      from £17.15
                      UPPER PLATE Genuine Ferrari Part - New (to order)
                      # 021
                      MPN: 69733000
                      UPPER PLATE
                      -Applicable for satellite alarm system- -Optional- -Not for UK, J-
                      from £17.15
                      from £17.15
                      UPPER PLATE Genuine Ferrari Part - New (to order)
                      # 022
                      MPN: 14779611
                      SCREW
                      -Applicable for satellite alarm system- -Applicable for UK-
                      from £1.80
                      from £1.80
                      VITE TCCIC M 5X 10 Genuine Ferrari Part - New (to order)
                      # 022
                      MPN: 14779611
                      SCREW
                      -Applicable for satellite alarm system- -Optional- -Not for UK, J-
                      from £1.80
                      from £1.80
                      VITE TCCIC M 5X 10 Genuine Ferrari Part - New (to order)
                      # 023
                      MPN: 222626
                      ANTI-THEFT KIT
                      -Applicable for Belgium-
                      from £508.83
                      from £508.83
                      ANTI-TEFT FOR BELGIUM KIT Genuine Ferrari Part - New (to order)
                      # 024
                      MPN: 220908
                      VOLUMETRIC SENSOR
                      -Applicable for Belgium-
                      from £191.91
                      from £191.91
                      SENSOR FOR BELGIUM. Genuine Ferrari Part - New (to order)
                      # 025
                      MPN: 69344700
                      BRACKET
                      -Applicable for Belgium-
                      from £16.40
                      from £16.40
                      BRACKET Genuine Ferrari Part - New (to order)
                      # 026
                      MPN: 62790300
                      NUT
                      -Applicable for Belgium-
                      from £0.53
                      from £0.53
                      This part replaces part number 12574011 - and 1 more. Click to view details
                      NUT Genuine Ferrari Part - New In stock
                      NUT Genuine Maserati Part - New (to order)
                      # 027
                      MPN: 10519224
                      WASHER
                      -Applicable for Belgium-
                      from £0.54
                      from £0.54
                      This part replaces part number 10519201 which we have in stock
                      WASHER Genuine Ferrari Part - New In stock
                      SPLIT WASHER.D. 4.30- 9 X 0 Genuine Maserati Part - New In stock
                      # 028
                      MPN: 13309177
                      SCREW
                      -Applicable for Belgium-
                      from £0.71
                      from £0.71
                      SCREW 4X14 Genuine Ferrari Part - New (to order)
                      # 029
                      MPN: 12611307
                      WASHER
                      -Applicable for Belgium-
                      from £0.71
                      from £0.71
                      WASHER Genuine Ferrari Part - New (to order)
                      WASHER Genuine Maserati Part - New (to order)
                      # 030
                      MPN: 220909
                      CONNECTION CABLES
                      -Applicable for Belgium-
                      from £52.92
                      from £52.92
                      CABLE FOR BELGIUM CONTRL UNI Genuine Ferrari Part - New (to order)
                      # 031
                      MPN: 10441490
                      BRACKET WITH SHEATH
                      -Applicable for Belgium-
                      from £0.53
                      from £0.53
                      CLAMP Genuine Ferrari Part - New In stock
                      BRACKET Genuine Maserati Part - New (to order)
                      # 032
                      MPN: 62790300
                      NUT
                      -Applicable for Belgium-
                      from £0.54
                      from £0.54
                      This part replaces part number 12574011 - and 1 more. Click to view details
                      NUT Genuine Ferrari Part - New In stock
                      NUT Genuine Maserati Part - New (to order)
                      # 033
                      MPN: 10519224
                      WASHER
                      -Applicable for Belgium-
                      from £0.54
                      from £0.54
                      This part replaces part number 10519201 which we have in stock
                      WASHER Genuine Ferrari Part - New In stock
                      SPLIT WASHER.D. 4.30- 9 X 0 Genuine Maserati Part - New In stock
                      # 034
                      MPN: 69344800
                      ECU FASTENER BRACKET
                      -Applicable for Belgium-
                      from £6.27
                      from £6.27
                      BRACKET Genuine Ferrari Part - New (to order)
