ferrari f430 coupe (rhd) crankshaft - connecting rods and pistons parts diagram

0002 - crankshaft - connecting rods and pistons

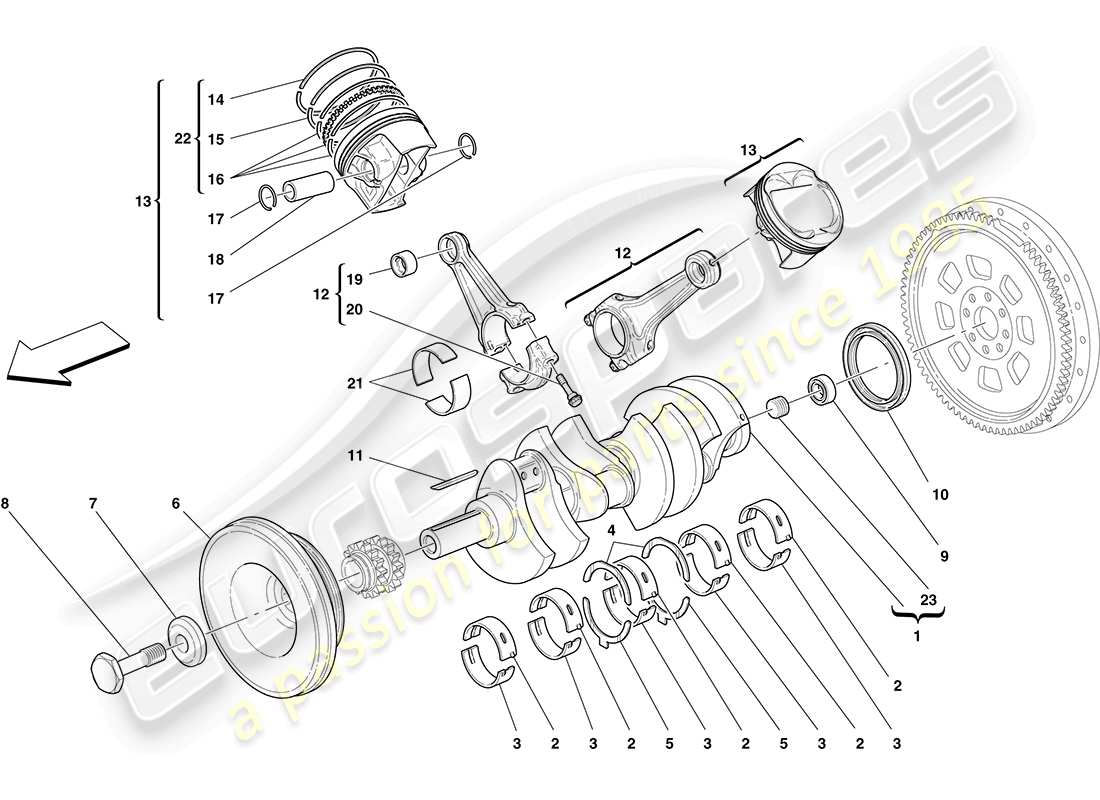

Ferrari F430 Coupe (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 196460
                      crankshaft
                      from £5,407.81
                      from £5,407.81
                      crankshaft Genuine Ferrari Part - New (to order)
                      # 002
                      MPN: 195307
                      UPPER HALF-BEARING
                      -Blue- -Standard-
                      from £31.79
                      from £31.79
                      UPPER HALF BEARING -BLUE- -S Genuine Ferrari Part - New (to order)
                      Genuine Maserati Part (no longer available to order)
                      # 002
                      MPN: 195308
                      UPPER HALF-BEARING
                      -Yellow-
                      from £15.01
                      from £15.01
                      UPPER HALF BEARING -YELLOW- Genuine Ferrari Part - New (to order)
                      Genuine Maserati Part (no longer available to order)
                      # 002
                      MPN: 198910
                      UPPER HALF-BEARING
                      -Green-
                      from £15.01
                      from £15.01
                      UPPER HALF BEARING -GREEN- Genuine Ferrari Part - New (to order)
                      Genuine Maserati Part (no longer available to order)
                      # 003
                      MPN: 200194
                      LOWER HALF-BEARING
                      -Blue- -Standard-
                      from £17.25
                      from £17.25
                      LOWER HALF BEARING -BLUE- -S Genuine Ferrari Part - New (to order)
                      LOWER HALF-BEARING,BLU Genuine Maserati Part - New (to order)
                      # 003
                      MPN: 200195
                      LOWER HALF-BEARING
                      -Yellow-
                      from £12.75
                      from £12.75
                      LOWER HALF BEARING -YELLOW- Genuine Ferrari Part - New In stock
                      LOWER HALF-BEARING,YELLOW Genuine Maserati Part - New In stock
                      # 003
                      MPN: 200196
                      LOWER HALF-BEARING
                      -Green-
                      from £13.96
                      from £13.96
                      LOWER HALF BEARING -GREEN- Genuine Ferrari Part - New (to order)
                      LOWER HALF-BEARING,GREEN Genuine Maserati Part - New In stock
                      # 004
                      MPN: 196648
                      UPPER SHIM RING
                      -Applicable up to Ass. No. 72741-
                      from £174.74
                      from £174.74
                      UPPER SHIM Genuine Ferrari Part - New (to order)
                      UPPER SHIMMING RING Genuine Maserati Part - New (to order)
                      # 004
                      MPN: 222874
                      SHIM RING
                      -Applicable for crankcase 236095 Tab. 1 pos.1- -Applicable from Ass. No. 72742-
                      from £16.79
                      from £16.79
                      SHIM Genuine Ferrari Part - New In stock
                      ENGINE SHIMMING Genuine Maserati Part - New (to order)
                      # 005
                      MPN: 196649
                      LOWER SHIM RING
                      -Applicable up to Ass. No. 72741-
                      from £59.51
                      from £59.51
                      LOWER SHIM Genuine Ferrari Part - New In stock
                      LOWER SHIMMING RING Genuine Maserati Part - New (to order)
                      # 005
                      MPN: 222874
                      SHIM RING
                      -Applicable for crankcase 236095 Tab. 1 pos.1- -Applicable from Ass. No. 72742-
                      from £16.79
                      from £16.79
                      SHIM Genuine Ferrari Part - New In stock
                      ENGINE SHIMMING Genuine Maserati Part - New (to order)
                      # 006
                      MPN: 212322
                      torsion damper
                      from £393.75
                      from £393.75
                      TORSION DAMPER PULLEY Genuine Ferrari Part - New (to order)
                      TORSION DAMPER PULLEY Genuine Ferrari Part - Used In stock
                      Damaged (see photo)
                      # 007
                      MPN: 192106
                      WASHER
                      from £3.67
                      from £3.67
                      WASHER. Genuine Ferrari Part - New (to order)
                      ROSETTA LAVORATA D.20,5-52X7 Genuine Maserati Part - New (to order)
                      # 008
                      MPN: 196216
                      TORSION DAMPER FASTENER SCREW
                      from £25.12
                      from £25.12
                      SCREW FOR DAMPER FIXING Genuine Ferrari Part - New (to order)
                      SCREW FAST.TORS.DAMPER TO CRANKSH Genuine Maserati Part - New (to order)
                      SCREW FAST.TORS.DAMPER TO CRANKSH Genuine Maserati Part - Used In stock
                      Removed from 4200 engine 81090
                      # 009
                      MPN: 103877
                      BEARING
                      from £18.43
                      from £18.43
                      This part replaces part number 24940440
                      BALL BEARING Genuine Ferrari Part - New In stock
                      BALL BEARING, 30-35 X 1 Genuine Maserati Part - New In stock
                      # 010
                      MPN: 200323
                      SEAL RING
                      from £24.95
                      from £24.95
                      This part replaces part number 163989 - and 1 more. Click to view details
                      OIL SEAL Genuine Ferrari Part - New In stock
                      OIL SEAL Genuine Maserati Part - New In stock
                      REAR MAIN OIL SEAL Original Equipment - New In stock
                      # 010
                      MPN: 205080
                      SEAL RING
                      -Alternative solution-
                      Supersession
                      Supersession
                      Genuine Ferrari Part (no longer available to order)
                      # 011
                      MPN: 186201
                      TAB
                      from £0.69
                      from £0.69
                      KEI Genuine Ferrari Part - New In stock
                      CRANKSHAFT TAB 6X6X70 Genuine Maserati Part - New In stock
                      # 012
                      MPN: 208080
                      COMPL. CONNECTING ROD AND CAP
                      -Applicable until depletion-
                      from £176.27
                      from £176.27
                      CONNECTING ROD Genuine Ferrari Part - New In stock
                      # 012
                      MPN: 215529
                      COMPL. CONNECTING ROD AND CAP
                      -Applicable with phosphatised screw- -Applicable up to Ass. No. 76458- -Applicable after depletion of 208080-
                      Supersession
                      Supersession
                      This part replaces part number 208080 which we have in stock
                      Genuine Ferrari Part (no longer available to order)
                      Genuine Maserati Part (no longer available to order)
                      # 012
                      MPN: 244888
                      COMPL. CONNECTING ROD AND CAP
                      -Not applicable with phosphatised screw- -Applicable from Ass. No. 76459-
                      from £1,192.54
                      from £1,192.54
                      This part replaces part number 215529
                      COMPLETE CONNECTING ROD Genuine Ferrari Part - New (to order)
                      BIELLA E CAPPELLO COMPLETA Genuine Maserati Part - New (to order)
                      # 013
                      MPN: 210360
                      PISTON COMPL. WITH RINGS, RH CYLINDER BANK
                      from £462.07
                      from £462.07
                      RH PISTON WITH RINGS Genuine Ferrari Part - New (to order)
                      # 013
                      MPN: 210361
                      PISTON COMPL. WITH RINGS, LH CYLINDER BANK
                      from £462.07
                      from £462.07
                      LH PISTON WITH RINGS Genuine Ferrari Part - New (to order)
                      # 014
                      MPN: 175612
                      SEAL RING
                      -1st groove- -Not available as spare part- -With complete piston ring set ref. 22-
                      from £64.38
                      from £64.38
                      Genuine Ferrari Part (no longer available to order)
                      MOLYBDENUM SEALING RING Genuine Maserati Part - New In stock
                      # 015
                      MPN: 187201
                      SEAL RING
                      -2nd groove- -Not available as spare part- -With complete piston ring set ref. 22-
                      from £18.47
                      from £18.47
                      Genuine Ferrari Part (no longer available to order)
                      2ND RACE TORSION SEALING RIN Genuine Maserati Part - New In stock
                      # 016
                      MPN: 175614
                      OIL SCRAPER RING
                      -3rd groove- -Not available as spare part- -With complete piston ring set ref. 22-
                      from £62.51
                      from £62.51
                      PISTON RING Genuine Ferrari Part - New (to order)
                      OIL SCRAPER RING ROF Genuine Maserati Part - New In stock
                      # 017
                      MPN: 178890
                      STOP RING
                      -Applicable until depletion-
                      from £3.24
                      from £3.24
                      This part replaces part number 189521
                      PIN CLIP Genuine Ferrari Part - New (to order)
                      STOP RING D. 20 Genuine Maserati Part - New (to order)
                      # 018
                      MPN: 175367
                      GUDGEON PIN
                      -Applicable until depletion-
                      from £38.71
                      from £38.71
                      PIN. Genuine Ferrari Part - New In stock
                      SPINOTTO Genuine Maserati Part - New In stock
                      # 019
                      MPN: 208094
                      BUSHING
                      from £15.38
                      from £15.38
                      Genuine Ferrari Part (no longer available to order)
                      BUSHING Genuine Maserati Part - New (to order)
                      # 020
                      MPN: 208095
                      CON. ROD FASTENER SCREW
                      -No longer supplied- -Replaced by 215530-
                      from £40.28
                      from £40.28
                      CONNECTING ROD TIGHTENING SC Genuine Ferrari Part - New (to order)
                      # 020
                      MPN: 208095
                      CON. ROD FASTENER SCREW
                      -Applicable from Ass. No. 76459-
                      from £40.28
                      from £40.28
                      CONNECTING ROD TIGHTENING SC Genuine Ferrari Part - New (to order)
                      # 020
                      MPN: 215530
                      CON. ROD FASTENER SCREW
                      -Phosphatised- -Applicable up to Ass. No. 76458-
                      from £44.52
                      from £44.52
                      CONNECTING ROD TIGHTENING SC Genuine Ferrari Part - New (to order)
                      CONNECTING ROD TIGHTENING SCREW Genuine Maserati Part - New (to order)
                      # 020
                      MPN: 215836
                      CON. ROD FASTENER SCREW
                      -Alternative solution- -No longer supplied- -Replaced by 215530-
                      CONNECTING ROD BOLT Genuine Ferrari Part - New (to order)
                      # 020
                      MPN: 215837
                      CON. ROD FASTENER SCREW
                      -Alternative solution- -No longer supplied- -Replaced by 215530-
                      CONNECTING ROD BOLT Genuine Ferrari Part - New (to order)
                      # 021
                      MPN: 204290
                      CONNECTING ROD HALF-BEARING
                      -Red- -Standard-
                      from £4.82
                      from £4.82
                      CONNECTING ROD HALF BEARING -RED- Genuine Ferrari Part - New In stock
                      CONNECTING ROD HALF-BEARING,RED Genuine Maserati Part - New (to order)
                      # 021
                      MPN: 204291
                      CONNECTING ROD HALF-BEARING
                      -Blue-
                      from £4.82
                      from £4.82
                      CONNECTING ROD HALF BEARING -BLUE- Genuine Ferrari Part - New In stock
                      CONNECTING ROD HALF-BEARING,BLU Genuine Maserati Part - New In stock
                      # 021
                      MPN: 204292
                      CONNECTING ROD HALF-BEARING
                      -Black-
                      from £4.82
                      from £4.82
                      CONNECTING ROD HALF BEARING -BLACK- Genuine Ferrari Part - New In stock
                      CONNECTING ROD HALF-BEARING,BLACK Genuine Maserati Part - New (to order)
                      # 022
                      MPN: 198025
                      COMPLETE PISTON RING SET
                      from £97.38
                      from £97.38
                      PISTONS RINGS SET. Genuine Ferrari Part - New (to order)
                      PISTONS RINGS SET Genuine Maserati Part - New (to order)
                      # 023
                      MPN: 163528
                      THREADED PLUG
                      from £2.45
                      from £2.45
                      This part replaces part number 10268450 - and 1 more. Click to view details
                      PLUG Genuine Ferrari Part - New In stock
                      TAPERED THREADED PLUG D.20X11 Genuine Maserati Part - New (to order)
