0009 - fuel system pumps and pipes

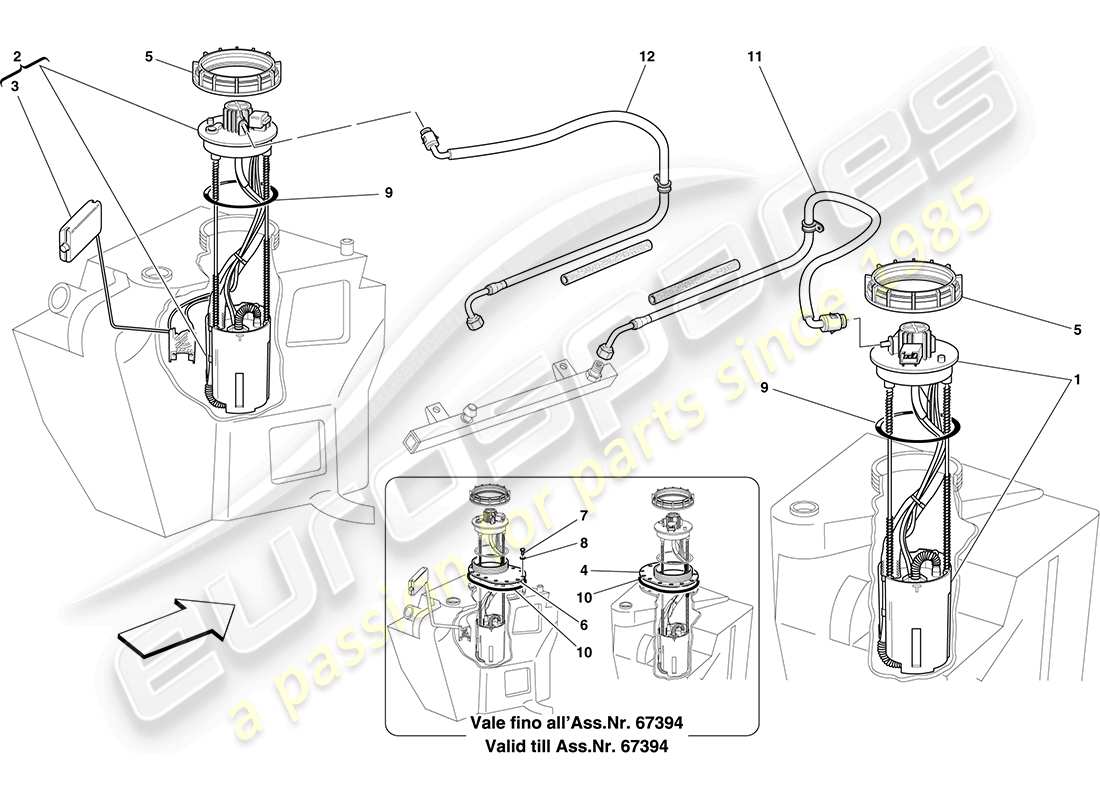

Ferrari F430 Coupe (RHD) FUEL SYSTEM PUMPS AND PIPES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 195804
            COMPLETE RH FUEL PUMP
            -No longer supplied- -Replaced by 239820-
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 001
            MPN: 239820
            COMPLETE RH FUEL PUMP
            from £160.39
            from £160.39
            This part replaces part number 195804 - and 1 more. Click to view details
            RH COMPLETE FUEL PUMP Genuine Ferrari Part - New In stock
            RH COMPLETE FUEL PUMP Original Equipment - New In stock
            RH COMPLETE FUEL PUMP Genuine Ferrari Part - Used In stock
            # 002
            MPN: 195805
            LH FUEL PUMP AND COMPLETE FUEL LEVEL INDICATOR MECHANISM
            -No longer supplied- -Replaced by 239821-
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 002
            MPN: 239821
            LH FUEL PUMP AND COMPLETE FUEL LEVEL INDICATOR MECHANISM
            from £183.24
            from £183.24
            This part replaces part number 195805 - and 1 more. Click to view details
            LH COMPLETE FUEL PUMP AND FUEL LEVER INDICATOR MECHANISM Genuine Ferrari Part - New In stock
            LH COMPLETE FUEL PUMP AND FUEL LEVER INDICATOR MECHANISM Original Equipment - New In stock
            LH COMPLETE FUEL PUMP AND FUEL LEVER INDICATOR MECHANISM Genuine Ferrari Part - Used In stock
            # 003
            MPN: 196124
            FUEL SENSOR
            from £111.67
            from £111.67
            FUEL LEVEL INDICATOR Genuine Ferrari Part - New (to order)
            # 004
            MPN: 196100
            RH PUMP MOUNT COVER
            -Applicable up to Ass. No. 67394-
            from £69.62
            from £69.62
            RH PUMP SUPPORT COVER Genuine Ferrari Part - New (to order)
            # 005
            MPN: 181682
            RING NUT
            from £7.78
            from £7.78
            RING NUT. Genuine Ferrari Part - New In stock
            PUMP FASTENING RING NUT Genuine Maserati Part - New (to order)
            RING NUT. Genuine Ferrari Part - Used In stock
            # 006
            MPN: 196101
            LH PUMP MOUNT COVER
            -Applicable up to Ass. No. 67394-
            from £70.34
            from £70.34
            LH PUMP SUPPORT COVER Genuine Ferrari Part - New (to order)
            # 007
            MPN: 10977624
            SCREW
            -Applicable up to Ass. No. 67394-
            from £0.48
            from £0.48
            This part replaces part number 10977611 - and 1 more. Click to view details
            SCREW Genuine Ferrari Part - New (to order)
            SCREW FOR GEARBOX OIL FIL Genuine Maserati Part - New (to order)
            # 008
            MPN: 12601174
            WASHER
            -Applicable up to Ass. No. 67394-
            from £0.50
            from £0.50
            This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
            WASHER Genuine Ferrari Part - New In stock
            WASHER Genuine Maserati Part - New In stock
            # 009
            MPN: 181681
            GASKET
            from £11.67
            from £11.67
            gasket. Genuine Ferrari Part - New In stock
            PUMP FASTENING RING NUT GASKET Genuine Maserati Part - New In stock
            # 010
            MPN: 196834
            O-RING
            -Applicable up to Ass. No. 67394-
            from £12.81
            from £12.81
            O.R. GASKET Genuine Ferrari Part - New (to order)
            # 011
            MPN: 208831
            RH CONNECTOR PIPE
            from £79.31
            from £79.31
            RH CONNECTION PIPE Genuine Ferrari Part - New In stock
            RH CONNECTION PIPE Genuine Ferrari Part - Used In stock
            # 012
            MPN: 208829
            LH CONNECTOR PIPE
            from £79.31
            from £79.31
            LH CONNECTION PIPE Genuine Ferrari Part - New In stock
            LH CONNECTION PIPE Genuine Ferrari Part - Used In stock
