ferrari f430 coupe (rhd) clutch and controls parts diagram

0023 - Clutch and Controls

Ferrari F430 Coupe (RHD) CLUTCH AND CONTROLS Parts Diagram

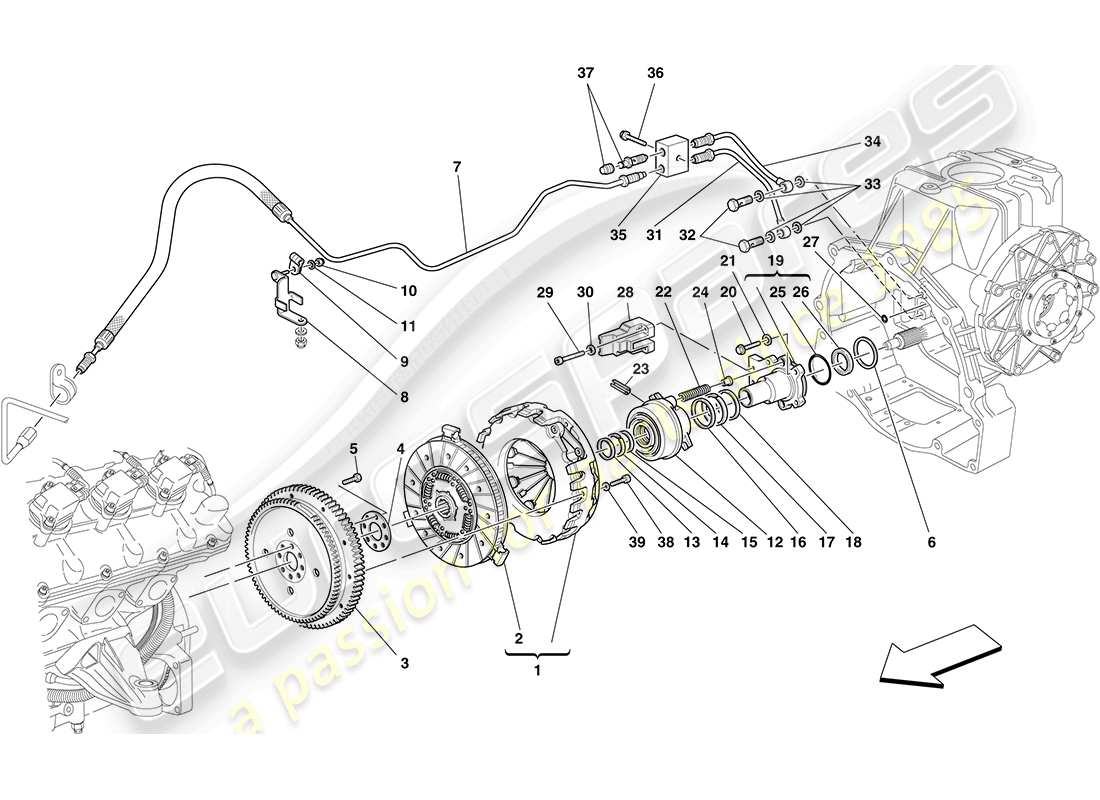

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 204411
COMPLETE CLUTCH
-Not for F1 gearbox- -No longer supplied- -Replaced by 222090-
Supersession
Supersession
This part replaces part number 206500
Genuine Ferrari Part (no longer available to order)
# 001
MPN: 222090
COMPLETE CLUTCH
-Not for F1 gearbox-
from £1,868.73
from £1,868.73
This part replaces part number 204411
CLUTCH KIT Genuine Ferrari Part - New In stock
# 002
MPN: 206500
CLUTCH PLATE
-Not for F1 gearbox- -No longer supplied-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 003
MPN: 202566
COMPLETE ENGINE FLYWHEEL
-Not for F1 gearbox- -No longer supplied- -Replaced by 230425-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 003
MPN: 230425
COMPLETE ENGINE FLYWHEEL
-Not for F1 gearbox-
from £1,350.11
from £1,350.11
This part replaces part number 202566
COMPLETE ENGINE FLYWHEEL Genuine Ferrari Part - New In stock
# 004
MPN: 103876
FLYWHEEL FASTENING WASHER
-Not for F1 gearbox-
from £2.74
from £2.74
This part replaces part number 12833 - and 1 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
Genuine Maserati Part (no longer available to order)
WASHER Genuine Ferrari Part - Used In stock
# 005
MPN: 103875
SCREW
-Not for F1 gearbox- -No longer supplied- -Replaced by 201755-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 005
MPN: 201755
SCREW
-Not for F1 gearbox-
from £1.16
from £1.16
This part replaces part number 103875
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New In stock
# 006
MPN: 173360
SHIM
-Installed if necessary- -Not for F1 gearbox-
from £10.26
from £10.26
FLANGE SHIM Genuine Ferrari Part - New (to order)
FLANGE SHIM Genuine Maserati Part - New (to order)
# 007
MPN: 207386
CLUTCH CONTROL HOSE
-Applicable up to Ass. No. 58632- -Not for F1 gearbox-
from £176.62
from £176.62
PIPE FROM PUMP TO REAR UNION Genuine Ferrari Part - New (to order)
# 007
MPN: 219377
CLUTCH CONTROL HOSE
-Applicable from Ass. No. 58633- -Not for F1 gearbox-
from £205.73
from £205.73
CLUTCH HOSE Genuine Ferrari Part - New (to order)
# 008
MPN: 178342
TUBE FASTENING BRACKET
-Not for F1 gearbox-
from £55.62
from £55.62
BRACKET Genuine Ferrari Part - New (to order)
# 009
MPN: 10440990
BRACKET WITH SHEATH
-Not for F1 gearbox-
from £0.85
from £0.85
CLAMP Genuine Ferrari Part - New In stock
PIPE BRACKET WITH SHEATH Genuine Maserati Part - New (to order)
# 010
MPN: 102741
NUT
-Not for F1 gearbox-
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
NUT Genuine Ferrari Part - New In stock
NUT Genuine Maserati Part - New In stock
# 011
MPN: 10730114
WASHER
-Not for F1 gearbox-
from £0.54
from £0.54
WASHER Genuine Ferrari Part - New In stock
# 012
MPN: 234943

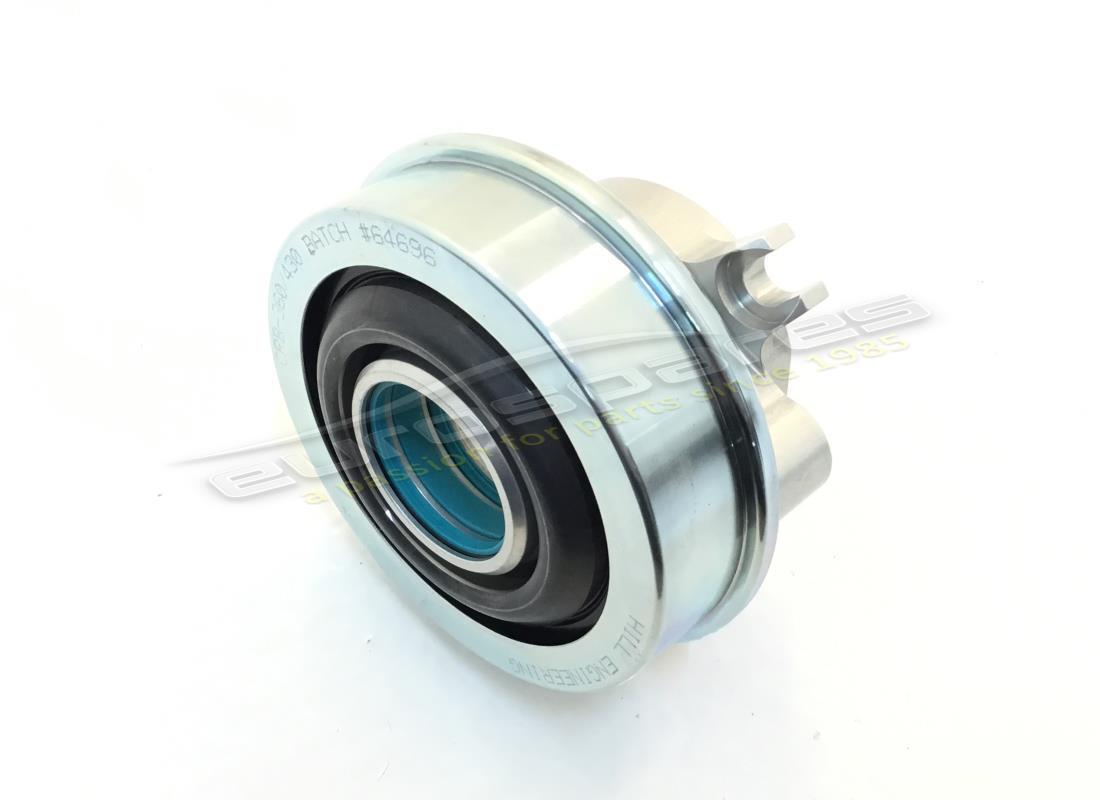

Clutch Bearing
Valid for manual cars (without seals)
from £495.00
from £495.00
This part replaces part number 208310 - and 1 more. Click to view details
CLUTCH RELEASE BEARING WITHOUT SEALS Genuine Ferrari Part - New (to order)
Alternative (#234953) CLUTCH RELEASE BEARING WITH SEALS (Note: Maserati part complete with seals) Genuine Maserati Part - New In stock
Maserati part complete with seals
# 012
MPN: 234943/A
CLUTCH BEARING WITH SEALS
Valid for manual cars
from £414.75
from £414.75
CLUTCH BEARING WITH SEALS Genuine Ferrari Part - New (to order)
CLUTCH RELEASE Eurospares Approved Part - New In stock
# 013
MPN: 172970
SCRAPER RING
-Not for F1 gearbox-
from £12.41
from £12.41
SCRAPER RING Genuine Ferrari Part - New In stock
SCRAPER RING D.33 Genuine Maserati Part - New (to order)
# 014
MPN: 208014
RING
-Not for F1 gearbox-
from £3.27
from £3.27
RING Genuine Ferrari Part - New In stock
# 015
MPN: 172972
SEAL RING
-Not for F1 gearbox-
from £12.78
from £12.78
SEAL RING Genuine Ferrari Part - New In stock
SEALING RING D.33 Genuine Maserati Part - New (to order)
# 016
MPN: 154508
SEAL RING
-Not for F1 gearbox-
from £22.87
from £22.87
SEALING RING Genuine Ferrari Part - New In stock
SEALING RING Genuine Maserati Part - New (to order)
# 017
MPN: 154507
RING
-Not for F1 gearbox-
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
SEALING RING Genuine Ferrari Part - New In stock
SLIDING RING D.44 Genuine Maserati Part - New (to order)
# 018
MPN: 154551
SCRAPER RING
-Not for F1 gearbox-
from £16.63
from £16.63
SCRAPER RING Genuine Ferrari Part - New In stock
SCRAPER RING D.44 Genuine Maserati Part - New (to order)
# 019
MPN: 207539
COMPL. BEARING MOUNTING FLANGE
-Not for F1 gearbox-
from £554.40
from £554.40
This part replaces part number 193793 - and 1 more. Click to view details
COMPLETE BEARING SUPPORT FLA Genuine Ferrari Part - New (to order)
COMPLETE BEARING SUPPORT FLA Eurospares Approved Part - New In stock
# 020
MPN: 16052024
SCREW
-Not for F1 gearbox-
from £1.39
from £1.39
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New (to order)
# 021
MPN: 12601374
WASHER
-Not for F1 gearbox-
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 022
MPN: 155207
PRE-TIGHTENING SPRING
-Not for F1 gearbox-
from £2.25
from £2.25
SPRING Genuine Ferrari Part - New In stock
PRESSURE PLATE PRELOAD SPRING Genuine Maserati Part - New In stock
SPRING Eurospares Approved Part - New (to order)
# 023
MPN: 14604170
SPRING PIN
-Not for F1 gearbox-
from £0.54
from £0.54
FLEXIBLE PIN. Genuine Ferrari Part - New In stock
# 024
MPN: 155206
SPRING SHIM
-Not for F1 gearbox- -No longer supplied-
from £1.82
from £1.82
SPACER Genuine Ferrari Part - New (to order)
SPACER FOR THRUST BEARING SPRING Genuine Maserati Part - New (to order)
# 025
MPN: 136140
O-RING
-Not for F1 gearbox-
from £0.73
from £0.73
GASKET Genuine Ferrari Part - New In stock
O-RING D.50.52X1 Genuine Maserati Part - New (to order)
# 026
MPN: 172363
SEAL RING
-Not for F1 gearbox-
from £15.00
from £15.00
SEAL RING Genuine Ferrari Part - New (to order)
SEALING RING 30x47x7 Genuine Maserati Part - New (to order)
SEAL RING Eurospares Approved Part - New In stock
# 027
MPN: 121813
O-RING
-Not for F1 gearbox-
from £0.53
from £0.53
O-RING Genuine Ferrari Part - New (to order)
# 028
MPN: 201160
MOUNTING
-Not for F1 gearbox-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 029
MPN: 14358524
SCREW
-Not for F1 gearbox-
from £0.53
from £0.53
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New (to order)
# 030
MPN: 10519378
WASHER
-Not for F1 gearbox-
from £0.54
from £0.54
This part replaces part number 10519377 which we have in stock - and 2 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
SPLIT WASHER.D. 5.30-10 X 1 Genuine Maserati Part - New In stock
# 031
MPN: 180183
CLUTCH CONTROL PIPE
-Not for F1 gearbox- -No longer supplied- -Replaced by 242066-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 031
MPN: 242066
CLUTCH CONTROL PIPE
-Not for F1 gearbox-
from £38.90
from £38.90
This part replaces part number 180183 - and 1 more. Click to view details
CLUTCH CONTROL TUBE Genuine Ferrari Part - New (to order)
CLUTCH CONTROL TUBE Genuine Ferrari Part - Used In stock
# 032
MPN: 11903811
PIPE UNION
-Not for F1 gearbox-
from £1.51
from £1.51
UNION Genuine Ferrari Part - New (to order)
UNION Genuine Maserati Part - New (to order)
UNION Genuine Ferrari Part - Used In stock
# 033
MPN: 10284460
GASKET
-Not for F1 gearbox-
from £0.47
from £0.47
GASKET Genuine Ferrari Part - New In stock
GASKET Genuine Maserati Part - New In stock
GASKET Original Equipment - New In stock
# 034
MPN: 180184
BLEED SYSTEM PIPE
-Not for F1 gearbox- -No longer supplied- -Replaced by 242074-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 034
MPN: 242074
BLEED SYSTEM PIPE
-Not for F1 gearbox-
from £73.03
from £73.03
This part replaces part number 180184
BLEEDER SYSTEM PIPE Genuine Ferrari Part - New (to order)
# 035
MPN: 196918
BLOCK
-Applicable up to Ass. No. 72729- -Not for F1 gearbox- -No longer supplied- -Replaced by 235706-
from £86.48
from £86.48
This part replaces part number 167101
Genuine Ferrari Part (no longer available to order)
UNION Eurospares Approved Part - New (to order)
# 035
MPN: 235706
BLOCK
-Replaces 196918- -Applicable from Ass. No. 72730- -Not for F1 gearbox-
from £80.84
from £80.84
This part replaces part number 196918 - and 1 more. Click to view details
Union Block Genuine Ferrari Part - New In stock
Uprated Clutch Block Eurospares Approved Part - New In stock
Union Block Genuine Ferrari Part - Used In stock
# 036
MPN: 16286324
SCREW
-L. 30 mm- -Not for F1 gearbox-
from £0.54
from £0.54
This part replaces part number 16286321
SCREW Genuine Ferrari Part - New In stock
# 037
MPN: 121699
BLEED SCREW
-Replaced by 152954- -Applicable up to Ass. No. 72729- -Not for F1 gearbox- -No longer supplied-
from £11.66
from £11.66
SCREW Genuine Ferrari Part - New (to order)
VITE DI SPURGO CON CAPUCCIO Genuine Maserati Part - New (to order)
# 037
MPN: 152954
BLEED SCREW
-Replaces 121699- -Applicable from Ass. No. 72730- -Not for F1 gearbox-
from £3.30
from £3.30
SCREW Genuine Ferrari Part - New In stock
BLEEDING SCREW Genuine Maserati Part - New (to order)
# 038
MPN: 204385
SCREW
-Not for F1 gearbox-
from £5.10
from £5.10
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Ferrari Part - Used In stock
# 039
MPN: 11194379
WASHER
-Not for F1 gearbox-
from £0.53
from £0.53
This part replaces part number 11194377
WASHER Genuine Ferrari Part - New In stock
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
