ferrari f430 coupe (rhd) clutch and controls parts diagram

0024 - Clutch and Controls

Ferrari F430 Coupe (RHD) CLUTCH AND CONTROLS Parts Diagram

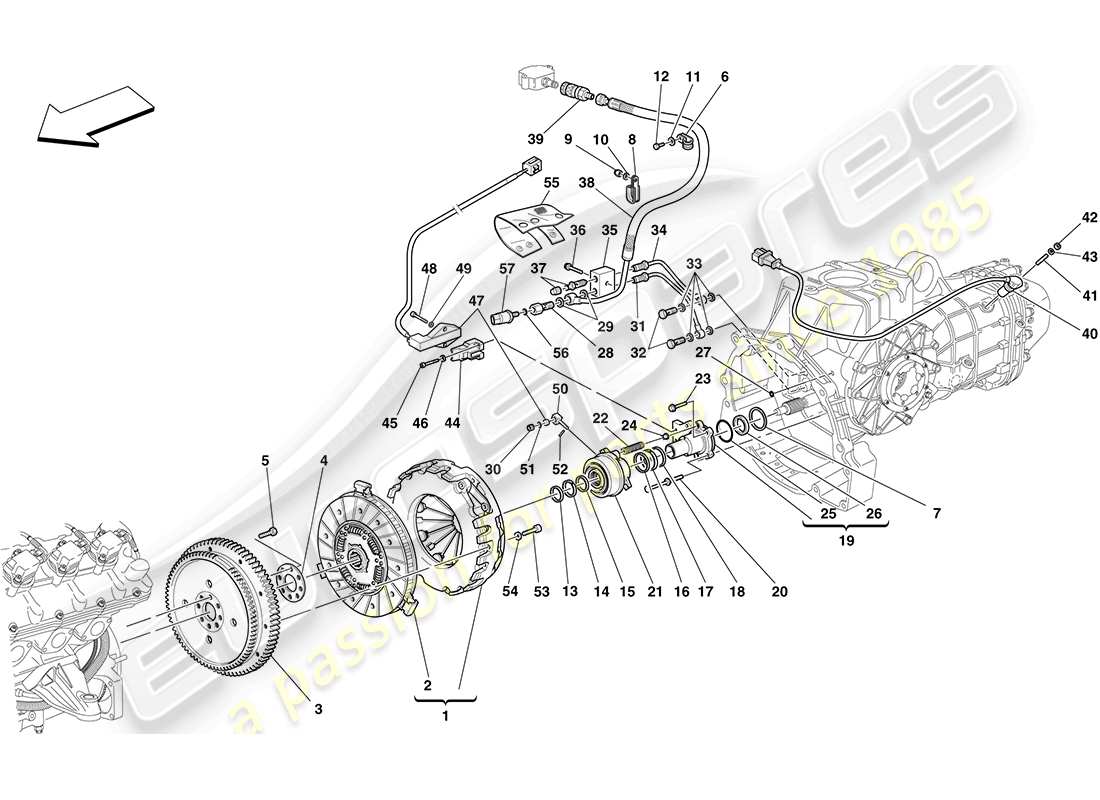

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 204411
COMPLETE CLUTCH
-Applicable for F1 gearbox- -No longer supplied- -Replaced by 222090-
Supersession
Supersession
This part replaces part number 206500
Genuine Ferrari Part (no longer available to order)
# 001
MPN: 222090
COMPLETE CLUTCH
-Applicable for F1 gearbox-
from £1,868.73
from £1,868.73
This part replaces part number 204411
CLUTCH KIT Genuine Ferrari Part - New In stock
# 002
MPN: 206500
CLUTCH PLATE
-Applicable for F1 gearbox- -No longer supplied-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 003
MPN: 202566
COMPLETE ENGINE FLYWHEEL
-Applicable for F1 gearbox- -No longer supplied- -Replaced by 230425-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 003
MPN: 230425
COMPLETE ENGINE FLYWHEEL
-Applicable for F1 gearbox-
from £1,350.11
from £1,350.11
This part replaces part number 202566
COMPLETE ENGINE FLYWHEEL Genuine Ferrari Part - New In stock
# 004
MPN: 103876
FLYWHEEL FASTENING WASHER
-Applicable for F1 gearbox-
from £2.74
from £2.74
This part replaces part number 12833 - and 1 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
Genuine Maserati Part (no longer available to order)
WASHER Genuine Ferrari Part - Used In stock
# 005
MPN: 201755
SCREW
-Applicable for F1 gearbox-
from £1.16
from £1.16
This part replaces part number 103875
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New In stock
# 006
MPN: 121834
BRACKET
-Applicable for F1 gearbox-
from £2.55
from £2.55
BRACKET WITH SHEATH Genuine Ferrari Part - New In stock
# 007
MPN: 173360
SHIM
-Installed if necessary- -Applicable for F1 gearbox-
from £10.26
from £10.26
FLANGE SHIM Genuine Ferrari Part - New (to order)
FLANGE SHIM Genuine Maserati Part - New (to order)
# 008
MPN: 139512
BRACKET WITH SHEATH
-Applicable for F1 gearbox-
from £1.61
from £1.61
BRACKET Genuine Ferrari Part - New In stock
BRACKET WITH SHEATH Genuine Maserati Part - New In stock
# 009
MPN: 102741
NUT
-Applicable for F1 gearbox-
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
NUT Genuine Ferrari Part - New In stock
NUT Genuine Maserati Part - New In stock
# 010
MPN: 14496424
WASHER
-Applicable for F1 gearbox-
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 011
MPN: 14496424
WASHER
-Applicable for F1 gearbox-
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 012
MPN: 10979424
SCREW
-Applicable for F1 gearbox-
from £0.53
from £0.53
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New (to order)
# 013
MPN: 181837
SCRAPER RING
-Applicable for F1 gearbox-
from £13.30
from £13.30
SCRAPER RING Genuine Ferrari Part - New In stock
SCRAPER RING D.33 Genuine Maserati Part - New (to order)
# 014
MPN: 208014
RING
-Applicable for F1 gearbox-
from £3.27
from £3.27
RING Genuine Ferrari Part - New In stock
# 015
MPN: 181838
SEAL RING
-Applicable for F1 gearbox-
from £12.46
from £12.46
SEAL RING Genuine Ferrari Part - New In stock
SEALING RING D.33 Genuine Maserati Part - New (to order)
# 016
MPN: 181828
SEAL RING
-Applicable for F1 gearbox-
from £15.54
from £15.54
SEAL RING Genuine Ferrari Part - New (to order)
SEALING RING D=44 Genuine Maserati Part - New (to order)
# 017
MPN: 154507
RING
-Applicable for F1 gearbox-
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
SEALING RING Genuine Ferrari Part - New In stock
SLIDING RING D.44 Genuine Maserati Part - New (to order)
# 018
MPN: 181836
SCRAPER RING
-Applicable for F1 gearbox-
from £14.64
from £14.64
SCRAPER RING Genuine Ferrari Part - New (to order)
SCRAPER RING D.44 Genuine Maserati Part - New (to order)
# 019
MPN: 207539
COMPL. BEARING MOUNTING FLANGE
-Applicable for F1 gearbox-
from £554.40
from £554.40
This part replaces part number 193793 - and 1 more. Click to view details
COMPLETE BEARING SUPPORT FLA Genuine Ferrari Part - New (to order)
COMPLETE BEARING SUPPORT FLA Eurospares Approved Part - New In stock
# 020
MPN: 201171
END STOP STUD BOLT
-Applicable for F1 gearbox-
from £14.75
from £14.75
STUD FOR END OF STROKE Genuine Ferrari Part - New In stock
STUD FOR END OF STROKE Eurospares Approved Part - New (to order)
# 022
MPN: 155207
PRE-TIGHTENING SPRING
-Applicable for F1 gearbox-
from £2.25
from £2.25
SPRING Genuine Ferrari Part - New In stock
PRESSURE PLATE PRELOAD SPRING Genuine Maserati Part - New In stock
SPRING Eurospares Approved Part - New (to order)
# 023
MPN: 16052024
SCREW
-Applicable for F1 gearbox-
from £1.39
from £1.39
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New (to order)
# 024
MPN: 155206
SPRING SHIM
-Applicable for F1 gearbox- -No longer supplied-
from £1.82
from £1.82
SPACER Genuine Ferrari Part - New (to order)
SPACER FOR THRUST BEARING SPRING Genuine Maserati Part - New (to order)
# 025
MPN: 136140
O-RING
-Applicable for F1 gearbox-
from £0.73
from £0.73
GASKET Genuine Ferrari Part - New In stock
O-RING D.50.52X1 Genuine Maserati Part - New (to order)
# 026
MPN: 172363
SEAL RING
-Applicable for F1 gearbox-
from £15.00
from £15.00
SEAL RING Genuine Ferrari Part - New (to order)
SEALING RING 30x47x7 Genuine Maserati Part - New (to order)
SEAL RING Eurospares Approved Part - New In stock
# 027
MPN: 166432
O-RING
-Applicable for F1 gearbox-
from £0.53
from £0.53
GASKET Genuine Ferrari Part - New In stock
O.R. GASKET Genuine Maserati Part - New (to order)
# 028
MPN: 171454
PIPE UNION
-Applicable up to Ass. No. 74556- -Applicable for F1 gearbox-
from £26.41
from £26.41
UNION Genuine Ferrari Part - New In stock
FILLER-NECK FOR M12X1 UNION Genuine Maserati Part - New (to order)
# 028
MPN: 199410
PIPE UNION
-Applicable from MY 08- -Applicable from Ass. No. 74557- -Applicable for F1 gearbox-
from £37.56
from £37.56
UNION Genuine Ferrari Part - New (to order)
FILLER NECK FOR ADJUSTABLE UNION Genuine Maserati Part - New (to order)
# 029
MPN: 10261060
GASKET
-Applicable for F1 gearbox-
from £0.53
from £0.53
GASKET Genuine Ferrari Part - New In stock
GASKET 12- 16X 1.5 Genuine Maserati Part - New In stock
# 030
MPN: 167802
CAP
-Applicable for F1 gearbox-
from £21.56
from £21.56
EXTERNAL SENSOR PLUG Genuine Ferrari Part - New In stock
SENSOR MOUNT PLUG Genuine Maserati Part - New (to order)
# 031
MPN: 180183
CLUTCH CONTROL PIPE
-Applicable for F1 gearbox-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 032
MPN: 11903811
PIPE UNION
-Applicable for F1 gearbox-
from £1.51
from £1.51
UNION Genuine Ferrari Part - New (to order)
UNION Genuine Maserati Part - New (to order)
UNION Genuine Ferrari Part - Used In stock
# 033
MPN: 10284460
GASKET
-Applicable for F1 gearbox-
from £0.47
from £0.47
GASKET Genuine Ferrari Part - New In stock
GASKET Genuine Maserati Part - New In stock
GASKET Original Equipment - New In stock
# 034
MPN: 180184
BLEED SYSTEM PIPE
-Applicable for F1 gearbox-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 035
MPN: 196918
BLOCK
-Applicable up to Ass. No. 72729- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 235706-
from £86.48
from £86.48
This part replaces part number 167101
Genuine Ferrari Part (no longer available to order)
UNION Eurospares Approved Part - New (to order)
# 035
MPN: 235706
BLOCK
-Replaces 196918- -Applicable from Ass. No. 72730- -Applicable for F1 gearbox-
from £80.84
from £80.84
This part replaces part number 196918 - and 1 more. Click to view details
Union Block Genuine Ferrari Part - New In stock
Uprated Clutch Block Eurospares Approved Part - New In stock
Union Block Genuine Ferrari Part - Used In stock
# 036
MPN: 16286324
SCREW
-L. 30 mm- -Applicable for F1 gearbox-
from £0.54
from £0.54
This part replaces part number 16286321
SCREW Genuine Ferrari Part - New In stock
# 037
MPN: 121699
BLEED SCREW
-Applicable up to Ass. No. 72729- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 152954-
from £11.66
from £11.66
SCREW Genuine Ferrari Part - New (to order)
VITE DI SPURGO CON CAPUCCIO Genuine Maserati Part - New (to order)
# 037
MPN: 152954
BLEED SCREW
-Replaces 121699- -Applicable from Ass. No. 72730- -Applicable for F1 gearbox-
from £3.30
from £3.30
SCREW Genuine Ferrari Part - New In stock
BLEEDING SCREW Genuine Maserati Part - New (to order)
# 038
MPN: 174554
COMPLETE CLUTCH PIPE
-Applicable up to Ass. No. 72729- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 236790-
from £295.52
from £295.52
Genuine Ferrari Part (no longer available to order)
CLUTCH PIPE COMPLETE Genuine Ferrari Part - Used In stock
# 038
MPN: 236790
COMPLETE CLUTCH PIPE
-Replaces 174554- -Applicable from Ass. No. 72730- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 239429-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 038
MPN: 239429
COMPLETE CLUTCH PIPE
-Applicable for F1 gearbox-
from £444.79
from £444.79
This part replaces part number 174554 which we have in stock - and 5 more. Click to view details
CLUTCH CONTROL PIPE Genuine Ferrari Part - New (to order)
CLUTCH CONTROL PIPE Genuine Ferrari Part - Used In stock
# 039
MPN: 210469
FEMALE QUICK COUPLING
-Applicable for F1 gearbox- -No longer supplied- -Replaced by 225148-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 039
MPN: 225148
FEMALE QUICK COUPLING
-Applicable for F1 gearbox-
from £40.94
from £40.94
This part replaces part number 210469 - and 3 more. Click to view details
FEMALE COUPLING Genuine Ferrari Part - New (to order)
FEMALE QUICK-COUPLING Genuine Maserati Part - New (to order)
FEMALE COUPLING Genuine Ferrari Part - Used In stock
# 040
MPN: 168729
ELECTROMAGNETIC SENSOR
-Applicable for F1 gearbox-
from £70.27
from £70.27
ELETROMAGNETIC SENSOR Genuine Ferrari Part - New In stock
ELECTROMAGNETIC SENSOR Genuine Maserati Part - New (to order)
ELETROMAGNETIC SENSOR Genuine Ferrari Part - Used In stock
# 041
MPN: 11500124
STUD BOLT
-Applicable for F1 gearbox-
from £0.69
from £0.69
This part replaces part number 11500121
STUD Genuine Ferrari Part - New (to order)
PART Genuine Maserati Part - New (to order)
# 042
MPN: 10720124
NUT
-Applicable for F1 gearbox-
from £0.53
from £0.53
NUT Genuine Ferrari Part - New In stock
NUT Genuine Maserati Part - New (to order)
# 043
MPN: 12604274
WASHER
-Applicable for F1 gearbox-
from £0.54
from £0.54
This part replaces part number 12604271 - and 1 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 044
MPN: 201160
MOUNTING
-Applicable for F1 gearbox-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 045
MPN: 14358524
SCREW
-Applicable for F1 gearbox-
from £0.53
from £0.53
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New (to order)
# 046
MPN: 10519378
WASHER
-Applicable for F1 gearbox-
from £0.54
from £0.54
This part replaces part number 10519377 which we have in stock - and 2 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
SPLIT WASHER.D. 5.30-10 X 1 Genuine Maserati Part - New In stock
# 047
MPN: 206075
COMPLETE SENSOR KIT
-Applicable for F1 gearbox- -Applicable until depletion-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 047
MPN: 219340
COMPLETE SENSOR KIT
-Applicable for F1 gearbox- -Applicable after depletion of 206075-
from £293.48
from £293.48
COMPLETE SENSOR KIT Genuine Ferrari Part - New In stock
# 048
MPN: 14303324
SCREW
-Applicable for F1 gearbox-
from £0.53
from £0.53
This part replaces part number 014303324
SCREW Genuine Ferrari Part - New In stock
SOCKET HEAD SCREW M 4X 20 Genuine Maserati Part - New In stock
# 049
MPN: 10519224
WASHER
-Applicable for F1 gearbox-
from £0.54
from £0.54
This part replaces part number 10519201 which we have in stock
WASHER Genuine Ferrari Part - New In stock
SPLIT WASHER.D. 4.30- 9 X 0 Genuine Maserati Part - New In stock
# 050
MPN: 165567
PIN
-Applicable for F1 gearbox-
from £22.12
from £22.12
THRUST BEARING PIN Genuine Ferrari Part - New (to order)
PIN ON THRUST SUPPORT BUSHING Genuine Maserati Part - New (to order)
# 051
MPN: 165658
O-RING
-Applicable for F1 gearbox-
from £4.26
from £4.26
GASKET Genuine Ferrari Part - New In stock
O-RING I.D.2.57 C.D.1.7 Genuine Maserati Part - New (to order)
# 052
MPN: 14158570
PIN
-Applicable for F1 gearbox-
from £0.54
from £0.54
SPRING Genuine Ferrari Part - New In stock
ELASTIC PIN D.2X12 Genuine Maserati Part - New (to order)
# 053
MPN: 204385
SCREW
-Applicable for F1 gearbox-
from £5.10
from £5.10
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Ferrari Part - Used In stock
# 054
MPN: 11194379
WASHER
-Applicable for F1 gearbox-
from £0.53
from £0.53
This part replaces part number 11194377
WASHER Genuine Ferrari Part - New In stock
# 055
MPN: 241691
FILLER NECK SHIELD
-Applicable from MY 08- -Applicable from Ass. No. 74557- -Applicable for F1 gearbox-
from £67.00
from £67.00
BLOCK SHIELD Genuine Ferrari Part - New (to order)
# 056
MPN: 140605
O-RING
-Applicable from MY 08- -Applicable from Ass. No. 74557- -Applicable for F1 gearbox-
from £0.54
from £0.54
RING Genuine Ferrari Part - New In stock
O-RING D.8X1.5 Genuine Maserati Part - New (to order)
# 057
MPN: 203294
PRESSURE SENSOR
-Applicable from MY 08- -Applicable from Ass. No. 74557- -Applicable for F1 gearbox-
from £292.07
from £292.07
PRESSURE SENSOR Genuine Ferrari Part - New In stock
PRESSURE SENSOR Genuine Maserati Part - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
