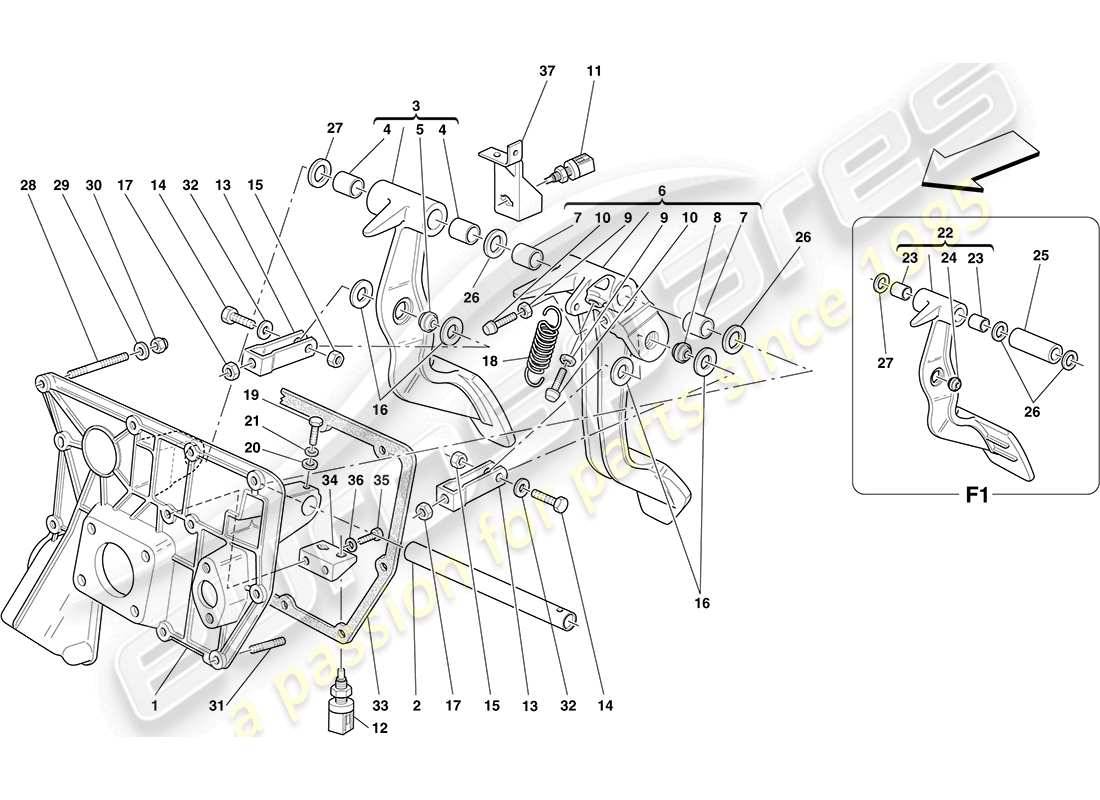

Ferrari F430 Coupe (RHD) PEDAL BOARD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 214215
PEDAL BOARD MOUNTING
-Applicable for GD-
from £242.10
from £242.10
# 002
MPN: 177120
PEDAL MOUNTING PIN
-Applicable for GD-
from £47.06
from £47.06
# 003
MPN: 177118
COMPLETE BRAKE PEDAL
-Applicable for GD- -Not for F1 gearbox-
from £362.26
from £362.26
# 004
MPN: 103163
SELF-LUBRICATING BUSHING
-Applicable for GD- -Not for F1 gearbox-
from £2.85
from £2.85
# 005
MPN: 176475
BALL-JOINT
-Applicable for GD- -Not for F1 gearbox-
from £102.72
from £102.72
# 006
MPN: 177119
COMPLETE CLUTCH PEDAL
-Applicable for GD- -Not for F1 gearbox-
from £555.80
from £555.80
# 007
MPN: 103163
SELF-LUBRICATING BUSHING
-Applicable for GD- -Not for F1 gearbox-
from £2.85
from £2.85
# 008
MPN: 176475
BALL-JOINT
-Applicable for GD- -Not for F1 gearbox-
from £102.72
from £102.72
# 009
MPN: 16102314
NUT
-Applicable for GD- -Not for F1 gearbox-
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 010
MPN: 187014
PEDAL ADJUSTER SCREW
-Applicable for GD- -Not for F1 gearbox-
from £23.81
from £23.81
This part replaces part number 144011 which we have in stock
# 011
MPN: 183433

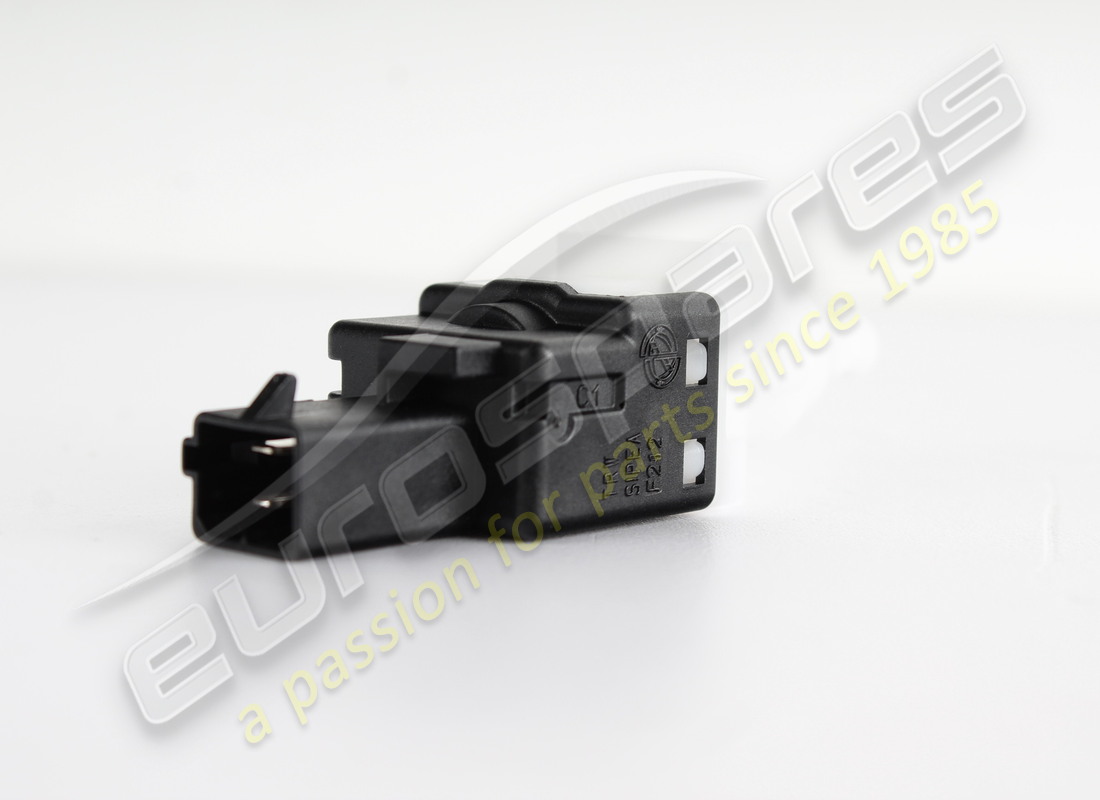

PUSHBUTTON SWITCH
-Applicable for mount 218766 ref. 37- -Applicable for GD-
Supersession
Supersession
# 011
MPN: 201957
PUSHBUTTON SWITCH
-Applicable for mount 219557 ref. 37- -Applicable for GD-
from £13.11
from £13.11
This part replaces part number 187869 - and 6 more. Click to view details
# 012
MPN: 133555
PUSHBUTTON SWITCH
-Applicable for GD- -Not for F1 gearbox-
from £18.60
from £18.60
# 013
MPN: 176471
FORK
-Standard- -Applicable for GD- -Not for F1 gearbox-
from £60.71
from £60.71
# 013
MPN: 176471
FORK
-Standard- -Applicable for GD- -Applicable for F1 gearbox-
from £60.71
from £60.71
# 013
MPN: 199754
FORK
-Optional- -Version with CCM brakes- -Applicable for GD- -Not for F1 gearbox-
from £48.08
from £48.08
# 013
MPN: 199754
FORK
-Optional- -Version with CCM brakes- -Applicable for GD- -Applicable for F1 gearbox-
from £48.08
from £48.08
# 014
MPN: 16043724
SCREW
-Applicable for GD- -Not for F1 gearbox-
from £0.71
from £0.71
This part replaces part number 16043721
# 014
MPN: 16043724
SCREW
-Applicable for GD- -Applicable for F1 gearbox-
from £0.71
from £0.71
This part replaces part number 16043721
# 015
MPN: 147985
NUT
-Applicable for GD- -Not for F1 gearbox-
from £0.54
from £0.54
# 015
MPN: 147985
NUT
-Applicable for GD- -Applicable for F1 gearbox-
from £0.54
from £0.54
# 016
MPN: 176522
PLASTIC WASHER
-Applicable for GD- -Not for F1 gearbox-
from £14.07
from £14.07
# 016
MPN: 176522
PLASTIC WASHER
-Applicable for GD- -Applicable for F1 gearbox-
from £14.07
from £14.07
# 017
MPN: 16102314
NUT
-Applicable for GD- -Not for F1 gearbox-
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 017
MPN: 16102314
NUT
-Applicable for GD- -Applicable for F1 gearbox-
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 018
MPN: 101305
PEDAL RETURN SPRING
-Applicable for GD- -Not for F1 gearbox-
from £5.43
from £5.43
This part replaces part number 660343
# 019
MPN: 10902424
SCREW
-Applicable for GD-
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 020
MPN: 10519424
WASHER
-Applicable for GD-
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 021
MPN: 127494
WASHER
-Applicable for GD-
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 022
MPN: 178511
COMPLETE BRAKE PEDAL
-Applicable for GD- -Applicable for F1 gearbox-
from £213.98
from £213.98
# 023
MPN: 103163
SELF-LUBRICATING BUSHING
-Applicable for GD- -Applicable for F1 gearbox-
from £2.85
from £2.85
# 024
MPN: 176475
BALL-JOINT
-Applicable for GD- -Applicable for F1 gearbox-
from £102.72
from £102.72
# 025
MPN: 178496
SHIM
-Applicable for GD- -Applicable for F1 gearbox-
from £6.08
from £6.08
# 026
MPN: 113836
WASHER
-Th. 1.4 mm- -Applicable for GD-
from £2.32
from £2.32
# 027
MPN: 106083
WASHER
-Th. 1 mm- -Applicable for GD-
from £0.71
from £0.71
# 027
MPN: 113833
WASHER
-Th. 1.1 mm- -Installed if necessary- -Applicable for GD-
from £1.85
from £1.85
# 027
MPN: 113834
WASHER
-Th. 1.2 mm- -Installed if necessary- -Applicable for GD-
from £2.07
from £2.07
# 027
MPN: 113835
WASHER
-Th. 1.3 mm- -Installed if necessary- -Applicable for GD-
from £1.85
from £1.85
# 027
MPN: 113836
WASHER
-Th. 1.4 mm- -Installed if necessary- -Applicable for GD-
from £2.32
from £2.32
# 028
MPN: 13517524
STUD BOLT
-Applicable for GD-
from £2.05
from £2.05
# 029
MPN: 12638524
WASHER
-Applicable for GD-
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 030
MPN: 104030
NUT
-Applicable for GD-
from £0.50
from £0.50
This part replaces part number 16104125
# 031
MPN: 13516924
STUD BOLT
-Applicable for GD-
from £1.25
from £1.25
This part replaces part number 13516921
# 032
MPN: 12601374
WASHER
-Applicable for GD-
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 033
MPN: 177131
PEDAL BOARD MOUNTING GASKET
-Applicable for GD-
from £9.25
from £9.25
# 034
MPN: 186401
PLATE
-Applicable for GD-
from £22.63
from £22.63
# 035
MPN: 16043224
SCREW
-Applicable for GD-
from £0.53
from £0.53
# 036
MPN: 106852
WASHER
-Applicable for GD-
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 037
MPN: 218766
SWITCH MOUNTING
-Applicable for switch 183433 ref. 11- -Applicable for GD-
from £72.97
from £72.97
# 037
MPN: 219557
SWITCH MOUNTING
-Applicable for switch 201957 ref. 11- -Applicable for GD-
from £60.21
from £60.21
