ferrari f430 coupe (rhd) brake system parts diagram

0037 - Brake System

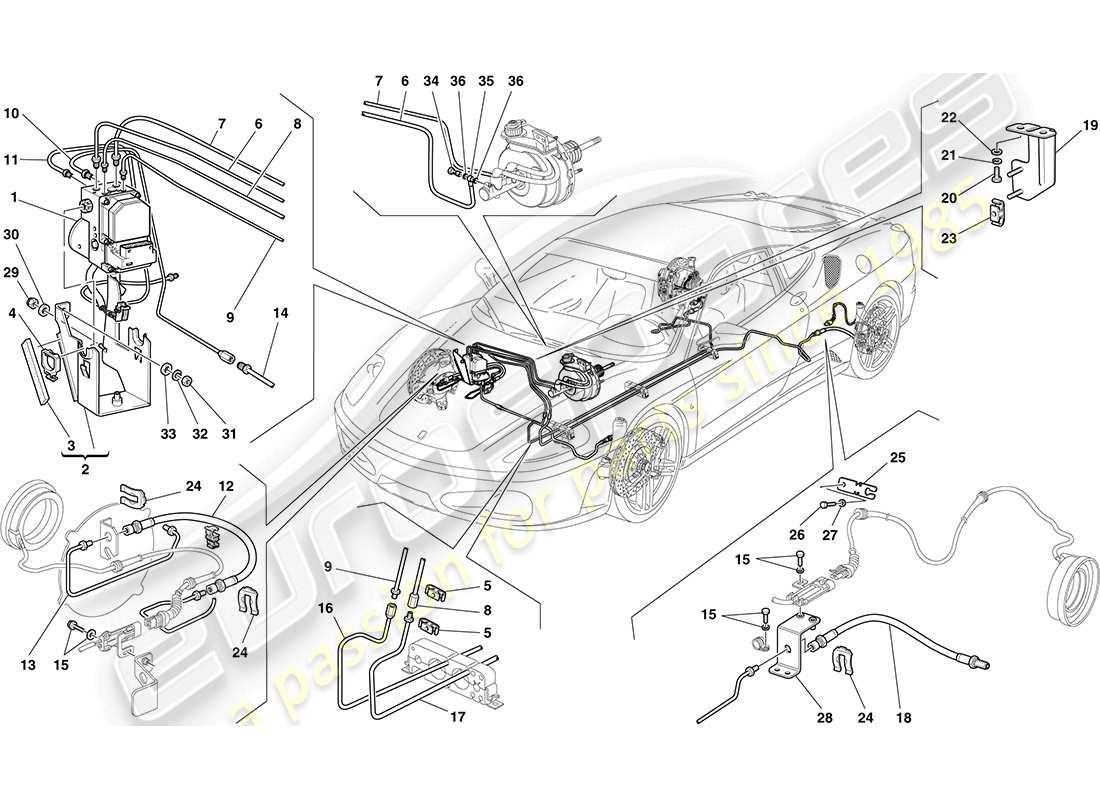

Ferrari F430 Coupe (RHD) BRAKE SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 194608
ABS/ASR HYDRAULIC UNIT/ECU
-Not for GD- -Applicable up to Ass. No. 61536-
from £2,948.51
from £2,948.51
ABS/ASR HYDRAULIC/ELECTRONIC Genuine Ferrari Part - New (to order)
# 001
MPN: 221252
ABS/ASR HYDRAULIC UNIT/ECU
-Not for GD- -Applicable from Ass. No. 61537-
from £3,393.26
from £3,393.26
ABS/ASR HYDRAULIC/ELECTRONIC ECU Genuine Ferrari Part - New (to order)
# 002
MPN: 20-36-03
ECU MOUNTING BRACKET
-Not for GD-
from £19.78
from £19.78
BRACKET Genuine Ferrari Part - New In stock
BRACKET Genuine Ferrari Part - Used In stock
# 003
MPN: 197149
VIBRATION DAMPER
-Not for GD-
from £0.71
from £0.71
ANTI VIBRATION PAD Genuine Ferrari Part - New (to order)
# 004
MPN: 193877
FASTENER CLIP
-Not for GD-
from £0.53
from £0.53
FIXING CLIP Genuine Ferrari Part - New In stock
SPRING Genuine Maserati Part - New (to order)
# 005
MPN: 169476
CLIP
-Not for GD-
from £1.61
from £1.61
SPRING Genuine Ferrari Part - New In stock
2-PIPE CLIP D.4.75 FOR PIN Genuine Maserati Part - New (to order)
# 006
MPN: 194602
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
-Standard- -Cast iron version- -Not for GD-
from £19.32
from £19.32
BRAKE PIPE FROM FRONT PUMP T Genuine Ferrari Part - New (to order)
# 006
MPN: 209904
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
-Version with CCM brakes- -Not for GD-
from £25.19
from £25.19
PIPE BRAKE Genuine Ferrari Part - New (to order)
# 007
MPN: 194601
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
-Standard- -Cast iron version- -Not for GD-
from £20.03
from £20.03
BRAKE PIPE FROM REAR PUMP TO Genuine Ferrari Part - New (to order)
# 007
MPN: 209906
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
-Version with CCM brakes- -Not for GD-
from £28.83
from £28.83
PIPE BRAKE Genuine Ferrari Part - New (to order)
# 008
MPN: 194603
PIPE FROM ECU TO LH INTERMEDIATE PIPE
-Not for GD-
from £26.82
from £26.82
PIPE FROM CONTROL STATION TO Genuine Ferrari Part - New In stock
# 009
MPN: 194604
PIPE FROM ECU TO RH INTERMEDIATE PIPE
-Not for GD-
from £25.64
from £25.64
PIPE FROM CONTROL STATION TO Genuine Ferrari Part - New In stock
# 010
MPN: 194605
PIPE FROM ECU TO INTERMEDIATE PIPE
-Not for GD-
from £27.92
from £27.92
PIPE FROM CONTROL STATION TO Genuine Ferrari Part - New (to order)
# 011
MPN: 194606
PIPE FROM ECU TO RH FRONT BRAKE PIPE
-Not for GD-
from £34.87
from £34.87
PIPE FROM CONTROL STATION TO Genuine Ferrari Part - New (to order)
# 012
MPN: 116373
FRONT FLEXIBLE TUBE
-Not for GD- -Applicable until depletion-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 012
MPN: 271711
FRONT FLEXIBLE HOSE
-Not for GD- -Applicable after depletion of 116373-
from £18.16
from £18.16
This part replaces part number 116373 - and 4 more. Click to view details
Genuine Ferrari Part (no longer available to order)
TUBO FLESSIBILE FRENI L.330 Genuine Ferrari Part - Used In stock
# 013
MPN: 173805
FRONT LH BRAKE PIPE
-Not for GD-
from £31.36
from £31.36
This part replaces part number 205294
PIPE FOR BRAKE Genuine Ferrari Part - New (to order)
# 013
MPN: 173806
FRONT RH BRAKE PIPE
-Not for GD-
from £31.36
from £31.36
This part replaces part number 205293
PIPE FOR BRAKE Genuine Ferrari Part - New (to order)
# 013
MPN: 200324
FRONT RH BRAKE PIPE
-Version with CCM brakes- -Not for GD-
from £21.69
from £21.69
PIPE TO RH FRONT BRAKE. Genuine Ferrari Part - New (to order)
# 013
MPN: 200325
FRONT LH BRAKE PIPE
-Version with CCM brakes- -Not for GD-
from £21.69
from £21.69
PIPE TO LH FRONT BRAKE. Genuine Ferrari Part - New (to order)
# 013
MPN: 205293
FRONT RH BRAKE PIPE
-Not for GD- -No longer supplied- -Replaced by 173806-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 013
MPN: 205294
FRONT LH BRAKE PIPE
-Not for GD- -No longer supplied- -Replaced by 173805-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 014
MPN: 205295
INTERMEDIATE PIPE
-Not for GD-
from £29.91
from £29.91
INTERMEDIATE PIPE Genuine Ferrari Part - New (to order)
# 015
MPN: 11625724
SCREW WITH WASHER
-Not for GD-
from £0.59
from £0.59
SCREW WITH WASHER Genuine Ferrari Part - New In stock
SCREW. Genuine Maserati Part - New In stock
# 016
MPN: 205093
PIPE TO REAR RH HOSE
-Not for GD-
from £130.40
from £130.40
BRAKE PIPE Genuine Ferrari Part - New (to order)
# 017
MPN: 205094
TUBE TO REAR LH HOSE
-Not for GD-
from £167.85
from £167.85
PIPE TO LH REAR HOSE Genuine Ferrari Part - New (to order)
# 018
MPN: 118100
REAR FLEXIBLE TUBE
-Not for GD- -Applicable until depletion-
from £50.79
from £50.79
RUBBER PIPE 325MM Genuine Ferrari Part - New In stock
# 018
MPN: 271712
HOSE
-Not for GD- -Applicable after depletion of 118100-
from £14.70
from £14.70
This part replaces part number 118100 which we have in stock
Genuine Ferrari Part (no longer available to order)
REAR BRAKE HOSE 325MM Eurospares Approved Part - New In stock
# 019
MPN: 207278
BRAKE PIPE MOUNTING BRACKET
-Not for GD-
from £10.59
from £10.59
BRAKES PIPES FIXING BRACKET Genuine Ferrari Part - New (to order)
# 020
MPN: 10902424
SCREW
-Not for GD-
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
SCREW Genuine Ferrari Part - New In stock
SCREW Genuine Maserati Part - New In stock
# 021
MPN: 127494
WASHER
-Not for GD-
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 022
MPN: 12644424
WASHER
-Not for GD-
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 023
MPN: 169476
CLIP
-Not for GD-
from £1.75
from £1.75
SPRING Genuine Ferrari Part - New In stock
2-PIPE CLIP D.4.75 FOR PIN Genuine Maserati Part - New (to order)
# 024
MPN: 116374
CLIP
-Not for GD-
from £1.16
from £1.16
CLIP Genuine Ferrari Part - New In stock
CLIP Genuine Maserati Part - New (to order)
# 025
MPN: 178938
CABLE MOUNTING
-Standard- -Cast iron version- -Not for GD-
from £18.28
from £18.28
This part replaces part number 179236
SUPPORT Genuine Ferrari Part - New (to order)
# 025
MPN: 216382
LH CABLE RETAINER
-Version with CCM brakes- -Not for GD-
from £39.77
from £39.77
LH SUPPORT FOR CABLE -OPTI Genuine Ferrari Part - New (to order)
# 025
MPN: 216383
RH CABLE RETAINER
-Version with CCM brakes- -Not for GD-
from £39.77
from £39.77
RH SUPPORT FOR CABLE -OPTI Genuine Ferrari Part - New (to order)
# 026
MPN: 10902024
SCREW
-Not for GD-
from £0.53
from £0.53
This part replaces part number 10902011 which we have in stock - and 2 more. Click to view details
SCREW Genuine Ferrari Part - New In stock
HEX HEAD SCREW M 6X 12 Genuine Maserati Part - New In stock
# 027
MPN: 12601274
WASHER
-Not for GD- -Applicable after depletion of 12605374-
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 027
MPN: 12605374
WASHER
-Not for GD- -Applicable until depletion-
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
Genuine Ferrari Part (no longer available to order)
WASHER Genuine Maserati Part - New (to order)
# 028
MPN: 185283
REAR MOUNTING
-Not for GD-
from £109.78
from £109.78
This part replaces part number 178939
SUPP. FLESS.FRENO E CAVO SEN Genuine Ferrari Part - New (to order)
# 029
MPN: 101139
NUT
-Not for GD-
from £0.54
from £0.54
This part replaces part number 16104425
NUT Genuine Ferrari Part - New In stock
NYLON STOP HEX.NUT M8X8X Genuine Maserati Part - New (to order)
# 030
MPN: 12638524
WASHER
-Not for GD-
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
WASHER Genuine Ferrari Part - New (to order)
WASHER FOR ABS/ASR HYDRAU Genuine Maserati Part - New (to order)
# 031
MPN: 16100814
NUT
-Not for GD-
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
Genuine Ferrari Part (no longer available to order)
NUT FOR REAR DIFFERENTIAL Genuine Maserati Part - New In stock
# 031
MPN: 177778
NUT
-Not for GD- -No longer supplied- -Replaced by 16100814-
from £1.04
from £1.04
This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
NUT Genuine Ferrari Part - New In stock
NUT Genuine Maserati Part - New (to order)
# 032
MPN: 127496
WASHER
-Not for GD-
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 033
MPN: 12638524
WASHER
-Not for GD- -No longer supplied- -Replaced by 12646724-
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
WASHER Genuine Ferrari Part - New (to order)
WASHER FOR ABS/ASR HYDRAU Genuine Maserati Part - New (to order)
# 033
MPN: 12646724
WASHER
-Not for GD-
from £0.54
from £0.54
This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 034
MPN: 10107225
PIPE UNION
-Not for GD-
from £6.09
from £6.09
UNION Genuine Ferrari Part - New (to order)
# 035
MPN: 10103919
CONNECTOR
-Not for GD- -No longer supplied- -Replaced by 249656-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 035
MPN: 249656
CONNECTOR
-Not for GD-
from £9.15
from £9.15
This part replaces part number 10103919
UNION Genuine Ferrari Part - New (to order)
# 036
MPN: 10261060
GASKET
-Not for GD-
from £0.53
from £0.53
GASKET Genuine Ferrari Part - New In stock
GASKET 12- 16X 1.5 Genuine Maserati Part - New In stock
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
