ferrari f430 coupe (rhd) brake system parts diagram

0038 - Brake System

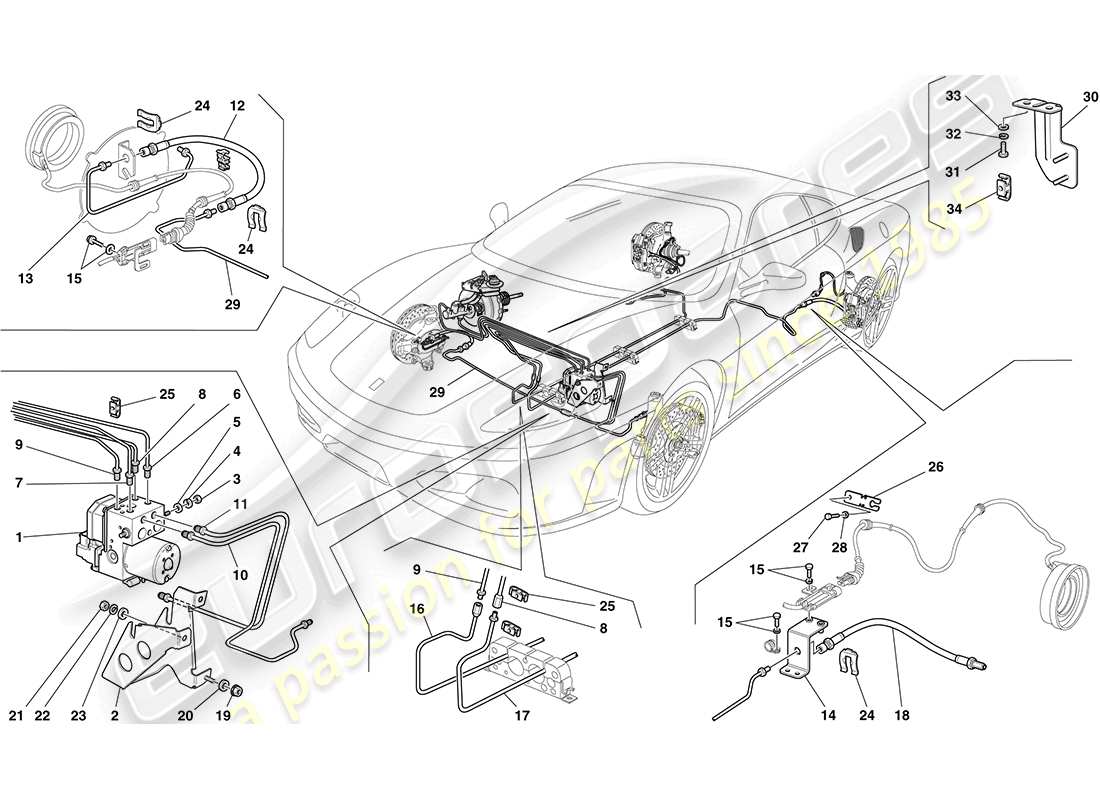

Ferrari F430 Coupe (RHD) BRAKE SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 194608
ABS/ASR HYDRAULIC UNIT/ECU
-Applicable for GD- -Applicable up to Ass. No. 61536-
from £3,095.93
from £3,095.93
# 001
MPN: 221252
ABS/ASR HYDRAULIC UNIT/ECU
-Applicable for GD- -Applicable from Ass. No. 61537-
from £3,350.66
from £3,350.66
# 002
MPN: 210930
ECU MOUNTING BRACKET
-Applicable for GD-
from £25.12
from £25.12
# 003
MPN: 16100814
NUT
-Applicable for GD-
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 004
MPN: 127496
WASHER
-Applicable for GD-
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 005
MPN: 12638524
WASHER
-Applicable for GD-
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 006
MPN: 209844
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
-Applicable for GD- -No longer supplied- -Replaced by 219886-
# 006
MPN: 219886
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
-Applicable for GD-
from £33.36
from £33.36
# 007
MPN: 209843
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
-Applicable for GD- -No longer supplied- -Replaced by 219885-
# 007
MPN: 219885
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
-Applicable for GD-
from £33.36
from £33.36
# 008
MPN: 209845
PIPE FROM ECU TO LH INTERMEDIATE PIPE
-Applicable for GD-
from £28.19
from £28.19
# 009
MPN: 209846
PIPE FROM ECU TO RH INTERMEDIATE PIPE
-Applicable for GD-
from £27.39
from £27.39
# 010
MPN: 209848
PIPE FROM ECU TO LH FRONT BRAKE PIPE
-Applicable for GD-
from £38.29
from £38.29
# 011
MPN: 209847
PIPE FROM ECU TO JUNCTION PIPE
-Applicable for GD-
from £29.85
from £29.85
# 012
MPN: 116373
FRONT FLEXIBLE TUBE
-Applicable for GD- -Applicable until depletion-
Supersession
Supersession
# 012
MPN: 271711
FRONT FLEXIBLE HOSE
-Applicable for GD- -Applicable after depletion of 116373-
from £18.16
from £18.16
This part replaces part number 116373 - and 4 more. Click to view details
# 013
MPN: 173805
FRONT LH BRAKE PIPE
-Applicable for GD-
from £31.36
from £31.36
This part replaces part number 205294
# 013
MPN: 173806
FRONT RH BRAKE PIPE
-Applicable for GD-
from £31.36
from £31.36
This part replaces part number 205293
# 013
MPN: 200324
FRONT RH BRAKE PIPE
-Version with CCM brakes- -Applicable for GD-
from £21.69
from £21.69
# 013
MPN: 200325
FRONT LH BRAKE PIPE
-Version with CCM brakes- -Applicable for GD-
from £21.69
from £21.69
# 014
MPN: 185283
REAR MOUNTING
-Applicable for GD-
from £108.41
from £108.41
This part replaces part number 178939
# 015
MPN: 11625724
SCREW WITH WASHER
-Applicable for GD-
from £0.58
from £0.58
# 016
MPN: 205093
PIPE TO REAR RH HOSE
-Applicable for GD-
from £130.40
from £130.40
# 017
MPN: 205094
TUBE TO REAR LH HOSE
-Applicable for GD-
from £165.74
from £165.74
# 018
MPN: 118100
REAR FLEXIBLE TUBE
-Applicable for GD- -Applicable until depletion-
from £50.79
from £50.79
# 018
MPN: 271712
HOSE
-Applicable for GD- -Applicable after depletion of 118100-
from £14.52
from £14.52
This part replaces part number 118100 which we have in stock
# 019
MPN: 101139
NUT
-Applicable for GD-
from £0.54
from £0.54
This part replaces part number 16104425
# 020
MPN: 12638524
WASHER
-Applicable for GD-
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 021
MPN: 16100814
NUT
-Applicable for GD-
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 022
MPN: 127496
WASHER
-Applicable for GD-
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 023
MPN: 12638524
WASHER
-Applicable for GD-
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 024
MPN: 116374
CLIP
-Applicable for GD-
from £1.14
from £1.14
# 025
MPN: 169476
CLIP
-Applicable for GD-
from £1.60
from £1.60
# 026
MPN: 178938
CABLE MOUNTING
-Applicable for GD-
from £18.04
from £18.04
This part replaces part number 179236
# 027
MPN: 10902024
SCREW
-Applicable for GD-
from £0.53
from £0.53
This part replaces part number 10902011 which we have in stock - and 2 more. Click to view details
# 028
MPN: 12601274
WASHER
-Applicable for GD- -Applicable after depletion of 12605374-
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 028
MPN: 12605374
WASHER
-Applicable for GD- -Applicable until depletion-
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 029
MPN: 209851
PIPE JUNCTION TO RH FRONT BREAK PIPE
-Applicable for GD-
from £35.13
from £35.13
# 030
MPN: 210896
BRAKE PIPE MOUNTING BRACKET
-Applicable for GD-
from £9.65
from £9.65
# 031
MPN: 10902424
SCREW
-Applicable for GD-
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 032
MPN: 127494
WASHER
-Applicable for GD-
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 033
MPN: 12644424
WASHER
-Applicable for GD-
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 034
MPN: 169476
CLIP
-Applicable for GD-
from £1.74
from £1.74
